Miles Bennett

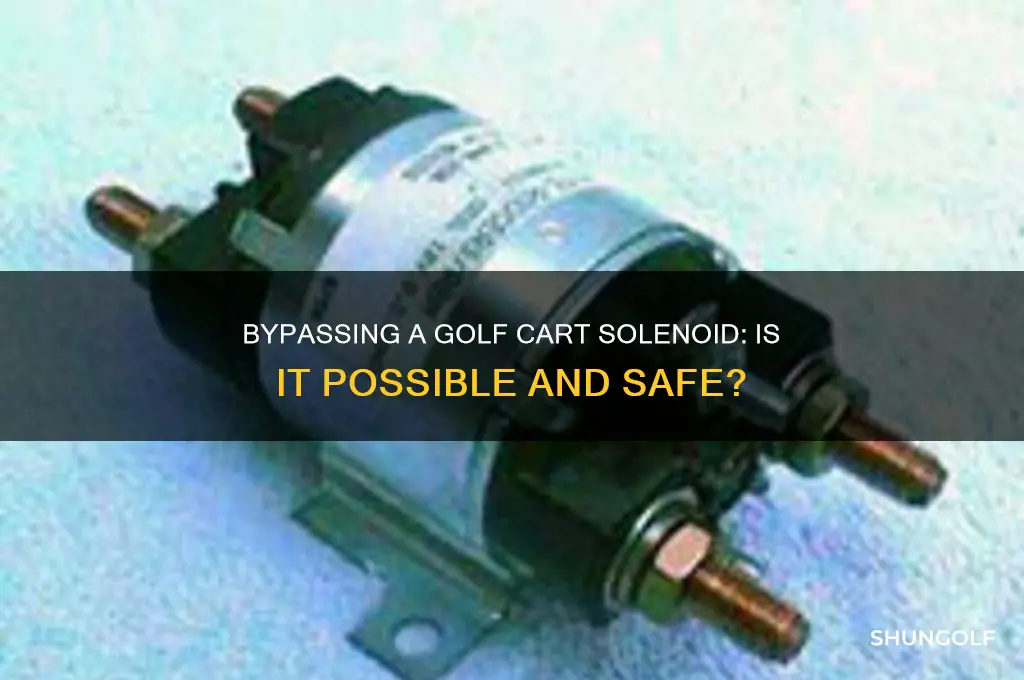

Bypassing a golf cart solenoid is a topic of interest for many golf cart owners and enthusiasts, particularly when troubleshooting electrical issues or seeking temporary solutions to keep their carts running. The solenoid acts as a critical relay switch, controlling the flow of electricity from the battery to the motor, and its failure can render the cart inoperable. While bypassing the solenoid can sometimes provide a quick fix, it is generally considered a temporary measure due to potential safety risks and long-term damage to the cart’s electrical system. Understanding the process, risks, and alternatives is essential for anyone considering this approach, as it requires careful consideration of the cart’s specific make and model, as well as basic electrical knowledge.
| Characteristics | Values |
|---|---|
| Purpose of Bypassing | Temporarily starting a golf cart with a faulty solenoid |
| Safety | Potentially dangerous if not done correctly; risk of electrical shock, short circuits, or damage to the cart |
| Legality | May void warranty and is generally not recommended by manufacturers |
| Tools Required | Screwdriver, wrench, jumper wires, and basic electrical knowledge |
| Procedure | Connect the large terminals of the solenoid directly with a jumper wire to engage the motor |
| Temporary Fix | Not a long-term solution; solenoid should be repaired or replaced |
| Common Issues | Solenoid failure due to corrosion, wear, or electrical faults |
| Alternative Solutions | Test and replace the solenoid, check battery voltage, inspect wiring connections |
| Precautions | Disconnect the battery before attempting any bypass; ensure proper insulation of wires |
| Professional Advice | Consult a certified technician for safe and effective repairs |
Explore related products
$22.99
What You'll Learn
Testing Solenoid Functionality
Before attempting to bypass a golf cart solenoid, it's crucial to determine whether the solenoid is actually faulty. A solenoid that appears to be malfunctioning might simply be suffering from a poor connection, corrosion, or a related issue. Testing the solenoid’s functionality ensures you don’t unnecessarily bypass a component that could be repaired or cleaned. Start by locating the solenoid, typically found between the battery and the motor, and inspect it for visible damage or loose wires. If the exterior looks intact, proceed with a systematic test to confirm its operational status.
To test the solenoid, begin by ensuring the golf cart is turned off and the key is removed to prevent accidental engagement. Use a multimeter set to the continuity or resistance mode to check the solenoid’s coil. Connect the multimeter leads to the solenoid’s terminals, which are usually marked as “B” (battery) and “S” (starter). A functional solenoid should show a resistance reading within the manufacturer’s specified range, often between 10 to 30 ohms. If the reading is infinite or zero, the coil is likely damaged. Next, activate the solenoid by applying 12 volts directly across its terminals using a test light or voltmeter. If the solenoid clicks and engages, it’s functioning correctly; if not, it’s likely faulty.
Another practical method involves bypassing the solenoid temporarily to isolate the issue. Disconnect the solenoid from the circuit and use a jumper wire to connect the battery directly to the motor terminal on the solenoid. If the motor spins freely, the solenoid is the problem. However, exercise caution: bypassing the solenoid in this manner is only for diagnostic purposes and should not be used as a long-term solution, as it removes critical safety and control functions. Always reconnect the solenoid or replace it after testing.
For a more comprehensive test, observe the solenoid’s behavior during normal operation. Turn the golf cart on and attempt to engage the throttle. Listen for the characteristic “click” of the solenoid engaging. If the cart fails to move but the solenoid clicks, the issue may lie elsewhere, such as with the motor or batteries. If there’s no click, use a screwdriver to manually bridge the solenoid’s terminals while the cart is off. If the motor engages, the solenoid’s internal contacts are likely worn or stuck, confirming the need for replacement.
In conclusion, testing solenoid functionality is a blend of observation, electrical testing, and diagnostic bypassing. By systematically checking resistance, applying voltage, and observing operational behavior, you can accurately determine whether the solenoid is faulty. This approach not only saves time and resources but also ensures you address the root cause of the issue rather than merely treating symptoms. Always prioritize safety and consult the golf cart’s manual for model-specific guidance.
Legal Age Limits for Driving Golf Carts: What You Need to Know
You may want to see also
Explore related products
Wiring Alternatives to Bypass
Bypassing a golf cart solenoid can be a practical solution when the solenoid fails, but it’s crucial to understand the wiring alternatives available. One common method involves using a jumper wire to connect the battery directly to the motor, effectively bypassing the solenoid. This approach is straightforward but should only be used temporarily, as it eliminates the solenoid’s safety and control functions. For instance, a 12-gauge wire can be used for most golf carts, ensuring it can handle the current without overheating. Always disconnect the battery before attempting this to avoid short circuits.
Another wiring alternative is installing a manual bypass switch, which allows you to engage the solenoid’s function manually. This method requires connecting a toggle switch between the battery and the motor, with the solenoid removed from the circuit. While more complex than a simple jumper wire, it offers better control and safety. Ensure the switch is rated for the golf cart’s amperage, typically 30–50 amps, depending on the model. This setup is ideal for troubleshooting or as a temporary fix while waiting for a replacement solenoid.
For those seeking a more permanent solution, rewiring the circuit to include a relay can be effective. A relay acts as a secondary switch, controlled by the solenoid’s signal, and can handle higher currents without overheating. To implement this, connect the relay’s coil to the solenoid’s control circuit and the relay’s contacts to the motor. This method retains the solenoid’s safety features while bypassing its mechanical limitations. However, it requires a basic understanding of electrical circuits and should be done with caution to avoid damaging the golf cart’s electrical system.
Comparatively, each wiring alternative has its pros and cons. Jumper wires are quick but risky, manual switches offer control but require more effort, and relays provide a robust solution but are technically demanding. The choice depends on your technical skill, the urgency of the repair, and whether you’re aiming for a temporary fix or a long-term solution. Always prioritize safety by using insulated tools, wearing gloves, and double-checking connections before reapplying power.
In conclusion, bypassing a golf cart solenoid through wiring alternatives is feasible but requires careful consideration. Whether you opt for a jumper wire, manual switch, or relay, ensure the method aligns with your needs and skill level. Temporary fixes can get you back on the course quickly, but permanent solutions like relays offer reliability and safety. Always consult a professional if you’re unsure, as improper wiring can lead to costly damage or safety hazards.
Is Your Golf Cart Street Legal in Louisiana? Find Out Here
You may want to see also
Explore related products
Safety Risks of Bypassing
Bypassing a golf cart solenoid might seem like a quick fix to get your cart moving again, but it’s a decision fraught with safety risks. The solenoid acts as a critical switch, controlling the flow of electricity from the battery to the motor. When bypassed, this safety mechanism is eliminated, leaving the system vulnerable to uncontrolled power surges. Without the solenoid’s protective function, the risk of electrical fires increases significantly, especially if the wiring or connections are compromised. This isn’t just a theoretical concern—reports from golf cart forums and repair shops highlight instances where bypassed solenoids led to battery overheating and even small fires.
Consider the mechanical hazards as well. The solenoid also ensures smooth engagement of the motor, preventing sudden jolts or uncontrolled acceleration. Bypassing it can cause the motor to engage abruptly, leading to jerky movements that could throw passengers off balance. For older adults or children, who are more susceptible to injuries from falls, this poses a serious risk. Even on flat terrain, the unpredictability of a bypassed system can turn a routine ride into a dangerous situation. Manufacturers design solenoids for a reason: to protect both the cart and its occupants.
From a maintenance perspective, bypassing the solenoid can accelerate wear and tear on other components. The increased electrical load can strain the motor, battery, and wiring, leading to premature failure. Over time, this not only increases repair costs but also creates additional safety hazards as worn parts become more prone to malfunction. For example, a weakened battery connection could spark, or a stressed motor might overheat during prolonged use. These issues are compounded if the bypass is done incorrectly, which is a common risk for DIY enthusiasts without specialized knowledge.
Finally, bypassing the solenoid voids most warranties and violates safety standards set by organizations like the National Electrical Code (NEC). This isn’t just a legal technicality—it’s a red flag for insurers and inspectors, who may refuse coverage or certification for modified carts. In commercial settings, such as golf courses or resorts, using a bypassed cart could lead to liability issues if an accident occurs. The temporary convenience of bypassing the solenoid simply isn’t worth the long-term risks to safety, finances, and compliance. Always consult a certified technician to diagnose and repair solenoid issues properly.
Understanding Golf Cart Mechanics: Power, Steering, and Efficiency Explained
You may want to see also
Explore related products
Temporary vs. Permanent Fixes
Bypassing a golf cart solenoid can be a quick fix, but it’s crucial to distinguish between temporary and permanent solutions. A temporary bypass involves directly connecting the solenoid’s input and output terminals with a jumper wire or heavy-duty cable, effectively bypassing the solenoid’s function. This method is straightforward: disconnect the solenoid, identify the large gauge wires (usually red and black), and securely join them with a wire rated for the cart’s amperage (typically 20–30 amps). While this gets the cart moving, it’s a band-aid solution, as it eliminates the solenoid’s role in controlling power flow, potentially overloading the system or causing safety hazards.
Permanent fixes, on the other hand, address the root cause. A common issue is a faulty solenoid, which can be diagnosed by testing for continuity with a multimeter (set to ohms) across the main terminals. If the solenoid fails the test, replacing it is the most reliable solution. New solenoids typically cost $30–$60 and require basic tools like wrenches and screwdrivers for installation. Another permanent fix involves upgrading to a heavier-duty solenoid or adding a relay to handle higher amperage, especially in modified carts with accessories like lift kits or high-power motors.
Choosing between temporary and permanent fixes depends on context. A temporary bypass is ideal for emergencies, such as getting the cart back to the garage or finishing a round of golf. However, it’s not suitable for long-term use due to the risk of battery drain, overheating, or damage to the motor. Permanent fixes, while requiring more time and investment, ensure safety, reliability, and longevity, making them the smarter choice for daily drivers or carts used in commercial settings.
For DIY enthusiasts, understanding the trade-offs is key. A temporary bypass is simple but risky; a permanent fix demands more skill and resources but offers peace of mind. Always prioritize safety: wear insulated gloves, disconnect the battery before working on electrical systems, and double-check connections to avoid shorts. Whether you opt for a quick workaround or a lasting repair, knowing the difference empowers you to make an informed decision tailored to your needs and the cart’s condition.
How to Determine Your E-Z-GO Golf Cart's Age Without a Mark
You may want to see also
Explore related products
Tools Needed for Bypass
Bypassing a golf cart solenoid requires a precise set of tools to ensure safety and effectiveness. The primary tool you’ll need is a multimeter, which is essential for testing voltage and continuity in the electrical system. Without it, you risk misdiagnosing the issue or causing further damage. A set of wrenches or sockets is also crucial for removing the solenoid and accessing the wiring. Additionally, electrical tape and wire connectors are necessary for creating a secure bypass connection. These tools are not optional—they are the foundation of a successful bypass.
While the above tools are fundamental, the type of wire you use matters significantly. Opt for 12-gauge stranded copper wire, as it can handle the current load without overheating. Avoid solid core wire, which is less flexible and prone to breaking under vibration. A wire stripper is another critical tool, ensuring clean cuts without damaging the wire’s integrity. If you’re working on a newer golf cart with advanced electronics, consider a circuit tester to avoid short circuits. These specifics may seem minor, but they prevent costly mistakes.
For those attempting this for the first time, a step-by-step guide is invaluable. Start by disconnecting the battery to prevent shocks. Use the multimeter to confirm no power is flowing. Next, locate the solenoid and remove it using the appropriate wrench or socket. Strip the ends of your 12-gauge wire and connect it directly from the battery’s positive terminal to the motor’s input terminal, bypassing the solenoid. Secure all connections with electrical tape and wire connectors. Test the cart in a controlled environment before full use. This method is temporary and should only be used for diagnostics or emergencies.
Caution is paramount when bypassing a solenoid. Always wear insulated gloves to protect against electrical shocks. Avoid using tools with metal handles, as they can conduct electricity. If you’re unsure about any step, consult a professional. Bypassing the solenoid long-term can lead to battery drain or motor damage, so it’s not a permanent solution. Treat this as a troubleshooting technique, not a fix. With the right tools and precautions, you can safely bypass a solenoid, but always prioritize safety and proper repair.
Golf Cart Length: Understanding Standard Dimensions in Feet
You may want to see also
Frequently asked questions
Yes, you can temporarily bypass a golf cart solenoid by connecting the large cables directly to the battery and motor terminals, but this is not recommended for long-term use as it bypasses safety features.
Someone might bypass a golf cart solenoid to diagnose whether the solenoid is the cause of electrical issues or to temporarily operate the cart if the solenoid fails.
Bypassing a golf cart solenoid is not safe for long-term use as it removes the solenoid's role in controlling power flow, which can lead to overheating, battery drain, or other electrical problems.
To bypass a golf cart solenoid, you typically need a wrench or socket set to remove the solenoid, and possibly jumper wires or cables to connect the battery directly to the motor.
Yes, bypassing a solenoid is only a temporary fix. It’s important to replace the faulty solenoid as soon as possible to restore proper functionality and safety to the golf cart.
