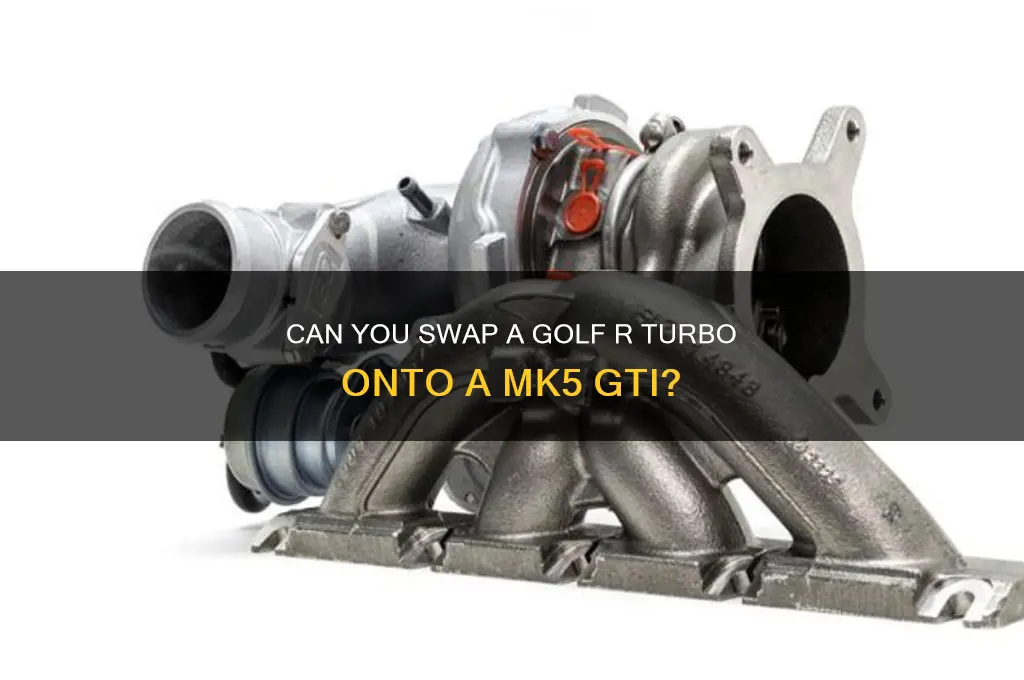

The question of whether a Golf R turbo fits on a Mk5 GTI is a common one among Volkswagen enthusiasts looking to upgrade their vehicle's performance. The Mk5 GTI, known for its balance of practicality and sportiness, can benefit significantly from a turbo upgrade, and the Golf R turbo is often considered due to its reputation for power and reliability. However, compatibility depends on several factors, including engine type, mounting points, and supporting modifications such as intercoolers, exhaust systems, and engine management tuning. While some components may require custom fabrication or additional parts, many enthusiasts have successfully adapted the Golf R turbo to the Mk5 GTI platform, achieving substantial horsepower gains. Researching specific model years and consulting with experienced mechanics or forums can provide valuable insights into the feasibility and steps required for this upgrade.
| Characteristics | Values |
|---|---|
| Turbo Compatibility | The Golf R turbo (from Mk6/Mk7 Golf R) does not directly fit on a Mk5 GTI without modifications. |
| Turbo Type (Mk5 GTI) | K03 turbocharger (stock). |
| Turbo Type (Golf R) | K04 turbocharger (larger and more powerful). |
| Bolt Pattern Compatibility | Different bolt patterns between Mk5 GTI and Golf R turbos. |
| Manifold Compatibility | Golf R turbo manifold does not bolt directly onto Mk5 GTI engine. |
| Oil/Water Line Compatibility | Requires custom oil and water lines for proper fitment. |
| ECU Tuning Requirement | Extensive ECU tuning needed to accommodate the larger turbo. |
| Intercooler Compatibility | Golf R turbo may require a larger intercooler setup. |
| Exhaust System Compatibility | Custom exhaust work is necessary for proper fitment. |
| Cost of Conversion | High (due to custom parts, labor, and tuning). |
| Performance Gain Potential | Significant (if properly executed, can increase power by 100+ HP). |
| Feasibility | Possible but not straightforward; requires expertise and investment. |
| Common Alternative | Upgrading to a K04 turbo specifically designed for Mk5 GTI (e.g., K04-064). |
Explore related products
What You'll Learn
- Turbo Compatibility: Check if Golf R turbo fits MK5 GTI's engine bay and mounting points
- Exhaust System: Verify if the Golf R turbo exhaust aligns with MK5 GTI's setup
- Fuel System: Assess if MK5 GTI's fuel system supports Golf R turbo's requirements
- Intake Manifold: Confirm compatibility of Golf R turbo intake with MK5 GTI's manifold
- ECU Tuning: Determine if MK5 GTI's ECU can be tuned for Golf R turbo
Turbo Compatibility: Check if Golf R turbo fits MK5 GTI's engine bay and mounting points
When considering upgrading a MK5 GTI with a Golf R turbo, the first step is to assess turbo compatibility, specifically focusing on whether the Golf R turbo will fit within the MK5 GTI's engine bay and align with its mounting points. The MK5 GTI and Golf R share the same EA113 engine platform, which simplifies compatibility to some extent. However, the Golf R turbo is larger and more powerful, requiring careful evaluation of physical fitment and mounting feasibility. Start by comparing the dimensions of the Golf R turbo to the available space in the MK5 GTI’s engine bay, ensuring there’s enough clearance for hoses, intercooler piping, and other components.
Next, examine the mounting points on both the Golf R turbo and the MK5 GTI’s engine block. While the engines share a common architecture, the Golf R turbo may have different mounting brackets or require custom adapters. Measure the bolt patterns and compare them to the MK5 GTI’s stock turbo mounting points. If they don’t align, you may need fabrication or aftermarket mounting kits specifically designed for this swap. Additionally, consider the orientation of the turbo and whether it will interfere with other engine components, such as the exhaust manifold or intake system.
Another critical aspect of turbo compatibility is the oil and coolant lines. The Golf R turbo may have different inlet and outlet locations compared to the MK5 GTI’s stock turbo. Ensure that the oil and coolant lines can be rerouted or adapted to fit the new turbo without causing leaks or restrictions. Aftermarket solutions, such as custom oil feed and return lines, may be necessary to achieve a proper fit. It’s also important to verify that the oil drain on the Golf R turbo aligns with the MK5 GTI’s oil pan.
The intake and exhaust systems also play a significant role in determining turbo compatibility. The Golf R turbo may require a different exhaust manifold or downpipe to fit the MK5 GTI’s engine bay. Measure the clearance between the turbo and surrounding components, such as the firewall or suspension parts, to avoid interference. For the intake side, ensure that the compressor housing aligns with the MK5 GTI’s intercooler piping and air filter setup. Custom fabrication or aftermarket parts may be needed to achieve a seamless fit.
Finally, consider the electrical and ECU compatibility when assessing turbo compatibility. The Golf R turbo may have different sensor placements or require additional wiring for proper operation. Ensure that the MK5 GTI’s ECU can support the larger turbo, or plan for a tune or standalone ECU to manage the increased boost and power output. While the physical fitment is crucial, the electronic integration is equally important to ensure the turbo functions optimally and safely within the MK5 GTI’s engine bay.
In summary, checking turbo compatibility for a Golf R turbo on a MK5 GTI involves meticulous measurements of the engine bay, mounting points, oil and coolant lines, intake and exhaust systems, and electrical components. While the shared EA113 platform simplifies some aspects, custom fabrication or aftermarket parts may be necessary to achieve a proper fit. Thorough research and planning will ensure a successful turbo upgrade that maximizes performance without compromising reliability.
Finding a Golf League: Where to Start
You may want to see also
Explore related products
Exhaust System: Verify if the Golf R turbo exhaust aligns with MK5 GTI's setup
When considering whether a Golf R turbo exhaust fits on a MK5 GTI, the first step is to examine the exhaust system compatibility. The MK5 GTI and the Golf R, despite sharing some platform similarities, have distinct exhaust configurations due to differences in engine design and performance goals. The Golf R typically features a more robust exhaust system to handle the increased power output from its turbocharged engine. To verify if the Golf R turbo exhaust aligns with the MK5 GTI’s setup, start by comparing the exhaust manifold and downpipe designs. The MK5 GTI’s 2.0T FSI or TFSI engine may have a different flange pattern or mounting points compared to the Golf R’s exhaust manifold, which could require custom fabrication or adapters for a proper fit.
Next, assess the diameter and routing of the exhaust pipes. The Golf R’s exhaust system is often larger in diameter to accommodate higher exhaust flow rates, which may not align directly with the MK5 GTI’s stock exhaust piping. Measure the diameter of both systems and compare the bends and routing to ensure compatibility. If the Golf R exhaust pipes are significantly larger or follow a different path, modifications to the MK5 GTI’s underbody or exhaust hangers may be necessary. Additionally, check for clearance issues with other components such as the subframe, heat shields, or suspension parts.
The catalytic converter and resonator setup is another critical area to inspect. The Golf R’s exhaust system may feature a high-flow catalytic converter or a different arrangement of resonators to optimize performance. The MK5 GTI’s stock exhaust might have a more restrictive catalytic converter or a distinct resonator placement. Swapping the Golf R exhaust onto the MK5 GTI could require replacing or modifying these components to ensure proper fitment and compliance with emissions regulations, depending on your location.
Finally, consider the exhaust tips and rear bumper compatibility. The Golf R often has dual or quad exhaust tips, while the MK5 GTI typically has a dual exhaust setup. If the Golf R exhaust features a different tip configuration, you may need to modify the MK5 GTI’s rear bumper or choose an exhaust system with tips that match the GTI’s design. Ensure that the exhaust tips align correctly with the bumper cutouts to maintain a clean and factory-like appearance.
In summary, verifying if the Golf R turbo exhaust aligns with the MK5 GTI’s setup requires a detailed comparison of the exhaust manifold, downpipe, piping diameter, routing, catalytic converter, and rear exhaust tips. While some components may be directly compatible, others may necessitate custom fabrication, adapters, or modifications to achieve a proper fit. Always consider legal and safety implications, especially regarding emissions compliance, when undertaking such a swap. Consulting with a professional mechanic or exhaust specialist can provide valuable guidance tailored to your specific vehicles.
Understanding 'Under Water': Golf's Tricky UW Term
You may want to see also
Explore related products
Fuel System: Assess if MK5 GTI's fuel system supports Golf R turbo's requirements
When assessing whether the MK5 GTI's fuel system can support the requirements of a Golf R turbo, it's essential to consider the differences in fuel delivery and capacity between the two models. The MK5 GTI, equipped with a 2.0T FSI or TSI engine, typically features a fuel system designed for its stock power output, which ranges between 197 to 227 hp depending on the region and model year. In contrast, the Golf R turbo, particularly the Mk6 variant, produces significantly more power, often around 265 hp, thanks to its more aggressive turbocharger and tuning. This increased power demands a higher fuel flow rate, which may exceed the capabilities of the MK5 GTI's stock fuel system.
The fuel injectors are a critical component in this assessment. The MK5 GTI usually comes with fuel injectors sized for its stock engine output, often in the range of 240 to 300 cc/min. The Golf R turbo, however, requires larger injectors to meet the increased fuel demands of the more powerful engine. Upgrading the MK5 GTI's injectors to a higher flow rate, such as 440 to 550 cc/min, is typically necessary to support the Golf R turbo's requirements. Additionally, the fuel pump must be evaluated; the stock MK5 GTI fuel pump may not provide sufficient volume or pressure for the Golf R turbo's needs, necessitating an upgrade to a high-performance fuel pump.
Another aspect to consider is the fuel rail and pressure regulation. The MK5 GTI's fuel rail and regulator are designed for its stock fuel pressure, which may not be adequate for the Golf R turbo's higher fuel demands. Upgrading to a higher-capacity fuel rail and a fuel pressure regulator capable of handling increased pressure is often required. This ensures consistent fuel delivery under the higher loads imposed by the Golf R turbo. Without these upgrades, the engine may experience fuel starvation, leading to poor performance, misfires, or even damage.
The fuel lines and filters should also be inspected. The MK5 GTI's stock fuel lines and filters may not be sufficient for the increased flow rates required by the Golf R turbo. Upgrading to larger diameter fuel lines and a high-flow fuel filter can help ensure that the fuel system can deliver the necessary volume without restriction. This is particularly important in turbocharged applications, where consistent fuel delivery is critical for maintaining engine performance and reliability.
Lastly, tuning and engine management play a vital role in integrating the Golf R turbo with the MK5 GTI's fuel system. A proper tune will optimize fuel maps, injector timing, and boost pressure to match the upgraded fuel system components. Without a professional tune, even the best fuel system upgrades may not perform as expected. Therefore, investing in a reputable tuning solution is essential to ensure that the MK5 GTI's fuel system can fully support the Golf R turbo's requirements, providing both performance and reliability.
Golf Shirt Care: Removing Stains and Odors
You may want to see also
Explore related products
Intake Manifold: Confirm compatibility of Golf R turbo intake with MK5 GTI's manifold
When considering whether a Golf R turbo intake manifold fits on a MK5 GTI, it's essential to first understand the differences in engine architecture between the two models. The MK5 GTI typically comes equipped with a 2.0T FSI or TSI engine, while the Golf R features a more powerful turbocharged engine. The intake manifold plays a critical role in the engine's performance, as it distributes air to the cylinders. To confirm compatibility, start by comparing the bolt patterns and mounting points of the Golf R turbo intake manifold with those of the MK5 GTI's stock manifold. Ensure that the bolt holes align perfectly, as any mismatch could lead to installation issues or leaks.
Next, examine the throttle body and plenum design of both manifolds. The Golf R turbo intake manifold may have a larger plenum or a differently sized throttle body to accommodate the increased airflow demands of the turbo engine. If the MK5 GTI's throttle body or plenum is significantly smaller, you may need to modify or adapt these components to ensure proper fitment. Additionally, check the intake runners' length and diameter, as these can affect the engine's power delivery and torque characteristics. Compatibility may require custom fabrication or the use of adapter plates if the dimensions differ.
Material and construction are another important factor to consider. The Golf R turbo intake manifold is likely designed to handle higher boost pressures and temperatures compared to the MK5 GTI's stock manifold. Ensure that the material (e.g., aluminum or plastic) and overall construction of the Golf R manifold are suitable for the MK5 GTI's engine bay environment and performance goals. If the manifold is made of a different material, assess whether it can withstand the operating conditions of the MK5 GTI's engine.
Before finalizing the compatibility check, consult available aftermarket solutions or forums where MK5 GTI and Golf R enthusiasts discuss such upgrades. There may be specific adapter kits or known workarounds to make the Golf R turbo intake manifold fit seamlessly. Additionally, verify if any modifications to the engine's tuning or software are necessary to optimize performance with the new manifold. Proper tuning can help ensure that the engine runs efficiently and safely with the upgraded intake manifold.
Lastly, consider the legal and warranty implications of swapping the intake manifold. Modifying the intake system may void the MK5 GTI's warranty or run afoul of local emissions regulations. Always research and comply with relevant laws and guidelines before proceeding with the installation. By thoroughly confirming compatibility and addressing potential challenges, you can successfully integrate a Golf R turbo intake manifold into your MK5 GTI for enhanced performance.
Mastering Backspin in Golf: Enhance Control, Distance, and Accuracy
You may want to see also
Explore related products
ECU Tuning: Determine if MK5 GTI's ECU can be tuned for Golf R turbo
When considering whether a Golf R turbo can fit on a MK5 GTI, one of the critical aspects to evaluate is the compatibility and tunability of the MK5 GTI's Engine Control Unit (ECU). The ECU is the brain of the engine, managing fuel injection, ignition timing, and other critical parameters. For a successful turbo upgrade, the ECU must be capable of supporting the increased demands of a turbocharger, such as higher boost pressures and fuel requirements. The MK5 GTI, equipped with a 2.0T FSI or TSI engine, shares some architectural similarities with the Golf R, but the ECU tuning requirements differ significantly.
The first step in determining if the MK5 GTI's ECU can be tuned for a Golf R turbo is to assess the hardware and software capabilities of the stock ECU. The MK5 GTI typically comes with either the Bosch MED9 or Siemens Simos PCR 2.1 ECU, depending on the model year and region. These ECUs have limited capabilities for handling high-boost applications out of the box. However, aftermarket ECU tuning solutions, such as those offered by companies like APR, COBB Tuning, or Eurodyne, can re-map the ECU to accommodate the increased performance demands of a turbocharger. These tunes often include adjustments for fuel tables, ignition timing, and boost control to ensure safe and efficient operation.
Another crucial factor is the compatibility of the MK5 GTI's engine management system with the Golf R turbo's specific requirements. The Golf R turbo operates at higher boost levels and requires more precise control over air-fuel ratios and ignition timing. While the MK5 GTI's ECU can be tuned to handle these demands, it may require additional hardware upgrades, such as larger injectors, a better fuel pump, and an upgraded intake and exhaust system. These modifications ensure that the engine can deliver the necessary airflow and fuel to support the turbocharger's performance.
Furthermore, the process of tuning the MK5 GTI's ECU for a Golf R turbo involves not just software adjustments but also careful monitoring and data logging to ensure optimal performance and reliability. Tuners often use tools like VAG-COM or other diagnostic software to read and modify ECU parameters. It’s essential to work with experienced tuners who understand the intricacies of both the MK5 GTI and Golf R platforms to avoid issues like detonation, overheating, or premature engine wear. Proper tuning also ensures that the vehicle remains compliant with emissions regulations, which can vary by region.
In conclusion, while the MK5 GTI's ECU can be tuned to support a Golf R turbo, the process requires careful planning, compatible hardware upgrades, and professional tuning expertise. The stock ECU has limitations, but aftermarket solutions can unlock its potential to handle the increased demands of a turbocharger. By addressing both software and hardware aspects, MK5 GTI owners can successfully upgrade to a Golf R turbo, achieving significant performance gains while maintaining reliability and drivability. Always consult with reputable tuners and ensure that all modifications comply with local laws and regulations.
Understanding Your Golf Handicap: A Beginner's Guide to Calculation and Improvement
You may want to see also
Frequently asked questions
No, a Golf R turbo does not fit directly onto a Mk5 GTI without modifications. The Golf R turbo is designed for a different engine and platform, so you’ll need adapter plates, custom piping, and possibly ECU tuning to make it work.
Yes, you can use a Golf R turbo to upgrade your Mk5 GTI’s performance, but it requires significant modifications. This includes upgrading the intake, exhaust, fuel system, and tuning the ECU to handle the increased boost and power.
Common challenges include fitting the turbo due to differences in mounting points, ensuring proper oil and coolant lines, and addressing compatibility issues with the exhaust and intake systems. Additionally, the ECU will need to be tuned to prevent engine damage and optimize performance.
