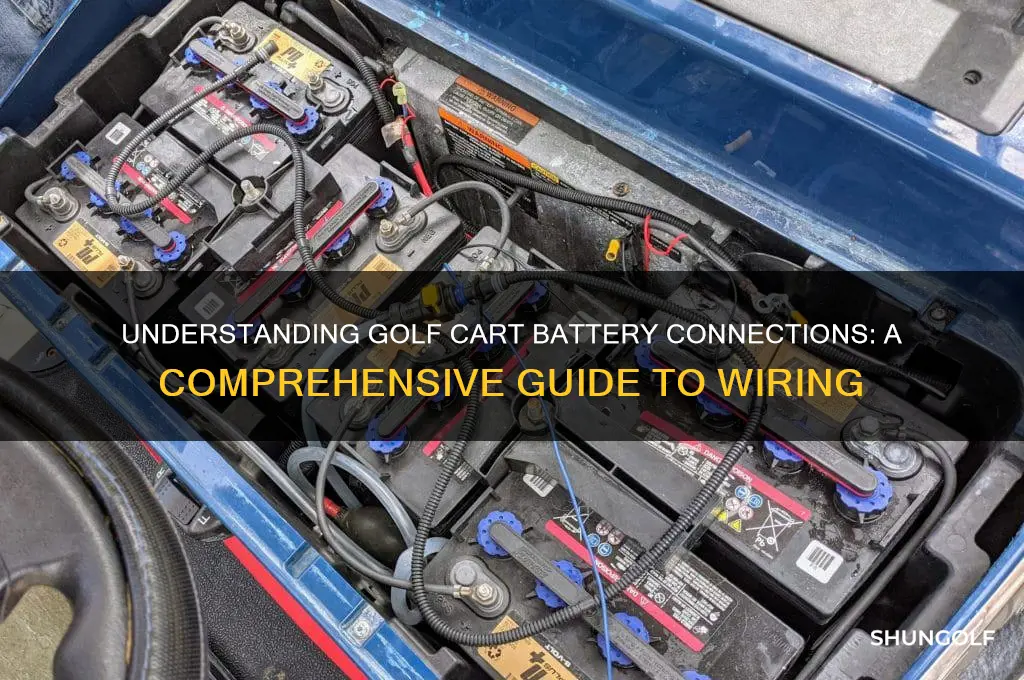

Golf cart batteries are typically connected in a series-parallel configuration to achieve the desired voltage and capacity required for optimal performance. Most golf carts use a 36-volt or 48-volt system, which is achieved by connecting six 6-volt batteries in series for a 36-volt system or eight 6-volt batteries for a 48-volt system. In a series connection, the positive terminal of one battery is connected to the negative terminal of the next, increasing the overall voltage while maintaining the same capacity. Additionally, batteries can be connected in parallel to increase capacity, where the positive terminals of all batteries are connected together and the negative terminals are connected together, maintaining the same voltage but increasing the overall amp-hour rating. Proper connection and maintenance of these batteries are crucial to ensure the golf cart operates efficiently and safely.
| Characteristics | Values |
|---|---|
| Connection Type | Series and Parallel |
| Series Connection | Connects positive terminal of one battery to negative terminal of the next. Increases voltage while keeping amperage constant. |
| Parallel Connection | Connects all positive terminals together and all negative terminals together. Increases amperage while keeping voltage constant. |
| Typical Golf Cart Voltage | 36V or 48V |
| Number of Batteries (36V) | 6 x 6V batteries in series |
| Number of Batteries (48V) | 8 x 6V batteries in series, or 4 x 12V batteries in series |
| Battery Cable Gauge | Typically 4 or 6 AWG for high current capacity |
| Battery Cable Length | Varies based on cart design, but should be minimized to reduce voltage drop |
| Battery Terminal Type | Lead-acid batteries usually have threaded posts or L terminals |
| Battery Connector Type | Ring terminals, battery lugs, or quick-disconnect terminals |
| Battery Maintenance | Regularly inspect and clean connections, ensure tight connections, and monitor battery water levels (if applicable) |
| Safety Precautions | Wear protective gear, disconnect batteries before maintenance, and avoid short circuits |
| Charging Requirements | Use a charger compatible with the battery bank voltage and type (e.g., lead-acid, AGM, gel) |
| Battery Lifespan | 4-6 years, depending on usage, maintenance, and charging habits |
| Common Battery Types | Flooded lead-acid, AGM (Absorbent Glass Mat), and gel cell batteries |
Explore related products
What You'll Learn
- Series vs. Parallel Connections: Understanding the difference in wiring for voltage and capacity needs
- Battery Cable Types: Choosing the right gauge and material for efficient power transfer
- Connecting Terminals: Properly linking positive and negative terminals to ensure safe operation
- Battery Bank Configuration: Arranging multiple batteries to meet specific voltage requirements for golf carts
- Safety Precautions: Preventing short circuits and ensuring secure connections during battery installation
Series vs. Parallel Connections: Understanding the difference in wiring for voltage and capacity needs
Golf cart batteries are the lifeblood of your vehicle, and understanding how they're connected is crucial for optimal performance. The two primary methods of connecting batteries are series and parallel, each serving distinct purposes based on voltage and capacity requirements.
Series Connections: Boosting Voltage for Power
In a series connection, batteries are linked end-to-end, forming a chain. This configuration increases the overall voltage of the system while maintaining the same capacity as a single battery. For instance, connecting two 6-volt batteries in series will result in a 12-volt system with the same amp-hour (Ah) rating as one of the individual batteries. This setup is ideal for golf carts requiring higher voltage to power more demanding components, such as high-performance motors or additional accessories. To achieve a series connection, connect the positive terminal of the first battery to the negative terminal of the second, and so on, until all batteries are linked.
Parallel Connections: Enhancing Capacity for Endurance
Conversely, parallel connections focus on increasing capacity rather than voltage. In this setup, batteries are connected side-by-side, with all positive terminals linked together and all negative terminals connected. This configuration maintains the voltage of a single battery while adding their capacities. For example, connecting two 6-volt, 200Ah batteries in parallel will yield a 6-volt system with a total capacity of 400Ah. Parallel connections are suitable for golf carts that require extended runtimes, such as those used in large courses or for utility purposes. To establish a parallel connection, ensure that the positive terminals of all batteries are connected, and the negative terminals are also linked.
Choosing the Right Connection for Your Golf Cart
The decision between series and parallel connections depends on your golf cart's specific needs. If you require increased power for steep inclines or heavy loads, a series connection might be more appropriate. On the other hand, if you prioritize longer runtimes and endurance, a parallel connection could be the better choice. It's essential to consult your golf cart's manual or a qualified technician to determine the optimal configuration for your vehicle.
Practical Tips and Cautions
When working with golf cart batteries, always prioritize safety. Wear protective gear, such as gloves and safety glasses, and ensure the batteries are properly ventilated. Avoid mixing battery types, ages, or brands in a single system, as this can lead to imbalances and reduced performance. Regularly inspect your battery connections for corrosion, tightness, and damage. For 36-volt or 48-volt systems, which are common in golf carts, you'll typically connect six or eight 6-volt batteries in series, respectively. Always double-check your connections before powering up the system to prevent damage or accidents. By understanding the nuances of series and parallel connections, you can optimize your golf cart's performance and ensure a reliable, efficient ride.
Understanding Golf Cart Brake Switches: Functionality and Operation Explained
You may want to see also
Explore related products
Battery Cable Types: Choosing the right gauge and material for efficient power transfer
Golf cart batteries, typically connected in series to achieve the desired voltage, rely heavily on the quality and specifications of the battery cables. The efficiency of power transfer is directly influenced by the gauge and material of these cables. A common mistake is underestimating the importance of cable selection, leading to voltage drops, overheating, and reduced performance. For instance, a 48-volt golf cart system using six 8-volt batteries requires cables that can handle the current draw without significant energy loss. The first step in optimizing this setup is understanding that the cable gauge, measured in American Wire Gauge (AWG), inversely correlates with diameter—smaller AWG numbers mean thicker cables, which are essential for high-current applications.
Material selection is equally critical. Copper is the gold standard for battery cables due to its superior conductivity, but it comes at a higher cost. Aluminum, while more affordable, has lower conductivity and requires a larger gauge to match copper’s performance. For golf carts, where space and weight are considerations, copper is often preferred despite its price. However, if budget constraints dictate aluminum use, ensure the gauge is appropriately upsized to compensate for its inferior conductivity. For example, a 2-gauge copper cable might be equivalent to a 0-gauge aluminum cable in terms of current-carrying capacity.
The length of the cable also plays a role in efficiency. Longer runs increase resistance, necessitating thicker cables to maintain optimal power transfer. A practical tip is to measure the distance between battery terminals and add 10-15% for routing and connections. Using an online voltage drop calculator can help determine the ideal gauge based on system voltage, current draw, and cable length. For a 48-volt system drawing 100 amps, a 2-gauge copper cable might be sufficient for a 5-foot run but inadequate for a 10-foot run, where a 0-gauge cable would be more appropriate.
Installation practices further impact efficiency. Poorly crimped or corroded connections can introduce resistance, negating the benefits of high-quality cables. Always use marine-grade heat shrink tubing to seal connections and prevent moisture intrusion, which accelerates corrosion. Regularly inspect cables for signs of wear, fraying, or overheating, and replace them proactively. A well-maintained cable system not only ensures consistent performance but also extends the life of the batteries and other electrical components.
In conclusion, choosing the right battery cable gauge and material is a balance of conductivity, cost, and application-specific requirements. Copper cables, though pricier, offer unmatched efficiency, while aluminum can suffice with proper sizing. Pairing the correct gauge with the system’s voltage and current demands, accounting for cable length, and ensuring meticulous installation are key to maximizing power transfer in golf cart battery setups. This attention to detail translates to smoother operation, longer battery life, and fewer electrical issues down the road.
Do All Golf Courses Offer Golf Carts? Exploring the Options
You may want to see also
Explore related products
Connecting Terminals: Properly linking positive and negative terminals to ensure safe operation
Golf cart batteries, typically deep-cycle lead-acid types, rely on a series connection to achieve the required voltage for operation. This means linking the positive terminal of one battery to the negative terminal of the next, creating a chain. For a standard 48-volt system, six 8-volt batteries are connected in series. Proper terminal connections are critical to ensure efficient power flow and prevent hazards like short circuits or overheating.
Step-by-Step Connection Process:
- Identify Terminals: Confirm the positive (+) and negative (-) terminals on each battery. Most batteries label these clearly, but some may require visual inspection (e.g., larger posts for positive terminals).
- Clean Contacts: Use a wire brush or battery terminal cleaner to remove corrosion or debris from terminals and connectors. Corrosion increases resistance and reduces conductivity.
- Secure Connections: Attach battery cables firmly, starting with the positive terminal of the first battery to the negative terminal of the second, and continue this pattern until all batteries are linked. Tighten nuts or bolts with a wrench, ensuring a snug fit without overtightening.
- Verify Polarity: Double-check that all connections follow the correct positive-to-negative sequence. A single reversed connection can damage the entire system.
Cautions and Best Practices:
Avoid using metal tools near batteries while connected, as accidental contact between terminals can cause sparks or short circuits. Always wear safety goggles and gloves to protect against acid spills or electrical shocks. If working with a damaged cable or terminal, replace it immediately—frayed wires or loose connections pose significant risks.
Comparative Insight:
Unlike parallel connections (used in some automotive systems), series connections in golf carts prioritize voltage over capacity. This setup ensures the cart’s motor receives the necessary power while maintaining a manageable battery footprint. However, the series design demands precision in terminal linking, as a single weak connection can disrupt the entire circuit.
Practical Tip:
Apply a thin coat of petroleum jelly or battery terminal grease to the connections after assembly. This reduces corrosion and improves conductivity over time. Regularly inspect terminals for signs of wear or looseness, especially after rough terrain use, to maintain optimal performance and safety.
By meticulously connecting terminals and adhering to safety protocols, golf cart owners can ensure a reliable and hazard-free battery system, extending the life of both the batteries and the vehicle.
2003 EZGO Golf Cart: Understanding Its 4-Wheel Brake System
You may want to see also
Explore related products
Battery Bank Configuration: Arranging multiple batteries to meet specific voltage requirements for golf carts
Golf carts typically require a specific voltage to operate efficiently, often ranging from 36V to 48V, depending on the model. To achieve these voltage requirements, multiple batteries are connected in a series configuration. For instance, six 6V batteries connected in series will produce a 36V system, while eight 6V batteries will yield a 48V system. This arrangement ensures the golf cart receives the necessary power to function optimally, balancing performance and energy efficiency.
When configuring a battery bank, it’s crucial to understand the difference between series and parallel connections. Series connections increase voltage by linking the positive terminal of one battery to the negative terminal of the next, while parallel connections increase capacity by linking positive to positive and negative to negative. For golf carts, series connections are the standard, as they directly address voltage requirements. However, if additional runtime is needed, a combination of series and parallel connections can be employed, though this is less common due to complexity and cost.
To illustrate, consider a 48V golf cart requiring eight 6V batteries. Each battery is connected in series, starting with the positive terminal of the first battery linked to the negative terminal of the second, and so on, until all batteries are chained together. The final positive and negative terminals of the series are then connected to the golf cart’s power system. This setup ensures the cumulative voltage meets the cart’s needs while maintaining a balanced load across all batteries.
A critical aspect of battery bank configuration is ensuring all batteries are of the same type, age, and capacity. Mismatched batteries can lead to uneven charging and discharging, reducing overall efficiency and lifespan. For example, pairing a new 6V battery with older ones in a 36V system can cause the newer battery to overwork, leading to premature failure. Regular maintenance, such as checking water levels in flooded lead-acid batteries and monitoring charge levels, is essential to prolong the life of the battery bank.
Finally, safety precautions must be taken when configuring and maintaining a battery bank. Always wear protective gear, such as gloves and goggles, when handling batteries to avoid acid burns or electrical shocks. Ensure the golf cart is turned off and disconnected from the power source before making any adjustments. Proper ventilation is also critical, as batteries can emit hydrogen gas during charging, posing a fire or explosion risk in enclosed spaces. By following these guidelines, golf cart owners can effectively arrange multiple batteries to meet specific voltage requirements while ensuring safety and longevity.
Golf Pull Carts: Do They Slow Down Your Game Time?
You may want to see also
Explore related products
Safety Precautions: Preventing short circuits and ensuring secure connections during battery installation
Golf cart batteries, typically deep-cycle lead-acid or lithium-ion types, require precise connections to ensure optimal performance and safety. During installation, the risk of short circuits looms large, potentially causing fires, explosions, or irreversible damage to the electrical system. To mitigate these hazards, understanding the underlying causes of short circuits is paramount. A short circuit occurs when a low-resistance path allows excessive current flow, often due to exposed wires, loose connections, or improper polarity alignment. In golf carts, where batteries are often accessed for maintenance, the risk is heightened by vibration, corrosion, and environmental exposure.
Step-by-Step Precautions:
- Inspect Components Before Installation: Examine battery terminals, cables, and connectors for signs of corrosion, fraying, or damage. Clean terminals with a mixture of baking soda and water (3 tablespoons per quart) to neutralize acid buildup, then rinse and dry thoroughly. Replace any compromised parts before proceeding.
- Verify Polarity Alignment: Confirm that positive (+) and negative (-) terminals match the corresponding cables. Reversed connections can instantly short-circuit the system. Use color-coded cables (red for positive, black for negative) or labels to avoid confusion.
- Secure Connections with Torque Specifications: Tighten terminal nuts to manufacturer-recommended torque values (typically 10–15 ft-lbs for lead-acid batteries) using a torque wrench. Over-tightening can strip threads, while under-tightening risks loose connections that vibrate apart during operation.
Critical Cautions:
Avoid using metal tools near batteries without insulated handles, as accidental contact between tools and opposite terminals can spark a short circuit. Always disconnect the battery ground (negative) cable first during removal and reconnect it last during installation to minimize arcing risks. Wear safety goggles and acid-resistant gloves to protect against spills or explosions.
Comparative Analysis:
Lithium-ion batteries, increasingly popular in modern golf carts, demand additional precautions due to their higher energy density. Unlike lead-acid batteries, lithium-ion systems often include built-in Battery Management Systems (BMS) that monitor voltage, temperature, and current. However, bypassing or damaging the BMS during installation can lead to thermal runaway. Always follow manufacturer guidelines for lithium-ion setups, including using compatible chargers and avoiding mixed battery chemistries.
Practical Takeaway:
Implementing these precautions transforms battery installation from a routine task into a systematic process that prioritizes safety. By treating each step with the same rigor as a critical repair, golf cart owners can prevent short circuits, extend battery life, and safeguard their investment. Remember: a secure connection today prevents a hazardous malfunction tomorrow.
Exploring Royal Dornoch: Golf Cart Usage Rules and Guidelines
You may want to see also
Frequently asked questions
Golf cart batteries are typically connected in a series configuration to achieve the required voltage for the cart's motor. For a 36-volt system, six 6-volt batteries are connected in series, while for a 48-volt system, eight 6-volt batteries or four 12-volt batteries are used.
In a series connection, batteries are linked end-to-end to increase voltage while maintaining the same amperage. In a parallel connection, batteries are connected side-by-side to increase amperage while maintaining the same voltage. Golf carts usually use series connections to meet voltage requirements.
Basic tools like wrenches or socket sets are needed to tighten battery terminals. Additionally, a battery terminal cleaner and dielectric grease are recommended to ensure clean connections and prevent corrosion.
Follow the manufacturer’s diagram or labeling on the batteries to connect them in the correct order. Typically, the positive terminal of one battery connects to the negative terminal of the next in a series configuration. Double-check all connections before use.
It’s not recommended to mix battery types (e.g., lead-acid and lithium) or brands with different capacities or ages, as this can lead to uneven charging, reduced performance, and potential damage to the batteries or cart. Always use matching batteries for optimal performance.
