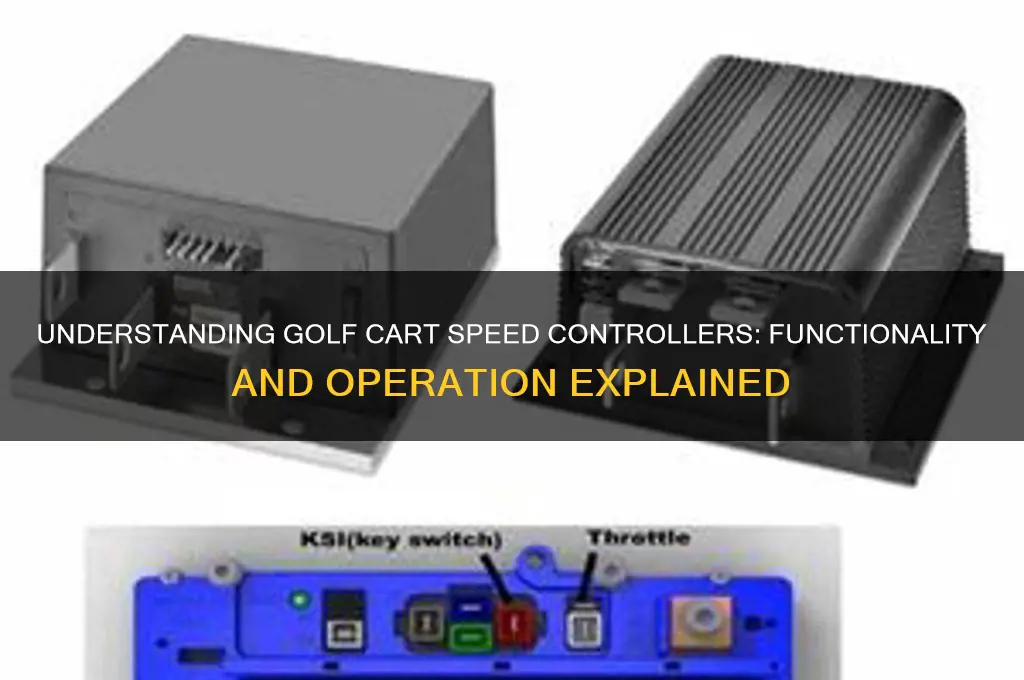

Golf cart speed controllers are essential components that regulate the vehicle's speed by managing the power delivered to the electric motor. These controllers work by receiving input from the accelerator pedal and adjusting the voltage or current supplied to the motor, thereby controlling the cart's acceleration and top speed. Typically, they utilize pulse width modulation (PWM) technology, which rapidly switches the power on and off to vary the average voltage, ensuring smooth and efficient speed adjustments. Additionally, many modern speed controllers incorporate safety features, such as speed limits and overload protection, to enhance user safety and prolong the cart's lifespan. Understanding how these controllers function is crucial for optimizing performance, troubleshooting issues, and maintaining the overall reliability of a golf cart.
| Characteristics | Values |
|---|---|
| Function | Regulates the speed of a golf cart by controlling the electric motor's output. |
| Type | Typically uses Pulse Width Modulation (PWM) or potentiometer-based systems. |
| Power Source | Operates on DC voltage from the golf cart's battery (usually 36V or 48V). |
| Control Mechanism | Uses a throttle pedal or potentiometer to adjust resistance and signal. |
| Output Control | Modulates the power delivered to the motor to control speed. |
| Safety Features | Includes over-voltage, over-current, and thermal protection. |
| Compatibility | Designed for specific golf cart models (e.g., Club Car, EZ-GO, Yamaha). |
| Speed Range | Typically limits speeds to 15-25 mph (24-40 km/h) for safety. |
| Installation | Requires wiring to the motor, battery, and throttle assembly. |
| Maintenance | Periodic checks for wiring integrity and controller functionality. |
| Upgradability | Can be upgraded for higher speeds or improved efficiency. |
| Environmental Impact | Enhances energy efficiency, reducing battery drain. |
| Cost | Ranges from $50 to $300 depending on features and brand. |
| Lifespan | Typically lasts 5-10 years with proper maintenance. |
| Regulatory Compliance | Must adhere to local regulations for golf cart speed limits. |
Explore related products
What You'll Learn
- Understanding PWM Technology: Pulse Width Modulation regulates motor speed by adjusting power delivery
- Potentiometer Role: Measures throttle input to control speed output accurately
- Voltage Regulation: Maintains consistent power flow for steady performance
- Safety Features: Overheat and overload protection prevent damage and ensure safety
- Wiring Connections: Links battery, motor, and throttle for seamless operation
Understanding PWM Technology: Pulse Width Modulation regulates motor speed by adjusting power delivery
Pulse Width Modulation (PWM) is the backbone of golf cart speed controllers, enabling precise regulation of motor speed by manipulating the power delivered to the motor. At its core, PWM works by rapidly switching the power supply on and off, creating a series of pulses. The width of these pulses—the duration they remain "on"—determines how much energy reaches the motor. For instance, a 50% duty cycle means the power is on for half the time and off for the other half, effectively delivering half the maximum power. This method allows for fine-tuned control, ensuring the motor operates at the desired speed without wasting energy.
Consider the analogy of a faucet filling a bucket. Turning the faucet fully open delivers maximum water flow, while closing it completely stops the flow. PWM acts like a hand adjusting the faucet, opening and closing it rapidly to control the average water flow. In a golf cart, this translates to smoother acceleration and deceleration, as the controller can incrementally adjust the power output. For example, a 20% duty cycle might be used for slow, controlled movement, while a 90% duty cycle could power the cart up a steep incline.
Implementing PWM in golf cart speed controllers involves several key components. The controller uses a microcontroller or dedicated PWM circuit to generate the pulse signals. These signals are then amplified and sent to the motor’s power supply. The frequency of the pulses—typically in the range of 1 kHz to 20 kHz—is high enough to avoid mechanical vibrations or audible noise but low enough to ensure efficient power delivery. Modern controllers often include feedback mechanisms, such as Hall effect sensors, to monitor motor speed and adjust the PWM signal in real time, ensuring accuracy even under varying loads.
One practical advantage of PWM technology is its efficiency. Unlike traditional resistive speed control methods, which dissipate excess energy as heat, PWM minimizes energy loss by directly modulating the power supply. This not only extends battery life but also reduces the risk of overheating, a critical factor in electric golf carts. For instance, a PWM-controlled cart can maintain consistent performance over longer distances compared to a resistive system, making it ideal for extended rounds of golf or utility tasks.
To optimize PWM performance in a golf cart, consider these tips: first, ensure the controller’s duty cycle range aligns with the motor’s operational requirements. Second, regularly inspect wiring and connections for wear or corrosion, as poor conductivity can disrupt PWM signals. Finally, pair the controller with a compatible battery and motor to maximize efficiency. By understanding and leveraging PWM technology, golf cart owners can achieve smoother, more reliable, and energy-efficient operation, enhancing both performance and longevity.
