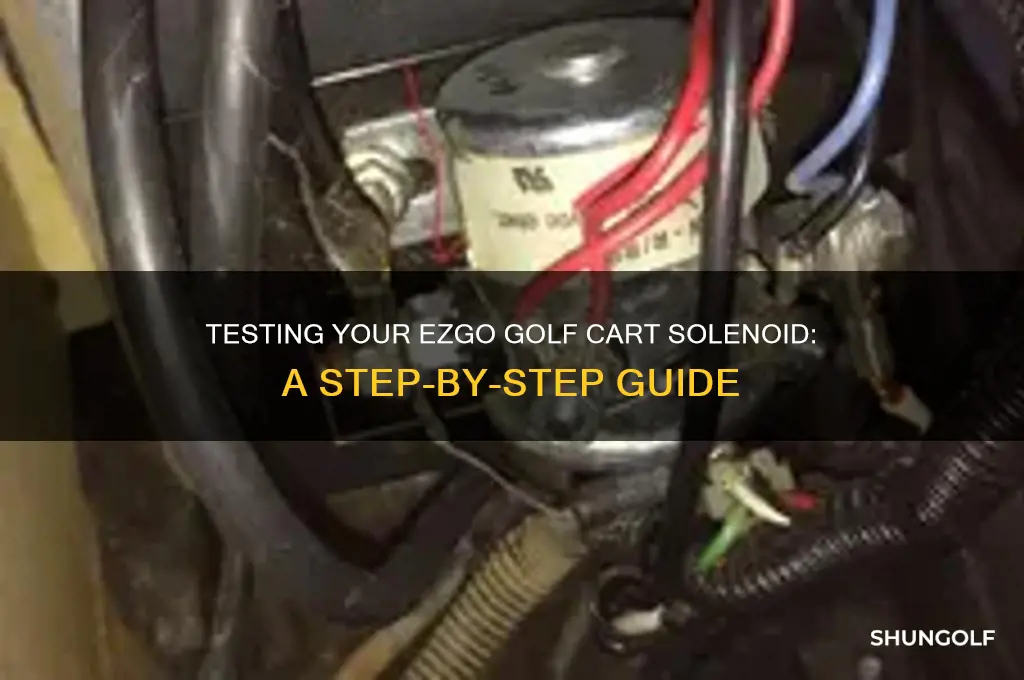

Testing an EZGO golf cart solenoid is a crucial step in diagnosing electrical issues, particularly if the cart fails to start or move. The solenoid acts as a switch, connecting the battery to the starter or motor, and a faulty solenoid can disrupt the entire system. To test it, start by ensuring the cart is turned off and the key is removed for safety. Locate the solenoid, typically found near the battery, and identify its terminals. Use a multimeter set to the continuity or resistance mode to check for a closed circuit between the large terminals when the ignition is engaged. If there’s no continuity, the solenoid may be faulty. Additionally, you can manually activate the solenoid by jumping the large terminals with a screwdriver (with caution) to see if it clicks and engages the system. If it fails to respond, replacement is likely necessary. Always refer to the EZGO manual for specific instructions and safety guidelines.
| Characteristics | Values |
|---|---|
| Purpose of Testing | To diagnose solenoid functionality in EZGO golf carts. |
| Tools Required | Multimeter, screwdriver, insulated gloves, safety goggles. |
| Safety Precautions | Disconnect battery, wear protective gear, work in a well-ventilated area. |
| Location of Solenoid | Typically near the battery or under the seat, connected to the battery and motor. |
| Testing Procedure | 1. Turn off cart and disconnect battery. 2. Locate solenoid and identify terminals. 3. Set multimeter to ohms (resistance) setting. 4. Test resistance between main terminals (should be low, ~0 ohms when activated). 5. Test for voltage drop across terminals when activated. 6. Check for clicking sound when activated. |
| Expected Results | Low resistance when activated, voltage present, audible click. |
| Common Issues | High resistance, no click, no voltage, burnt smell, physical damage. |
| Replacement Needed If | Solenoid fails to activate, shows high resistance, or is physically damaged. |
| Applicable Models | EZGO TXT, RXV, and older models with solenoid-based systems. |
| Additional Tips | Clean terminals before testing, ensure battery is fully charged, consult manual for specifics. |
Explore related products
What You'll Learn
Solenoid Functionality Basics
Solenoids are the unsung heroes of your EZGO golf cart’s electrical system, acting as high-current switches that control the flow of power to the motor. At their core, solenoids consist of a coil of wire wrapped around a movable metal plunger. When current passes through the coil, it generates a magnetic field that pulls the plunger, closing the circuit and allowing electricity to reach the motor. This simple yet ingenious mechanism is critical for starting and stopping your cart efficiently. Without a functioning solenoid, your cart’s electrical system would be akin to a river blocked by a dam—power can’t flow where it needs to go.
To understand solenoid functionality, consider its role in the broader context of your golf cart’s operation. When you press the accelerator pedal, a low-voltage signal is sent to the solenoid, activating the coil. This action bridges the gap between the battery and the motor, enabling the high-amperage current required to propel the cart. Think of the solenoid as a gatekeeper: it ensures that power is only delivered when and where it’s needed, preventing electrical overload or short circuits. This precision is why solenoids are indispensable in electric vehicles like golf carts.
Testing a solenoid requires a systematic approach to diagnose whether it’s functioning correctly. Start by inspecting the solenoid for visible damage, such as burnt wires or corrosion. Next, use a multimeter to check continuity across the solenoid’s terminals. With the key off, the solenoid should show no continuity between the large terminals (indicating an open circuit). When the key is turned on, the solenoid should click, and continuity should be present. If the solenoid fails this test, it’s likely faulty and needs replacement. Always ensure the cart is powered off before testing to avoid electrical hazards.
One common misconception is that a solenoid’s failure is always obvious, but symptoms can be subtle. For instance, a weak or intermittent connection might cause the cart to start sporadically or lose power under load. To pinpoint the issue, listen for the distinctive “click” when activating the solenoid. If the sound is faint or absent, the solenoid may be failing. Additionally, a voltage drop test can reveal excessive resistance in the solenoid circuit. By measuring voltage across the solenoid terminals during operation, you can identify if the component is drawing too much power, indicating wear or damage.
In conclusion, understanding solenoid functionality is key to troubleshooting your EZGO golf cart’s electrical issues. By recognizing its role as a high-current switch and mastering basic testing techniques, you can diagnose problems efficiently and ensure your cart runs smoothly. Remember, a solenoid’s job is to manage power flow precisely—when it fails, the entire system suffers. Regular inspection and proactive testing can save you time and money, keeping your cart on the green instead of in the shop.
Checking Differential Fluid on Your EZGO Golf Cart: A Step-by-Step Guide
You may want to see also
Explore related products
Testing for Continuity
A solenoid's primary function is to act as a switch, allowing or interrupting the flow of electricity to the golf cart's motor. Testing for continuity is a critical step in diagnosing solenoid issues, as it verifies whether the solenoid can complete an electrical circuit. This test is straightforward and requires only a multimeter, a common tool in any DIY enthusiast's arsenal.
The Process Unveiled: To begin, ensure the golf cart is turned off and the key is removed to prevent any accidental engagement. Locate the solenoid, typically found near the battery pack, and identify its terminals. Using a multimeter set to the continuity or resistance mode, touch the probes to the solenoid's terminals. If the solenoid is functioning correctly, the multimeter will emit a continuous tone or display a low resistance value, indicating a complete circuit. This simple test provides valuable insight into the solenoid's ability to conduct electricity, a fundamental aspect of its operation.
In contrast, a faulty solenoid will reveal itself through silence or a high resistance reading, suggesting a broken circuit. This could be due to internal damage, corrosion, or worn contacts. For instance, if the solenoid's plunger is stuck or the coil is damaged, the circuit will remain open, preventing the flow of electricity. This diagnostic step is crucial in determining whether the solenoid requires cleaning, repair, or replacement.
Practical Tips for Accuracy: When testing, ensure the multimeter probes make firm contact with the terminals to avoid false readings. Clean the terminals if they appear corroded, as this can interfere with conductivity. Additionally, compare the solenoid's performance with known good values or a similar functioning solenoid for a more comprehensive assessment. This comparative approach adds depth to your diagnosis, especially when dealing with intermittent issues.
The beauty of testing for continuity lies in its simplicity and effectiveness. It empowers golf cart owners to quickly identify solenoid problems, saving time and potentially costly repairs. By understanding this process, one can make informed decisions, ensuring the golf cart's electrical system operates smoothly. This test is a powerful tool in the troubleshooting arsenal, offering a clear path to resolving solenoid-related concerns.
Golf Cart Rental Prices at Put-in-Bay: Your Complete Guide
You may want to see also
Explore related products
$35.99
Voltage Drop Check
A voltage drop check is a critical diagnostic step when testing an EZGO golf cart solenoid, as it helps identify excessive resistance in the electrical circuit. This test measures the difference in voltage between two points in the circuit under load, revealing whether the solenoid or associated wiring is causing the issue. By comparing the measured voltage drop to acceptable thresholds, you can pinpoint problems like corroded terminals, loose connections, or a failing solenoid.
To perform a voltage drop check, start by ensuring the golf cart is turned off and the key is removed. Connect your multimeter in parallel across the solenoid terminals while activating the circuit—typically by pressing the accelerator pedal. A healthy solenoid should show a voltage drop of less than 0.2 volts. If the reading exceeds this, the solenoid or its connections are likely faulty. For example, a voltage drop of 0.5 volts or higher suggests significant resistance, often due to dirty or corroded terminals.
One practical tip is to clean the solenoid terminals with a wire brush and dielectric grease before testing. This simple step can eliminate surface-level issues and provide a clearer diagnosis. Additionally, ensure all wiring connections are tight and free of fraying. If cleaning and tightening connections do not resolve the high voltage drop, the solenoid itself may need replacement.
Comparatively, a voltage drop check is more precise than a simple continuity test, as it evaluates performance under real-world conditions. While continuity confirms a path exists, it doesn’t account for resistance under load. This makes the voltage drop check a superior method for diagnosing solenoid issues in EZGO golf carts. By focusing on this test, you can avoid misdiagnosing the problem and save time and money on unnecessary repairs.
Golf Cart Battery Charger Costs: A Comprehensive Pricing Guide
You may want to see also
Explore related products
Clicking Noise Diagnosis
A clicking noise from your EZGO golf cart solenoid can be a frustrating and confusing issue. This sound often indicates a problem with the solenoid's ability to engage the starter or motor, leaving you stranded on the course. Understanding the root cause of this noise is crucial for effective troubleshooting and repair.
Analyzing the Click: Potential Culprits
The solenoid acts as a switch, directing electrical current to the starter motor. When you hear a clicking noise, it often means the solenoid is receiving power but failing to complete the circuit. This can be due to several factors:
- Low Battery Voltage: Insufficient power from the battery prevents the solenoid from fully engaging. A voltage reading below 12 volts (for a 12V system) is a strong indicator.
- Corroded Connections: Dirty or corroded terminals between the battery, solenoid, and starter can disrupt the flow of electricity, leading to weak or incomplete connections.
- Faulty Solenoid: Internal damage or wear within the solenoid itself can prevent the plunger from moving freely, resulting in a clicking sound without proper engagement.
Diagnostic Steps: Pinpointing the Problem
To accurately diagnose the clicking noise, follow these steps:
- Battery Check: Use a voltmeter to measure the battery voltage. A reading below 12 volts (for a 12V system) suggests a weak battery, which should be charged or replaced.
- Visual Inspection: Carefully examine the battery terminals, solenoid connections, and starter wires for corrosion, loose connections, or damage. Clean any corrosion with a wire brush and baking soda solution, ensuring tight connections.
- Solenoid Test: With the cart turned off, locate the solenoid and use a jumper wire to bypass it. If the starter motor engages, the solenoid is likely faulty and needs replacement.
Beyond the Click: Preventative Measures
Regular maintenance can prevent clicking solenoid issues. Keep batteries charged, clean terminals regularly, and inspect wiring for damage. Addressing these issues proactively can save you from unexpected breakdowns and costly repairs. Remember, a clicking solenoid is a symptom, not the root cause. By systematically diagnosing the problem, you can ensure your EZGO golf cart runs smoothly and reliably.
Easy Steps to Safely Change Water in Golf Cart Batteries
You may want to see also
Explore related products
Replacement vs. Repair
Solenoids in EZGO golf carts are critical for engaging the motor, but they can fail over time due to wear, corrosion, or electrical issues. When faced with a malfunctioning solenoid, the immediate question arises: should you repair or replace it? Understanding the differences can save time, money, and frustration.
Analytical Perspective: Repairing a solenoid is often cost-effective if the issue is minor, such as a loose connection or corroded terminal. However, solenoids are relatively inexpensive components, typically ranging from $20 to $50, making replacement a viable option for most users. Repairing requires diagnosing the exact problem, which can be challenging without specialized tools like a multimeter. If the solenoid’s internal coil is damaged, repair becomes impractical, as this component is not user-serviceable. Thus, while repair may seem appealing, it’s only feasible for superficial issues.
Instructive Approach: To decide between repair and replacement, start by testing the solenoid. Disconnect the battery, remove the solenoid, and use a multimeter to check for continuity across the main terminals. If there’s no continuity, the solenoid is likely faulty and should be replaced. If continuity exists, inspect for external damage like burnt wires or corroded contacts. Cleaning corroded terminals with a wire brush and dielectric grease can sometimes restore functionality, but this is a temporary fix. If the solenoid fails again shortly after, replacement is the better long-term solution.
Persuasive Argument: Replacement offers peace of mind and reliability, especially for older carts where multiple components may be nearing the end of their lifespan. New solenoids come with warranties, ensuring functionality for years. Repairing, while cheaper upfront, carries the risk of recurring issues, potentially leading to additional downtime and costs. For those who rely on their golf cart daily, the convenience and assurance of a new solenoid outweigh the minor savings of a repair attempt.
Comparative Insight: Repairing is ideal for DIY enthusiasts with the tools and patience to troubleshoot. It’s also suitable for carts used infrequently, where temporary fixes suffice. Replacement, however, is the better choice for commercial or heavily used carts, where reliability is non-negotiable. Additionally, modern solenoids often feature improved designs, offering better performance and durability than older models. If your cart is over 10 years old, upgrading to a new solenoid can enhance overall efficiency.
Practical Takeaway: Assess the solenoid’s condition and your cart’s usage before deciding. For minor issues like corrosion, attempt a repair. For internal damage or frequent failures, replace the solenoid. Always prioritize safety by disconnecting the battery before working on electrical components. Whether you repair or replace, ensure the new or repaired solenoid is properly installed and tested to avoid future problems.
Assessing Your Golf Cart's Worth: A Comprehensive Valuation Guide
You may want to see also
Frequently asked questions
A bad solenoid may cause the cart to not move, click when the pedal is pressed, or fail to engage the motor. Test it by checking for voltage at the solenoid terminals or bypassing it temporarily.
You’ll need a multimeter to check voltage, a screwdriver to access the solenoid, and possibly a jumper wire for bypass testing.
Yes, you can test it in place by checking for voltage at the terminals or using a bypass method to see if the solenoid engages the motor.
Signs include intermittent operation, no movement when the pedal is pressed, or a clicking sound from the solenoid without engagement.
Connect a jumper wire between the large terminals on the solenoid while the cart is off. If the cart moves, the solenoid is likely faulty. Always exercise caution when bypassing.
