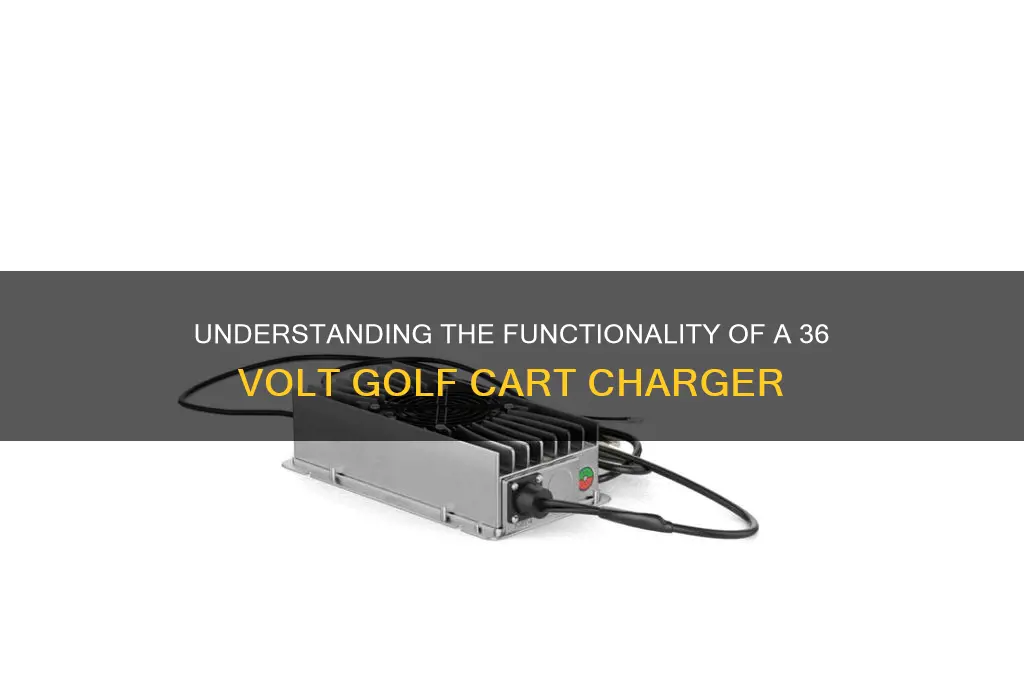

A 36-volt golf cart charger is an essential component for maintaining the battery life of electric golf carts, operating by converting standard AC power from an electrical outlet into DC power suitable for recharging the cart's battery pack. The charger typically connects to the cart's charging port and uses a transformer to step down the voltage, followed by a rectifier to convert AC to DC. It incorporates a voltage regulator to ensure the battery receives a consistent and safe charge, preventing overcharging or undercharging, which can damage the battery. Additionally, many modern chargers feature smart technology, such as automatic shut-off or trickle charging, to optimize battery health and extend its lifespan. Understanding how a 36-volt golf cart charger works is crucial for proper maintenance and ensuring the cart remains reliable for extended use.
Explore related products
$105.99 $149.98
$109.99 $149.99
What You'll Learn
- Power Input and Conversion: AC to DC conversion for charging the 36V battery system efficiently
- Charging Circuitry: Components like transformers, rectifiers, and voltage regulators control charging
- Battery Connection: Securely connects to the 36V battery pack for safe energy transfer
- Charging Stages: Bulk, absorption, and float stages optimize battery charging and lifespan
- Safety Features: Overcharge protection, temperature sensors, and automatic shutoff prevent damage
Power Input and Conversion: AC to DC conversion for charging the 36V battery system efficiently
A 36-volt golf cart charger operates by converting household alternating current (AC) into direct current (DC) suitable for recharging the cart’s battery system. This process is critical because golf cart batteries, typically deep-cycle lead-acid or lithium-ion, require a steady DC voltage to charge efficiently and safely. The charger acts as a bridge between the AC power source and the battery, ensuring the correct voltage and current levels are delivered. Without this conversion, the battery would not charge properly, leading to reduced performance or damage.
The AC to DC conversion begins with the charger’s power input stage, which accepts standard household voltage—usually 120V or 240V AC, depending on the region. Inside the charger, a transformer steps down the voltage to a level appropriate for the 36V battery system. This lower voltage is then rectified, converting the AC waveform into a pulsating DC signal. A filter circuit smooths out the pulsations, producing a stable DC output. The efficiency of this process is vital, as energy losses during conversion can lead to longer charging times and increased electricity costs.
One key component in this conversion is the rectifier, often a full-wave bridge rectifier, which ensures that both halves of the AC waveform are utilized for charging. This maximizes efficiency and reduces heat generation. Modern chargers may also incorporate switching power supplies, which use high-frequency electronics to regulate voltage and current more precisely. These advanced designs can achieve efficiencies of 85-90%, significantly outperforming older linear chargers that waste more energy as heat.
For optimal charging, the charger must also regulate the output voltage and current to match the battery’s requirements. A 36V battery system typically charges at a voltage slightly above 36V, around 40-42V, to ensure full charging without overcharging. The charger monitors the battery’s state and adjusts the output accordingly, tapering off the current as the battery approaches full capacity. This prevents overcharging, which can shorten battery life, and ensures a balanced charge across all cells in the battery pack.
Practical tips for efficient charging include using a charger specifically designed for 36V systems, as mismatched chargers can cause undercharging or damage. Always plug the charger into a grounded outlet to prevent electrical hazards. Avoid charging in extreme temperatures, as this can affect battery performance and charger efficiency. Regularly inspect the charger’s cables and connectors for wear or damage, as poor connections can lead to inefficient charging or safety risks. By understanding and optimizing the AC to DC conversion process, golf cart owners can ensure their batteries charge quickly, safely, and with minimal energy waste.
Safely Charging Your 36V Golf Cart Using a 12V Charger: A Guide
You may want to see also
Explore related products
Charging Circuitry: Components like transformers, rectifiers, and voltage regulators control charging
A 36-volt golf cart charger is a sophisticated piece of equipment designed to safely and efficiently recharge the cart’s battery pack. At its core lies the charging circuitry, a network of components working in harmony to convert household AC power into the DC power required by the batteries. This circuitry is not just about delivering electricity; it’s about precision, protection, and longevity. Let’s dissect the key players: transformers, rectifiers, and voltage regulators, and understand their roles in this intricate process.
Transformers are the first line of defense in the charging process. They step down the high-voltage AC power from your wall outlet (typically 120V or 240V) to a lower, safer voltage suitable for charging the golf cart’s 36-volt battery system. For instance, a common transformer in a 36-volt charger might reduce the input voltage to around 40-45 volts AC. This step-down process is critical because it prevents overvoltage, which could damage the batteries or other components. Transformers also isolate the charger from the mains power, adding a layer of safety by preventing electrical faults from propagating back to the household circuit.
Once the voltage is stepped down, the rectifier takes center stage. Its primary function is to convert the alternating current (AC) into direct current (DC), which is what the golf cart’s batteries require. Rectifiers typically use diodes arranged in a bridge configuration to achieve this conversion. For a 36-volt system, the rectifier ensures that the output is a steady DC voltage, free from the oscillating nature of AC power. High-quality chargers often employ full-wave rectifiers, which are more efficient than half-wave alternatives, ensuring faster and more consistent charging.
However, raw DC output from the rectifier can still be unstable, fluctuating with changes in input power or load conditions. This is where voltage regulators come into play. These components monitor the output voltage and adjust it to maintain a precise level, typically around 36 volts for a golf cart charger. Voltage regulators can be either linear or switching types, with the latter being more common due to their efficiency and ability to handle higher power levels. For example, a switching regulator might use pulse-width modulation (PWM) to fine-tune the output voltage, ensuring it remains within a safe range (e.g., 36V ± 0.5V) throughout the charging cycle.
The interplay between these components is a delicate balance of power conversion and control. A practical tip for users is to ensure the charger is compatible with their specific golf cart’s battery type (e.g., lead-acid, lithium-ion) and voltage requirements. Overlooking this can lead to inefficient charging or even battery damage. For instance, charging a 36-volt lead-acid battery with a charger designed for a 48-volt system could result in overcharging, reducing battery life. Additionally, regular inspection of the charger’s components, such as checking for overheating transformers or faulty diodes in the rectifier, can prevent costly repairs and ensure reliable performance.
In conclusion, the charging circuitry of a 36-volt golf cart charger is a testament to engineering precision. Transformers, rectifiers, and voltage regulators work seamlessly to deliver the right amount of power, in the right form, at the right time. Understanding these components not only demystifies the charging process but also empowers users to maintain their equipment effectively. Whether you’re a golf course manager or a weekend enthusiast, appreciating the intricacies of this circuitry can save time, money, and frustration in the long run.
Effective Tips to Remove Black Grime from Your Golf Cart
You may want to see also
Explore related products
Battery Connection: Securely connects to the 36V battery pack for safe energy transfer
A secure battery connection is the linchpin of any 36V golf cart charger's functionality. Without a reliable link between the charger and the battery pack, energy transfer becomes inefficient, unsafe, or impossible. This connection must withstand the electrical current's demands while preventing overheating, arcing, or disconnection during charging.
Anatomy of a Secure Connection
The battery connection typically involves a plug or terminal system designed to match the golf cart’s 36V battery configuration. Most chargers use a three-prong plug (two for power, one for ground) or a DC connector with locking mechanisms. The prongs or terminals are made of corrosion-resistant materials like copper or brass, ensuring low resistance and consistent contact. Some chargers include spring-loaded pins or clips to maintain pressure, reducing the risk of loose connections that could lead to energy loss or sparks.
Steps to Ensure a Safe Connection
- Inspect Before Charging: Check the charger’s plug and the cart’s battery terminals for dirt, corrosion, or damage. Clean terminals with a wire brush and baking soda solution if necessary.
- Align Properly: Insert the charger plug firmly into the cart’s charging port, ensuring all prongs engage fully. For terminal connections, tighten nuts securely but avoid over-tightening, which can strip threads.
- Verify Polarity: Always match the charger’s positive (+) and negative (-) terminals to the battery’s corresponding posts. Reversed polarity can damage both the battery and charger.
Cautions and Troubleshooting
Avoid charging in wet or humid environments, as moisture can compromise the connection and increase shock risk. If the charger fails to initiate, check for blown fuses or tripped circuit breakers. Persistent issues may indicate a faulty charger cable or worn battery terminals, requiring professional inspection.
Practical Tips for Longevity
Apply a thin layer of dielectric grease to battery terminals to prevent corrosion. Store the charger in a dry place, and coil its cable loosely to avoid kinks. Regularly test the connection’s resistance using a multimeter; readings above 0.1 ohms suggest poor contact.
By prioritizing a secure battery connection, you safeguard both the golf cart’s battery life and the charger’s efficiency, ensuring reliable performance for years to come.
Optimal Golf Cart Maintenance: Grease Frequency for Smooth Performance
You may want to see also
Explore related products
Charging Stages: Bulk, absorption, and float stages optimize battery charging and lifespan
A 36-volt golf cart charger operates through a multi-stage process designed to maximize battery efficiency and longevity. Central to this process are the bulk, absorption, and float stages, each serving a distinct purpose in the charging cycle. Understanding these stages is crucial for maintaining optimal battery health and ensuring consistent performance on the course.
Bulk Stage: The Rapid Charge
During the bulk stage, the charger delivers maximum current to the battery, typically at a rate of 20-25% of its amp-hour capacity. For a standard 36-volt golf cart battery with a 200Ah capacity, this translates to approximately 40-50 amps. The goal here is to replenish the battery quickly, raising its voltage from its depleted state (around 32-34 volts) to roughly 80% of its full charge. This stage is the most efficient for restoring power but must be carefully monitored to avoid overcharging. Modern chargers use voltage thresholds—usually around 43-45 volts for a 36-volt system—to signal the transition to the next stage.
Absorption Stage: Precision Charging
Once the bulk stage completes, the charger enters the absorption phase, where it maintains a constant voltage (typically 43-45 volts for a 36-volt system) while gradually reducing the charging current. This stage ensures the battery reaches a full charge without overheating or causing damage. The absorption phase typically lasts 1-2 hours, depending on the battery’s condition and capacity. It’s critical for balancing the charge across all cells, especially in deep-cycle batteries commonly used in golf carts. Overlooking this stage can lead to undercharged batteries or reduced lifespan.
Float Stage: Maintenance Mode
After the battery reaches full charge, the charger transitions to the float stage, reducing the voltage to a safe maintenance level (around 36-38 volts for a 36-volt system). This stage prevents overcharging while keeping the battery topped off, ideal for long-term storage or periods of inactivity. The float stage is particularly important for lead-acid batteries, as it minimizes water loss and sulfation, common causes of premature battery failure. For optimal results, ensure the charger automatically switches to this stage and avoid leaving the battery in bulk or absorption modes indefinitely.
Practical Tips for Maximizing Battery Lifespan
To get the most out of your golf cart’s battery, adhere to these guidelines: charge after every use, even if the battery isn’t fully depleted; avoid interrupting the charging cycle; and regularly inspect the charger and battery terminals for corrosion or damage. For deep-cycle batteries, limit discharge to no more than 50% of capacity to extend lifespan. Finally, invest in a smart charger that automatically detects and adjusts to the appropriate charging stage, ensuring both safety and efficiency.
By understanding and respecting these charging stages, golf cart owners can significantly enhance battery performance and longevity, reducing the need for frequent replacements and costly repairs.
Depreciating Your Golf Cart: A Step-by-Step Guide for Owners
You may want to see also
Explore related products
Safety Features: Overcharge protection, temperature sensors, and automatic shutoff prevent damage
Modern 36-volt golf cart chargers are engineered with safety as a priority, incorporating features that protect both the battery and the user. Overcharge protection is a critical component, as it prevents the battery from receiving excessive voltage, which can lead to overheating, reduced lifespan, or even failure. This feature monitors the battery’s charge level and automatically stops the charging process once the battery reaches full capacity, typically at around 37.8 to 38.4 volts for a 36-volt system. Without this safeguard, continuous charging could cause irreversible damage to the battery cells, rendering them unsafe or unusable.
Another essential safety feature is the integration of temperature sensors, which monitor the heat levels of both the charger and the battery during operation. Lithium-ion or lead-acid batteries, commonly used in golf carts, can become dangerously hot if charged too quickly or under adverse conditions. Temperature sensors detect when the battery or charger exceeds a safe threshold (usually around 120°F or 49°C) and either slow down the charging process or halt it entirely. This prevents thermal runaway, a condition where excessive heat generates more heat, potentially leading to fires or explosions.
The automatic shutoff mechanism complements these features by ensuring the charger stops functioning under abnormal conditions. This could be triggered by overcharging, overheating, or even a loose connection. For instance, if the charger detects an unstable current flow or a voltage spike, it will immediately disconnect the power supply to prevent electrical damage or hazards. This feature is particularly important in unattended charging scenarios, where manual intervention isn’t possible.
Practical tips for maximizing these safety features include ensuring the charger is compatible with your golf cart’s battery type (e.g., lead-acid vs. lithium-ion) and regularly inspecting the charger and battery for signs of wear or damage. Keep the charging area well-ventilated to aid temperature regulation, and avoid charging in extreme temperatures (below 32°F or above 100°F). By understanding and leveraging these safety mechanisms, users can prolong battery life, reduce maintenance costs, and minimize the risk of accidents.
Golf Cart Grocery Shopping: Tips for Efficient and Fun Errands
You may want to see also
Frequently asked questions
A 36-volt golf cart charger works by converting AC (alternating current) from a standard electrical outlet into DC (direct current) to recharge the golf cart's battery pack. It regulates voltage and current to ensure safe and efficient charging.
The key components include a transformer to step down AC voltage, a rectifier to convert AC to DC, a voltage regulator to control output, and safety features like overcharge protection and cooling systems.
Charging time varies depending on the battery capacity and charger amperage, but typically ranges from 6 to 12 hours for a full charge.
No, using a 36-volt charger on a golf cart with a different voltage (e.g., 48-volt) can damage the batteries or the charger. Always match the charger voltage to the golf cart's battery system.
Most chargers have an indicator light or display that shows charging status. The charger will automatically switch to a maintenance or trickle charge mode once the battery is fully charged.
