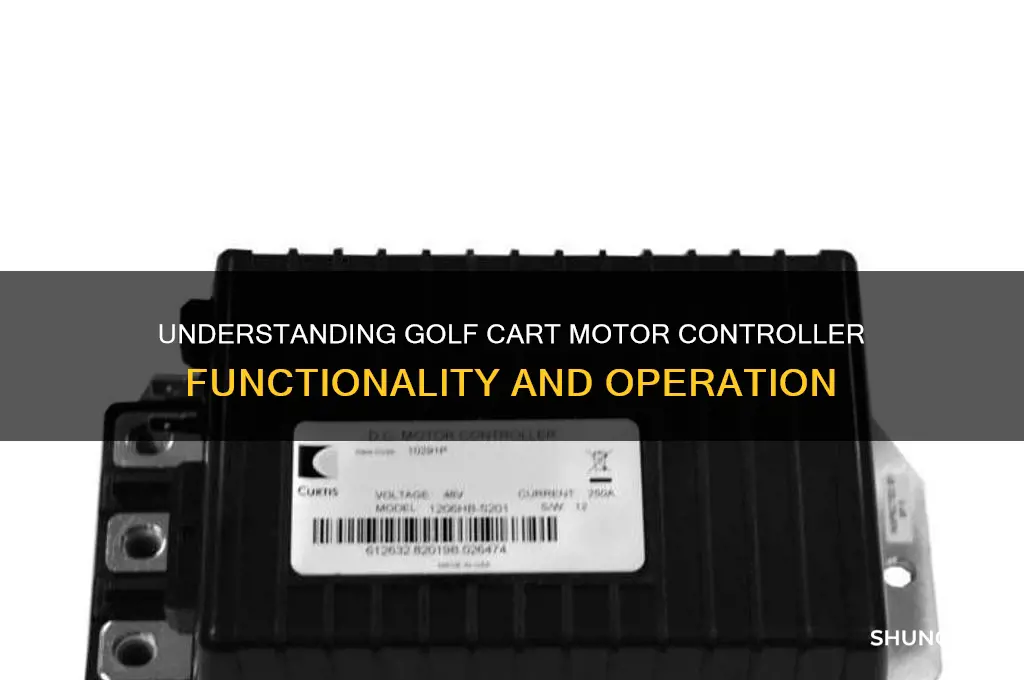

A golf cart motor controller is a critical component that regulates the speed and direction of the electric motor, ensuring smooth and efficient operation. It functions by receiving input from the accelerator pedal and translating it into the appropriate electrical signals to control the motor's power output. Typically, the controller adjusts the voltage and current supplied to the motor, allowing for variable speed control. In DC motor systems, this is often achieved through pulse width modulation (PWM), which rapidly switches the power on and off to vary the average voltage. AC motor controllers, on the other hand, use variable frequency drives to adjust motor speed. Additionally, the controller often includes safety features such as over-voltage and over-current protection to prevent damage to the motor and ensure safe operation. Understanding how a golf cart motor controller works is essential for troubleshooting, maintenance, and optimizing performance.
Explore related products
What You'll Learn
- Power Input and Regulation: How the controller receives and manages power from the battery
- Speed Control Mechanism: Methods used to adjust motor speed based on input signals
- Direction Control Logic: How the controller reverses motor polarity for forward/reverse movement
- Thermal Management System: Techniques to prevent overheating during operation
- Safety Features and Protections: Built-in safeguards against overcurrent, short circuits, and voltage spikes
Power Input and Regulation: How the controller receives and manages power from the battery
The golf cart motor controller's first critical task is to safely and efficiently receive power from the battery, typically a 36V or 48V DC system. This power input stage is where the controller's role as the brain of the golf cart's electrical system begins. The controller is connected directly to the battery pack via thick gauge cables designed to handle high currents, often exceeding 50 amps under full load. These cables are usually color-coded (red for positive, black for negative) to prevent incorrect connections that could damage the controller or battery.
Once power is received, the controller must regulate it to ensure the motor operates within safe and efficient parameters. This regulation involves monitoring the battery's voltage and current draw, adjusting the power output to match the driver's throttle input. For instance, when the accelerator pedal is pressed gently, the controller reduces the power sent to the motor, conserving energy and extending battery life. Conversely, under heavy acceleration, the controller allows maximum current flow, up to the battery's and motor's rated capacity, typically around 300-400 amps for a standard golf cart motor.
A key component in this regulation process is the controller's use of pulse width modulation (PWM). PWM works by rapidly switching the power supply on and off, varying the width of these pulses to control the average power delivered to the motor. For example, a 50% duty cycle means the power is on for half the time and off for the other half, effectively delivering half the maximum power. This method allows precise control over motor speed and torque while minimizing energy loss as heat.
Another critical aspect of power regulation is over-voltage and under-voltage protection. Golf cart controllers are programmed to shut down if the battery voltage drops below a certain threshold (usually around 30V for a 36V system) to prevent deep discharge, which can damage lead-acid batteries. Similarly, if the voltage exceeds a safe limit (e.g., 45V in a 36V system), the controller will disconnect the power to protect itself and the motor from damage. These safeguards are essential for maintaining the longevity of both the battery and the electrical system.
Finally, modern golf cart controllers often include regenerative braking capabilities, which further enhance power management. During deceleration, the motor acts as a generator, converting kinetic energy back into electrical energy that is returned to the battery. The controller manages this process by reversing the current flow, ensuring that the battery is charged efficiently without overloading it. This feature not only improves energy efficiency but also reduces wear on mechanical brake components, extending their lifespan.
In summary, the power input and regulation functions of a golf cart motor controller are fundamental to its operation. By carefully managing the flow of electricity from the battery to the motor, the controller ensures safe, efficient, and responsive performance. Understanding these processes can help golf cart owners optimize their vehicle's operation, troubleshoot issues, and make informed decisions about upgrades or maintenance.
Golf Cart Lift Kit Costs: Budgeting for Your Upgrade
You may want to see also
Explore related products
Speed Control Mechanism: Methods used to adjust motor speed based on input signals
Golf cart motor controllers rely on precise speed control mechanisms to adjust motor speed based on input signals, ensuring smooth acceleration, consistent performance, and energy efficiency. These mechanisms interpret signals from the accelerator pedal, battery voltage, and other sensors to modulate power delivery to the motor. The most common methods include pulse width modulation (PWM), variable voltage control, and current limiting, each tailored to specific motor types and operational requirements. Understanding these methods is crucial for optimizing performance, extending battery life, and troubleshooting issues in electric golf carts.
Pulse Width Modulation (PWM) stands as the cornerstone of modern speed control in golf cart motor controllers. This method rapidly switches the power supply on and off, varying the "on" time (pulse width) to control the average voltage delivered to the motor. For instance, a 50% duty cycle means the power is on for half the time, effectively halving the voltage. PWM allows for fine-tuned speed adjustments, from a gentle crawl to full speed, without wasting energy. It’s particularly effective in DC motors, where the motor’s speed is directly proportional to the applied voltage. A practical tip: when upgrading a golf cart controller, ensure the PWM frequency is compatible with the motor to avoid overheating or inefficient operation.
While PWM dominates, variable voltage control remains a simpler, albeit less precise, alternative. This method adjusts the voltage supplied to the motor directly, typically using resistors or potentiometers. For example, reducing the voltage from 48V to 24V cuts the motor speed in half. However, this approach is inefficient because the excess voltage is dissipated as heat. It’s more common in older golf carts or budget models. If you’re working with a variable voltage system, regularly check the resistors for signs of overheating, as this can lead to premature failure.
Current limiting is another critical method, especially in high-torque situations or when protecting the motor from overload. By restricting the amount of current flowing to the motor, controllers prevent damage and ensure consistent performance. For instance, during steep climbs, a current limiter might cap the amperage at 40A to avoid burning out the motor. This method is often paired with PWM or variable voltage control for added safety. A practical takeaway: if your golf cart struggles uphill, verify the current limit settings in the controller; adjusting this parameter (if accessible) can improve performance without risking damage.
In comparative analysis, PWM offers the best balance of precision and efficiency, making it the go-to method for most modern golf carts. Variable voltage control, while simpler, is less energy-efficient and more prone to heat-related issues. Current limiting, though essential for safety, doesn’t directly control speed but ensures the motor operates within safe parameters. When troubleshooting speed issues, start by checking the PWM signal integrity, followed by voltage levels and current limits. This systematic approach ensures you address the root cause rather than symptoms.
Finally, practical implementation tips can significantly enhance speed control effectiveness. For PWM systems, ensure the controller’s firmware is up-to-date, as newer versions often include optimized algorithms for smoother acceleration. In variable voltage setups, consider upgrading to a PWM controller for better efficiency. Always monitor battery voltage, as fluctuations can affect speed control accuracy. For example, a drop from 48V to 42V under load can reduce motor speed by 12.5%. Regularly calibrate the accelerator pedal sensor to maintain responsiveness. By mastering these methods and tips, you can ensure your golf cart’s speed control mechanism operates at peak efficiency, delivering a reliable and enjoyable ride.
Golf Cart Rentals in Myrtle Beach: Costs and Tips
You may want to see also
Explore related products
![Navitas 440-Amp for Yamaha G29 Drive and Drive 2 [2007-2020] Golf Cart Controller Kit and MODZ® Heavy Duty Solenoid](https://m.media-amazon.com/images/I/71bIHd87DUL._AC_UL320_.jpg)
Direction Control Logic: How the controller reverses motor polarity for forward/reverse movement
The direction control logic in a golf cart motor controller is a pivotal mechanism that enables seamless switching between forward and reverse movement. At its core, this functionality hinges on the ability to reverse the polarity of the electric current supplied to the motor. When the motor’s magnetic field direction changes, the rotor spins in the opposite direction, propelling the golf cart forward or backward as commanded. This process is governed by a series of relays, transistors, or solid-state switches within the controller, which act as electronic gatekeepers for current flow.
To achieve this reversal, the controller employs a double-pole double-throw (DPDT) relay or a pair of high-power MOSFETs/IGBTs. When the driver engages the forward direction, the controller routes current through one set of motor terminals, creating a magnetic field that drives the rotor in one direction. Activating the reverse function triggers the controller to switch the current path, effectively swapping the positive and negative terminals. This polarity reversal alters the magnetic field’s orientation, causing the rotor to spin in the opposite direction. The transition is instantaneous, ensuring smooth and responsive control without mechanical wear.
Consider a practical example: in a 36V or 48V golf cart system, the controller monitors input from the direction selector (forward/reverse switch). When the driver shifts to reverse, the controller sends a signal to the DPDT relay, which physically swaps the motor’s connections. In modern systems, solid-state components like MOSFETs handle this task more efficiently, reducing heat loss and increasing reliability. The controller’s microprocessor ensures precise timing, preventing short circuits during the transition.
A critical caution is to avoid rapid back-and-forth switching between forward and reverse, as this can induce high inrush currents, stressing the motor and controller. Manufacturers often incorporate a delay (e.g., 1–2 seconds) in the control logic to mitigate this risk. Additionally, ensure the controller is rated for the golf cart’s voltage and current requirements; mismatched components can lead to overheating or failure. Regularly inspect wiring connections for corrosion or looseness, as these can disrupt polarity reversal and compromise safety.
In conclusion, direction control logic is a sophisticated yet straightforward process that leverages polarity reversal to enable bidirectional movement. By understanding the role of relays, transistors, and control algorithms, golf cart owners can better maintain their systems and troubleshoot issues. Whether using a traditional relay-based controller or a modern solid-state design, this mechanism exemplifies the elegance of electrical engineering in achieving practical, everyday functionality.
