Trevor Ng

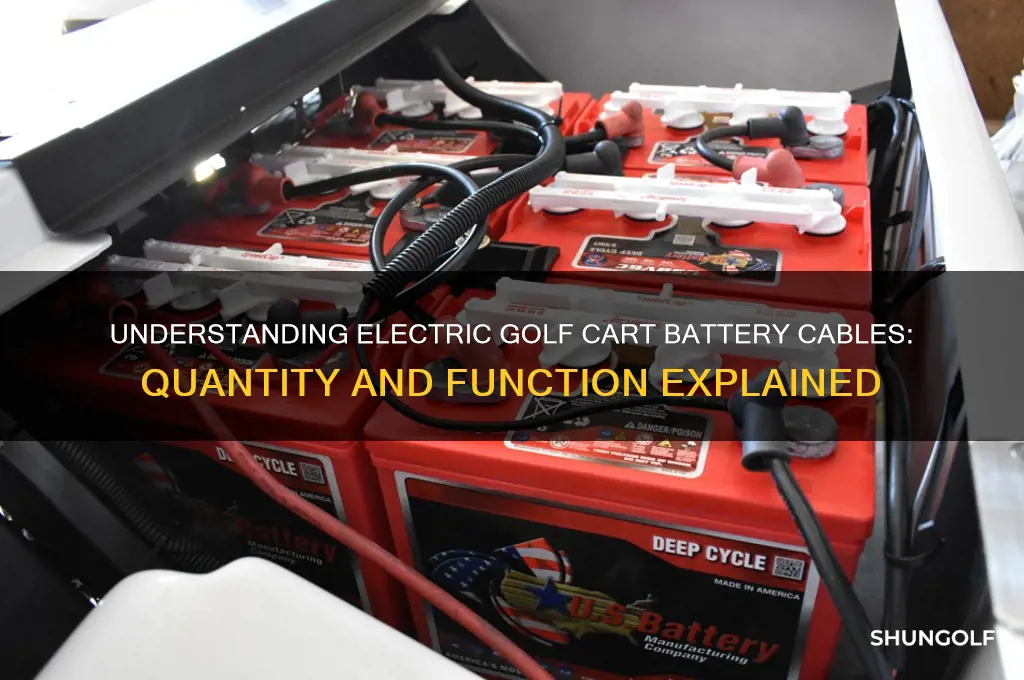

Electric golf carts typically rely on a battery system to power their electric motors, and understanding the number of battery cables involved is essential for maintenance and troubleshooting. Generally, an electric golf cart has two main battery cables: one positive (+) and one negative (-) cable, which connect the battery bank to the motor controller. However, the total number of cables can vary depending on the cart's configuration, such as whether it uses a single 48-volt battery or multiple 6-volt or 8-volt batteries connected in series. Additionally, some carts may have auxiliary cables for accessories like lights or chargers. Properly identifying and maintaining these cables ensures efficient operation and prolongs the life of the golf cart's electrical system.
Explore related products
What You'll Learn
- Battery Cable Types: Differentiating between main power, accessory, and ground cables in electric golf carts
- Cable Count: Understanding the typical number of cables used in standard electric golf cart setups
- Cable Sizing: Importance of gauge and length for efficient power transmission in golf cart batteries
- Connection Points: Identifying where battery cables connect to the motor, controller, and accessories
- Maintenance Tips: How to inspect, clean, and replace battery cables to ensure optimal performance
Battery Cable Types: Differentiating between main power, accessory, and ground cables in electric golf carts
Electric golf carts rely on a network of battery cables to function, but not all cables are created equal. Understanding the differences between main power, accessory, and ground cables is crucial for maintenance, troubleshooting, and ensuring optimal performance. Let's break down their roles and characteristics.
Main Power Cables: The Lifeline of Your Cart
These are the heavy-duty cables, typically the thickest in diameter, responsible for carrying the high-amperage current from the battery bank to the motor controller. Think of them as the cart's arteries, delivering the raw power needed for propulsion. They're usually color-coded red (positive) and black (negative) for easy identification. Inspect these cables regularly for signs of fraying, corrosion, or loose connections, as any compromise here can lead to significant power loss or even complete failure.
Accessory Cables: Powering the Extras
Smaller in gauge compared to main power cables, accessory cables supply electricity to secondary components like lights, horns, radios, and charging ports. They often branch off from the main power source and are color-coded differently (e.g., yellow, blue, green) to distinguish them. While less critical for basic operation, damaged accessory cables can render these features useless. When adding aftermarket accessories, ensure the gauge of the accessory cable is appropriate for the amperage draw of the new component to prevent overheating or blown fuses.
Ground Cables: Completing the Circuit
Ground cables, usually black, provide a return path for the electrical current, completing the circuit and allowing the system to function. They connect the negative terminal of the battery to the cart's frame, which acts as a common ground. Corroded or loose ground connections are a common culprit for electrical issues, manifesting as dim lights, intermittent power, or difficulty starting. Regularly clean and tighten ground connections to ensure a solid electrical bond.
Key Takeaway:
Understanding the distinct roles and characteristics of main power, accessory, and ground cables empowers you to diagnose and address electrical problems in your electric golf cart effectively. Regular inspection and maintenance of these cables are essential for keeping your cart running smoothly and safely.
Maximizing Golf Cart Front Tire Lifespan: Maintenance Tips and Durability
You may want to see also
Explore related products
Cable Count: Understanding the typical number of cables used in standard electric golf cart setups
Electric golf carts typically operate on a 36-volt or 48-volt battery system, which directly influences the number of cables required. A standard 36-volt setup uses six 6-volt batteries connected in series, while a 48-volt system employs six 8-volt batteries or eight 6-volt batteries. Each battery in the series requires two cables: one positive and one negative, except for the last battery in the chain, which only needs a negative cable to complete the circuit. This configuration ensures efficient power delivery to the cart’s motor.
Understanding cable count begins with recognizing the role of each cable in the battery bank. For a 36-volt system with six 6-volt batteries, you’ll need a total of 12 cables: six positive and six negative. However, the last battery in the series only requires one negative cable, reducing the total to 11 cables. In a 48-volt system with eight 6-volt batteries, the count increases to 15 cables (seven positive and eight negative). Proper cable management is critical to prevent overheating and ensure longevity.
Maintenance of these cables is as important as their count. Inspect cables regularly for signs of corrosion, fraying, or loose connections. Clean battery terminals with a mixture of baking soda and water to neutralize acid buildup, and tighten connections with a wrench. For safety, always disconnect the battery before performing maintenance. Using heat shrink tubing on cable ends can prevent short circuits and extend their lifespan.
Comparing cable counts between different voltage systems highlights the importance of matching battery configuration to cart requirements. While a 36-volt system is sufficient for casual use, a 48-volt setup offers extended range and better performance on hilly terrain. Upgrading from a 36-volt to a 48-volt system increases cable count but provides a noticeable improvement in power efficiency. Always consult the manufacturer’s guidelines before making modifications.
In practice, organizing cables neatly can prevent tangling and reduce wear. Use zip ties or cable clamps to secure them away from moving parts. Labeling each cable with its corresponding battery number simplifies troubleshooting and replacement. For DIY enthusiasts, investing in a multimeter to test voltage across cables can help diagnose issues early. Proper cable management not only ensures safety but also maximizes the efficiency of your electric golf cart’s battery system.
Understanding Golf Cart Charger Wattage: Power Consumption Explained
You may want to see also
Explore related products
Cable Sizing: Importance of gauge and length for efficient power transmission in golf cart batteries
Electric golf carts typically have six battery cables—one for each of the six 8-volt batteries commonly used in 48-volt systems. These cables are not just wires; they are the lifelines of your cart’s performance. The efficiency of power transmission hinges on two critical factors: gauge and length. A cable’s gauge, measured in American Wire Gauge (AWG), determines its thickness and current-carrying capacity. For instance, a 2-gauge cable is thicker and can handle more amperage than a 4-gauge cable, reducing voltage drop and heat buildup. Length matters equally—longer cables increase resistance, which can sap power and shorten battery life. For optimal performance, keep cables as short as practical and ensure they match the manufacturer’s specifications.
Consider this scenario: a golf cart with undersized cables (e.g., 6-gauge instead of 2-gauge) will experience significant voltage drop under load, especially during acceleration or hill climbs. This not only reduces speed and torque but also forces the batteries to work harder, accelerating wear. Conversely, oversized cables (e.g., 0-gauge) are unnecessary and add weight, though they won’t harm performance. The sweet spot lies in selecting the correct gauge for your cart’s amperage draw, typically 2-gauge for 48-volt systems. Use a voltage drop calculator to ensure your setup stays within the 3-5% drop threshold for maximum efficiency.
The relationship between gauge, length, and efficiency is rooted in physics. Resistance (R) in a cable increases with length (L) and decreases with cross-sectional area (A), following the formula \( R = ρL/A \), where ρ is resistivity. For copper, ρ is \( 1.68 × 10^{-8} \) ohm-meter. A 2-gauge cable has a cross-sectional area of 32.5 mm², while a 4-gauge cable has 21.2 mm². This 50% difference in area translates to a 33% increase in resistance for the thinner cable, significantly impacting power delivery. Always measure the distance between battery terminals and cut cables to fit, minimizing excess length.
Practical tips for cable sizing include: 1) Verify your cart’s peak amperage draw (typically 30-50 amps for standard models, 60+ amps for high-performance carts) and choose cables rated for 25% more than this value. 2) Inspect cables annually for fraying, corrosion, or overheating, replacing them if necessary. 3) Use heat shrink tubing at connection points to prevent moisture intrusion, which increases resistance. 4) When upgrading batteries or motors, reassess cable size to match the new load requirements.
In summary, cable sizing is not a one-size-fits-all solution. It demands precision to balance efficiency, safety, and performance. By understanding the interplay of gauge and length, you can ensure your golf cart’s electrical system operates at its peak, extending battery life and delivering consistent power. Treat your cables as an investment—skimping on quality or size will cost you in the long run, both in performance and repairs.
Rolls Royce Golf Cart Price: Luxury on the Green Revealed
You may want to see also
Explore related products
Connection Points: Identifying where battery cables connect to the motor, controller, and accessories
Electric golf carts typically have 4 to 6 batteries, depending on the voltage configuration (36V or 48V). Each battery is connected in series, forming a chain that powers the cart. Understanding where the battery cables connect is crucial for maintenance, troubleshooting, and upgrades. The primary connection points are the motor, controller, and accessories, each serving a distinct function in the cart’s electrical system.
Identifying Motor Connections: The motor is the powerhouse of the golf cart, converting electrical energy into mechanical motion. Battery cables connect to the motor via thick, high-gauge wires, usually color-coded for polarity (red for positive, black for negative). These cables are often secured with bolt-on terminals to ensure a stable, high-current connection. To locate them, follow the thickest cables from the battery bank; they typically lead directly to the motor’s terminal block. Pro tip: Always disconnect the batteries before inspecting motor connections to avoid short circuits.
Controller Connections Demystified: The controller acts as the brain, regulating power flow from the batteries to the motor. Battery cables connect to the controller’s input terminals, usually labeled "B+" (positive) and "B-" (negative). These connections are critical for speed control and efficiency. Unlike motor cables, controller cables are thinner but still insulated to handle high voltage. To verify proper connection, consult the cart’s wiring diagram, which often highlights controller terminals in a central location. Caution: Misconnecting controller cables can damage the system, so double-check polarity before reattaching.
Accessory Connections: The Often-Overlooked Links: Accessories like lights, horns, and USB chargers draw power from the battery bank via smaller-gauge cables. These connections are typically made at a junction box or directly to the battery’s auxiliary terminals. While less critical than motor or controller connections, loose accessory cables can drain power or cause intermittent issues. Practical tip: Use zip ties to organize accessory cables and prevent them from rubbing against moving parts, which can cause wear and tear.
Troubleshooting Connection Points: If your golf cart isn’t performing optimally, start by inspecting these connection points. Look for corrosion, loose terminals, or frayed insulation. Clean corroded terminals with a wire brush and apply dielectric grease to protect against moisture. For loose connections, tighten bolts to the manufacturer’s torque specifications (typically 10-15 ft-lbs for battery terminals). If cables are damaged, replace them with the correct gauge and length to maintain efficiency. Regularly checking these points can prevent costly repairs and extend the life of your cart’s electrical system.
Illinois Golf Cart Driving Age: Legal Requirements and Guidelines
You may want to see also
Explore related products
Maintenance Tips: How to inspect, clean, and replace battery cables to ensure optimal performance
Electric golf carts typically have 36-volt or 48-volt systems, powered by six or eight batteries, respectively. Each battery connects to the next via cables, forming a series circuit. This means an electric golf cart has one cable per battery connection, totaling five or seven cables, depending on the voltage system. Understanding this setup is crucial for maintenance, as these cables are the lifelines of your cart’s power delivery.
Inspection begins with a visual check. Look for frayed insulation, corrosion at the terminals, or loose connections. Corrosion appears as a white, greenish, or bluish residue and can disrupt current flow. Use a flashlight to inspect hard-to-see areas. Test connections with a gentle tug; if a cable pulls free, it’s too loose. For a deeper analysis, measure voltage drop across each cable using a multimeter. A drop exceeding 0.1 volts under load indicates excessive resistance, signaling a need for cleaning or replacement.
Cleaning battery cables is straightforward but requires precision. Start by disconnecting the battery, removing the negative terminal first to prevent short circuits. Mix baking soda and water into a paste, apply it to corroded areas, and scrub with a wire brush. Rinse with distilled water and dry thoroughly. Coat terminals with a thin layer of dielectric grease to prevent future corrosion. Reattach cables, tightening nuts with a torque wrench to manufacturer specifications—typically 10–15 lb-ft for golf cart batteries.
Replacement becomes necessary when cables are cracked, severely corroded, or undersized for the system. Choose cables rated for the cart’s amperage and voltage, typically 2–4 gauge for golf carts. Cut new cables to match the old ones, stripping ¼ inch of insulation from the ends. Use battery terminal lugs and a crimping tool for secure connections. Ensure polarity is correct: red for positive, black for negative. After installation, test the circuit for continuity and voltage before operating the cart.
Proactive maintenance extends cable life and ensures reliability. Inspect cables monthly, clean them biannually, and replace them every 3–5 years or at the first sign of failure. Keep batteries charged to 50–80% when not in use to reduce strain on cables. Store the cart in a dry, temperature-controlled environment to minimize corrosion. By treating battery cables as critical components, you’ll maximize performance and avoid unexpected breakdowns on the course.
Bypassing Your Golf Cart Light Switch: A Quick DIY Guide
You may want to see also
Frequently asked questions
A typical electric golf cart has 4 to 6 battery cables, depending on the voltage system (36V or 48V) and configuration.
Electric golf carts need multiple battery cables to connect the batteries in series or parallel, ensuring proper voltage and current flow to power the motor and accessories.
No, battery cables in an electric golf cart vary in length depending on their function and the distance between battery terminals and the controller or motor.
Yes, you can replace a single damaged battery cable, but it’s recommended to inspect all cables for wear and replace them as needed to ensure consistent performance.
