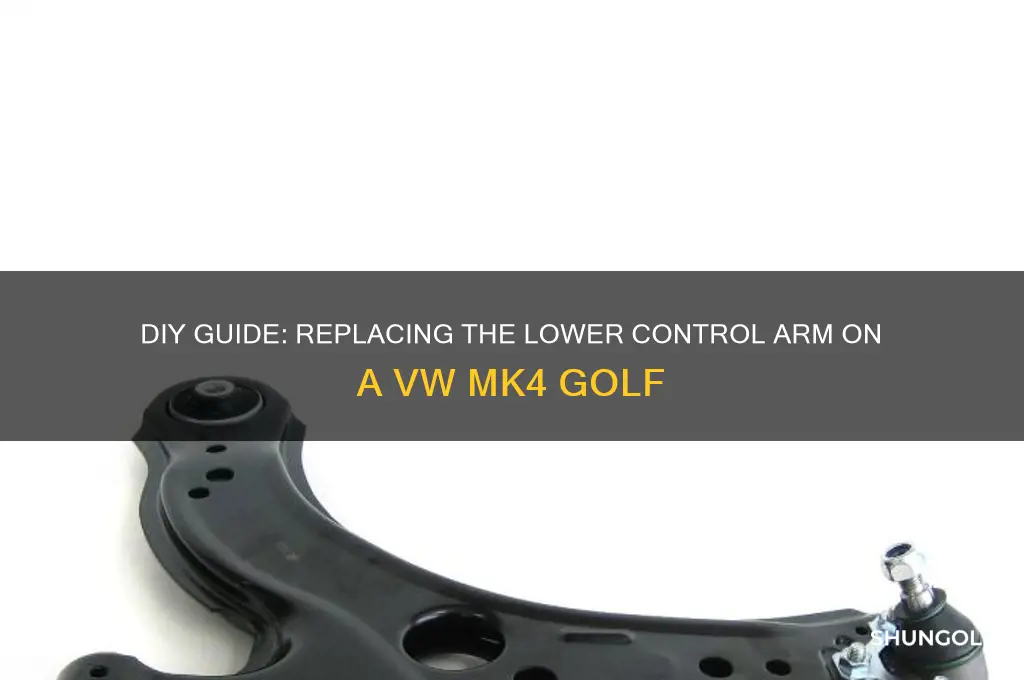

Replacing the lower control arm on a Mk4 Volkswagen Golf is a critical maintenance task that ensures optimal handling, safety, and suspension performance. The lower control arm plays a vital role in connecting the wheel hub to the vehicle’s chassis, providing stability and allowing for smooth steering and suspension movement. Over time, wear and tear, such as bushings deterioration, ball joint failure, or corrosion, can compromise its functionality, leading to symptoms like uneven tire wear, clunking noises, or poor alignment. While the process requires intermediate mechanical skills and specific tools, it involves steps like safely lifting the vehicle, removing the wheel, disconnecting the sway bar link and ball joint, and carefully replacing the old control arm with a new one. Proper torque settings and alignment are essential post-installation to ensure longevity and performance. This task is often recommended when signs of damage or wear are detected during routine inspections.
| Characteristics | Values |
|---|---|
| Vehicle Model | Volkswagen Golf Mk4 (1997–2006) |
| Tools Required | Jack, Jack Stands, Wrenches, Socket Set, Ball Joint Splitter, Hammer |
| Difficulty Level | Intermediate to Advanced |
| Estimated Time | 2–4 hours per side |
| Parts Needed | Lower Control Arm, Ball Joints, Bushings, Bolts, Nuts, Wheel Bearing if necessary |
| Safety Precautions | Secure vehicle on jack stands, wear safety gear, ensure wheel is removed |
| Steps Overview | 1. Lift vehicle and remove wheel 2. Disconnect sway bar link and ball joint 3. Remove control arm bolts 4. Install new control arm 5. Reassemble and torque to spec 6. Align wheels after completion |
| Common Issues | Worn bushings, ball joint failure, rusted bolts |
| Torque Specifications | Control arm bolts: 60–70 Nm, Ball joint bolts: 40–50 Nm (verify in manual) |
| Alignment Required | Yes, after replacement |
| Cost of Parts | $100–$300 (depending on brand and quality) |
| DIY vs Professional | DIY possible with experience; professional recommended for alignment |
| Additional Tips | Use penetrating oil for rusted bolts, inspect related components (e.g., CV joints) |
Explore related products
What You'll Learn
- Tools Required: Gather socket set, jack stands, wrenches, and new control arm for replacement
- Removal Steps: Disconnect sway bar, ball joint, and bolts to remove old arm
- Installation Process: Align new control arm, secure bolts, and reconnect ball joint and sway bar
- Torque Specifications: Tighten bolts to manufacturer’s torque specs for safe installation
- Post-Installation Check: Inspect alignment, test drive, and verify no unusual noises or vibrations
Tools Required: Gather socket set, jack stands, wrenches, and new control arm for replacement
Before embarking on the task of replacing the lower control arm on your MK4 Golf, it's essential to gather all the necessary tools to ensure a smooth and efficient process. The first item on your list should be a comprehensive socket set, which will be your go-to tool for removing and tightening various bolts and nuts during the replacement. A socket set with both metric and standard sizes is ideal, as it will provide you- with the flexibility to tackle any fastener you encounter. Make sure to include extensions and a ratchet handle to facilitate access to tight spaces and provide the necessary leverage.
In addition to the socket set, you'll need a sturdy pair of jack stands to safely elevate and support your vehicle. Since you'll be working on the underside of the car, it's crucial to have a stable and secure platform to prevent accidents or injuries. Choose jack stands with a weight capacity that exceeds the weight of your MK4 Golf, and ensure they're placed on a level surface to maintain stability. It's also a good idea to have a hydraulic floor jack on hand to initially lift the vehicle and position the jack stands.
A collection of wrenches is another essential component of your toolkit for this task. You'll likely need a combination of open-end and box wrenches in various sizes to loosen and tighten bolts, particularly those that are difficult to access with the socket set. Consider having both metric and standard wrenches available, as some components on the MK4 Golf may use a mix of fastener types. Adjustable wrenches can also be useful for situations where a specific size is not readily available.
Lastly, but most importantly, you'll need to acquire a new lower control arm specifically designed for your MK4 Golf. It's crucial to purchase a high-quality replacement part from a reputable manufacturer to ensure proper fitment, durability, and performance. When selecting the new control arm, double-check the part number and compatibility with your vehicle's make, model, and year to avoid any potential issues during installation. With the socket set, jack stands, wrenches, and new control arm in hand, you'll be well-prepared to tackle the replacement process with confidence and precision.
As you gather these tools, take a moment to inspect each item for any signs of wear, damage, or malfunction. A faulty or damaged tool can compromise your safety and the success of the replacement. For instance, a worn-out socket or a cracked jack stand can lead to accidents or further damage to your vehicle. By ensuring that all your tools are in good working condition, you'll be setting yourself up for a successful and stress-free lower control arm replacement on your MK4 Golf. With everything prepared, you can now focus on the step-by-step process of removing the old control arm and installing the new one.
The Surprising Origins of Putt-Putt Golf: Who Invented It?
You may want to see also
Explore related products
Removal Steps: Disconnect sway bar, ball joint, and bolts to remove old arm
To begin the removal process of the lower control arm on a MK4 Golf, start by securely raising the vehicle and supporting it on jack stands. Ensure the wheels are off to provide better access to the control arm. The first step is to disconnect the sway bar link that attaches to the lower control arm. Using a suitable wrench or socket, loosen the nut that secures the sway bar link to the control arm. Once the nut is removed, use a pry bar to carefully separate the link from the control arm, taking care not to damage any components. Set the sway bar link aside for reinstallation later.
Next, disconnect the ball joint that connects the lower control arm to the steering knuckle. This typically involves removing the cotter pin and loosening the nut that secures the ball joint stud. After the nut is removed, use a ball joint separator tool to safely detach the ball joint from the steering knuckle. This step requires patience, as forcing the joint apart can cause damage. Once separated, the ball joint will be free from the knuckle, allowing the control arm to move more freely.
With the sway bar link and ball joint disconnected, focus on removing the bolts that secure the lower control arm to the subframe. There are typically two main bolts holding the control arm in place: one in the front and one in the rear. Use a socket wrench or impact gun to loosen and remove these bolts. Be prepared for rust or corrosion, as these bolts can be stubborn. If the bolts are seized, applying penetrating oil and allowing it to sit for a while can help. Once the bolts are removed, the control arm will be loose but may still be held in place by the bushings.
To fully remove the old control arm, gently lower the suspension to relieve tension on the bushings. This can be done by slightly lowering the jack stand or using a jack to apply downward pressure on the suspension. With the tension relieved, the control arm should now be free to be pulled out of the vehicle. Carefully maneuver the control arm to avoid damaging surrounding components, such as brake lines or wiring. Once removed, inspect the bushings and other components for wear and consider replacing them if necessary.
Finally, with the old lower control arm removed, take a moment to clean the mounting points on the subframe. Remove any dirt, rust, or debris to ensure a proper fit for the new control arm. This step is crucial for maintaining the integrity of the suspension system. Now that the removal process is complete, you are ready to install the new lower control arm, following the reverse order of the removal steps. Always refer to a repair manual or seek professional guidance if you encounter any difficulties during the process.
The Wealthiest Golf Caddy: Unveiling the Top Earner's Fortune
You may want to see also
Explore related products
Installation Process: Align new control arm, secure bolts, and reconnect ball joint and sway bar
Begin by carefully aligning the new lower control arm into position on your MK4 Golf. Ensure the arm is correctly oriented with the chassis, matching the alignment of the old control arm. The mounting points should line up seamlessly with the frame, and the ball joint should be directed toward the steering knuckle. Gently maneuver the control arm into place, taking care not to force it, as proper alignment is critical for suspension geometry and safety. Once aligned, insert the bolts through the mounting points, starting with the larger bolts that secure the control arm to the subframe. Hand-tighten these bolts initially to hold the arm in place while you proceed with the remaining steps.
Next, secure the bolts by tightening them in a diagonal pattern using a torque wrench. Refer to your MK4 Golf’s service manual for the correct torque specifications to avoid over-tightening, which can damage the threads or the control arm. Ensure all bolts are tightened to the specified torque values, and double-check that the control arm remains properly aligned. Properly torqued bolts are essential for maintaining the structural integrity of the suspension system and ensuring safe vehicle operation.
With the control arm securely in place, reconnect the ball joint to the steering knuckle. Align the ball joint stud with the knuckle’s opening and secure it with the provided nut, again using a torque wrench to tighten it to the manufacturer’s specifications. The ball joint is a critical component for steering and suspension movement, so ensure it is firmly attached and moves freely without binding. Once the ball joint is reconnected, proceed to reattach the sway bar link to the control arm. Align the sway bar link with its mounting point and secure it with the appropriate bolt and nut, tightening them to the correct torque.
After reconnecting the ball joint and sway bar link, perform a final inspection to ensure all components are securely fastened and aligned. Check that the control arm moves smoothly and that there are no obstructions or interference with other suspension parts. Gently bounce the vehicle to settle the suspension and ensure all connections are stable. If any play or unusual movement is detected, recheck the torque settings and alignment of the control arm, ball joint, and sway bar link.
Finally, lower the vehicle from the jack stands and test the suspension by driving the car at low speeds in a safe area. Listen for any unusual noises and pay attention to the steering and handling. If everything feels stable and secure, the installation is complete. However, if any issues arise, reinspect the control arm and related components to ensure they are correctly installed and functioning as intended. Proper installation of the lower control arm is crucial for maintaining the MK4 Golf’s handling, safety, and overall performance.
The Voice Behind St Andrews: Who Narrates Golf Films?
You may want to see also
Explore related products
Torque Specifications: Tighten bolts to manufacturer’s torque specs for safe installation
When replacing the lower control arm on a Mk4 Golf, adhering to the manufacturer’s torque specifications is critical for ensuring a safe and reliable installation. Torque specifications are not arbitrary values; they are carefully calculated to provide the correct clamping force without over-tightening or under-tightening bolts, which can lead to component failure or premature wear. Over-tightening can strip threads or warp components, while under-tightening can result in loose connections that compromise steering and suspension performance. Always refer to the vehicle’s service manual or a reliable repair guide for the exact torque values specific to your Mk4 Golf model and year.
The lower control arm assembly typically involves several bolts, including those securing the control arm to the subframe and those attaching the ball joint or bushings. For example, the bolts securing the control arm to the subframe on a Mk4 Golf often require torque values ranging from 70 to 100 Nm (52 to 74 ft-lbs), depending on the specific bolt and model. Similarly, the bolts securing the ball joint or bushing may have different torque specifications, usually around 40 to 60 Nm (30 to 44 ft-lbs). Using a torque wrench is essential to achieve these precise values, as manual tightening can easily exceed or fall short of the required force.
Before tightening any bolts, ensure all components are properly aligned and seated. Clean the threads and apply the recommended thread locker or anti-seize compound if specified by the manufacturer. Tighten the bolts in a diagonal or crisscross pattern, especially for components like the control arm mounting plate, to ensure even clamping force. This practice prevents warping and ensures the control arm is securely fastened to the subframe. Always recheck the torque after the initial tightening to confirm the values have been accurately applied.
It’s important to note that torque specifications can vary based on factors such as the presence of new or reused hardware, the condition of the threads, and whether additional components like locking nuts or self-locking bolts are used. For instance, if you’re installing a new control arm with new bolts, the torque specifications may differ slightly from those for reused hardware. Always follow the manufacturer’s guidelines for your specific situation. Ignoring these details can lead to issues like uneven tire wear, steering instability, or even suspension failure.
Finally, after tightening all bolts to the correct torque specifications, perform a thorough inspection to ensure everything is secure. Check for any play in the control arm, and take the vehicle for a short test drive to verify that the steering and suspension feel normal. If any abnormalities are detected, recheck the torque values and inspect the installation for errors. By strictly adhering to the manufacturer’s torque specifications, you’ll ensure the lower control arm replacement on your Mk4 Golf is safe, durable, and performs as intended.
Master Your Swing: How the Straightaway Golf Aid Works
You may want to see also
Explore related products
Post-Installation Check: Inspect alignment, test drive, and verify no unusual noises or vibrations
After completing the lower control arm replacement on your MK4 Golf, it's crucial to perform a thorough post-installation check to ensure everything is functioning correctly. The first step is to inspect the alignment of the wheels. Proper alignment is essential for even tire wear, stable handling, and overall safety. Start by visually checking that the wheels are straight and that the vehicle sits evenly on the ground. If you have access to an alignment rack, use it to verify the camber, caster, and toe settings. Even minor misalignments can lead to premature tire wear or handling issues, so this step should not be skipped. If you notice any discrepancies, consider taking the vehicle to a professional for a full alignment.
Next, proceed with a test drive to evaluate the vehicle's performance. Begin with a short drive at low speeds, paying close attention to how the car handles. Gradually increase your speed and test the vehicle under various conditions, such as turning, braking, and accelerating. During the test drive, focus on how the steering feels—it should be responsive and smooth without any pulling to one side. Also, observe how the car behaves on uneven surfaces or when going over bumps. A properly installed control arm should allow the suspension to absorb impacts without transmitting excessive force to the chassis.
While driving, verify that there are no unusual noises or vibrations. Strange sounds like clunking, knocking, or squeaking, especially when turning or going over bumps, could indicate a problem with the installation. Vibrations through the steering wheel or floorboard may suggest an issue with the control arm, ball joint, or related components. If you detect any abnormalities, pull over safely and inspect the area around the control arm for loose bolts, damaged bushings, or other issues. Addressing these problems immediately is critical to prevent further damage or safety risks.
Once the test drive is complete, perform a final visual and tactile inspection of the lower control arm and surrounding components. Check that all bolts and fasteners are tight and properly torqued according to the manufacturer's specifications. Inspect the bushings for cracks or deformation, and ensure the ball joints move smoothly without play. Look for any signs of fluid leaks or damage to nearby components, such as brake lines or CV joints. This comprehensive inspection will help confirm that the installation was successful and that the vehicle is safe to drive.
In summary, the post-installation check for a lower control arm replacement on a MK4 Golf involves inspecting alignment, conducting a thorough test drive, and verifying the absence of unusual noises or vibrations. Each step is vital to ensure the vehicle operates safely and efficiently. If any issues are detected during these checks, it's important to address them promptly, either through self-inspection or by consulting a professional mechanic. Properly completing these post-installation procedures will help maintain the longevity and performance of your vehicle's suspension system.
Master Golf League Management: Create an Excel Spreadsheet Effortlessly
You may want to see also
Frequently asked questions
Look for symptoms like uneven tire wear, clunking noises from the suspension, excessive play in the wheel, or a failed inspection due to worn bushings or ball joints. A visual inspection for cracks, corrosion, or damaged components can also confirm the need for replacement.
You’ll need a jack and jack stands, a torque wrench, socket set, ball joint splitter, pry bar, hammer, and possibly a spring compressor if you’re replacing the entire assembly. Ensure you have the correct-sized tools for the bolts and components.
Yes, you can replace just the bushings or ball joints if they are the only damaged parts. However, if the control arm itself is bent, cracked, or heavily corroded, it’s best to replace the entire assembly for safety and reliability.
The job typically takes 1-3 hours per side, depending on your experience and whether you’re replacing just the control arm or additional components like the ball joint or bushings. Allow extra time for alignment after the replacement.
