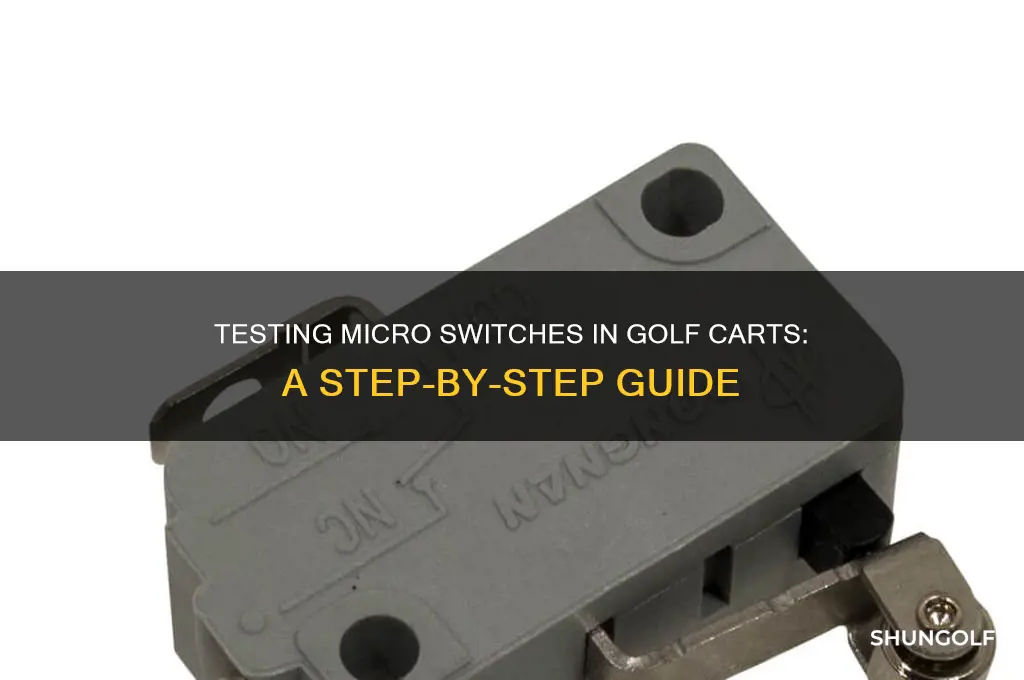

Testing a micro switch in a golf cart is essential for ensuring its reliability and safety, as the micro switch plays a critical role in controlling various functions such as forward/reverse direction, speed control, and battery charging. To test the micro switch, start by locating it within the golf cart’s control system, typically near the accelerator or direction selector. Use a multimeter set to the continuity or resistance mode to check if the switch completes the circuit when activated and breaks it when released. Apply gentle pressure or movement to the switch’s actuator while monitoring the multimeter readings to confirm proper functionality. If the switch fails to operate correctly, it may need cleaning, adjustment, or replacement to restore the golf cart’s performance and prevent potential malfunctions during use.
| Characteristics | Values |
|---|---|
| Switch Type | Typically SPDT (Single Pole Double Throw) |
| Voltage Rating | Usually 12V DC (matches golf cart battery voltage) |
| Current Rating | Varies, often 10-20A |
| Activation Method | Mechanical (lever or button) |
| Mounting Style | Panel mount or bracket mount |
| Terminal Type | Screw terminals or quick-connect |
| Testing Tools | Multimeter, jumper wires |
| Test Procedure | 1. Disconnect power source. 2. Access switch. 3. Set multimeter to continuity or resistance mode. 4. Test for continuity between appropriate terminals in both switch positions. |
| Expected Results | Continuity in one position, no continuity in the other |
| Common Issues | Dirty contacts, broken lever, internal short/open circuit |
| Replacement | Match switch type, voltage, and current ratings |
Explore related products
What You'll Learn
Testing Micro Switch Continuity
Micro switches in golf carts are critical for functions like forward/reverse direction and speed control, but their small size and hidden locations make failures hard to diagnose. Testing continuity is the fastest way to confirm if a switch is operational without removing it from the circuit. This process uses a multimeter to check if electricity flows through the switch when activated, indicating the internal contacts are closing properly. A break in continuity suggests a faulty switch that needs replacement.
To test micro switch continuity, start by locating the switch in question. Common golf cart switches include the forward/reverse switch, key switch, and accelerator pedal switch. Consult your cart’s manual for exact locations. Set your multimeter to the continuity or resistance mode (usually denoted by a diode symbol or the word "ohms"). Place the probes on the switch terminals—one on each side. With the switch in its inactive position, the multimeter should read "OL" (open loop), indicating no continuity. Activate the switch, and the reading should drop to near zero, showing a closed circuit. If the reading remains "OL" when activated, the switch is defective.
While testing, ensure the golf cart is powered off to avoid electrical hazards. If the switch is accessible without disassembly, clean the terminals with isopropyl alcohol and a brush to remove corrosion, as this can falsely indicate a failure. For switches embedded in complex assemblies, like accelerator pedals, consider testing at the wiring harness connector instead of the switch itself to isolate the issue. Always double-check your multimeter leads for damage, as frayed wires can give inaccurate readings.
Comparing continuity testing to other diagnostic methods highlights its efficiency. Unlike voltage testing, which requires the circuit to be powered, continuity testing is safe and non-invasive. It’s also more precise than visual inspection, which often misses internal contact wear. However, continuity testing alone doesn’t reveal intermittent faults, which may require wiggling the switch during testing to detect fleeting connections. For persistent issues, combine continuity testing with a visual inspection of wiring for loose connections or damage.
In conclusion, testing micro switch continuity is a straightforward yet powerful diagnostic tool for golf cart troubleshooting. By understanding the process and its limitations, you can quickly identify faulty switches and restore your cart’s functionality. Keep a multimeter in your toolkit, and practice testing on accessible switches to build confidence for when issues arise. This skill not only saves time but also prevents unnecessary part replacements, making it an essential technique for any golf cart owner.
Golf Cart Climbing Power: Maximum Hill Gradient Explained
You may want to see also
Explore related products
Golf Cart Micro Switch Location
Micro switches in golf carts are typically located in areas where they can detect critical operational states, such as the engagement of the brake pedal or the positioning of the seat. For instance, the brake micro switch is often found near the brake pedal assembly, while the seat switch might be under the driver’s seat. Identifying these locations is the first step in testing or troubleshooting, as it ensures you’re working on the correct component. A common mistake is assuming all micro switches are grouped together, but they are usually distributed based on their function, requiring a targeted approach to locate them.
To locate a micro switch, start by consulting the golf cart’s manual, which often includes diagrams pinpointing their positions. If the manual is unavailable, inspect areas where mechanical actions occur, such as the brake mechanism or steering column. For example, the brake micro switch is usually mounted on the brake pedal arm or nearby frame, while the seat switch is often hidden beneath the seat cushion or frame. Use a flashlight and a mirror for hard-to-reach areas, and note that some switches may be encased in protective housings to shield them from debris.
Once located, visually inspect the micro switch for signs of damage, such as frayed wires, corrosion, or misalignment. A misaligned switch, for instance, may fail to engage properly, causing issues like the cart not starting or running while in neutral. Gently adjust the switch’s position if it appears off-center, ensuring it aligns with the actuator (e.g., the brake pedal or seat bracket). If the switch is damaged, replacement is often necessary, with costs ranging from $5 to $20 per switch, depending on the model.
Testing the micro switch requires a multimeter, which can confirm if the switch is functioning electrically. With the cart powered off, disconnect the switch’s wiring harness and set the multimeter to the continuity or resistance setting. Touch the probes to the switch terminals and actuate the mechanism (e.g., press the brake pedal). A functional switch will show a reading of near-zero resistance, indicating the circuit is complete. If no continuity is detected, the switch is faulty and should be replaced. Always reattach the wiring harness securely after testing to prevent loose connections.
Understanding the location and function of micro switches is crucial for maintaining golf cart safety and performance. For example, a faulty brake micro switch can prevent the cart from starting, while a malfunctioning seat switch might allow the cart to run without a driver in place. Regularly inspecting these components, especially after rough use or exposure to moisture, can prevent unexpected failures. By combining visual inspection, manual adjustments, and multimeter testing, even novice users can effectively diagnose and address micro switch issues, ensuring their golf cart remains reliable.
Enhance Your Golf Experience: Stereo Golf Cart Installation Guide
You may want to see also
Explore related products
Common Micro Switch Issues
Micro switches in golf carts are prone to wear and tear due to frequent use and exposure to outdoor elements. One common issue is physical damage, where the switch’s actuator or lever becomes bent, cracked, or broken. This often occurs from debris, accidental impacts, or improper installation. To diagnose, visually inspect the switch for visible deformities or misalignment. If the actuator is damaged, replacement is the only reliable solution, as repairs rarely restore functionality. Always ensure the replacement switch matches the original specifications, including voltage and current ratings.
Another frequent problem is corrosion or oxidation on the switch’s contacts, which can disrupt electrical flow. This is particularly common in humid or salty environments. Symptoms include intermittent operation or complete failure of the switch to engage. Testing involves using a multimeter to check for continuity while actuating the switch. If continuity is inconsistent, clean the contacts with isopropyl alcohol and a soft brush. If cleaning fails, replace the switch to prevent further reliability issues.
Debris accumulation inside the switch mechanism is a less obvious but equally problematic issue. Dust, dirt, or small particles can prevent the actuator from moving freely or cause the contacts to stick. This results in the switch failing to activate or deactivate properly. Disassemble the switch carefully (if possible) and use compressed air to remove debris. If the switch is sealed, replacement is the best course of action. Regularly inspect switches in dusty or muddy environments to mitigate this issue.
Lastly, improper wiring or loose connections can mimic switch failure, leading to misdiagnosis. Check for frayed wires, loose terminals, or disconnected harnesses before condemning the switch. Use a wiring diagram to verify connections and ensure wires are securely attached. If wiring is intact, test the switch independently by bypassing the circuit. This isolates whether the issue lies with the switch or the surrounding electrical system. Proper diagnosis saves time and prevents unnecessary replacements.
Easy Guide: Removing Golf Cart Body Step-by-Step on YouTube
You may want to see also
Explore related products
$9.99
Tools for Micro Switch Testing
Micro switches in golf carts are critical for functions like forward/reverse direction control and safety mechanisms. Testing them requires precision tools to ensure accurate diagnostics. A multimeter is indispensable for this task. Set it to the continuity or resistance mode to check if the switch circuit closes properly when activated. For instance, a reading of 0 ohms indicates a closed circuit, confirming the switch is functioning. Pair this with a probe set to access hard-to-reach switches without disassembling the entire mechanism, saving time and effort.
Beyond multimeters, a circuit tester with a light indicator offers a user-friendly alternative, especially for beginners. Simply touch the probes to the switch terminals; the light will illuminate if the circuit is complete. This tool is ideal for quick checks but lacks the detailed data a multimeter provides. For mechanical inspection, a magnifying glass or inspection camera can reveal physical damage like bent levers or corrosion, which often cause switch failure. These tools complement electrical testing by addressing root causes.
When testing, always disconnect the power source to avoid short circuits or shocks. Use a non-contact voltage tester to confirm no live current is present before proceeding. For switches embedded in complex systems, a wiring diagram is essential to identify correct terminals and avoid misdiagnosis. Keep a notebook handy to record readings and observations, aiding in troubleshooting patterns over time.
Advanced users might opt for a scope meter to analyze switch response time and signal integrity, crucial for high-performance carts. However, this tool is overkill for routine checks. Instead, focus on maintaining a tool kit with essentials: multimeter, probe set, circuit tester, and inspection tools. Regular testing with these instruments ensures switches operate reliably, preventing sudden failures during use.
In summary, effective micro switch testing hinges on the right tools and methodology. Start with basic electrical checks using a multimeter or circuit tester, then proceed to mechanical inspections. Safety precautions and documentation are non-negotiable. By mastering these tools, you’ll diagnose issues swiftly and keep your golf cart running smoothly.
Lifted Golf Cart Height: Understanding the Elevated Dimensions
You may want to see also
Explore related products
Replacing Faulty Micro Switches
Micro switches in golf carts are often the unsung heroes of smooth operation, controlling functions like forward/reverse direction, speed control, and safety features. When these tiny components fail, the cart’s performance can grind to a halt—literally. Identifying and replacing faulty micro switches is a task that blends precision with practicality, ensuring your golf cart remains reliable on the course.
Diagnosis First, Replacement Second
Before swapping out a micro switch, confirm it’s the culprit. Use a multimeter to test continuity—place the probes on the switch’s terminals and actuate the mechanism. A functioning switch will show a closed circuit (near-zero resistance), while a faulty one will remain open. Common symptoms of failure include unresponsive controls, erratic behavior, or complete loss of function in specific systems. For instance, a faulty reverse switch might prevent the cart from moving backward, even when the lever is engaged.
Step-by-Step Replacement Process
Replacing a micro switch requires basic tools: a screwdriver, pliers, and possibly a soldering iron if the switch is soldered in place. Start by disconnecting the golf cart’s battery to avoid electrical mishaps. Locate the faulty switch—consult the cart’s manual for its exact position. Remove the wiring harness or unsolder the connections carefully to avoid damaging adjacent components. Pry out the old switch using a flathead screwdriver, ensuring not to force it. Insert the new switch, ensuring the actuator aligns with the mechanism it controls. Reattach the wires, either by plugging in the harness or soldering and insulating the connections. Test the switch before reassembling the housing to confirm functionality.
Choosing the Right Replacement
Not all micro switches are created equal. Ensure the replacement matches the original’s specifications, including voltage rating (typically 12V or 24V for golf carts), actuator type (lever, roller, etc.), and mounting style. Generic switches may work, but OEM (original equipment manufacturer) parts guarantee compatibility and longevity. For example, a Club Car Precedent may require a specific switch for its forward/reverse function, while EZ-GO models might use a different design.
Preventive Measures and Longevity Tips
Micro switches are prone to wear from dirt, moisture, and mechanical stress. Regularly inspect switches for corrosion or debris, especially in carts used in humid or dusty environments. Apply dielectric grease to terminals to prevent oxidation. Avoid excessive force when operating controls, as this accelerates wear. For carts stored outdoors, consider weatherproofing switch housings with silicone sealant. These small steps can extend the life of micro switches, reducing the frequency of replacements.
By mastering the art of diagnosing and replacing faulty micro switches, golf cart owners can save time and money while ensuring their vehicle remains in peak condition. It’s a skill that combines technical know-how with practical maintenance, turning a potential headache into a manageable task.
Understanding Golf Cart Tire Heights: A Comprehensive Size Guide
You may want to see also
Frequently asked questions
A micro switch is a small electrical switch used in golf carts to control functions like forward/reverse direction, speed, or safety features. Testing it ensures proper operation, prevents sudden malfunctions, and maintains safety during use.
To test a micro switch, disconnect the power, locate the switch, use a multimeter to check for continuity when the switch is activated. If the multimeter shows no continuity, the switch is faulty and needs replacement.
Common signs include the cart not moving in one direction, erratic speed control, or failure to engage safety features. Testing the micro switch can help diagnose these issues.
