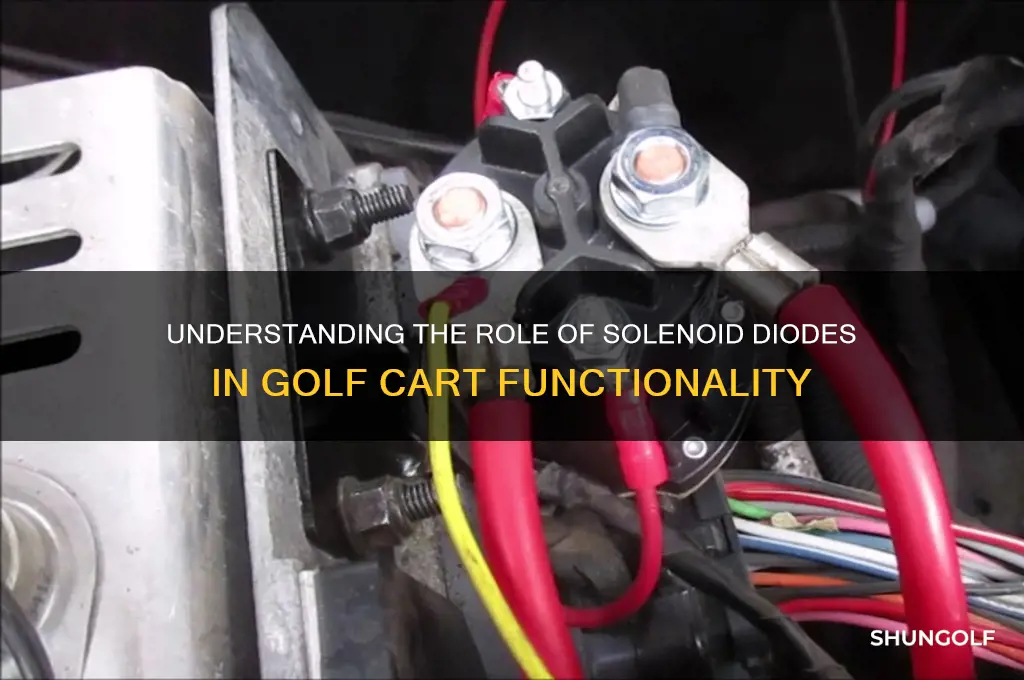

The solenoid diode in a golf cart plays a crucial role in protecting the electrical system, particularly the battery and controller, from voltage spikes caused by the sudden interruption of current flow. When the solenoid, which acts as a high-current switch, is deactivated, the magnetic field in the solenoid coil collapses, generating a reverse voltage spike. This spike can damage sensitive electronic components if not properly managed. The diode, typically a high-current rectifier diode, is placed in parallel with the solenoid coil, allowing current to flow in only one direction. When the solenoid is turned off, the diode provides a path for the collapsing magnetic field's energy to dissipate safely, preventing it from reaching the battery or controller. This simple yet effective component ensures the longevity and reliability of the golf cart's electrical system by mitigating the risks associated with inductive loads.
| Characteristics | Values |
|---|---|
| Purpose | Prevents voltage spikes from damaging the golf cart's electrical system when the solenoid is deactivated. |
| Function | Acts as a flyback diode, providing a path for the inductive current to flow when the solenoid coil is switched off. |
| Location | Typically mounted across the solenoid coil terminals, parallel to the coil. |
| Type | Usually a standard rectifier diode (e.g., 1N4007) capable of handling the current and voltage of the golf cart system. |
| Polarity | Cathode connected to the positive terminal of the solenoid coil, anode connected to the negative terminal. |
| Voltage Rating | Must be rated for at least the maximum voltage of the golf cart system (typically 36V or 48V). |
| Current Rating | Must be able to handle the peak current flowing through the solenoid coil when activated. |
| Failure Symptoms | If the diode fails, you may experience solenoid clicking, difficulty starting the cart, or damage to the solenoid or other electrical components. |
| Testing | Can be tested with a multimeter in diode mode to check for proper forward and reverse bias. |
| Replacement | Replace with a diode of the same type and ratings if faulty. |
Explore related products
What You'll Learn
Diode's Role in Solenoid Circuit
Solenoids in golf carts rely heavily on diodes to manage the electrical current flow, ensuring the system operates efficiently and safely. When the solenoid engages, it creates a magnetic field that activates the circuit, allowing the golf cart to move. However, when the solenoid is deactivated, the magnetic field collapses, generating a reverse voltage spike known as back-electromotive force (EMF). This spike can damage sensitive electronic components, such as the golf cart’s controller or battery. The diode, placed in parallel with the solenoid and reverse-biased, acts as a one-way valve for current. It allows the back-EMF to flow through a safe path to ground, protecting the circuit from voltage surges. Without this diode, the longevity and reliability of the golf cart’s electrical system would be significantly compromised.
Consider the diode’s placement and orientation as critical to its function. It must be connected across the solenoid terminals with the cathode (negative side) attached to the positive terminal of the solenoid and the anode (positive side) to the negative terminal. This reverse-biased configuration ensures the diode remains non-conductive during normal operation but immediately activates when back-EMF occurs. Practical tip: Always use a diode rated for a voltage and current higher than the solenoid’s specifications to handle peak loads effectively. For instance, a 1N4007 diode, rated for 1000V and 1A, is a common choice for 36V or 48V golf cart systems, providing ample protection against voltage spikes.
Analyzing the diode’s role reveals its dual purpose: protection and efficiency. By diverting back-EMF, it prevents arcing across the solenoid contacts, which can cause pitting and reduce the solenoid’s lifespan. Additionally, it minimizes electrical noise that could interfere with other components, such as speed controllers or sensors. Comparative to systems without diodes, golf carts equipped with this protection experience fewer electrical failures and maintain smoother operation over time. For DIY enthusiasts, installing a diode is a straightforward task: disconnect the solenoid, solder or crimp the diode across its terminals, and secure it with heat-shrink tubing to prevent short circuits.
A cautionary note: Not all diodes are created equal. Using a low-quality or improperly rated diode can lead to failure under load, negating its protective function. For example, a diode with insufficient current capacity may overheat and burn out during high-demand operations, such as frequent starts or heavy acceleration. Always verify the diode’s specifications against the solenoid’s requirements and the golf cart’s voltage system. Additionally, ensure the diode is securely mounted to dissipate heat effectively, as prolonged exposure to high temperatures can degrade its performance. Regular inspection of the diode and solenoid connections is also recommended, especially in older golf carts, to identify signs of wear or corrosion early.
In conclusion, the diode’s role in a solenoid circuit is indispensable for maintaining the health and efficiency of a golf cart’s electrical system. Its ability to mitigate back-EMF not only protects sensitive components but also extends the overall lifespan of the vehicle. By understanding its function, proper installation, and maintenance, golf cart owners can ensure reliable performance and avoid costly repairs. Whether upgrading an existing system or troubleshooting electrical issues, incorporating a diode into the solenoid circuit is a small yet impactful step toward optimal functionality.
Enhance Your Golf Experience: Stereo Golf Cart Installation Guide
You may want to see also
Explore related products
$35.99
$17.09 $17.99
Preventing Back EMF Damage
Electromagnetic force, or EMF, is an inherent byproduct of electric motors, including those in golf carts. When the motor’s armature stops rotating—whether from turning off the cart or sudden braking—the magnetic field collapses, inducing a reverse voltage known as back EMF. This voltage can spike to dangerous levels, potentially frying the controller, battery, or wiring. A solenoid diode acts as a one-way valve, allowing current flow in one direction while blocking the reverse surge, effectively dissipating back EMF and safeguarding the system.
Consider the solenoid diode as a bouncer at a club: it permits entry (forward current) but stops anyone from rushing back out (back EMF). Without this diode, the reverse voltage could arc across the solenoid’s contacts, eroding them over time or causing instantaneous damage. In golf carts, where frequent starts, stops, and regenerative braking are common, this protection is critical. For instance, a 48V golf cart system might experience back EMF spikes exceeding 100V without a diode, far surpassing the controller’s tolerance.
Installing a solenoid diode is straightforward but requires precision. Locate the solenoid’s output terminal (typically marked “B+” or “OUT”) and connect the diode’s cathode (banded end) to it. The anode (non-banded end) should then be wired to the motor’s positive terminal. Ensure the diode’s voltage and current ratings exceed the system’s maximum—for a 48V cart, a 100V/20A diode is a safe choice. Double-check polarity; reversing the diode will block forward current, rendering the motor inoperable.
While solenoid diodes are durable, they’re not invincible. Over time, heat and voltage stress can degrade their performance. Inspect the diode annually for cracks, discoloration, or loose connections. If the cart exhibits erratic behavior—such as sudden power loss or slow acceleration—test the diode with a multimeter. A functioning diode should show low resistance in one direction (forward-biased) and high resistance in the other (reverse-biased). Replace it immediately if readings are inconsistent.
The solenoid diode’s role in preventing back EMF damage is both simple and indispensable. By understanding its function, installing it correctly, and maintaining vigilance, golf cart owners can avoid costly repairs and extend the lifespan of their vehicle’s electrical system. Think of it as a $5 investment to protect a $500 controller—a small price for peace of mind.
