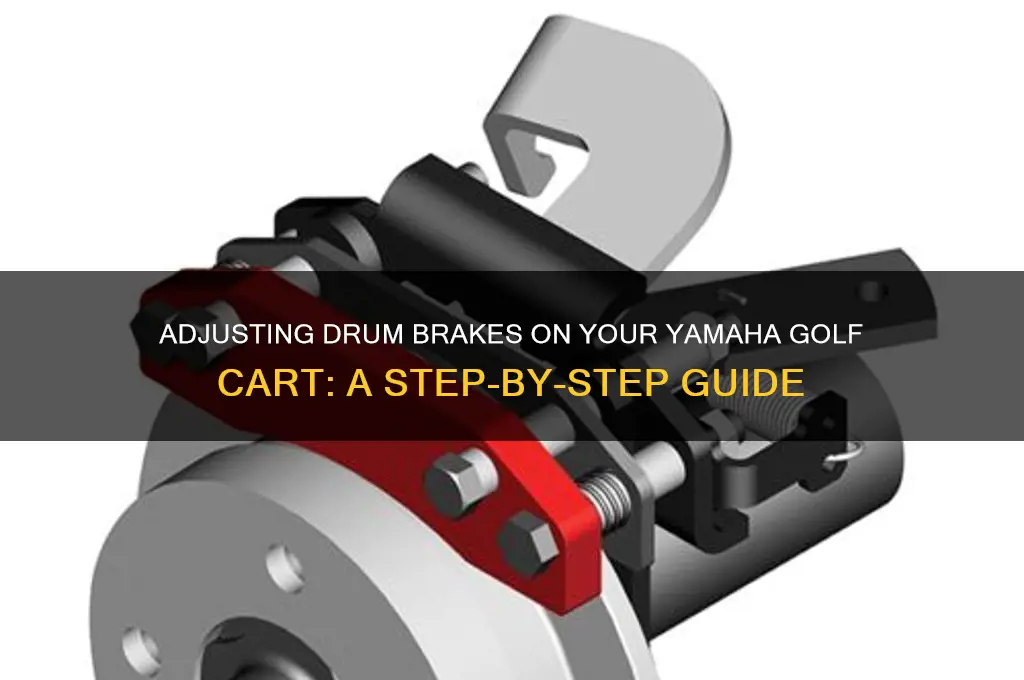

Adjusting the drum brakes on a Yamaha golf cart is a crucial maintenance task to ensure safe and efficient operation. Over time, brake components wear down, leading to reduced stopping power and potential safety hazards. To begin the adjustment process, gather the necessary tools, including a wrench, screwdriver, and brake adjustment spoon. Start by locating the brake drums on the rear wheels and removing them to access the internal components. Inspect the brake shoes for wear and replace them if necessary. Next, adjust the star wheel or eccentric mechanism to properly align the brake shoes with the drum, ensuring even contact without excessive drag. Finally, reassemble the brake drums and test the cart’s braking performance to confirm the adjustments are correct. Regularly maintaining and adjusting the drum brakes will extend their lifespan and enhance the overall safety and reliability of your Yamaha golf cart.
| Characteristics | Values |
|---|---|
| Brake Type | Drum brakes |
| Tools Required | Adjustable wrench, screwdriver, brake spoon, pliers, jack, jack stands |
| Adjustment Location | Brake adjuster located near the brake backing plate |
| Adjustment Access | Remove rear wheels for access to brake drums |
| Adjustment Method | Turn the brake adjuster star wheel to tighten or loosen brakes |
| Adjustment Direction | Clockwise to tighten (apply more brake), counterclockwise to loosen |
| Brake Shoe Inspection | Check for wear, replace if lining thickness is below manufacturer spec |
| Drum Inspection | Ensure drum is not scored or damaged, resurface or replace if needed |
| Brake Adjustment Indicator | Pedal feel, brake effectiveness, and even braking on both sides |
| Safety Precautions | Secure cart on jack stands, engage parking brake, work on level ground |
| Post-Adjustment Test | Test drive cart to ensure brakes are properly adjusted and balanced |
| Frequency of Adjustment | Inspect and adjust as needed, typically every 6 months or 500 miles |
| Common Issues | Uneven braking, spongy pedal, excessive wear, or brake noise |
| Manufacturer Guidelines | Refer to Yamaha golf cart service manual for specific torque settings |
| Professional Assistance | Consult a mechanic if unsure or if brakes require complex repairs |
