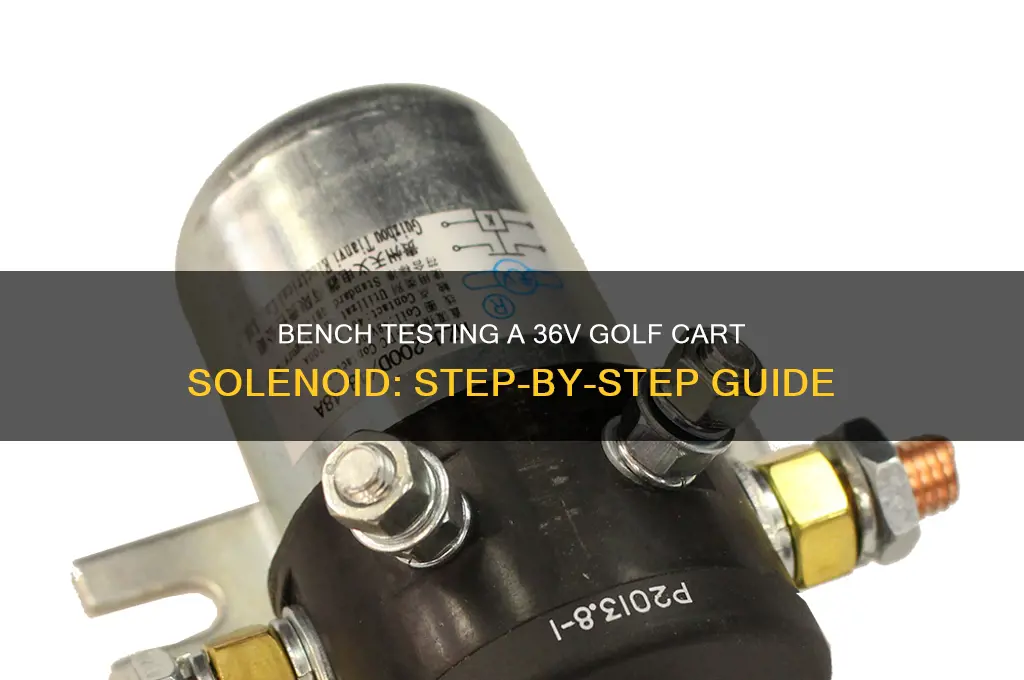

Bench testing a 36-volt solenoid for a golf cart is a critical step in diagnosing electrical issues or ensuring proper functionality before installation. The solenoid acts as a high-current switch, controlling the flow of power from the battery to the motor. To bench test it, start by disconnecting the solenoid from the golf cart and preparing a controlled testing environment. Use a multimeter to check for continuity between the main terminals when the solenoid is activated, ensuring it engages and disengages correctly. Apply 36 volts to the control terminal while monitoring the main terminals for proper operation. Inspect for signs of wear, corrosion, or damage that could affect performance. This process helps verify the solenoid’s reliability and identifies potential faults before reinstalling it, ensuring the golf cart’s electrical system operates smoothly.
| Characteristics | Values |
|---|---|
| Voltage Rating | 36 volts |
| Required Tools | Multimeter, 36V power source, jumper wires, screwdriver |
| Safety Precautions | Disconnect battery, wear insulated gloves, work in a well-ventilated area |
| Test 1: Continuity Check | Measure resistance across solenoid terminals; should be low (0.5-2 ohms) |
| Test 2: Activation Test | Apply 36V power; solenoid should click and engage |
| Test 3: Coil Resistance | Measure resistance across coil terminals; typically 10-20 ohms |
| Expected Outcome (Working Solenoid) | Clicks when activated, shows continuity, and correct coil resistance |
| Failure Indicators | No click, no continuity, or incorrect resistance readings |
| Common Issues | Burnt coil, broken internal contacts, corroded terminals |
| Replacement Recommendation | Replace if tests fail or solenoid is damaged |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, disconnect power, locate solenoid, ensure safety, and prepare workspace
- Visual Inspection: Check solenoid for damage, corrosion, loose wires, or burnt components
- Voltage Testing: Use multimeter to verify 36V input and output at solenoid terminals
- Continuity Check: Test solenoid coil for proper continuity using a multimeter
- Activation Test: Apply power to solenoid, listen for click, and confirm function
Pre-Test Preparation: Gather tools, disconnect power, locate solenoid, ensure safety, and prepare workspace
Before attempting to bench test a 36-volt golf cart solenoid, it's crucial to gather the necessary tools to ensure a smooth and efficient process. You'll need a multimeter, a set of wrenches or sockets, and possibly a screwdriver, depending on the solenoid's mounting. A 36-volt power source, such as a battery or power supply, is also essential to simulate the golf cart's electrical system. Additionally, having a wiring diagram specific to your golf cart model can be invaluable in identifying the correct solenoid terminals and understanding the circuit. By assembling these tools beforehand, you'll minimize interruptions and focus on the task at hand.
Safety should always be a top priority when working with electrical systems. Before proceeding, disconnect the power source from the golf cart to eliminate the risk of electrical shock or short circuits. This can typically be done by removing the negative battery cable or turning off the main power switch. Once the power is disconnected, locate the solenoid, which is usually found near the battery compartment or under the seat. Familiarize yourself with the solenoid's orientation and the surrounding components to avoid accidental damage during the testing process.
With the tools gathered and power disconnected, it's time to prepare your workspace. Choose a well-lit, clean, and dry area to conduct the bench test. Ensure the surface is stable and large enough to accommodate the solenoid, power source, and testing equipment. Organize your tools and equipment within easy reach to streamline the testing process. If working in a garage or workshop, consider using a workbench or table to elevate the solenoid, making it more accessible and comfortable to work with. A clutter-free and organized workspace not only enhances efficiency but also reduces the likelihood of accidents or mistakes.
As you prepare to bench test the solenoid, take a moment to verify that all safety precautions are in place. Double-check that the power source is indeed disconnected and that there are no exposed wires or terminals that could pose a risk. Inspect the solenoid for any signs of damage, corrosion, or wear, as these issues can affect the test results. By being meticulous in your pre-test preparation, you'll create a safe and controlled environment that facilitates accurate testing and minimizes the risk of errors or accidents. This attention to detail will ultimately contribute to a successful bench test and a more reliable diagnosis of the solenoid's condition.
In the context of bench testing a 36-volt golf cart solenoid, pre-test preparation is a critical step that sets the stage for success. By gathering the necessary tools, disconnecting power, locating the solenoid, ensuring safety, and preparing the workspace, you'll create an optimal environment for conducting the test. This proactive approach not only saves time and effort but also promotes accuracy and safety. As you move forward with the bench test, remember that a well-prepared workspace and a thorough understanding of the solenoid's characteristics will enable you to diagnose and resolve issues with confidence and precision. With these elements in place, you'll be well-equipped to tackle the testing process and ultimately restore your golf cart's performance.
