Ava Romero
Bleeding the ABS pump on a Mk4 Golf is a crucial maintenance task to ensure the anti-lock braking system functions correctly, especially after replacing brake components or if air has entered the system. The process involves removing trapped air from the ABS module and brake lines to restore optimal hydraulic pressure. To begin, you’ll need a scan tool capable of activating the ABS pump, as well as a bleed kit or pressure bleeder. Start by connecting the scan tool to the vehicle’s OBD-II port and initiating the ABS pump cycle to push fluid through the system. Then, systematically bleed each brake caliper starting with the wheel farthest from the master cylinder, ensuring all air is expelled. Properly bleeding the ABS pump not only improves braking performance but also prevents potential ABS malfunctions, enhancing overall safety and reliability.
| Characteristics | Values |
|---|---|
| Vehicle Model | Volkswagen Golf Mk4 |
| System | Anti-lock Braking System (ABS) |
| Tools Required | Scan tool (VAG-COM/VCDS), 10mm wrench, 7mm hex key, brake bleeding kit |
| Brake Fluid Type | DOT 4 |
| Bleeding Sequence | Right Rear, Left Rear, Right Front, Left Front |
| Bleeding Method | Pressure bleeding using scan tool or manual pumping |
| Scan Tool Function | Activate ABS pump for bleeding |
| Manual Bleeding Steps | 1. Loosen bleed screw, 2. Pump brake pedal, 3. Tighten bleed screw |
| Pressure Bleeding Steps | 1. Connect scan tool, 2. Activate ABS pump, 3. Open bleed valve |
| Air Removal | Ensure all air bubbles are purged from the system |
| Fluid Level Check | Maintain brake fluid level in reservoir during bleeding |
| Completion Verification | Firm brake pedal with no sponginess |
| Common Issues | Air in system, faulty ABS pump, damaged brake lines |
| Safety Precautions | Wear safety goggles, work on level ground, clean up spills |
| Estimated Time | 1-2 hours depending on method and experience |
| Difficulty Level | Intermediate |
| Reference Sources | Volkswagen service manual, online forums (e.g., GolfMK4.com) |
Explore related products
What You'll Learn
- Gather Tools and Materials: Brake fluid, catch container, wrench, and a scan tool for the process
- Locate ABS Pump: Find the ABS pump unit near the brake master cylinder
- Attach Scanner: Use a scan tool to activate the ABS bleed function
- Bleed ABS Pump: Follow scanner prompts to cycle the pump and release air
- Refill and Check: Top up brake fluid, check for leaks, and test braking system
Gather Tools and Materials: Brake fluid, catch container, wrench, and a scan tool for the process
Before you begin the process of bleeding the ABS pump on your MK4 Golf, it's essential to gather all the necessary tools and materials to ensure a smooth and efficient procedure. The first item on your list should be brake fluid, specifically the type recommended for your vehicle. Check your car's manual or consult a trusted source to confirm the correct brake fluid specification. It's crucial to use the right type to maintain the integrity of your braking system. You'll need enough fluid to top up the reservoir during the bleeding process, so ensure you have an adequate supply.
Next, acquire a catch container to collect the old brake fluid as you bleed the system. This container should be clean and free from contaminants to prevent introducing any foreign particles back into the braking system. A transparent container is ideal, as it allows you to monitor the fluid level and check for any air bubbles during the bleeding process. Make sure the container is large enough to hold the amount of fluid you expect to drain, typically around 500ml to 1 liter, depending on the extent of the bleeding required.
A wrench is another vital tool for this task. You'll need it to loosen and tighten the bleed screws on the ABS pump and the brake calipers. The size of the wrench required will depend on the specific fittings on your MK4 Golf, so have a set of wrenches or a adjustable wrench ready to accommodate different sizes. Ensure the wrench fits snugly to avoid rounding off the bleed screw heads, which can complicate the process and potentially cause damage.
Lastly, a scan tool is highly recommended for this procedure. While it's possible to bleed the ABS pump without one, a scan tool will enable you to activate the ABS pump and cycle the system, making the bleeding process more thorough and effective. This tool will also allow you to check for any error codes related to the ABS system, ensuring that the issue is resolved and not just masked. If you don't own a scan tool, consider borrowing one from a friend or renting it from an auto parts store, as it can significantly simplify the bleeding process and help you achieve optimal results.
In addition to these primary tools and materials, it's a good idea to have some clean rags or paper towels on hand to wipe up any spills and keep your work area tidy. Wearing gloves and safety goggles is also recommended to protect your skin and eyes from brake fluid, which can be harmful if it comes into contact with them. By gathering all these items beforehand, you'll be well-prepared to tackle the task of bleeding the ABS pump on your MK4 Golf, ensuring a safer and more efficient braking system.
Remember, working on your vehicle's braking system requires attention to detail and a methodical approach. Double-check that you have all the necessary tools and materials before starting, and take your time to follow the correct procedures. If you're unsure about any aspect of the process, don't hesitate to consult a professional or refer to additional resources for guidance. With the right tools, materials, and mindset, you'll be able to successfully bleed the ABS pump on your MK4 Golf and enjoy improved braking performance.
Effective Treatments for Golf-Related Wrist Pain: Relief and Recovery Tips
You may want to see also
Explore related products

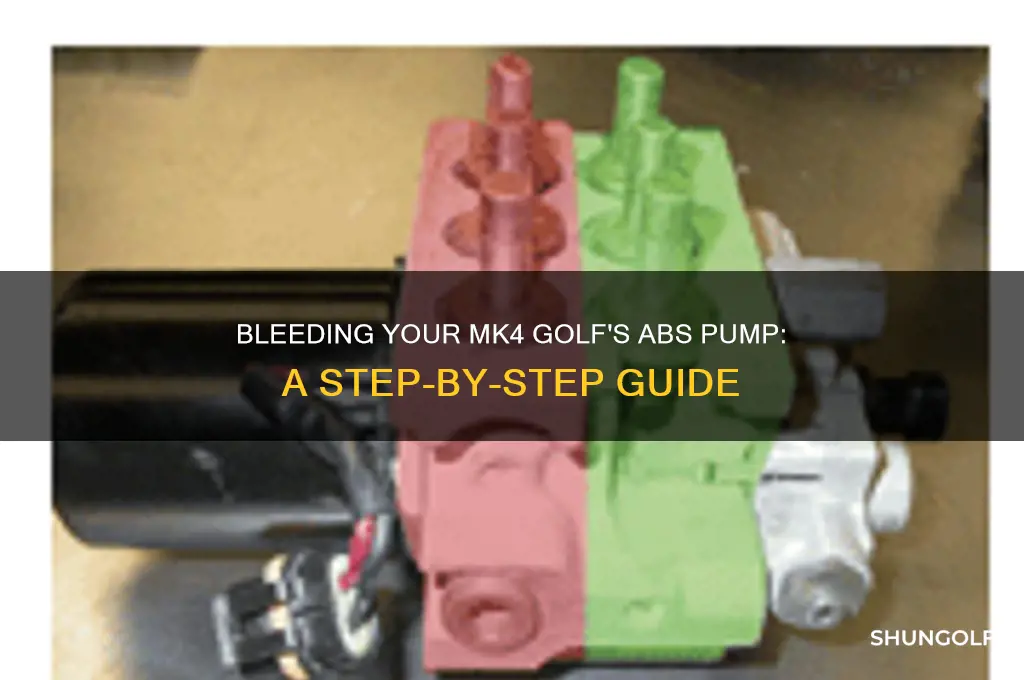

Locate ABS Pump: Find the ABS pump unit near the brake master cylinder
To locate the ABS pump on your MK4 Golf, start by opening the hood and familiarizing yourself with the engine bay layout. The ABS pump unit is typically situated near the brake master cylinder, which is a crucial component of the braking system. Begin by identifying the brake master cylinder, usually located on the driver’s side of the engine bay, mounted to the firewall. It is a rectangular or cylindrical reservoir with a cap labeled "Brake Fluid." Once you’ve located the master cylinder, visually inspect the surrounding area for a smaller, separate unit connected to it via hydraulic lines. This is likely the ABS pump unit, which is responsible for modulating brake pressure during anti-lock braking events.
The ABS pump on the MK4 Golf is often integrated into the hydraulic unit or housed in a separate module adjacent to the master cylinder. It is usually a compact, rectangular or square-shaped component with electrical connectors and hydraulic lines attached. To confirm it’s the ABS pump, look for a label or markings indicating "ABS" or "Hydraulic Unit." Additionally, the pump may have a small electric motor or solenoids visible on its surface. If you’re unsure, consult your vehicle’s service manual or a diagram specific to your MK4 Golf model for precise identification.
Accessing the ABS pump may require removing certain components or panels in the engine bay for better visibility. Start by disconnecting the negative battery terminal to ensure safety when working with electrical components. Next, inspect the area around the master cylinder for any plastic covers or shrouds that may obstruct access to the ABS pump. Carefully remove these covers by unsnapping or unbolting them, taking care not to damage any surrounding parts. Once the area is clear, you should have a direct view of the ABS pump and its associated components.
If the ABS pump is still difficult to locate, trace the hydraulic lines from the master cylinder. These lines typically lead directly to the ABS pump, as it is an integral part of the braking system. Follow the lines carefully, as they may route around other components or along the firewall. The ABS pump will be the point where multiple hydraulic lines converge, often with electrical connectors nearby. This method ensures you correctly identify the ABS pump before proceeding with the bleeding process.
Once you’ve successfully located the ABS pump, take a moment to inspect it for any signs of damage, leaks, or corrosion. Ensure all electrical connectors are securely attached and that the hydraulic lines are intact. Properly identifying and accessing the ABS pump is essential for the bleeding process, as it ensures you work on the correct component and avoid potential issues. With the ABS pump located and inspected, you’re now ready to proceed with the bleeding procedure, ensuring optimal performance of your MK4 Golf’s braking system.
Golfing Fun: Yeeting the Unconventional Way
You may want to see also
Explore related products
Attach Scanner: Use a scan tool to activate the ABS bleed function
To begin the process of bleeding the ABS pump on a Mk4 Golf using a scan tool, you'll first need to locate the OBD-II port in your vehicle, typically found under the dashboard on the driver's side. Ensure your car is turned off and the ignition is in the "off" position. Take your scan tool and connect it to the OBD-II port securely. This connection allows the scan tool to communicate with your vehicle's onboard computer, enabling you to access and control various systems, including the ABS.
Once the scan tool is attached, power it on and navigate through the menu to find the ABS system or brake system options. The exact steps may vary depending on the scan tool model, but most professional-grade scanners will have a dedicated section for brake bleeding or ABS functions. Select the appropriate option to initiate the ABS bleed procedure. This process is crucial as it activates the ABS pump, allowing you to effectively remove air from the brake lines.
With the scan tool connected and the ABS bleed function selected, you can now start the vehicle's engine. The scan tool will communicate with the ABS control module, prompting it to activate the pump. You may notice the ABS pump running, which is a normal part of the bleeding process. Keep an eye on the scan tool's display, as it might provide instructions or progress updates during this stage. It's essential to follow any on-screen prompts to ensure a successful bleed.
During the bleeding process, you'll need to work through each brake caliper, starting with the one furthest from the master cylinder. This is typically the right rear, followed by the left rear, right front, and finally, the left front. The scan tool's guidance will be invaluable here, as it may instruct you to open and close the bleed valves in a specific sequence. This ensures that air is effectively purged from the entire brake system, including the ABS components.
After completing the bleeding sequence for all calipers, the scan tool might perform a final system check to ensure there are no remaining air pockets. This comprehensive approach guarantees that your Mk4 Golf's ABS system is properly bled, optimizing brake performance and safety. Remember, using a scan tool for this procedure is highly recommended, as it simplifies the process and ensures accuracy, especially when dealing with the intricate ABS system.
Mastering WGT Golf Aiming: Tips for Precision and Accuracy
You may want to see also
Explore related products
Bleed ABS Pump: Follow scanner prompts to cycle the pump and release air
When bleeding the ABS pump on a Mk4 Golf, following the scanner prompts to cycle the pump and release air is a critical step to ensure the system is free of air bubbles and operates correctly. Begin by connecting a compatible diagnostic scanner to the vehicle’s OBD-II port. Access the ABS control module menu and locate the option for bleeding or activating the ABS pump. This function varies depending on the scanner, but it typically involves selecting a procedure that cycles the ABS pump to force air out of the system. Ensure the vehicle is on a level surface, the ignition is on, and the parking brake is engaged for safety.
Once the scanner is set up, initiate the bleeding procedure by following the on-screen prompts. The scanner will communicate with the ABS module to activate the pump, which will cycle on and off to move brake fluid through the system and displace air. During this process, monitor the scanner for any error codes or status updates. It’s essential to keep the brake fluid reservoir topped up to prevent air from being drawn back into the system. Use a turkey baster or fluid transfer tool to remove any excess fluid if the reservoir becomes overfilled.
As the pump cycles, you may hear clicking or whirring noises, which is normal. The scanner will guide you through multiple cycles, often requiring you to pause and check the fluid level between each cycle. Pay close attention to the scanner’s instructions, as some procedures may require you to depress the brake pedal or perform other actions to assist in air removal. Be patient, as this process can take several minutes to complete thoroughly.
After the scanner indicates the bleeding process is complete, perform a final check for air bubbles in the brake fluid. Inspect the fluid in the reservoir for any signs of foaming or air pockets. If air is still present, repeat the bleeding procedure until the fluid appears clear and bubble-free. Once satisfied, reset the ABS module using the scanner to clear any temporary codes generated during the bleeding process.
Finally, test the brake system by starting the vehicle and performing a short drive to ensure the ABS functions correctly. Apply the brakes gently at low speeds to verify there is no sponginess or unusual feedback, which could indicate residual air in the system. If issues persist, recheck the bleeding procedure or consult a professional mechanic for further assistance. Properly bleeding the ABS pump is essential for maintaining safe and reliable braking performance in your Mk4 Golf.
Hickory Golf: A Traditional Sport
You may want to see also
Explore related products
Refill and Check: Top up brake fluid, check for leaks, and test braking system
After bleeding the ABS pump on your MK4 Golf, it's crucial to refill and check the brake system to ensure optimal performance and safety. Begin by topping up the brake fluid to the recommended level. Locate the brake fluid reservoir, typically found near the firewall on the driver's side. Use the specified brake fluid type for your vehicle, usually DOT 4, and pour it slowly into the reservoir until it reaches the "MAX" line. Avoid overfilling, as excess fluid can spill and potentially damage surrounding components.
Once the brake fluid is topped up, check for leaks in the system. Inspect all brake lines, hoses, and connections for any signs of fluid seepage or dampness. Pay close attention to areas around the ABS pump, calipers, and wheel cylinders, as these are common leak points. If you notice any leaks, address them immediately by tightening connections or replacing damaged components. Leaks can compromise braking performance and lead to further issues if left unattended.
With the fluid topped up and leaks checked, test the braking system to ensure proper functionality. Start the engine and allow it to idle. Depress the brake pedal several times to build pressure in the system, then hold it down firmly for 10–15 seconds to check for pedal sinkage. If the pedal feels firm and maintains its position, the system is likely holding pressure correctly. Next, take the car for a short test drive in a safe, open area. Apply the brakes at various speeds to ensure they respond smoothly and effectively, without any unusual noises or vibrations.
During the test drive, pay attention to the ABS functionality. Perform a controlled hard braking maneuver on a low-traction surface, such as gravel or wet pavement, to activate the ABS system. The ABS should engage with a pulsating sensation in the brake pedal, indicating it is working as intended. If the ABS does not activate or behaves erratically, further inspection or bleeding may be required.
Finally, recheck the brake fluid level after testing the system. It’s normal for the level to drop slightly as the system cycles, but if it’s significantly lower, investigate for leaks or air pockets. Ensure the reservoir cap is securely tightened to prevent contamination or fluid loss. Completing these steps will ensure your MK4 Golf’s braking system is safe, reliable, and ready for the road.
Swinging Success: Crafting Your Golf Story for the Common App
You may want to see also
Frequently asked questions
You will need a scan tool with ABS bleeding functionality, a wrench or socket set, a bleed kit with a pressure bleeder, and fresh DOT 4 brake fluid.
No, bleeding the ABS pump requires a scan tool to activate the ABS pump and cycle the valves properly. Manual bleeding is insufficient and may leave air in the system.
First, connect the scan tool and access the ABS bleeding function. Follow the tool’s prompts to cycle the ABS pump. Then, bleed the brakes starting from the wheel farthest from the master cylinder, using a pressure bleeder to ensure all air is removed. Always refill the brake fluid reservoir as needed.
