Changing a solenoid on a golf cart is a common maintenance task that can restore proper functionality to your vehicle’s electrical system. The solenoid acts as a switch, controlling the flow of electricity between the battery and the motor, and a faulty one can lead to issues like the cart not starting or running inconsistently. To replace it, you’ll need basic tools such as wrenches, screwdrivers, and possibly a multimeter to test connections. Start by disconnecting the battery to ensure safety, then locate the solenoid, typically found near the battery or motor. Carefully remove the wiring harness and mounting bolts, install the new solenoid, and reconnect everything securely. Testing the cart afterward ensures the repair was successful, allowing you to get back on the course with confidence.
| Characteristics | Values |
|---|---|
| Tools Required | Wrenches, screwdrivers, pliers, safety gloves, safety goggles |
| Safety Precautions | Disconnect battery, wear protective gear, work in a well-ventilated area |
| Location of Solenoid | Typically near the battery or under the seat, depending on the golf cart model |
| Steps to Replace Solenoid | 1. Disconnect battery. 2. Locate and remove solenoid. 3. Disconnect wires. 4. Install new solenoid. 5. Reconnect wires and battery. |
| Common Symptoms of Faulty Solenoid | Cart won’t move, clicking noise, intermittent power loss |
| Cost of New Solenoid | $50 - $150 (varies by brand and model) |
| Time to Complete | 30 minutes to 1 hour |
| Difficulty Level | Moderate (basic mechanical skills required) |
| Compatibility | Ensure new solenoid matches voltage and amperage of the golf cart (e.g., 36V, 48V) |
| Post-Installation Check | Test cart operation, ensure all connections are secure |
Explore related products
What You'll Learn
- Gather Tools and Materials: Collect wrenches, screwdrivers, new solenoid, safety gear, and a repair manual
- Locate the Solenoid: Identify the solenoid near the battery or under the seat
- Disconnect Power: Turn off the cart, remove battery cables to ensure safety
- Remove Old Solenoid: Unbolt and detach wires from the faulty solenoid carefully
- Install New Solenoid: Attach wires, secure bolts, and reconnect power to test functionality
Gather Tools and Materials: Collect wrenches, screwdrivers, new solenoid, safety gear, and a repair manual
Before diving into the solenoid replacement on your golf cart, a well-prepared toolkit is your best ally. Imagine attempting a delicate surgery without the right instruments—frustration and potential damage are inevitable. This analogy holds true for any mechanical repair, especially when dealing with electrical components like solenoids. The first step is to gather your tools and materials, ensuring a smooth and safe process.
The Essential Toolkit:
- Wrenches: A set of adjustable wrenches in various sizes is crucial. You'll need these to loosen and tighten nuts and bolts securely. Consider having both metric and standard sizes to accommodate different golf cart models.
- Screwdrivers: Flathead and Phillips screwdrivers are essential for removing panels and accessing the solenoid. Ensure you have multiple sizes to fit various screws.
- New Solenoid: The star of the show, the replacement solenoid, should be compatible with your golf cart's make and model. Check the voltage and amperage ratings to match your cart's electrical system.
- Safety Gear: Safety should never be an afterthought. Wear protective gloves to prevent cuts and ensure a firm grip. Safety goggles are a must to protect your eyes from any debris or sparks.
- Repair Manual: This is your roadmap. A detailed repair manual specific to your golf cart model will provide step-by-step instructions, diagrams, and troubleshooting tips. It's an invaluable resource for both novice and experienced mechanics.
Why This Matters:
In the world of DIY repairs, being prepared is half the battle. Having the right tools not only makes the job easier but also reduces the risk of errors and accidents. For instance, using the correct screwdriver size prevents stripping screws, a common frustration that can delay your repair. Similarly, a repair manual tailored to your golf cart ensures you're not blindly navigating a complex electrical system.
Practical Tips:
- Organize your tools in a tray or toolbox for easy access. This prevents misplacing items and saves time during the repair.
- If you're unsure about the solenoid's compatibility, consult a golf cart specialist or refer to online forums for model-specific advice.
- Consider investing in a magnetic parts tray to keep small screws and components secure and within reach.
By gathering these tools and materials, you're setting the stage for a successful solenoid replacement. It's a proactive approach that transforms a potentially daunting task into a manageable project, ensuring you're equipped to handle each step with confidence.
Ultimate Guide to Choosing and Buying Your Electric Golf Cart
You may want to see also
Explore related products
Locate the Solenoid: Identify the solenoid near the battery or under the seat
The solenoid in a golf cart is a critical component, acting as the switch that controls the flow of electrical current from the battery to the motor. To replace it, you must first locate this small but mighty device. Typically, the solenoid is positioned near the battery, as this minimizes the distance electricity must travel, reducing energy loss. However, some golf cart models may house the solenoid under the seat, especially in designs prioritizing compactness or accessibility. Knowing these common locations will save you time and frustration when beginning the replacement process.
Analyzing the layout of your golf cart’s electrical system can provide clues to the solenoid’s location. Start by tracing the thick, insulated wires leading from the battery. These wires often connect directly to the solenoid, making them a reliable indicator. If the solenoid isn’t near the battery, lift the seat to inspect the area beneath. Manufacturers sometimes place it here to protect it from dirt, moisture, or accidental damage. Understanding these design choices ensures you’re not blindly searching but rather working with the cart’s engineering logic.
Persuasive as it may be to rush into disassembly, take a moment to consult your golf cart’s manual. It often includes diagrams pinpointing the solenoid’s exact location, tailored to your specific model. If the manual isn’t available, online forums or video tutorials for your cart’s make and model can be invaluable. For instance, Club Car and EZ-GO carts frequently have solenoids near the battery, while Yamaha models sometimes place them under the seat. This research step can prevent unnecessary dismantling and potential damage to other components.

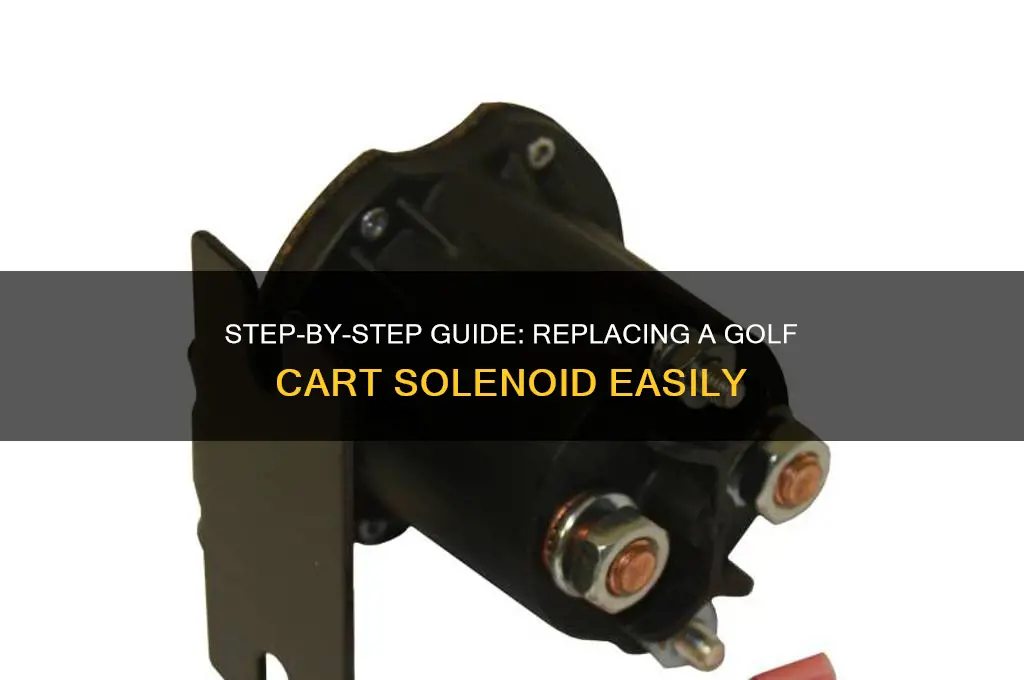

Descriptively speaking, the solenoid itself is a cylindrical or rectangular metal box with thick wires attached. It’s usually about the size of a deck of cards, though dimensions vary by model. When locating it, look for a component with a plunger mechanism inside, visible through a small window or indicator. This plunger moves when the cart is turned on, signaling the solenoid’s functionality. Identifying these visual cues ensures you’re targeting the correct part, avoiding confusion with other nearby components like relays or fuses.
Instructively, once you’ve identified the solenoid’s location, mark the area with a piece of tape or take a photo for reference during reassembly. If it’s under the seat, ensure the cart is on a level surface and the power is off before lifting the seat to avoid accidents. For solenoids near the battery, disconnect the battery terminals first to prevent electrical shocks or short circuits. These precautions not only protect you but also safeguard the cart’s electrical system from damage during the replacement process.
Adjusting Rear Brakes on Your EZGO Golf Cart: A Step-by-Step Guide
You may want to see also
Explore related products
Disconnect Power: Turn off the cart, remove battery cables to ensure safety
Before attempting any maintenance on a golf cart, especially when dealing with electrical components like a solenoid, prioritizing safety is paramount. The first and most critical step is to disconnect the power source entirely. This involves turning off the golf cart and removing the battery cables, a procedure that might seem straightforward but requires attention to detail to prevent accidents.
Analytical Perspective:
Golf cart batteries typically operate at 36 or 48 volts, delivering enough power to cause serious injury if mishandled. Even with the cart turned off, residual charge can remain in the system, posing a risk of electrical shock or short circuits. By disconnecting the battery cables, you eliminate this hazard, ensuring a safe working environment. This step is not just a precaution—it’s a necessity, as it isolates the electrical system and prevents accidental activation of the solenoid or other components during the repair process.
Instructive Approach:
To disconnect the power safely, start by locating the battery compartment, usually under the seat or in a designated compartment. Turn off the golf cart using the ignition key or power switch. Next, identify the positive and negative battery cables, typically marked with red and black colors, respectively. Use a wrench or socket set to loosen the nuts securing the cables to the battery terminals. Begin with the negative cable to minimize the risk of short circuits, then remove the positive cable. Ensure the cables are securely tucked away and cannot accidentally reconnect during the repair.
Comparative Insight:
Unlike working on a car, where the battery is often more accessible and the voltage is higher (12 volts), golf carts present unique challenges due to their compact design and higher voltage systems. While the principle of disconnecting power remains the same, the smaller workspace and proximity of components in a golf cart demand extra caution. For instance, golf cart batteries are often grouped closely together, increasing the risk of accidentally bridging connections if cables are left dangling.
Practical Tips:
Always wear insulated gloves and safety goggles when handling battery cables to protect against acid spills or electrical shocks. If your golf cart has a maintenance mode or a battery disconnect switch, use it as an additional safety measure, but do not rely solely on it—physically removing the cables is the most reliable method. After disconnecting the power, wait a few minutes to allow any residual charge to dissipate before proceeding with the solenoid replacement. This small step can make a significant difference in ensuring a safe and successful repair.
By meticulously following these steps to disconnect power, you create a secure foundation for replacing the solenoid, minimizing risks and setting the stage for a smooth repair process.
Upgrade Your Ride: A Step-by-Step Guide to Modifying 48V Golf Carts
You may want to see also
Explore related products
Remove Old Solenoid: Unbolt and detach wires from the faulty solenoid carefully
The first step in replacing a solenoid on a golf cart is to identify and access the faulty component. Typically, the solenoid is located near the battery pack, often mounted on the frame or a bracket. Before you begin, ensure the golf cart is turned off and the key is removed to prevent any accidental engagement of the system. Safety should always be your top priority when working with electrical components.
Analyzing the Process: Removing the old solenoid requires precision and care to avoid damaging surrounding components. Start by inspecting the solenoid’s mounting bolts, usually secured with standard-sized wrenches or sockets (commonly 8mm or 10mm). Loosen these bolts gradually, ensuring not to strip the threads. Once unbolted, carefully lift the solenoid, taking note of its orientation for reference during the installation of the new one.
Detaching Wires with Caution: The solenoid is connected to the golf cart’s electrical system via several wires, often color-coded for identification. Label each wire with its corresponding terminal using tape or a marker to avoid confusion during reinstallation. Use a flathead screwdriver or a wire removal tool to gently pry the wire connectors off the solenoid terminals. Be cautious not to tug on the wires themselves, as this can damage the insulation or internal connections.
Practical Tips for Success: Work in a well-lit area to clearly see the terminals and wires. If the connectors are stubborn, apply a small amount of penetrating oil to loosen them. Keep a diagram or photo of the original setup for reference, especially if the wires are not labeled. This step is critical, as incorrect reconnection can lead to electrical malfunctions or damage to the new solenoid.
DIY Gas Golf Cart Build: Step-by-Step Guide for Enthusiasts
You may want to see also
Explore related products
Install New Solenoid: Attach wires, secure bolts, and reconnect power to test functionality
Attaching the wires to your new golf cart solenoid is a delicate but crucial step. Most solenoids have four terminals: two large posts for the main battery cables and two smaller posts for the control circuit. Match the wire colors to their original positions, typically red for positive and black for negative on the main posts. Use a wrench to tighten the nuts securely, ensuring a firm connection without overtightening, which can strip the threads. For the smaller control wires, strip about 1/4 inch of insulation and use a screwdriver to secure them under the terminal screws. Double-check the polarity to avoid damaging the electrical system.
Securing the solenoid in place is straightforward but requires attention to detail. Position the solenoid on the mounting bracket, aligning the bolt holes. Use the provided bolts and washers, tightening them with a torque wrench to the manufacturer’s specifications—usually around 15-20 foot-pounds. Over-tightening can crack the solenoid housing, while under-tightening may cause it to vibrate loose over time. If your golf cart uses a rubber grommet or insulator, ensure it’s properly seated to prevent electrical shorts and reduce vibration.
Reconnecting power is the moment of truth. Before flipping the battery switch, inspect all connections for tightness and proper alignment. Turn on the golf cart’s power and listen for the solenoid’s characteristic click, indicating it’s engaging. Test the cart’s functionality by pressing the accelerator pedal and observing if the motor responds. If the cart hesitates or fails to move, recheck the wire connections and ensure the solenoid is securely mounted. A multimeter can help diagnose voltage issues at this stage.
Testing functionality is the final step to confirm your work. Drive the golf cart in a safe, open area, testing acceleration, braking, and direction changes. Pay attention to unusual noises or smells, which could indicate a loose connection or overheating. If the solenoid operates smoothly, you’ve successfully completed the installation. For added peace of mind, consult the golf cart’s manual for any post-installation checks, such as verifying the solenoid’s temperature after use. Proper installation ensures longevity and reliable performance, keeping your cart running efficiently for years to come.
Golf Cart Tire Height Calculation: Decoding Size for Accurate Measurements
You may want to see also
Frequently asked questions
You will typically need a wrench or socket set, screwdrivers, pliers, and possibly a voltage tester to ensure the solenoid is disconnected safely.
Common signs include the cart not moving when the accelerator is pressed, clicking noises from the solenoid, or no response when turning the key.
The solenoid is usually found near the battery pack, connected to the main power cables leading to the motor or controller.
Yes, always disconnect the battery to prevent electrical shocks or short circuits while working on the solenoid.
