Changing the forward and reverse functionality on an EZGO golf cart is a common task for owners looking to maintain or repair their vehicle’s drivetrain system. This process typically involves accessing the cart’s transmission or transaxle, which houses the forward/reverse mechanism, and may require adjusting or replacing components such as the shift cable, linkage, or solenoid, depending on the model. Proper tools, a basic understanding of the cart’s mechanics, and adherence to safety precautions are essential to ensure the repair is done correctly and safely. Whether troubleshooting a shifting issue or performing routine maintenance, understanding how to change the forward and reverse function can save time and money while keeping your EZGO golf cart running smoothly.
| Characteristics | Values |
|---|---|
| Applicable Models | EZGO TXT, RXV, and other models with similar drivetrain systems. |
| Tools Required | Wrench set, screwdriver, pliers, and a new forward/reverse switch (if needed). |
| Location of Switch | Typically located under the seat or near the battery compartment. |
| Switch Type | Micro-switch or solenoid-based switch. |
| Wiring Connections | Usually 3-4 wires connected to the switch (check wiring diagram for specifics). |
| Testing Procedure | Use a multimeter to test continuity and ensure proper functionality. |
| Common Issues | Switch failure, loose connections, or worn-out solenoid. |
| Replacement Steps | 1. Disconnect battery. 2. Locate and remove old switch. 3. Install new switch. 4. Reconnect wires. 5. Test functionality. |
| Safety Precautions | Always disconnect the battery before working on electrical components. |
| Cost of Replacement Switch | $20 - $50 (varies by model and supplier). |
| DIY Difficulty Level | Moderate (basic mechanical and electrical knowledge required). |
| Professional Assistance | Recommended if unsure about electrical systems or troubleshooting. |
| Maintenance Tips | Regularly inspect wires and connections for corrosion or damage. |
| Compatibility Check | Verify switch part number matches your EZGO golf cart model. |
| Warranty Considerations | Check if replacement parts are covered under warranty. |
Explore related products
What You'll Learn
- Switch Replacement: Steps to replace a faulty forward/reverse switch on an EZGO golf cart
- Solenoid Troubleshooting: Diagnosing and fixing solenoid issues affecting the cart’s direction control
- Wiring Inspection: Checking and repairing damaged or loose wires connected to the F/R system
- Micro Switch Adjustment: Calibrating the micro switch for smooth forward and reverse transitions
- Controller Reset: Resetting the motor controller to resolve direction control malfunctions

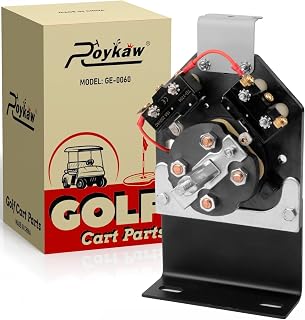

Switch Replacement: Steps to replace a faulty forward/reverse switch on an EZGO golf cart
A faulty forward/reverse switch can bring your EZGO golf cart to a standstill, leaving you stranded on the course. Replacing this switch is a straightforward task that can restore your cart’s functionality without requiring professional help. The process involves identifying the correct switch, safely disconnecting the old one, and installing the new component with precision. By following these steps, you can ensure your cart operates smoothly in both directions.
Step 1: Identify and Access the Switch
Locate the forward/reverse switch, typically found near the battery compartment or under the seat, depending on your EZGO model. Use a screwdriver to remove the panel or cover protecting the switch. Before proceeding, disconnect the battery to prevent electrical mishaps. This step is crucial for safety, as working with live wires can lead to short circuits or personal injury. Once accessed, inspect the switch for visible damage, such as burnt terminals or loose connections, to confirm it’s the source of the issue.
Step 2: Remove the Faulty Switch
With the switch exposed, carefully detach the wiring harness connected to it. Most EZGO switches have a plug-and-play design, allowing you to unplug the harness without cutting wires. If the wires are soldered, use a soldering iron to desolder them, ensuring clean connections for the new switch. Next, remove the mounting screws holding the switch in place. Keep track of screw sizes and positions to simplify reassembly. Once the screws are removed, gently lift the switch out of its housing, taking care not to damage surrounding components.
Step 3: Install the New Switch
Position the new forward/reverse switch into the housing, aligning it with the mounting holes. Secure it with the screws removed earlier, tightening them just enough to hold the switch firmly—overtightening can strip the threads. Reconnect the wiring harness, ensuring each wire matches the correct terminal. If soldering is required, apply heat shrink tubing to protect the connections. Double-check all connections for tightness and accuracy before proceeding.
Cautions and Practical Tips
Always wear safety gloves when handling electrical components to avoid shocks or cuts. If you’re unsure about wire placement, take a photo of the original setup before disassembly. Use a multimeter to test the new switch’s functionality before fully reassembling the cart. For older EZGO models, consider upgrading to a switch with a higher amperage rating to improve durability. Finally, reattach the battery and test the cart in a controlled area to ensure the switch operates correctly in both forward and reverse.
By methodically replacing the forward/reverse switch, you can extend the life of your EZGO golf cart and maintain its reliability on the course. This DIY approach not only saves money but also empowers you to tackle future maintenance tasks with confidence.
Adjusting Your EZGO TXT Golf Cart's Shift Cable: A Step-by-Step Guide
You may want to see also
Explore related products
Solenoid Troubleshooting: Diagnosing and fixing solenoid issues affecting the cart’s direction control
Solenoid malfunctions are a common culprit behind directional control issues in EZGO golf carts. These electromagnetic switches regulate the flow of electricity to the motor, determining whether the cart moves forward or reverse. When a solenoid fails, it can lead to symptoms like the cart not moving in one direction, erratic movement, or a complete loss of power. Understanding how to diagnose and address solenoid problems can save time and money, ensuring your cart operates smoothly.
Diagnosing the Problem: Begin by checking the solenoid’s physical condition. Look for signs of corrosion, loose connections, or burnt wiring. Use a multimeter to test for continuity across the solenoid’s terminals when the direction switch is engaged. If there’s no continuity in one direction, the solenoid is likely faulty. Additionally, listen for a clicking sound when activating the switch; a weak or absent click suggests the solenoid isn’t engaging properly. Compare the solenoid’s behavior in both forward and reverse to pinpoint the issue.
Fixing the Solenoid: If the solenoid is confirmed faulty, replacement is often the best solution. Start by disconnecting the battery to prevent electrical accidents. Locate the solenoid, typically near the controller or under the seat, and remove the wiring harness. Unscrew the mounting bolts and replace the old solenoid with a new one, ensuring the model matches your cart’s specifications. Reattach the wiring harness, secure the bolts, and reconnect the battery. Test the cart in both directions to verify the fix.
Preventive Measures: Regular maintenance can extend solenoid life. Clean terminals with a wire brush and apply dielectric grease to prevent corrosion. Inspect wiring for fraying or damage, replacing as needed. Test the solenoid annually as part of your cart’s routine checkup. For carts used in harsh conditions, consider upgrading to a heavy-duty solenoid designed for increased durability.
Advanced Troubleshooting: If the solenoid appears functional but issues persist, investigate the direction switch or controller. A faulty switch may not send the correct signal to the solenoid, while a malfunctioning controller can disrupt power flow. Use a wiring diagram specific to your EZGO model to trace the circuit and identify potential failures. Consulting a professional mechanic is advisable for complex electrical issues, as misdiagnosis can lead to further damage.
By systematically diagnosing and addressing solenoid issues, you can restore your EZGO golf cart’s directional control efficiently. Regular maintenance and a proactive approach to troubleshooting ensure your cart remains reliable, whether on the course or off-road.
DIY Golf Cart Battery Upgrade Using 18650 Cells: A Step-by-Step Guide
You may want to see also
Explore related products
Wiring Inspection: Checking and repairing damaged or loose wires connected to the F/R system
A thorough wiring inspection is crucial when troubleshooting the forward/reverse (F/R) system on your EZGO golf cart. Over time, wires can become damaged, frayed, or loose due to vibration, moisture, or general wear and tear. These issues can lead to intermittent or complete failure of the F/R system, leaving you stranded on the course. By systematically checking and repairing these wires, you can restore functionality and ensure reliable performance.
Begin by locating the F/R switch and its associated wiring harness. This is typically found under the seat or near the battery compartment, depending on your EZGO model. Disconnect the battery to prevent accidental shocks or short circuits during inspection. Carefully trace the wires from the F/R switch to the controller, paying close attention to areas where wires may rub against sharp edges or are exposed to the elements. Look for visible signs of damage, such as cracked insulation, exposed copper, or loose connections. Use a multimeter to test for continuity and ensure each wire is transmitting the correct signal.
If you find damaged wires, repair or replace them immediately. For minor fraying, strip the wire ends, twist them together, and secure with electrical tape or heat shrink tubing. For more severe damage, cut out the affected section and splice in a new piece of wire, ensuring a secure connection with solder or crimp connectors. Loose connections at terminals or plugs should be tightened and secured with dielectric grease to prevent corrosion. Always use wires of the same gauge and insulation type to maintain the integrity of the system.
During the inspection, take note of the wiring diagram for your specific EZGO model, as this will help you identify which wires correspond to the F/R system. Common issues include broken wires near the F/R switch or loose connections at the controller. If the wiring harness itself is damaged, consider replacing it entirely to avoid future problems. Regularly inspecting and maintaining these wires not only resolves current issues but also prevents potential failures down the road.
In conclusion, a meticulous wiring inspection is a critical step in diagnosing and fixing F/R system issues on your EZGO golf cart. By identifying and addressing damaged or loose wires, you can ensure smooth and reliable operation. Armed with the right tools, a wiring diagram, and a systematic approach, you’ll be well-equipped to tackle this task and keep your cart running efficiently.
Mastering Golf Cart Tire Balance: A Step-by-Step Guide
You may want to see also
Explore related products
Micro Switch Adjustment: Calibrating the micro switch for smooth forward and reverse transitions
The micro switch in your EZGO golf cart is a small but critical component that dictates the seamless transition between forward and reverse. Improper calibration can lead to jerky shifts, delayed engagement, or even complete failure to change directions. This switch acts as the gatekeeper for your cart's directional control, and its precise adjustment is paramount for optimal performance.
Fine-tuning this switch involves a delicate balance between mechanical precision and electrical sensitivity.
Understanding the Micro Switch Mechanism
Imagine a tiny lever inside the switch, poised to make or break the electrical circuit that controls your cart's direction. When you move the direction selector, this lever should respond with exacting accuracy, ensuring the correct circuit is engaged. Over time, wear and tear can cause this lever to become misaligned, leading to the aforementioned issues. Calibration involves adjusting the switch's position to restore this precise alignment, allowing for smooth and immediate directional changes.
Calibration Process: A Step-by-Step Guide
- Safety First: Before beginning, ensure your cart is on a level surface, the power is off, and the brake is engaged.
- Access the Switch: Locate the micro switch, typically found near the direction selector mechanism. Consult your EZGO manual for specific placement.
- Loosen the Mounting Screws: Gently loosen the screws securing the switch, allowing for slight adjustments.
- Adjust the Switch Position: Using a small screwdriver, carefully move the switch in minute increments, testing the forward and reverse engagement after each adjustment. Aim for a smooth, immediate response without excessive play in the selector.
- Secure the Switch: Once optimal calibration is achieved, tighten the mounting screws securely, ensuring the switch remains in its adjusted position.
Fine-Tuning Tips:
- Patience is Key: Micro switch calibration requires patience and a gentle touch. Avoid forceful adjustments, as they can damage the switch.
- Test Extensively: After each adjustment, thoroughly test the forward and reverse functions to ensure consistent and reliable performance.
- Seek Professional Help: If you're unsure or encounter difficulties, consult a qualified golf cart technician for assistance.
The Reward: Smooth Sailing
Properly calibrated micro switches translate to a more enjoyable and efficient golf cart experience. You'll notice smoother transitions, improved responsiveness, and a reduced risk of mechanical issues related to directional control. This simple adjustment can significantly enhance the overall performance and longevity of your EZGO cart.
Bypassing Reed Switch on Golf Cart: Simple DIY Solutions Explained
You may want to see also
Explore related products
Controller Reset: Resetting the motor controller to resolve direction control malfunctions
A malfunctioning motor controller can cause your EZGO golf cart to lose its ability to switch between forward and reverse, leaving you stranded or unable to maneuver effectively. Before diving into complex repairs or replacements, a simple controller reset might be the solution. This process involves powering down the system, disconnecting the battery, and allowing the controller to reset its internal settings, often resolving minor glitches or software errors.
Steps to Perform a Controller Reset:
- Power Down the Cart: Ensure the golf cart is turned off and the key is removed from the ignition. This prevents accidental activation during the reset process.
- Disconnect the Battery: Locate the battery under the seat or in the designated compartment. Use a wrench to loosen the battery terminals and disconnect the negative cable first, followed by the positive cable. Wait at least 10 minutes to allow the controller’s capacitors to discharge fully.
- Reconnect the Battery: Reattach the battery cables, starting with the positive terminal and then the negative. Tighten the connections securely to ensure proper electrical contact.
- Test the Cart: Turn the cart back on and test the forward and reverse functions. If the issue persists, repeat the process or consider further diagnostics.
Cautions and Considerations: Avoid rushing the reset process, as incomplete capacitor discharge can lead to residual errors. Additionally, frequent resets may indicate a deeper issue, such as a failing controller or wiring problem, requiring professional inspection. Always wear gloves and safety goggles when handling batteries to prevent acid burns or short circuits.
Why This Works: A controller reset clears temporary faults in the system’s memory, allowing it to recalibrate and restore proper functionality. This method is particularly effective for EZGO models with electronic controllers, which rely on software to manage direction control. By cutting power and reinitializing the system, you force the controller to restart its programming, often eliminating minor malfunctions without the need for costly repairs.
In summary, a controller reset is a quick, cost-effective troubleshooting step for EZGO golf cart direction control issues. While not a guaranteed fix, it’s a practical first measure that can save time and money before pursuing more complex solutions.
Mastering Golf Cart Performance: A Guide to Carburetor Adjustment
You may want to see also
Frequently asked questions
To change the forward and reverse direction, locate the F/R (Forward/Reverse) switch or lever, typically found near the battery compartment or under the seat. Move the switch or lever to the desired direction (F for forward, R for reverse).
This issue could be caused by a faulty F/R switch, loose wiring, or a problem with the solenoid. Check the switch for damage, inspect the wiring for loose connections, and test the solenoid for proper function.
Yes, replacing the F/R switch is a DIY-friendly task. Disconnect the battery, remove the old switch, install the new one, and reconnect the wiring. Ensure the switch is properly aligned and secured.
Slow movement in one direction may indicate a weak battery, worn motor brushes, or a faulty speed controller. Check the battery charge, inspect the motor brushes for wear, and test the speed controller for proper operation.
