Changing the inner CV boot on a Mk4 Golf is a crucial maintenance task to prevent damage to the CV joint and ensure smooth power delivery to the wheels. Over time, the rubber boot can crack or tear, exposing the joint to dirt and moisture, leading to premature wear. To replace the inner CV boot, you’ll need to gather specific tools, such as a jack, axle stands, and a pry bar, and ensure you have the correct replacement parts, including a new boot, clamps, and grease. The process involves safely raising the vehicle, removing the wheel, disconnecting the driveshaft, and carefully sliding off the old boot before cleaning the joint, applying fresh grease, and installing the new boot securely. Following a step-by-step guide and taking precautions to avoid damaging the CV joint will ensure a successful repair, restoring the driveshaft’s reliability and performance.
| Characteristics | Values |
|---|---|
| Vehicle Model | Volkswagen Golf Mk4 |
| Component | Inner CV Boot |
| Tools Required | Pliers, Screwdrivers, Pry Bar, New CV Boot Kit, Grease, Clamps, Safety Gear |
| Difficulty Level | Intermediate |
| Time Required | 2-4 hours |
| Steps | 1. Secure the vehicle and remove the wheel. 2. Remove the axle nut and lower ball joint. 3. Disconnect the tie rod and separate the CV joint. 4. Remove the old inner CV boot. 5. Clean the CV joint and install the new boot. 6. Reassemble the components in reverse order. 7. Torque all nuts and bolts to specifications. 8. Test drive the vehicle. |
| Common Issues | Torn or cracked boot, grease leakage, clicking noises during turns |

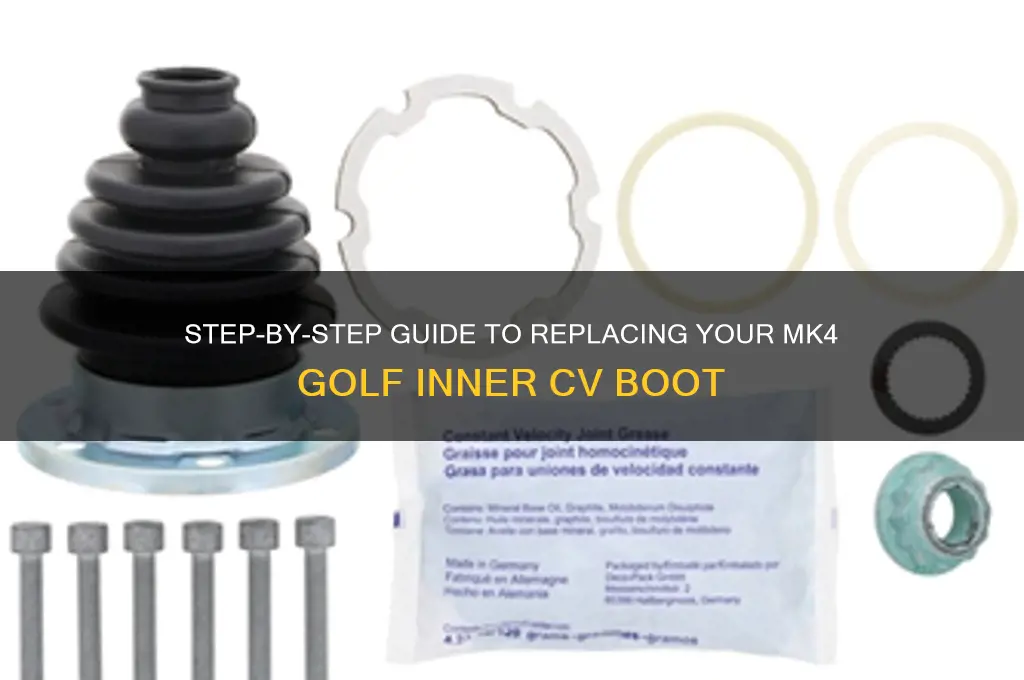

| Replacement Kit Includes | New boot, clamps, grease packet |
| Safety Precautions | Wear gloves, safety glasses, and work on a level surface |
| Cost of Replacement Kit | $20 - $50 (USD) depending on brand and quality |
| Professional Cost | $150 - $300 (USD) including labor |
| Maintenance Tip | Inspect CV boots regularly for cracks or tears during routine maintenance |
| Torque Specifications | Axle nut: 100-120 ft-lbs, Ball joint: 40-50 ft-lbs |
| Recommended Grease Type | Lithium-based CV joint grease |
| Symptoms of Failure | Clicking or popping noises, vibration during turns, visible grease leaks |
| Compatibility | Fits most Mk4 Golf models (1998-2006), verify part number for exact fit |
Explore related products
What You'll Learn
- Gather Tools and Materials: List required tools and replacement parts for the CV boot repair
- Remove Wheel and Hub: Steps to safely remove the wheel and access the CV joint
- Detach Old Boot: Process to carefully remove the damaged inner CV boot
- Install New Boot: Guide to fitting the new CV boot securely in place
- Reassemble and Test: Instructions to reassemble components and test the repair for functionality
Gather Tools and Materials: List required tools and replacement parts for the CV boot repair
Before embarking on the task of replacing the inner CV boot on your MK4 Golf, it's essential to gather all the necessary tools and materials to ensure a smooth and efficient repair process. The first item on your list should be a new CV boot kit, specifically designed for the MK4 Golf model. This kit typically includes a high-quality replacement boot, clamps, and grease to lubricate the CV joint. Make sure to purchase a kit from a reputable supplier to guarantee compatibility and durability. Additionally, you'll need a suitable CV joint grease, such as moly-based or silicone-based grease, to ensure proper lubrication and protection of the joint.
In terms of tools, a comprehensive set of sockets and wrenches is crucial for removing and reinstalling various components during the repair. This includes a set of metric sockets (e.g., 10mm, 12mm, 14mm) and corresponding wrenches to loosen and tighten bolts and nuts securely. A pry bar or a flathead screwdriver will also come in handy for gently prying and maneuvering parts, especially when removing the old CV boot. Furthermore, a pair of pliers, such as slip-joint or needle-nose pliers, will be useful for manipulating clamps and securing the new boot in place.
To facilitate the removal of the old CV boot and the installation of the new one, you'll need a few specialized tools. A CV boot clamp tool or a pair of CV boot pliers will make it easier to remove and install the clamps securely. If your MK4 Golf has an inner CV joint with a circlip, you'll require a pair of circlip pliers to remove and reinstall the circlip safely. Additionally, a torque wrench is essential for tightening bolts and nuts to the manufacturer's specified torque settings, ensuring the safety and reliability of the repair.
Protective gear and cleaning supplies are also vital components of your tool and materials list. Wear safety goggles and gloves to shield your eyes and hands from debris, grease, and sharp edges during the repair. Have a supply of clean rags or paper towels readily available to wipe away excess grease and dirt, maintaining a clean work environment. A parts cleaning solution or brake cleaner can be used to degrease and clean components, ensuring optimal performance and longevity of the new CV boot.
Lastly, consider having a few additional items on hand to streamline the repair process. A jack and jack stands will be necessary to safely raise and support the vehicle, providing adequate access to the CV joint. A wheel chock or block can be used to secure the wheels and prevent accidental movement during the repair. By gathering these tools and materials beforehand, you'll be well-prepared to tackle the inner CV boot replacement on your MK4 Golf with confidence and efficiency.
Mastering Golf Yardage: Tips to Improve Your Distance and Accuracy
You may want to see also
Explore related products
Remove Wheel and Hub: Steps to safely remove the wheel and access the CV joint
To safely remove the wheel and access the CV joint on a Mk4 Golf, start by parking the vehicle on a flat, stable surface and engaging the parking brake. Ensure the car is in gear if it’s a manual transmission or in "Park" if it’s an automatic. Use wheel chocks behind the driving wheels for added safety. Next, loosen the lug nuts on the wheel you’re working on using a lug wrench. Do this while the car is still on the ground, as it’s easier to break the nuts free before lifting the vehicle. Be careful not to remove the nuts completely at this stage—just loosen them enough so they can be turned by hand.
Once the lug nuts are loosened, use a hydraulic jack to lift the vehicle and securely place it on jack stands. Ensure the jack stands are positioned correctly under the designated lift points of the vehicle, typically near the wheel well or as specified in the owner’s manual. Double-check that the car is stable and cannot shift or roll before proceeding. With the vehicle safely elevated, remove the loosened lug nuts and set them aside in a safe place. Carefully pull the wheel straight off the hub and set it aside, ensuring it’s placed in a stable position where it won’t roll or cause obstruction.
After removing the wheel, inspect the brake components and rotor to ensure there’s no damage or debris that could interfere with the next steps. Locate the hub assembly, which is the central part of the wheel mounting area. The CV joint and axle are connected to the hub, so accessing them requires removing the hub assembly. Begin by removing the bolts that secure the brake caliper to the steering knuckle. Carefully support the caliper with a wire or bungee cord to prevent strain on the brake line. Do not let the caliper hang freely by the brake hose, as this can cause damage.
With the caliper out of the way, remove the brake rotor if necessary. On some Mk4 Golf models, the rotor may need to be tapped gently with a mallet to free it from the hub. Once the rotor is removed, locate and remove the hub assembly bolts. These bolts are typically located around the perimeter of the hub and may require a torque wrench or appropriate-sized socket. After removing the bolts, gently pull the hub assembly away from the steering knuckle. If it’s stuck, use a pry bar carefully to avoid damaging any components.
Finally, with the hub assembly removed, you’ll have clear access to the CV joint and axle. Take this opportunity to inspect the joint for damage or wear before proceeding with the boot replacement. Ensure all removed components are kept organized and within reach for reassembly. This systematic approach ensures safe and efficient access to the CV joint while minimizing the risk of damage to the vehicle or injury to the person performing the repair.
Golfer Jason Day: His Nationality and Heritage
You may want to see also
Explore related products
Detach Old Boot: Process to carefully remove the damaged inner CV boot
To begin the process of detaching the old inner CV boot on your MK4 Golf, start by ensuring the vehicle is securely lifted and the wheels are removed to provide clear access to the CV joint. Position yourself so you have a good view of the CV joint assembly. The first step is to relieve the tension on the clamp that secures the boot to the CV joint. Using a flathead screwdriver or a specialized clamp removal tool, carefully pry the ear of the clamp away from the boot. Work your way around the circumference of the clamp, gradually releasing the tension until the clamp can be completely removed. Be cautious not to damage the boot or the CV joint during this process, as precision is key to avoiding further complications.
Once the clamp is removed, gently peel the boot away from the CV joint. Start at the end where the clamp was located and work your way down, taking care not to tear the boot if it is still partially intact. If the boot is severely damaged or stuck, you may need to use a utility knife or scissors to carefully cut it open along the length, ensuring not to damage the CV joint or the axle. As you detach the boot, inspect the grease inside; it should be clean and free of debris. If the grease appears contaminated or dry, take note, as this may indicate additional issues with the joint.
With the boot partially removed, focus on the area where the boot attaches to the inner CV joint housing. There is typically a second clamp or a groove holding the boot in place. Use your flathead screwdriver or a pick tool to gently pry this clamp loose or dislodge the boot from the groove. Work slowly and methodically to avoid damaging the inner components of the CV joint. Once this clamp or groove is released, the boot should slide off the CV joint housing with minimal effort.
After removing the boot, take a moment to clean the exposed CV joint and axle splines using a clean rag or brush. Remove any old grease, dirt, or debris to ensure a clean surface for the new boot installation. Inspect the CV joint and axle for signs of wear, such as cracks, excessive play, or damaged splines. If any issues are detected, consider replacing the entire CV joint assembly rather than just the boot. Proper inspection at this stage can save time and prevent future failures.
Finally, with the old boot completely detached, dispose of it properly and prepare the workspace for installing the new inner CV boot. Ensure all necessary tools and materials, such as new clamps, grease, and the replacement boot, are within reach. Double-check that the CV joint and axle are clean and ready for the new boot. This careful and systematic approach to detaching the old boot sets the foundation for a successful replacement, ensuring the longevity and reliability of your MK4 Golf’s CV joint.
Cadet Fit Golf Gloves: A Comfortable, Secure Fit
You may want to see also
Explore related products
Install New Boot: Guide to fitting the new CV boot securely in place
Begin by preparing the new CV boot for installation. Ensure the boot is clean and free from any debris or residue. Lubricate the inside of the boot lightly with a suitable grease, such as CV joint grease, to ease the installation process and prevent damage. Slide the larger end of the boot over the CV joint, ensuring it covers the joint completely. Take your time to position the boot correctly, as improper alignment can lead to premature failure. Once the boot is in place, inspect the area to confirm that the joint is fully enclosed and no part of the joint is exposed.
Next, focus on securing the boot to the axle shaft. Use a new clamp or hose clamp, as reusing old clamps can result in inadequate sealing. Position the clamp approximately 10-15mm from the edge of the boot, ensuring it is tight enough to create a firm seal without damaging the boot material. Tighten the clamp gradually, using a flat-head screwdriver or a clamp tightener, and double-check that it is secure. Avoid over-tightening, as this can cause the boot to tear or the clamp to cut into the material. A properly secured clamp should feel tight and snug, with no visible gaps or looseness.
After securing the boot to the axle shaft, move on to attaching the other end of the boot to the transmission or differential side. This process may vary depending on your MK4 Golf’s setup, but generally, it involves sliding the smaller end of the boot over the corresponding joint or housing. Again, ensure the boot is aligned correctly and fully covers the joint. Secure this end with another new clamp, following the same tightening procedure as before. Take a moment to inspect both ends of the boot, confirming that the clamps are tight and the boot is seated properly.
With both ends of the new CV boot securely clamped, it’s essential to check for any potential issues. Inspect the boot for any signs of twisting or bunching, as this can lead to premature wear or failure. Gently pull and rotate the boot to ensure it moves freely without restriction. If you notice any abnormalities, adjust the boot and clamps as needed. Additionally, verify that there is no grease leakage from the boot ends, as this could indicate an improper seal.
Finally, reattach any components that were removed during the disassembly process, such as the axle nut, split pin, or retaining clips. Torque the axle nut to the manufacturer’s specifications, typically around 180-200 Nm for the MK4 Golf, and secure it with a new split pin for safety. Once everything is reassembled, add fresh CV joint grease through the grease nipple, if applicable, to ensure proper lubrication. Lower the vehicle, test drive it, and inspect the new boot for leaks or abnormalities after the first few miles to ensure a successful installation.
Golf's Impact: Is Swinging Bad for Your Shoulders?
You may want to see also
Explore related products
Reassemble and Test: Instructions to reassemble components and test the repair for functionality
Once the new inner CV boot is installed and properly secured, begin reassembling the components in the reverse order of disassembly. Start by carefully sliding the axle back into the transmission, ensuring the splines align correctly. Apply a small amount of grease to the splines before insertion to ease the process and prevent damage. Once the axle is fully seated, reattach the axle nut and tighten it to the manufacturer’s specified torque using a torque wrench. Overtightening can damage the axle, so precision is crucial.
Next, reinstall the CV joint assembly into the wheel hub. Align the splines on the CV joint with those in the wheel hub and gently tap it into place using a soft mallet if necessary. Secure the assembly by reinstalling the bolts or retaining clips, ensuring they are tightened to the correct torque. Double-check that all components are properly aligned and seated before proceeding. Reattach the brake caliper and rotor, ensuring the caliper pins are lubricated and the rotor is securely mounted.
With the components reassembled, it’s time to reinstall the wheel and lower the vehicle. Tighten the lug nuts in a diagonal pattern to ensure even pressure on the wheel. Once the vehicle is back on the ground, pump the brake pedal several times to restore brake pressure. Start the engine and check for any unusual noises or vibrations while idling. If everything appears normal, move on to testing the repair for functionality.
To test the repair, take the vehicle for a short drive in a safe, open area. Begin by driving at low speeds, paying close attention to any clicking, popping, or grinding noises, which could indicate improper installation. Gradually increase your speed and test the vehicle’s performance during turns, acceleration, and braking. Ensure the steering feels smooth and responsive, with no binding or resistance. If the vehicle operates without issues, the repair is likely successful.
Finally, inspect the new CV boot and surrounding area for any signs of grease leakage or damage after the test drive. If everything appears intact and the vehicle functions properly, the repair is complete. However, if you notice any abnormalities during the test drive or inspection, recheck the installation and tighten any loose components as needed. Proper reassembly and thorough testing are essential to ensure the longevity and safety of the repaired CV joint.
Golfing Glory: The Tough Road to Amateur Status
You may want to see also
Frequently asked questions
You will need a jack and jack stands, wheel chocks, a lug wrench, a pry bar, a hammer, pliers, a screwdriver, a torque wrench, and possibly a CV boot clamp tool.
Remove the wheel, then unbolt and remove the brake caliper and rotor. Next, remove the axle nut and separate the strut from the hub assembly to access the CV joint and boot.
You can replace just the inner CV boot if the CV joint itself is in good condition. However, if the joint is worn or damaged, it’s often more cost-effective to replace the entire axle.
Signs include grease on the inner CV joint area, clicking or popping noises while turning, and visible tears or cracks in the boot.
Clean the CV joint thoroughly, slide the new boot into place, secure it with clamps, and ensure it’s properly lubricated with fresh CV joint grease before reassembling the axle and suspension components.
