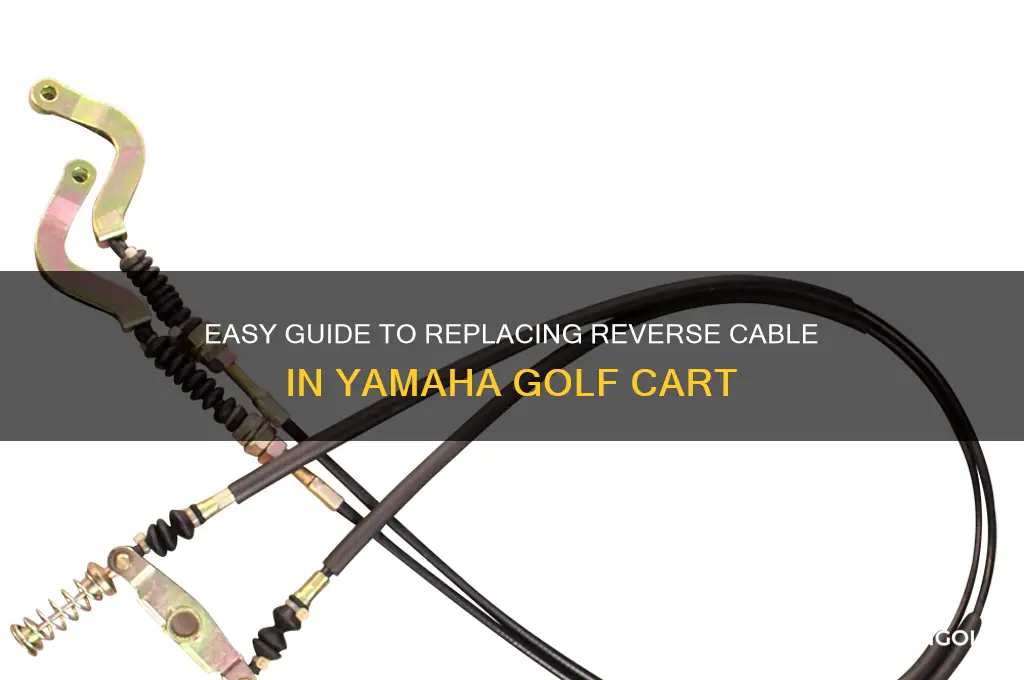

Changing the reverse cable in a Yamaha golf cart is a straightforward but essential maintenance task that ensures smooth operation of the vehicle’s reverse function. Over time, the reverse cable can wear out, stretch, or become damaged, leading to difficulty or failure in engaging reverse gear. This process involves locating the cable, disconnecting it from both the shift lever and the transmission, and replacing it with a new cable. Proper tools, such as wrenches and pliers, are necessary to complete the job efficiently. Following a step-by-step guide and ensuring the new cable is correctly aligned and secured will restore the golf cart’s reverse functionality and extend its overall lifespan.
| Characteristics | Values |
|---|---|
| Tools Required | Wrench, Pliers, Screwdriver, New Reverse Cable |
| Difficulty Level | Moderate |
| Time Required | 30-60 minutes |
| Safety Precautions | Ensure golf cart is on a flat surface, engage parking brake, disconnect battery |
| Steps | 1. Locate the reverse cable under the seat or near the shifter. 2. Disconnect the old cable from the shifter and transmission. 3. Remove the old cable by loosening any clamps or brackets. 4. Install the new cable, ensuring proper alignment and connection. 5. Test the shifter to confirm smooth operation in reverse. 6. Reattach any removed components and secure the new cable. |
| Common Issues | Cable misalignment, rusted components, worn-out clamps |
| Replacement Cable Compatibility | Ensure the new cable matches the Yamaha golf cart model and year |
| Cost of Replacement Cable | $20 - $50 (varies by model and brand) |
| Maintenance Tips | Regularly lubricate the cable and inspect for wear or damage |
| Professional Assistance | Recommended if unsure about the process or encountering complex issues |
Explore related products
What You'll Learn
- Gather Tools and Parts: Prepare socket set, wrenches, new reverse cable, safety gloves, and owner’s manual
- Locate Reverse Cable: Identify cable connection points at gas pedal and rear end
- Disconnect Old Cable: Remove retaining clips, detach cable from pedal and transmission
- Install New Cable: Route new cable, secure with clips, and attach to pedal and transmission
- Test and Adjust: Verify reverse function, adjust cable tension if needed, and ensure smooth operation
Gather Tools and Parts: Prepare socket set, wrenches, new reverse cable, safety gloves, and owner’s manual
Before diving into the task of replacing the reverse cable in your Yamaha golf cart, it’s crucial to assemble the right tools and parts to ensure a smooth and safe process. Start by gathering a socket set, which will be essential for removing bolts and fasteners securely without stripping them. Pair this with a set of wrenches, particularly adjustable ones, to handle nuts and bolts of varying sizes. These tools are the backbone of your repair kit, providing the precision needed to disassemble and reassemble components without damage.
Next, procure a new reverse cable specific to your Yamaha golf cart model. Using a generic or mismatched cable can lead to improper functionality or premature failure. Check the part number in your owner’s manual or consult a parts catalog to ensure compatibility. While purchasing, consider investing in a high-quality cable from a reputable supplier to avoid future issues. Remember, a well-fitted cable is key to restoring your cart’s reverse function seamlessly.
Safety should never be an afterthought. Equip yourself with a pair of durable safety gloves to protect your hands from sharp edges, grease, and potential slips. Gloves not only enhance grip but also minimize the risk of injury during the repair process. Additionally, keep your owner’s manual within reach. This invaluable resource provides model-specific instructions, diagrams, and torque specifications, ensuring you follow the manufacturer’s guidelines precisely.
Organize your workspace efficiently to streamline the task. Lay out all tools and parts in a logical order, starting with the socket set and wrenches, followed by the new reverse cable and safety gloves. Having everything within arm’s reach reduces the chances of misplacing items or interrupting your workflow. A well-prepared setup not only saves time but also fosters confidence, making the replacement process less daunting.
Finally, take a moment to inspect your tools and parts for any signs of wear or damage. A cracked socket or frayed cable can compromise the repair, leading to further complications. If any item appears compromised, replace it before proceeding. By meticulously preparing your tools and parts, you set the stage for a successful and stress-free reverse cable replacement, ensuring your Yamaha golf cart operates reliably once again.
Bypassing EZGO Golf Cart Speed Sensor: A Step-by-Step Guide
You may want to see also
Explore related products
Locate Reverse Cable: Identify cable connection points at gas pedal and rear end
The reverse cable in a Yamaha golf cart is a critical component for smooth operation, connecting the gas pedal mechanism to the rear differential. Locating its connection points is the first step in any replacement or repair process. Begin by accessing the gas pedal assembly, typically located beneath the driver’s side floorboard. The cable attaches here via a clamp or bracket, often secured with a small bolt or clip. Loosen this fastener carefully to release the cable, ensuring you note its exact position for reassembly. Next, trace the cable’s path to the rear end of the cart, where it connects to the differential’s shift mechanism. This connection point is usually near the axle housing, secured by a similar clamp or bracket. Identifying these two points—gas pedal and rear differential—is essential for efficient cable removal and installation.
Analyzing the cable’s routing reveals its importance in transmitting pedal input to the differential, enabling reverse gear engagement. The gas pedal connection point acts as the control interface, while the rear end connection directly influences the differential’s shift action. Wear or misalignment at either point can cause sluggish or unresponsive reversing. For instance, a frayed cable end at the gas pedal may slip from its clamp, while corrosion at the rear connection can hinder smooth shifting. Inspect both areas for signs of damage, such as rust, fraying, or loose fasteners, as these are common failure points. Understanding this relationship between the two connection points highlights the need for precision during replacement to ensure optimal performance.
Persuasively, investing time in accurately locating these connection points can save hours of frustration later. Misidentifying either end or forcing the cable into the wrong position risks damaging the pedal assembly or differential mechanism. Use a flashlight and mirror to inspect hard-to-reach areas, and refer to a Yamaha service manual for model-specific diagrams. If the cable’s path is obscured by debris or components, clean the area thoroughly to avoid misalignment. A practical tip: mark the old cable’s routing with tape or a marker before removal to guide the installation of the new one. This proactive approach minimizes errors and ensures a seamless fit.
Comparatively, locating the reverse cable’s connection points in a Yamaha golf cart differs from other vehicles due to its compact design and specialized components. Unlike cars, where shift cables often run through the cabin, golf carts route cables externally along the frame for accessibility. This design simplifies inspection but requires careful handling to avoid kinking or damaging the cable during removal. Additionally, Yamaha’s use of lightweight materials in the differential and pedal assembly means fasteners are typically smaller and more delicate than those in automotive applications. Applying excessive force when loosening clamps can strip threads or break components, so use appropriately sized tools and work gently.
Descriptively, the gas pedal connection point is often a small, L-shaped bracket with a 10mm bolt securing the cable’s end. The rear differential connection, in contrast, may feature a spring-loaded clamp or a simple bolt-and-nut arrangement, depending on the model. Both points are designed for quick release but require careful manipulation to avoid bending the cable or damaging surrounding parts. When tracing the cable’s path, note any protective sleeves or guides that keep it aligned with the frame. These components are crucial for preventing abrasion and ensuring smooth operation, so reattach them during installation. By focusing on these details, you’ll transform a potentially daunting task into a manageable, step-by-step process.
Easy Vinyl Wrap Application Guide for Your Golf Cart Makeover
You may want to see also
Explore related products
Disconnect Old Cable: Remove retaining clips, detach cable from pedal and transmission
The first step in replacing the reverse cable on your Yamaha golf cart is to disconnect the old one, a process that requires precision and care to avoid damaging surrounding components. Begin by locating the retaining clips that secure the cable in place. These clips are typically found near the connection points at both the pedal and the transmission. Using a pair of needle-nose pliers or a flathead screwdriver, carefully pry the clips away from the cable. Be gentle but firm—applying too much force can bend or break the clips, complicating reassembly. Once the clips are removed, set them aside in a safe place to ensure they don’t get lost during the rest of the process.
With the retaining clips out of the way, the next step is to detach the cable from the pedal. This connection is usually secured with a small bolt or pin. Use the appropriate size wrench or socket to loosen and remove the fastener. If the bolt is rusted or difficult to turn, apply a small amount of penetrating oil and allow it to sit for a few minutes before attempting again. Once the fastener is removed, gently pull the cable end away from the pedal. Be mindful of any tension in the cable—if it’s still connected to the transmission, pulling too hard could damage the cable or surrounding components.
Now, move to the transmission end of the cable. Here, the cable is typically attached via a similar bolt or pin mechanism. Follow the same process as before: loosen and remove the fastener, then carefully detach the cable. If the cable is stiff or stuck, avoid forcing it. Instead, inspect the connection for debris or corrosion and clean it if necessary. Once both ends of the cable are free, take a moment to inspect the cable itself for signs of wear, fraying, or damage. This step ensures that the replacement cable will function properly once installed.
A practical tip to streamline this process is to take photos or notes as you work, documenting the exact placement of clips, bolts, and cable routing. This visual reference will be invaluable during reassembly, ensuring everything is reconnected correctly. Additionally, keep a small container nearby to store removed fasteners and clips, preventing them from being misplaced. By approaching this step methodically and with attention to detail, you’ll set the stage for a smooth and successful cable replacement.
DIY Golf Cart Speaker Box: Enhance Your Ride with Custom Audio
You may want to see also
Explore related products
Install New Cable: Route new cable, secure with clips, and attach to pedal and transmission
Installing a new reverse cable in your Yamaha golf cart requires precision and attention to detail. Begin by routing the new cable through the same path as the old one, ensuring it follows the manufacturer’s guidelines. Yamaha golf carts often have specific channels or conduits designed for cable routing, so inspect the frame and undercarriage to identify these pathways. Use a flashlight if necessary to trace the route clearly, as proper alignment prevents kinks or binding that could impair functionality.
Once the cable is routed, secure it with clips at regular intervals to maintain tension and stability. Yamaha typically provides factory clips, but if replacements are needed, ensure they match the original specifications. Over-tightening clips can damage the cable sheath, while loose clips may allow the cable to shift, leading to premature wear. A practical tip: test the cable’s movement by hand before fully securing it to ensure it glides smoothly without resistance.
Attaching the cable to the pedal and transmission is the final, critical step. Start by connecting the end of the cable to the reverse pedal, ensuring the clamp is tightened securely but not excessively. Torque specifications vary by model, but a general rule is to use a torque wrench set to 12–15 foot-pounds for Yamaha golf carts. Next, attach the opposite end to the transmission lever, aligning it with the neutral and reverse positions. Double-check that the cable engages smoothly when the pedal is depressed, as misalignment can cause shifting issues or damage to the transmission.
A comparative analysis reveals that Yamaha’s cable design differs from other brands like Club Car or EZ-GO, emphasizing the importance of model-specific instructions. For instance, Yamaha cables often feature a unique sheath material that requires careful handling to avoid cracking. Additionally, Yamaha’s transmission systems are more sensitive to cable tension, making precise routing and attachment essential. By following these steps, you ensure not only a functional repair but also longevity in your golf cart’s reverse mechanism.
In conclusion, installing a new reverse cable in a Yamaha golf cart demands methodical routing, secure clipping, and accurate attachment to both the pedal and transmission. Attention to model-specific details and proper tensioning will prevent common issues like binding or premature wear. With these steps, you’ll restore smooth reverse operation and maintain the reliability of your golf cart.
Easy Steps to Attach a Golf Cart Radio Console: A DIY Guide
You may want to see also
Explore related products
Test and Adjust: Verify reverse function, adjust cable tension if needed, and ensure smooth operation
After replacing the reverse cable in your Yamaha golf cart, the critical next step is to test and adjust the system to ensure it functions flawlessly. Begin by engaging the reverse gear and observing the cart’s response. The cart should move backward smoothly without hesitation or grinding noises, indicating proper cable alignment and tension. If the reverse function is sluggish or unresponsive, the cable tension may be too loose, causing delays in gear engagement. Conversely, excessive tension can lead to premature wear or difficulty shifting into reverse.
To adjust the cable tension, locate the adjustment mechanism, typically a threaded barrel or locking nut near the cable’s connection point. Loosen the lock nut and turn the barrel clockwise to increase tension or counterclockwise to decrease it. Make small, incremental adjustments—no more than a quarter-turn at a time—then retest the reverse function. Aim for a balance where the gear engages promptly but without forcing the cable. Over-tightening can damage the cable, while under-tightening may result in inconsistent performance.
Smooth operation is the ultimate goal, and achieving it requires attention to detail. After adjusting the tension, test the reverse function multiple times under varying conditions, such as on flat ground and inclines, to ensure consistency. Listen for unusual sounds, like clicking or dragging, which could indicate misalignment or improper tension. If the cart hesitates or jerks during reverse, recheck the cable routing to ensure it’s free from kinks or obstructions.
A practical tip is to mark the initial adjustment position before making changes, allowing you to revert if necessary. Additionally, consult your Yamaha golf cart’s manual for specific torque values or tension guidelines, as these can vary by model. Proper testing and adjustment not only guarantee reliable reverse function but also extend the lifespan of the cable and related components, saving you from future headaches.
In summary, testing and adjusting the reverse cable is a precise process that demands patience and attention to detail. By verifying the reverse function, fine-tuning cable tension, and ensuring smooth operation, you’ll achieve optimal performance and reliability for your Yamaha golf cart.
Easy Guide to Applying Golf Cart Decals Like a Pro
You may want to see also
Frequently asked questions
The reverse cable is typically located near the steering column or under the seat, connecting the shift lever to the transmission. It is a metal cable with a sheath and often has a label or marking indicating its function.
You’ll need basic tools such as a wrench or socket set, pliers, and possibly a screwdriver. Additionally, having a replacement cable specific to your Yamaha model is essential.
First, disconnect the old cable from both the shift lever and the transmission. Then, route the new cable through the same path, ensuring it’s properly aligned. Finally, reconnect the ends, test the shift function, and adjust as needed. Refer to your cart’s manual for model-specific instructions.
