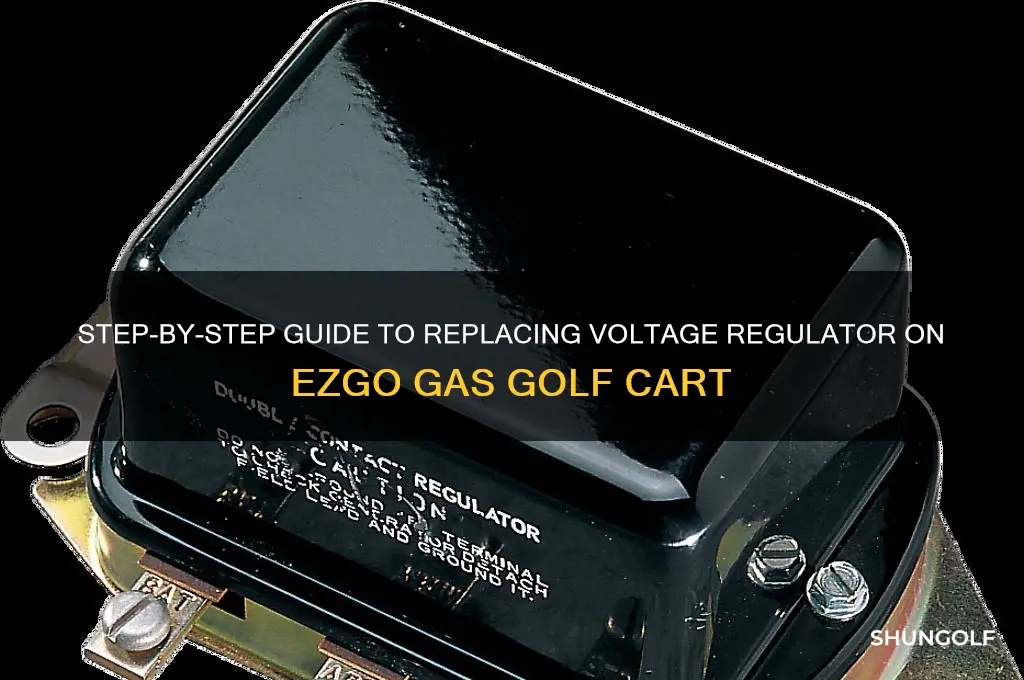

Changing the voltage regulator on an EZGO gas golf cart is a crucial maintenance task to ensure the electrical system operates efficiently. The voltage regulator plays a vital role in maintaining the correct charging voltage for the battery, preventing overcharging or undercharging that can damage the electrical components. Over time, the regulator may wear out or malfunction due to exposure to heat, vibration, or electrical surges. Symptoms of a failing voltage regulator include erratic charging, dim headlights, or a dead battery. To replace it, you’ll need basic tools, a replacement regulator compatible with your EZGO model, and a clear understanding of the process. This task involves disconnecting the battery, locating the regulator (typically near the engine or under the seat), removing the old unit, and installing the new one while ensuring proper wiring connections. Following a step-by-step guide or consulting the EZGO manual can help ensure a successful replacement, restoring your golf cart’s electrical system to optimal performance.
| Characteristics | Values |
|---|---|
| Tools Required | Wrench set, screwdriver, pliers, multimeter, safety gloves, safety goggles |
| Parts Needed | New voltage regulator compatible with EZGO gas golf cart |
| Location of Voltage Regulator | Typically mounted near the engine or on the firewall |
| Steps to Replace | 1. Disconnect battery 2. Locate and remove old regulator 3. Install new regulator 4. Reconnect wiring 5. Test functionality |
| Wiring Connections | Match wire colors and terminals (usually labeled or color-coded) |
| Testing Procedure | Use a multimeter to check voltage output before and after replacement |
| Safety Precautions | Wear gloves and goggles; ensure cart is off and battery disconnected |
| Common Issues | Overheating, loose connections, or faulty wiring |
| Compatibility | Ensure new regulator matches EZGO gas golf cart model and year |
| Estimated Time | 30-60 minutes depending on experience |
| Difficulty Level | Moderate (basic mechanical skills required) |
| Cost of Replacement | $30-$100 depending on regulator brand and quality |
| Maintenance Tips | Regularly inspect wiring and clean connections to prevent issues |
Explore related products
What You'll Learn
- Gather Tools and Parts: Collect necessary tools and replacement voltage regulator for your EZ Go gas golf cart
- Locate Voltage Regulator: Identify the voltage regulator’s position near the engine or battery compartment
- Disconnect Battery: Safely disconnect the battery to prevent electrical accidents during the replacement process
- Remove Old Regulator: Unplug wiring harness and unscrew the old voltage regulator from its mounting bracket
- Install New Regulator: Secure the new regulator, reconnect the wiring harness, and reattach the battery
Gather Tools and Parts: Collect necessary tools and replacement voltage regulator for your EZ Go gas golf cart
Before tackling the voltage regulator replacement on your EZ Go gas golf cart, a well-prepared toolkit is your best ally. This isn't a job for bare hands and guesswork. You'll need a combination of common hand tools and specialized items to ensure a smooth and safe process. Think of it as assembling a pit crew for your cart – each tool has a specific role to play.
A standard socket set with metric and SAE sizes is essential, as EZ Go carts often utilize both measurement systems. A wrench set, both open-end and box-end, will be invaluable for reaching tight spaces and securing bolts effectively. Don't underestimate the power of a good pair of needle-nose pliers for manipulating wires and connectors.
The star of the show, of course, is the replacement voltage regulator itself. Don't skimp on quality here. Opt for a regulator specifically designed for your EZ Go model and engine type. Generic regulators might seem like a budget-friendly option, but they can lead to compatibility issues and potential damage down the line. Consult your cart's manual or a reputable golf cart parts supplier to ensure you get the exact replacement part needed.
While the core tools are essential, a few additional items will make your life easier. A voltmeter or multimeter is crucial for testing the old regulator and verifying the new one's functionality. A clean rag and some dielectric grease will help keep connections clean and corrosion-free. Finally, consider safety glasses to protect your eyes from debris and a work glove for a secure grip on tools.
Remember, a well-equipped toolkit not only makes the job easier but also safer. Taking the time to gather the right tools and parts upfront will save you frustration and potential headaches during the replacement process. Think of it as an investment in a job well done.
Mastering Carburetor Adjustments for Your 2-Stroke Gas Golf Cart
You may want to see also
Explore related products
Locate Voltage Regulator: Identify the voltage regulator’s position near the engine or battery compartment
The voltage regulator in an EZGO gas golf cart is a critical component that ensures the electrical system operates within safe parameters. Locating it is the first step in any replacement or troubleshooting process. Typically, the voltage regulator is positioned near the engine or battery compartment, where it can efficiently monitor and control the charging system. This placement allows it to regulate the alternator’s output, preventing overcharging of the battery and potential damage to electrical components. Understanding its exact location saves time and reduces the risk of unnecessary disassembly during maintenance.
To identify the voltage regulator, start by opening the engine compartment or battery access panel, depending on your EZGO model. Look for a small, rectangular or square-shaped component with wiring harnesses connected to it. It’s often mounted on the firewall, near the alternator, or directly on the engine block. In some EZGO models, it may be integrated into the ignition module or housed in a protective casing. Refer to your cart’s manual for a diagram if you’re unsure, as the exact location can vary by year and model.
Once you’ve located the voltage regulator, inspect its surroundings for accessibility. Ensure there’s enough clearance to work with tools and disconnect wiring without damaging nearby components. If the regulator is obscured by hoses, wires, or other parts, carefully relocate or secure these items temporarily. This step is crucial for a smooth replacement process and minimizes the risk of accidental damage to adjacent systems.
A practical tip for first-time users: take a photo of the voltage regulator’s wiring connections before disconnecting them. This visual reference ensures you can reattach the wires correctly during the reinstallation process. Additionally, label each wire with tape or a marker if you’re unsure of their positions. This simple precaution prevents confusion and potential electrical issues later on.
In summary, locating the voltage regulator on an EZGO gas golf cart involves a systematic approach: access the engine or battery compartment, identify the component near the alternator or firewall, and assess its accessibility. By following these steps and using practical tips like photographing wire connections, you’ll streamline the replacement process and ensure a successful outcome.
Mastering Your EZGO Golf Cart: Simple Steering Adjustment Guide
You may want to see also
Explore related products
Disconnect Battery: Safely disconnect the battery to prevent electrical accidents during the replacement process
Before diving into the voltage regulator replacement on your EZGO gas golf cart, prioritize safety by disconnecting the battery. This critical step eliminates the risk of electrical shock, short circuits, or accidental activation of components during the repair. Golf cart batteries, typically 12-volt lead-acid units, store significant energy capable of causing injury if mishandled.
Steps for Safe Disconnection:
- Locate the Battery: On most EZGO models, the battery is housed under the rear seat or in a compartment near the driver’s side. Lift the seat or access panel to expose the battery terminals.
- Identify Terminals: The battery has two terminals: positive (+, red) and negative (-, black). Always disconnect the negative terminal first to break the circuit safely.
- Loosen the Nut: Use a wrench or pliers to loosen the nut securing the negative cable. Avoid forcing the tool, as over-tightening can strip the nut.
- Remove the Cable: Once the nut is loose, carefully pull the negative cable away from the terminal. Ensure it cannot accidentally reconnect by securing it with electrical tape or placing it aside.
- Verify Power Off: Test the system by attempting to turn on the cart’s ignition or lights. If nothing activates, the battery is successfully disconnected.
Cautions:
- Wear insulated gloves and safety goggles to protect against acid leaks or sparks.
- Avoid metal jewelry or tools that could conduct electricity if they touch both terminals simultaneously.
- Never disconnect the positive terminal first, as this increases the risk of shorting the battery.
Takeaway: Disconnecting the battery is a non-negotiable step in voltage regulator replacement. It takes less than 5 minutes but significantly reduces the risk of accidents, ensuring a safer and more efficient repair process.
Revitalize Your Golf Cart: Effective Tips to Boost 8 Volt Batteries
You may want to see also
Explore related products
Remove Old Regulator: Unplug wiring harness and unscrew the old voltage regulator from its mounting bracket
The first step in replacing the voltage regulator on your EZGO gas golf cart is to locate and access the old unit. Typically, the voltage regulator is mounted near the battery or under the seat, secured to a bracket with screws and connected to the wiring harness. Before proceeding, ensure the golf cart is turned off and the key is removed to prevent any electrical mishaps. This initial phase sets the stage for a smooth removal process, minimizing the risk of damage to surrounding components.
Unplugging the wiring harness from the old voltage regulator requires careful attention to detail. Start by identifying the harness connector, which is usually a multi-pin plug attached to the regulator. Gently press the release tab or squeeze the sides of the connector to disengage it. Avoid pulling on the wires directly, as this can cause damage. If the connector is stubborn, use a small flathead screwdriver to carefully pry it loose, taking care not to force it. Properly detaching the harness ensures that the wiring remains intact for the new regulator installation.
With the wiring harness disconnected, the next step is to unscrew the old voltage regulator from its mounting bracket. Most regulators are secured with two to four screws, depending on the model. Use a Phillips or flathead screwdriver, depending on the screw type, to remove them. Keep track of the screws, as they may be reused for the new regulator. If the screws are rusted or difficult to turn, apply a small amount of penetrating oil and allow it to sit for a few minutes before attempting again. Once the screws are removed, gently lift the old regulator off the bracket, being mindful of any remaining wiring connections.
A critical aspect of this process is inspecting the mounting bracket and wiring harness for signs of wear or damage. If the bracket is corroded or bent, it may need to be replaced or repaired before installing the new regulator. Similarly, check the wiring harness for frayed wires or loose connections, addressing any issues before proceeding. This proactive approach ensures the new voltage regulator operates efficiently and extends its lifespan. By methodically unplugging the harness and unscrewing the old regulator, you create a solid foundation for the subsequent installation steps.
In summary, removing the old voltage regulator involves two key actions: unplugging the wiring harness and unscrewing the unit from its mounting bracket. Approach each step with precision, using the appropriate tools and techniques to avoid damage. Taking the time to inspect surrounding components ensures a seamless transition to the new regulator, ultimately contributing to the reliable performance of your EZGO gas golf cart. This focused and methodical process is essential for a successful voltage regulator replacement.
Adjusting Camber on Your 2007 Precedent Golf Cart: A Step-by-Step Guide
You may want to see also
Explore related products
Install New Regulator: Secure the new regulator, reconnect the wiring harness, and reattach the battery
With the old voltage regulator removed, it's time to install the new one. This process requires precision and attention to detail to ensure your EZ Go gas golf cart's electrical system functions optimally. Begin by positioning the new regulator in the designated slot, aligning the mounting holes with those on the cart's frame. Secure it firmly using the provided screws, ensuring a snug fit without overtightening, which could damage the regulator's casing.
Reconnecting the wiring harness is a critical step. Refer to your golf cart's manual or the regulator's instructions for the correct wiring diagram. Typically, the harness will have color-coded wires corresponding to specific functions. Match these colors carefully, ensuring each wire is securely attached to the correct terminal on the new regulator. A loose connection can lead to electrical issues, so double-check each connection for tightness and accuracy.
Before reattaching the battery, inspect the wiring for any signs of damage or wear. Frayed wires or exposed conductors can cause shorts or malfunctions. If you notice any issues, address them immediately by replacing or repairing the affected wires. Once satisfied with the wiring, reattach the battery, ensuring the terminals are clean and securely connected. A poor battery connection can lead to voltage fluctuations, defeating the purpose of the new regulator.
After installation, it's crucial to test the system. Start the golf cart and let it idle for a few minutes. Use a multimeter to check the voltage output at the battery and across the system. The voltage should stabilize within the regulator's specified range, typically around 14.4 volts for a 12-volt system. If the voltage is unstable or outside this range, recheck the wiring connections and the regulator's mounting. Proper installation ensures the longevity of your golf cart's electrical components and prevents potential breakdowns on the course.
Mastering EZGO Golf Cart Brake Shoe Adjustment: A Step-by-Step Guide
You may want to see also
Frequently asked questions
You will need a socket set or wrenches, a screwdriver, pliers, and possibly a voltage tester. Additionally, ensure you have the replacement voltage regulator specific to your EZGO model.
The voltage regulator is typically located near the engine, often mounted on the firewall or close to the alternator. Refer to your cart’s manual for the exact location.
Use a multimeter to check the output voltage of the regulator. With the engine running, the voltage should be between 13.5 and 14.5 volts. If it’s outside this range, the regulator may be faulty and needs replacement.
