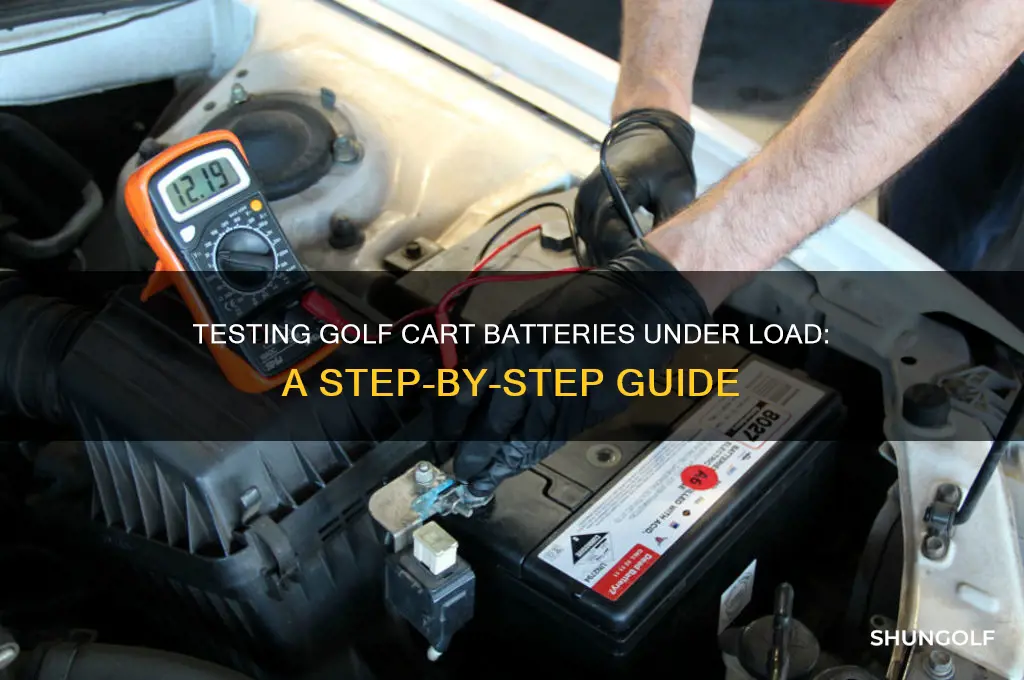

Checking golf cart batteries under load is essential to ensure they can deliver the necessary power for optimal performance, especially during heavy usage. This process involves testing the batteries while they are actively powering the cart, as opposed to a static voltage check, which only measures the battery’s resting charge. To perform this test, you’ll need a voltmeter or a specialized load tester, and you’ll simulate a load by engaging the cart’s motor, such as driving it or running accessories like lights. During the test, monitor the battery voltage; a significant drop under load indicates weak or failing cells, while a stable reading confirms the batteries are in good condition. Regularly checking batteries under load helps identify issues early, extends battery life, and ensures reliable performance on the course.
| Characteristics | Values |
|---|---|
| Purpose | To assess battery health and performance under load conditions. |
| Tools Required | Multimeter, hydrometer (for flooded batteries), load tester, or ammeter. |
| Load Test Voltage (36V Cart) | Should not drop below 31-32 volts under load. |
| Load Test Voltage (48V Cart) | Should not drop below 41-42 volts under load. |
| Load Test Duration | Typically 5-15 seconds, depending on the tester. |
| Specific Gravity (Flooded Batteries) | Should be 1.265 or higher for a fully charged battery under load. |
| Temperature Compensation | Adjust readings for temperature: subtract 0.004 per cell for every 10°F above 80°F. |
| Safety Precautions | Wear protective gear, ensure proper ventilation, and avoid short circuits. |
| Ideal Battery Voltage (No Load) | 51.5V for 48V systems, 38.4V for 36V systems (fully charged). |
| Minimum Acceptable Voltage Under Load | 48V system: 41V, 36V system: 31V. |
| Battery Age Consideration | Older batteries may show faster voltage drop under load. |
| Frequency of Testing | Every 6 months or after noticing reduced performance. |
| Replacement Threshold | Replace if voltage drops below minimum acceptable levels consistently. |
Explore related products
What You'll Learn
Tools Needed for Load Testing
Load testing golf cart batteries requires specific tools to ensure accuracy and safety. The primary instrument is a battery load tester, which simulates real-world conditions by applying a controlled load to the battery while measuring its voltage drop. Unlike a simple voltmeter, a load tester reveals how well the battery performs under stress, identifying weak cells or insufficient capacity. Look for a tester with adjustable load settings to match your golf cart’s typical draw, usually between 10 and 20 amps for 36V or 48V systems.
In addition to a load tester, a digital multimeter is essential for pre-testing diagnostics. Use it to measure open-circuit voltage before applying a load, ensuring the battery is at least 50% charged for accurate results. A multimeter also helps verify individual cell voltages, which should be within 0.1V of each other in a healthy battery. For safety, insulated gloves and safety goggles are non-negotiable, as load testing can release hydrogen gas or cause sparks if connections are loose.
A hydrometer is another valuable tool for flooded lead-acid batteries, allowing you to check the specific gravity of each cell. A reading below 1.225 in any cell indicates sulfation or discharge, even if the battery passes a load test. However, this tool is not applicable to sealed AGM or gel batteries, which require visual inspection for swelling or leakage instead.
Finally, a timer is crucial for monitoring the duration of the load test. Most golf cart batteries should maintain voltage above 10.5V per 12V battery (or 31.5V for a 36V system) under load for at least 15 seconds. If voltage drops below this threshold, the battery is likely sulfated or nearing end-of-life. Pair these tools with a systematic approach to diagnose battery health effectively.
Adjusting Your Tamaha Golf Cart Head Lamp Direction: A Step-by-Step Guide
You may want to see also
Explore related products
Safety Precautions During Testing
Testing golf cart batteries under load is a critical task, but it comes with inherent risks. Before you begin, ensure you’re wearing protective gear, including acid-resistant gloves and safety goggles. Battery acid can cause severe burns, and a short circuit can produce sparks or explosions. Treat every battery as if it’s fully charged and capable of delivering a dangerous shock. This isn’t a task to rush; methodical preparation can prevent accidents.
Analyzing the environment is equally crucial. Perform the test in a well-ventilated area to disperse hydrogen gas, which can ignite if exposed to sparks. Avoid testing near open flames, heaters, or any ignition source. If you’re working indoors, crack a window or use a fan to maintain airflow. Moisture can also increase the risk of electrical shock, so ensure the workspace is dry. A damp floor or wet hands can turn a routine test into a hazardous situation.
Persuasive as it may be to multitask, focus solely on the testing process. Distractions can lead to mistakes, such as reversing polarity or misreading voltage levels. Keep children and pets away from the testing area. Even a momentary lapse in attention can result in a short circuit or acid spill. If you’re unsure about any step, consult the battery manufacturer’s guidelines or seek professional assistance. Safety isn’t just a precaution—it’s a mindset.
Comparing this to other electrical tests, golf cart batteries under load testing requires specific tools like a hydrometer or digital voltmeter. Always verify the tools are in good condition before use. A faulty meter can give inaccurate readings, leading to overloading or underutilization of the battery. For instance, a hydrometer should be calibrated to measure specific gravity accurately, typically between 1.265 and 1.299 for a fully charged battery. Using damaged equipment is as dangerous as ignoring safety gear.
Descriptive of the process, imagine the battery terminals as live wires during testing. Never touch them with bare hands or metal objects. If you notice corrosion (a white, powdery substance), clean it with a mixture of baking soda and water before testing. Corrosion increases resistance and can skew results. After testing, dispose of any used materials, like paper towels or gloves, in a sealed bag to prevent acid exposure. Treat every step with the same caution as handling a live electrical circuit.
Mastering Camber Adjustment on Your EZGO Golf Cart: A Step-by-Step Guide
You may want to see also
Explore related products
Interpreting Voltage Readings
Voltage readings are the pulse of your golf cart’s battery health, but they’re meaningless without context. A fully charged 36-volt golf cart battery system should read around 38–40 volts at rest. However, under load—when the cart is moving—expect a drop. A reading above 32 volts under moderate acceleration is generally acceptable, but anything below 30 volts signals weakness in one or more cells. This drop occurs because batteries release energy less efficiently when demanded quickly, revealing their true capacity.
Interpreting these readings requires understanding the relationship between voltage and load. For instance, a 48-volt system should maintain at least 42–44 volts under load. If it dips to 40 volts or lower, suspect sulfation, aging, or a failing cell. Use a digital multimeter with a refresh rate fast enough to capture fluctuations during operation. Test while driving on a flat surface at consistent speed to isolate battery performance from external factors like terrain or motor resistance.
Comparing voltage drops across different loads provides deeper insights. A minor drop (e.g., from 51 volts at rest to 48 volts under load in a 48V system) indicates robust batteries. A steep drop (e.g., from 50 volts to 42 volts) suggests internal resistance, often from corrosion or worn plates. For 36V systems, a drop from 38 volts to 34 volts is normal; anything below 32 volts warrants inspection. Always compare readings to manufacturer specifications, as tolerances vary by brand and age.
Practical tip: Perform load tests monthly, especially in carts over three years old. Start with a full charge, drive for 10–15 minutes, then measure voltage during steady acceleration. Log results to track trends. If voltage drops consistently worsen, consider a hydrometer test to check specific gravity or consult a technician for cell replacement. Remember, voltage alone doesn’t tell the full story—combine it with runtime and physical battery condition for a complete diagnosis.
DIY Golf Rail Carts: Step-by-Step Guide to Building Your Own
You may want to see also
Explore related products
Identifying Weak or Bad Cells
A golf cart’s battery performance under load is a critical indicator of its health, but not all cells contribute equally. Weak or bad cells can drag down the entire system, leading to reduced runtime and eventual failure. Identifying these underperforming cells requires a systematic approach, combining visual inspection, voltage testing, and load analysis. Start by examining the batteries for physical signs of distress: swelling, corrosion, or leaks. These symptoms often signal internal damage, but they’re just the beginning. The real test lies in measuring each cell’s voltage under load, where discrepancies become apparent.
To isolate weak cells, use a multimeter to measure individual cell voltages while the cart is in operation. A healthy 6-volt battery should read around 6.3 volts at rest and maintain a stable voltage under load. If one cell drops significantly below this threshold—say, to 5.5 volts or lower—it’s likely the culprit. For example, in a 48-volt system (8 x 6-volt batteries), a single weak cell can cause the entire pack to underperform. Compare readings across all cells to pinpoint inconsistencies. A variance of more than 0.2 volts between cells under load is a red flag, indicating a cell is struggling to hold its charge.
Load testing provides a more definitive diagnosis. Attach a load tester to each battery, simulating the draw of the golf cart’s motor. A healthy battery should maintain voltage within 10% of its resting value. Weak cells will show a sharp drop, often failing to recover even after the load is removed. For instance, a cell that drops from 6.3 volts to 4.8 volts under a 50-amp load is nearing the end of its life. Repeat this test monthly to track performance trends, especially in older batteries (3+ years), as age accelerates cell degradation.
Addressing weak cells promptly is crucial. While replacing individual cells is possible, it’s often more cost-effective to replace the entire battery if multiple cells are affected. Ignoring the issue can lead to overheating, acid leakage, or even battery failure mid-round. Proactive monitoring, combined with regular maintenance like cleaning terminals and ensuring proper watering, can extend battery life. Remember, a single bad cell can compromise the entire system, so treat voltage discrepancies under load as an urgent call to action.
Easy Guide: Attaching a Rear View Mirror to Your Golf Cart
You may want to see also
Explore related products
Post-Test Battery Maintenance Tips
After testing your golf cart batteries under load, it's crucial to implement a post-test maintenance routine to ensure longevity and optimal performance. One key step is to clean the battery terminals and cables. Corrosion, often appearing as a white, greenish, or bluish powder, can hinder conductivity and lead to poor performance. Use a mixture of baking soda and water (1 tablespoon of baking soda to 1 cup of water) to neutralize the acid and scrub the terminals with a wire brush. Rinse with clean water and dry thoroughly before reconnecting the cables.
Another vital aspect of post-test maintenance is to inspect the battery's water levels, if applicable. Deep-cycle golf cart batteries, typically flooded lead-acid types, require periodic water replenishment. Check each cell's water level and add distilled water to cover the plates, ensuring the water reaches the bottom of the fill well but doesn't exceed the maximum level mark. Overfilling can cause electrolyte leakage, while underfilling exposes plates to air, leading to sulfation and reduced capacity.
Temperature plays a significant role in battery health, particularly after a load test. Extreme heat or cold can accelerate degradation and affect performance. Store your golf cart in a temperature-controlled environment, ideally between 50°F and 80°F (10°C and 27°C). If you live in a region with harsh winters, consider using a battery tender or maintainer to keep the batteries charged without overcharging, which can be especially beneficial for lead-acid batteries that tend to self-discharge faster in colder temperatures.
Lastly, establish a regular charging routine based on usage patterns. Deep-cycle batteries should be charged after every use, even if the cart hasn't been driven extensively. Allowing batteries to remain in a discharged state for prolonged periods can cause irreversible sulfation. Use a compatible charger with a maintenance or float mode to prevent overcharging. For lithium-ion batteries, follow the manufacturer's guidelines, as they often require specific charging protocols to maximize lifespan and performance.
By incorporating these post-test maintenance tips—cleaning terminals, monitoring water levels, managing temperature, and adhering to proper charging practices—you can significantly extend the life of your golf cart batteries and ensure they perform reliably under load. Each step addresses a specific vulnerability, contributing to a comprehensive care routine that pays dividends in both performance and longevity.
Easy Steps to Perfectly Align Your Golf Cart Steering Wheel
You may want to see also
Frequently asked questions
Checking golf cart batteries under load means testing their performance while they are powering the cart, simulating real-world usage to assess their capacity and health.
It’s important because it reveals how well the batteries can maintain voltage and power during operation, which is crucial for diagnosing issues like weak cells or reduced capacity.
You’ll need a digital voltmeter or multimeter, a hydrometer (for flooded lead-acid batteries), and a load tester or a method to simulate a load, such as driving the cart.
Drive the cart at a consistent speed (e.g., 10-15 mph) while monitoring the battery voltage with a multimeter. Healthy batteries should maintain voltage above 48V (for 48V systems) under load.
Under load, batteries should maintain voltage above 48V (for 48V systems). If voltage drops significantly below this (e.g., 45V or lower), it indicates weak or failing batteries.
