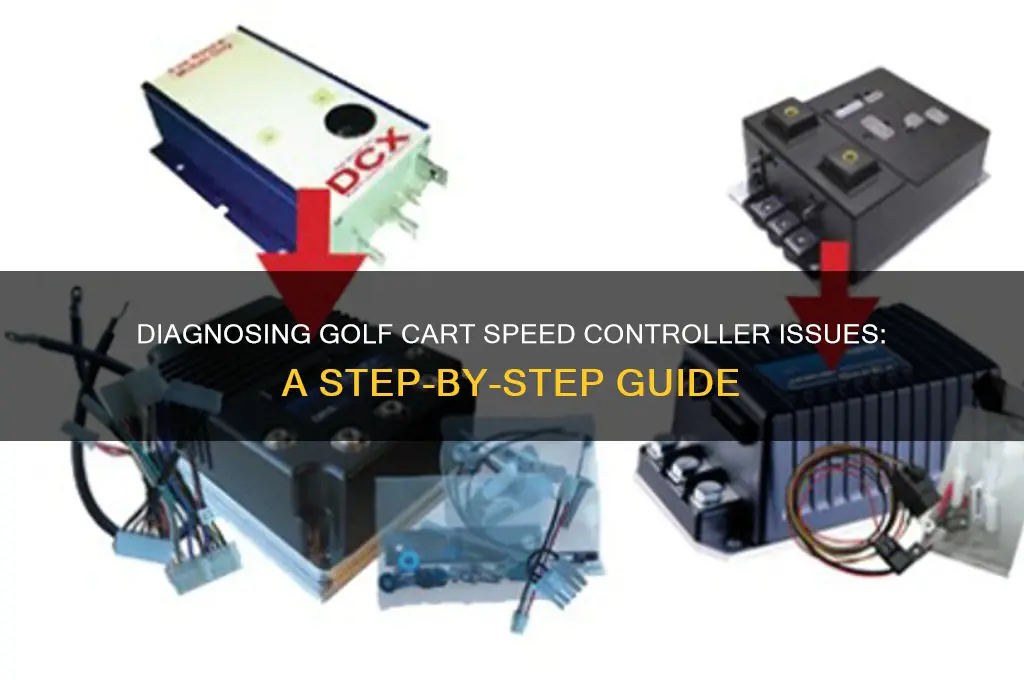

Checking a golf cart for a bad speed controller is essential for maintaining optimal performance and safety. The speed controller is a critical component that regulates the motor’s power output, ensuring smooth acceleration and consistent speed. Signs of a failing speed controller include erratic acceleration, sudden loss of power, unusual noises, or the cart not reaching its maximum speed. To diagnose the issue, start by inspecting the controller for visible damage, loose connections, or burnt components. Use a multimeter to test voltage and continuity across the controller’s terminals, comparing readings to the manufacturer’s specifications. Additionally, check the wiring harness for fraying or corrosion, as poor connections can mimic controller failure. If basic checks don’t resolve the issue, consulting a professional or replacing the controller may be necessary to restore functionality.
| Characteristics | Values |
|---|---|
| Symptoms of Bad Speed Controller | Intermittent or no movement, jerky acceleration, sudden stops, inconsistent speed. |
| Visual Inspection | Check for burnt marks, corrosion, loose wires, or damaged components on the controller. |
| Voltage Testing | Use a multimeter to test input and output voltage; compare with manufacturer specifications. |
| Resistance Testing | Measure resistance across controller terminals; abnormal readings indicate a faulty unit. |
| Continuity Testing | Test for continuity in wiring and connections; breaks or opens suggest controller issues. |
| Load Testing | Apply load (e.g., driving uphill) and monitor performance for drops or failures. |
| Diagnostic Tools | Use golf cart-specific diagnostic tools or software to read error codes. |
| Replacement | If tests confirm a fault, replace the speed controller with a compatible unit. |
| Common Causes | Overheating, water damage, age-related wear, electrical surges. |
| Prevention Tips | Regular maintenance, avoid overloading, protect from moisture, and use surge protectors. |
Explore related products
What You'll Learn
Inspect Controller for Burn Marks
Burn marks on a golf cart's speed controller are a telltale sign of electrical stress or failure. These marks often appear as discolored areas, charring, or melted plastic around the controller’s terminals or housing. They indicate excessive heat caused by overcurrent, short circuits, or poor connections, which can degrade performance or render the controller inoperable. Identifying these marks early is critical to preventing further damage to the cart’s electrical system.
To inspect for burn marks, start by disconnecting the golf cart’s battery to ensure safety. Locate the speed controller, typically mounted near the batteries or motor, and visually examine the unit. Pay close attention to the wiring terminals, where heat buildup is most common. Use a flashlight to spot subtle discoloration or warping that might otherwise go unnoticed. If burn marks are present, assess their severity—minor discoloration may require cleaning and tightened connections, while extensive charring likely necessitates controller replacement.
Comparing a damaged controller to a healthy one can highlight the extent of the issue. A functioning controller should have clean, intact terminals and no signs of heat damage. If your controller shows burn marks but the cart still operates, it’s operating under stress and risks sudden failure. In such cases, monitor the controller’s temperature during use with an infrared thermometer; readings above 140°F (60°C) indicate overheating and the need for immediate action.
Preventive measures can mitigate the risk of burn marks. Regularly inspect connections for corrosion or looseness, as these increase resistance and heat. Ensure the controller is properly ventilated and free from debris that could trap heat. Upgrading to a higher-rated controller or adding a heat sink can also reduce thermal stress, especially in high-performance or heavily used carts. Addressing these factors extends the controller’s lifespan and maintains reliable performance.
In conclusion, burn marks on a speed controller are a red flag demanding prompt attention. A systematic inspection, combined with preventive maintenance, can save time and money by avoiding catastrophic failures. If burn marks are detected, evaluate the controller’s condition objectively and take corrective action—whether it’s a simple repair or a full replacement—to ensure the golf cart’s safety and functionality.
Power Up Your Ride: Building a Golf Cart with a Motorcycle Engine
You may want to see also
Explore related products
$129.99 $149.99
Test Voltage Input/Output Levels
A malfunctioning speed controller can cripple your golf cart's performance, leading to sluggish acceleration, inconsistent speeds, or even complete failure. One of the most effective ways to diagnose this issue is by testing the voltage input and output levels of the controller. This process involves measuring the electrical signals entering and exiting the controller to ensure they fall within the manufacturer's specified range.
Understanding Voltage Parameters: Before diving into testing, familiarize yourself with the voltage specifications for your specific golf cart model. These values are typically found in the owner's manual or on the controller itself. Common voltage ranges for golf cart controllers are 36V, 48V, or 72V, but always confirm the exact figures for your setup. Exceeding these limits can damage the controller and other components.
Testing Procedure: To test the voltage input and output, you'll need a digital multimeter, a tool essential for any golf cart owner's toolkit. Start by disconnecting the power source to ensure safety. Then, set your multimeter to the DC voltage setting and connect the probes to the controller's input and output terminals. With the cart turned on, measure the voltage at the input terminal, which should match the battery pack's voltage. Next, measure the output voltage while gradually increasing the throttle. The output voltage should rise proportionally, reflecting the controller's response to the throttle input.
Analyzing Results: If the input voltage is significantly lower than the battery voltage, it may indicate a problem with the wiring or connections. Loose or corroded terminals can cause voltage drops, leading to poor performance. On the other hand, if the output voltage remains constant or doesn't increase with throttle input, the speed controller is likely faulty. In some cases, you might observe voltage spikes or fluctuations, which could be a sign of internal component failure within the controller.
Practical Tips: When testing, ensure all connections are clean and secure to get accurate readings. If you're unsure about the results, compare them with the expected values from the manufacturer's specifications. It's also helpful to test the controller under different load conditions, such as when the cart is stationary and while it's moving, to identify any inconsistencies. Remember, voltage testing is a precise task, so take your time and double-check your measurements to avoid misdiagnosis.
By systematically testing the voltage input and output levels, you can pinpoint whether the speed controller is the culprit behind your golf cart's performance issues. This diagnostic step is crucial in determining the necessary repairs or replacements, ensuring your golf cart operates smoothly and efficiently.
Bypassing EZGO Golf Cart Speed Sensor: A Step-by-Step Guide
You may want to see also
Explore related products
Check for Overheating Signs
Overheating is a silent saboteur of speed controllers in golf carts, often manifesting long before a complete failure. The speed controller, responsible for regulating power to the motor, generates heat during operation—a natural byproduct of electrical resistance. However, excessive heat indicates inefficiency or malfunction. Start by inspecting the controller’s housing for discoloration, warping, or melting, which are telltale signs of prolonged overheating. These physical changes not only compromise the controller’s integrity but also pose a fire hazard if left unaddressed.
A more proactive approach involves monitoring the controller’s temperature during operation. Use an infrared thermometer to measure surface heat, ensuring the cart is running at a consistent speed for at least 10 minutes to stabilize the temperature. A reading exceeding 140°F (60°C) is cause for concern, as it suggests the controller is working harder than necessary, likely due to internal resistance or failing components. Compare readings across multiple points on the controller to identify hotspots, which may indicate localized issues like loose connections or damaged circuitry.
Environmental factors can exacerbate overheating, particularly in high-temperature climates or during prolonged use. If your cart operates in such conditions, install a heat sink or additional ventilation to dissipate heat more effectively. For example, adding a small fan near the controller can reduce temperatures by up to 20%, significantly extending the component’s lifespan. Conversely, operating the cart in dusty or humid environments can clog vents and insulate heat, so regular cleaning of the controller’s surroundings is essential.
Finally, consider the controller’s age and usage history. Older models, especially those without thermal protection features, are more prone to overheating. If your controller is over five years old and shows signs of distress, such as erratic speed or burning odors, replacement may be more cost-effective than repair. Modern controllers often include thermal shutdowns, which automatically cut power at critical temperatures—a feature worth investing in to prevent catastrophic failure. By combining visual inspections, temperature monitoring, and preventive measures, you can identify and mitigate overheating before it derails your golf cart’s performance.
Essential Tips for Maintaining and Extending Golf Cart Battery Life
You may want to see also
Explore related products
Examine Wiring for Damage
Frayed or exposed wires are a common culprit behind speed controller malfunctions in golf carts. These issues can lead to intermittent power delivery, erratic acceleration, or even complete failure. Start by visually inspecting all wiring connected to the speed controller, paying close attention to areas prone to wear and tear, such as near moving parts, sharp edges, or high-heat zones. Look for cracks in the insulation, bare wires, or signs of melting, which could indicate overheating or electrical arcing.
A systematic approach is key to a thorough examination. Begin by disconnecting the battery to ensure safety. Then, trace the wiring harness from the speed controller to the motor and battery, checking for any abnormalities. Use a multimeter to test for continuity in each wire, ensuring there are no breaks or shorts. If you find a damaged wire, it’s crucial to replace it rather than attempting a temporary fix, as compromised wiring can lead to further issues or safety hazards.
Comparing the condition of your golf cart’s wiring to manufacturer standards can provide valuable insights. Refer to the owner’s manual or online resources for diagrams and specifications. For instance, Club Car and EZ-GO carts often have specific wiring configurations that, when deviated from, can cause performance problems. If you notice discrepancies, such as incorrect gauge wires or improper connections, these could be contributing to speed controller issues.
Preventative maintenance can save you from future headaches. Regularly inspect wiring during routine checks, especially after off-road use or exposure to harsh weather. Applying dielectric grease to connectors can help prevent corrosion, while securing loose wires with zip ties or conduit can minimize movement-related damage. By staying proactive, you can extend the lifespan of your speed controller and ensure consistent performance.
In conclusion, examining wiring for damage is a critical step in diagnosing speed controller problems. A meticulous inspection, combined with the right tools and knowledge, can help identify issues before they escalate. Whether you’re troubleshooting a specific problem or performing routine maintenance, focusing on the wiring can provide clarity and peace of mind in your golf cart’s performance.
Two-Tone Golf Cart Makeover: Spray Painting Tips for a Sleek Body
You may want to see also
Explore related products
Verify Potentiometer Functionality
A malfunctioning speed controller in a golf cart often points to a faulty potentiometer, the component responsible for regulating voltage to the motor. This device, essentially a variable resistor, wears out over time due to constant use, leading to erratic speed, reduced power, or complete failure. Verifying its functionality is a critical step in diagnosing speed controller issues, as it directly influences the cart’s performance.
Steps to Verify Potentiometer Functionality
Begin by locating the potentiometer, typically found near the gas pedal or throttle linkage. Disconnect the wiring harness to access the component safely. Using a multimeter set to the ohms (resistance) scale, test the potentiometer by measuring resistance across its terminals while manually moving the throttle from idle to full. A properly functioning potentiometer will show a smooth, linear increase in resistance, typically from 0 to 5,000 ohms. Any abrupt jumps, inconsistencies, or failure to reach the expected range indicates a defective unit.
Cautions During Testing
Ensure the golf cart is powered off before testing to avoid electrical shocks or accidental motor engagement. Avoid forcing the throttle mechanism during testing, as excessive pressure can damage internal components. If the potentiometer is mounted in a tight space, take care not to dislodge nearby wiring or connectors. Always consult the cart’s manual for model-specific precautions and resistance values.
Comparative Analysis of Symptoms
A failing potentiometer often mimics other speed controller issues, such as voltage regulator problems or motor faults. However, symptoms like intermittent power loss, sudden acceleration spikes, or a non-responsive throttle are strong indicators of potentiometer failure. Unlike voltage regulator issues, which typically cause consistent underperformance, potentiometer faults manifest as unpredictable behavior tied directly to throttle input.
Practical Tips for Replacement
If testing confirms a faulty potentiometer, replacement is straightforward but requires precision. Purchase a compatible unit, ensuring it matches the original’s resistance range and mounting configuration. During installation, align the new potentiometer’s idle and full-throttle positions with the cart’s throttle linkage to maintain accurate speed control. After replacement, retest the system to confirm smooth operation before resuming regular use.
Verifying potentiometer functionality is a precise yet accessible task that can save time and money in diagnosing golf cart speed controller issues. By understanding its role, employing proper testing techniques, and recognizing symptom patterns, even novice users can effectively troubleshoot this critical component. Regular maintenance and prompt replacement of worn potentiometers ensure consistent performance and extend the lifespan of the speed controller.
Mastering the Art of Becoming a Nezgo Golf Cart Expert
You may want to see also
Frequently asked questions
Common signs of a bad speed controller include sudden loss of power, inconsistent speed, unusual noises, or the cart not moving at all despite a fully charged battery.
You’ll need a multimeter to test voltage and continuity, a screwdriver to access the controller, and possibly a wiring diagram for your specific golf cart model.
Yes, you can perform basic tests like checking for loose connections, inspecting for burn marks, and using a multimeter to test input and output voltage without removing the controller.
Look for burnt components, loose or corroded connections, melted wires, or any visible damage. Also, check if the controller is getting power from the batteries.
Set the multimeter to measure voltage, connect it to the controller’s input and output terminals, and compare the readings to the expected values. If there’s no voltage or a significant drop, the controller may be faulty.
