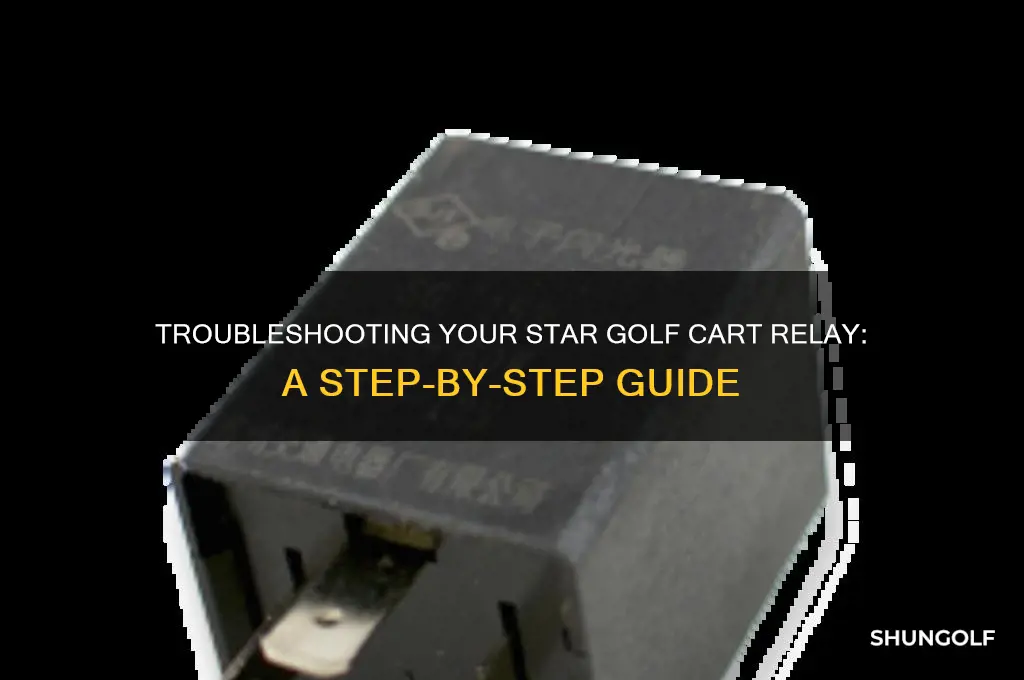

Checking the relay on your Star golf cart is a crucial step in diagnosing electrical issues, as the relay acts as a switch to control power flow to various components like the motor or lights. To begin, locate the relay, typically found in the battery compartment or under the seat, and ensure the cart is turned off and the key is removed for safety. Inspect the relay for visible damage, such as burnt marks or loose connections, and use a multimeter to test continuity across the terminals to verify it’s functioning properly. If the relay fails the test or shows signs of wear, it may need to be replaced to restore your cart’s performance. Always consult your Star golf cart manual for specific relay details and procedures.
| Characteristics | Values |
|---|---|
| Relay Location | Typically found in the electrical compartment under the seat or rear panel. |
| Tools Required | Multimeter, screwdriver, gloves, safety goggles. |
| Safety Precautions | Disconnect the battery before testing to avoid electrical shock. |
| Relay Identification | Look for a small, cube-shaped component with 4-5 pins. |
| Continuity Test | Use a multimeter to check continuity between the relay pins. |
| Power Supply Check | Ensure power is reaching the relay by testing voltage at the input pin. |
| Click Test | Listen for a clicking sound when the relay is activated. |
| Visual Inspection | Check for corrosion, loose connections, or physical damage. |
| Replacement | Replace the relay if it fails the continuity or power supply test. |
| Common Issues | Relay failure can cause the golf cart to not start or run inconsistently. |
| Compatibility | Ensure the replacement relay matches the original specifications. |
| Professional Help | Consult a mechanic if unsure about testing or replacing the relay. |
