Checking the wiring on a gas golf cart is essential for ensuring its safe and efficient operation, as faulty or damaged wiring can lead to electrical issues, poor performance, or even safety hazards. To begin, start by disconnecting the battery to prevent accidental shocks or short circuits. Inspect the wiring harness for any signs of wear, fraying, or corrosion, paying close attention to connections near the engine, solenoid, and ignition system. Use a multimeter to test for continuity and proper voltage at key points, such as the starter, lights, and accessories. Additionally, check for loose or corroded terminals and clean them if necessary. Refer to the golf cart’s manual for a wiring diagram to identify specific circuits and troubleshoot any discrepancies. Regular maintenance of the wiring system not only extends the life of your golf cart but also ensures a reliable and enjoyable driving experience.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, screwdriver, wire stripper, replacement wires (if needed), electrical tape |
| Safety Precautions | Turn off the golf cart, disconnect the battery, wear safety gloves, work in a well-ventilated area |
| Wiring Components to Check | Battery cables, solenoid, ignition switch, voltage regulator, starter generator, lights, fuses |
| Voltage Range for Gas Golf Cart | Typically 12V (check battery voltage and system voltage with a multimeter) |
| Steps to Check Wiring | 1. Inspect for loose or corroded connections 2. Test voltage at key components 3. Check for frayed or damaged wires 4. Verify continuity with a multimeter |
| Common Wiring Issues | Loose connections, corroded terminals, damaged insulation, blown fuses, faulty solenoid |
| Troubleshooting Tips | Clean corroded terminals with a wire brush, replace damaged wires, tighten loose connections |
| Frequency of Inspection | Every 6 months or after noticing electrical issues (e.g., dim lights, slow start) |
| Professional Help | Consult a mechanic if wiring issues persist or if unsure about repairs |
| Maintenance Tips | Keep wiring clean, protect from moisture, regularly inspect for wear and tear |
Explore related products
What You'll Learn
- Gather Tools and Safety Gear: Prepare multimeter, gloves, safety glasses, and wiring diagram for accurate and safe inspection
- Inspect Battery Connections: Check for corrosion, loose terminals, and secure connections to ensure proper power flow
- Test Voltage at Solenoid: Verify voltage input/output at solenoid using multimeter to diagnose electrical issues
- Examine Wiring Harness: Look for frayed wires, damage, or loose connections in the main harness
- Check Fuses and Relays: Inspect fuses for burns and test relays for functionality to prevent shorts
Gather Tools and Safety Gear: Prepare multimeter, gloves, safety glasses, and wiring diagram for accurate and safe inspection
Before diving into the intricate web of wires under your gas golf cart’s hood, pause and consider the arsenal you’ll need. A multimeter isn’t just a tool—it’s your diagnostic lifeline, capable of measuring voltage, current, and resistance to pinpoint faults. But wielding it without gloves or safety glasses is like swinging a club without a grip: risky and inefficient. Gloves protect against accidental shocks, while safety glasses shield your eyes from debris or sparks. Add a wiring diagram to the mix, and you’ve transformed guesswork into precision. This isn’t just preparation; it’s the foundation of a safe, accurate inspection.
Let’s break it down step by step. First, select a digital multimeter with a clear display and auto-ranging capabilities—ideal for beginners and pros alike. Ensure it’s rated for the voltage range your golf cart operates within, typically 12V for most models. Next, choose gloves with rubber insulation to guard against electrical hazards, and opt for safety glasses that meet ANSI Z87.1 standards for impact resistance. The wiring diagram? It’s your roadmap, detailing every circuit, fuse, and connection. Without it, you’re navigating a maze blindfolded. These tools aren’t optional—they’re your first line of defense against errors and accidents.
Now, consider the comparative advantage of being prepared. Imagine diagnosing a faulty solenoid without a multimeter—you’d rely on trial and error, wasting time and risking further damage. Contrast that with the efficiency of testing voltage drops across terminals, guided by a diagram. Gloves and glasses might seem minor, but they’re the difference between a minor inconvenience and a trip to the ER. In the world of electrical troubleshooting, preparedness isn’t just a virtue; it’s a necessity.
Finally, a practical tip: organize your tools before you begin. Lay out the multimeter, gloves, glasses, and diagram in a clean, accessible area. Test the multimeter on a known power source to ensure it’s functioning correctly. Familiarize yourself with the wiring diagram’s symbols and layout—it’s easier to interpret when you’re not under the hood. By treating this step as a ritual, you’re not just gathering tools; you’re setting the stage for a systematic, stress-free inspection. After all, in the realm of golf cart wiring, the right tools aren’t just helpful—they’re transformative.
Power Up Your Ride: Building a Golf Cart with a Motorcycle Engine
You may want to see also
Explore related products
![12 Volt Fuse Block, Waterproof 6 Way Fuse Box with 6 Ground Negative Busbar for Automotive[100 Amp Max] [LED Indicator] for Car Golf Cart Boat Marine RV DC 12-24V](https://m.media-amazon.com/images/I/718qzK7fJWL._AC_UL320_.jpg)
Inspect Battery Connections: Check for corrosion, loose terminals, and secure connections to ensure proper power flow
Corroded or loose battery connections are a silent killer of golf cart performance, often manifesting as sluggish acceleration, dim lights, or sudden power loss. This issue is particularly insidious because it’s hidden beneath the surface, requiring deliberate inspection to uncover. Start by locating the battery compartment, typically under the seat or rear panel of your gas golf cart. Armed with gloves, safety goggles, and a wrench or socket set, you’re ready to diagnose and address the problem.
Begin by visually inspecting the battery terminals for white, greenish, or powdery corrosion—a telltale sign of acid buildup that disrupts electrical flow. If present, mix a solution of baking soda and water (1 tablespoon baking soda per cup of water) and apply it to the terminals with a brush. Scrub gently until the corrosion dissolves, then rinse with clean water and dry thoroughly. For stubborn buildup, a wire brush or battery terminal cleaner can be used, but avoid metal tools that could damage the terminals.
Next, test the tightness of the terminals. Using the appropriate wrench or socket, attempt to turn the nuts securing the cables. If they move easily, they’re too loose; tighten them until snug, but avoid over-tightening, which can strip the threads or damage the terminals. A torque wrench set to 10-15 foot-pounds is ideal for precision, though most DIYers can gauge tightness by hand. Ensure the cables are securely seated and not frayed, as even minor damage can impede power flow.
Finally, inspect the battery cables themselves for cracks, kinks, or exposed wiring. Damaged cables should be replaced immediately, as they pose a fire risk and compromise performance. Secure any loose cables with zip ties or clamps to prevent vibration-induced wear. A proactive approach here not only extends battery life but also ensures consistent power delivery, keeping your golf cart running smoothly. Regular monthly checks take minutes but save hours of troubleshooting down the road.
Safely Attaching a Car Seat to Your Golf Cart: A Step-by-Step Guide
You may want to see also
Explore related products
Test Voltage at Solenoid: Verify voltage input/output at solenoid using multimeter to diagnose electrical issues

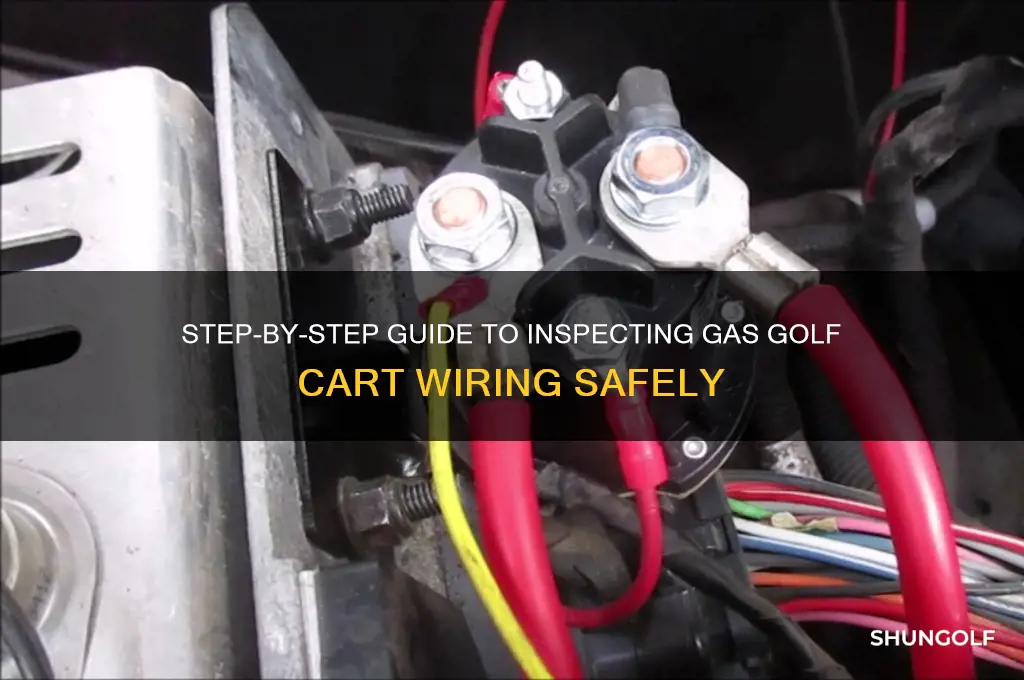

The solenoid in a gas golf cart acts as a high-current switch, controlling the flow of electricity to the starter motor. When diagnosing electrical issues, testing voltage at the solenoid is a critical step to pinpoint whether the problem lies in the wiring, the solenoid itself, or elsewhere in the system. A multimeter becomes your diagnostic ally here, allowing you to verify if the solenoid is receiving the correct voltage input and, in turn, delivering the expected output to the starter motor.
Steps to Test Voltage at the Solenoid:
- Prepare Your Tools: Ensure your multimeter is set to the DC voltage range, typically 20V or higher, to accommodate the golf cart’s 12V system. Safety first—turn off the golf cart and disconnect the battery to prevent accidental shocks or short circuits.
- Locate the Solenoid: The solenoid is usually mounted near the battery or starter motor. It has two large terminals: one connected to the battery (input) and the other to the starter motor (output).
- Test Input Voltage: Reconnect the battery. Turn the ignition key to the "start" position and place the multimeter probes on the battery terminal of the solenoid (input) and the solenoid’s ground. A reading of 12V or close to it indicates proper input voltage.
- Test Output Voltage: With the ignition still in the "start" position, move the multimeter probes to the starter motor terminal of the solenoid (output) and the solenoid’s ground. If the solenoid is functioning correctly, you should read 12V here as well.
Cautions and Troubleshooting:
If there’s no voltage at the input terminal, trace the wiring back to the ignition switch or battery for faults. If input voltage is present but output voltage is absent, the solenoid may be faulty. However, before replacing it, check for loose connections or corroded terminals, as these are common culprits.
Testing voltage at the solenoid is a straightforward yet powerful diagnostic technique. By systematically verifying input and output voltage, you can isolate whether the solenoid is the root of the problem or if the issue lies elsewhere in the electrical system. This method not only saves time but also prevents unnecessary part replacements, making it an essential skill for anyone maintaining a gas golf cart.
Mastering the Art of Becoming a Nezgo Golf Cart Expert
You may want to see also
Explore related products
Examine Wiring Harness: Look for frayed wires, damage, or loose connections in the main harness
The wiring harness is the circulatory system of your gas golf cart, and like any vital system, it requires regular inspection to ensure optimal performance. Begin by locating the main harness, typically found near the battery compartment or under the seat. Use a flashlight to illuminate the area, as poor lighting can cause you to miss subtle signs of wear. Start by visually scanning the harness for any frayed wires, which often result from vibration, age, or rodent damage. Frayed wires can lead to shorts or intermittent connections, causing erratic behavior in your cart’s electrical systems. If you spot any, mark them with tape for later repair or replacement.
Next, inspect the harness for physical damage, such as cracked insulation or exposed wires. Damaged insulation can allow moisture to penetrate, leading to corrosion or electrical failure. Pay close attention to areas where the harness bends or rubs against sharp edges, as these are common trouble spots. If you find exposed wires, use electrical tape as a temporary fix, but plan to replace the affected section soon. For severe damage, consult a professional to avoid safety risks or further complications.
Loose connections are another common issue in golf cart wiring harnesses. Gently tug on each connector to check for play or disconnection. Loose connections can cause voltage drops, leading to dim lights, slow cranking, or even complete system failure. If a connector feels loose, unplug it and inspect the terminals for corrosion or bent pins. Clean corroded terminals with a wire brush and dielectric grease, and straighten bent pins carefully with a small tool. Reattach the connector firmly, ensuring a snug fit.
A systematic approach to examining the wiring harness can save you time and money in the long run. Start at one end of the harness and work your way to the other, methodically checking each wire and connector. Keep a notebook or use your phone to document any issues you find, noting their location and severity. This documentation will be invaluable when troubleshooting or explaining the problem to a mechanic. Remember, a well-maintained wiring harness not only ensures reliability but also enhances the safety of your golf cart.
Finally, consider the environment your golf cart operates in, as it can significantly impact the wiring harness. Exposure to moisture, dirt, or extreme temperatures accelerates wear and tear. If your cart is frequently used in wet or muddy conditions, inspect the harness more often and consider applying a waterproof sealant to vulnerable areas. Regular maintenance, combined with proactive inspections, will keep your gas golf cart running smoothly and extend the life of its electrical system.
Check Golf Cart Battery Health: Hydrometer Testing Guide
You may want to see also
Explore related products
Check Fuses and Relays: Inspect fuses for burns and test relays for functionality to prevent shorts
Fuses and relays are the unsung heroes of your gas golf cart’s electrical system, acting as safeguards against overcurrent and ensuring components operate smoothly. A blown fuse or faulty relay can cripple your cart, often mimicking more serious wiring issues. Start by locating the fuse box, typically near the battery or under the seat. Inspect each fuse for visible burns, cracks, or discoloration—signs of a blown fuse that needs replacement. Use a multimeter to test continuity; a reading of zero indicates a functional fuse, while no reading means it’s time for a swap.
Relays, on the other hand, control high-current circuits like the starter or lights. To test a relay, remove it from the socket and use a multimeter to check for continuity between the specified pins. A clicking sound when activated is a good sign, but it doesn’t guarantee functionality. Swap relays with known working ones to isolate the issue. If the problem persists, the wiring or switch may be at fault. Always replace fuses and relays with the correct amperage rating to avoid further damage.
Preventative maintenance is key. Regularly inspect fuses and relays, especially after encountering electrical issues or unusual behavior. Keep spares in your cart’s toolkit, as these components are inexpensive and easy to replace. Remember, a blown fuse often indicates an underlying issue, such as a short circuit or overloaded circuit. Address the root cause to avoid recurring problems.
Comparing fuses and relays to a home’s circuit breaker system can help illustrate their importance. Just as a breaker trips to protect your home, fuses and relays safeguard your golf cart’s electrical system. Neglecting them can lead to costly repairs or, worse, a stranded cart. By integrating this check into your routine maintenance, you’ll ensure your cart remains reliable and safe for every round.
Bypassing Solenoid on EZGO Golf Cart: Quick Fix Guide
You may want to see also
Frequently asked questions
To access the wiring, first turn off the golf cart and disconnect the battery. Locate the wiring harness, typically found under the seat or near the engine compartment. Remove any panels or covers using appropriate tools to expose the wiring for inspection.
Common signs include intermittent power loss, dim or flickering lights, unresponsive controls, or unusual smells like burning plastic. These issues often indicate loose connections, frayed wires, or corrosion.
Inspect all connectors and terminals for signs of corrosion, looseness, or damage. Use a wire brush or contact cleaner to remove corrosion, and tighten any loose connections. Ensure all wires are securely attached to their respective components.
Basic tools include a multimeter to test voltage and continuity, a wire brush for cleaning corrosion, pliers or screwdrivers for removing panels, and electrical tape or heat shrink tubing for repairing damaged wires. Always refer to the golf cart’s manual for specific guidance.
