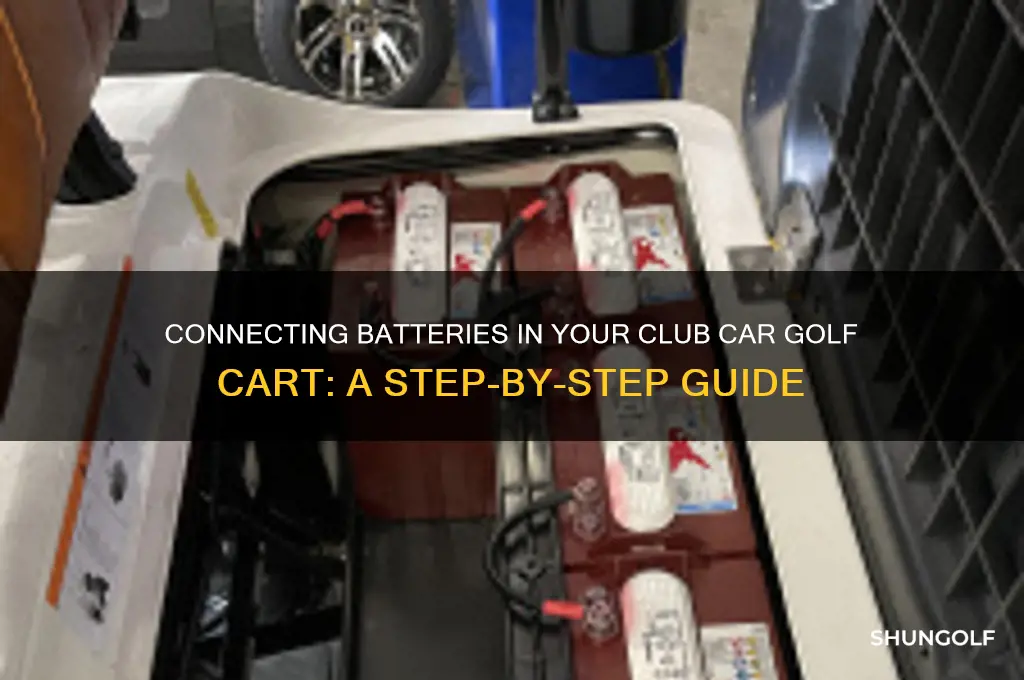

Connecting batteries in a Club Car golf cart is a crucial task for maintaining optimal performance and longevity of the vehicle. Whether you’re replacing old batteries or upgrading to a higher voltage system, understanding the correct wiring configuration is essential. Club Car golf carts typically use either a 36-volt or 48-volt system, requiring six 6-volt batteries or four 12-volt batteries, respectively. Properly connecting these batteries in series ensures the correct voltage output, while also maintaining safety and efficiency. This process involves securing the batteries in place, using appropriate cables and connectors, and ensuring all terminals are clean and corrosion-free. Following the manufacturer’s guidelines and safety precautions is key to a successful battery connection, ensuring your golf cart operates reliably for years to come.
| Characteristics | Values |
|---|---|
| Battery Type | Typically 6V or 8V deep cycle lead-acid batteries (check your Club Car model specifications) |
| Battery Configuration | Series connection for 36V or 48V systems (depending on model) |
| Number of Batteries | 6 for 36V systems, 8 for 48V systems |
| Battery Cable Gauge | Typically 4 or 6 AWG (check your Club Car manual for specific recommendations) |
| Battery Cable Length | Sufficient to reach between batteries with some slack, avoiding sharp bends |
| Battery Terminals | Positive (+) and Negative (-) terminals clearly marked |
| Connection Order | Connect batteries in series, positive terminal of one battery to negative terminal of the next |
| Battery Hold Downs | Secure batteries firmly in place using appropriate hold-down brackets and bolts |
| Battery Water Levels | Check and maintain proper electrolyte levels in flooded lead-acid batteries |
| Battery Charging | Use a compatible charger designed for your Club Car's voltage and battery type |
| Safety Precautions | Wear safety goggles and gloves, work in a well-ventilated area, disconnect batteries before servicing |
Explore related products
What You'll Learn
- Series vs. Parallel Connections: Understand when to use series or parallel wiring for increased voltage or capacity
- Battery Types Compatibility: Ensure all batteries are the same type, voltage, and capacity for safe operation
- Wiring Diagrams: Follow correct diagrams for 36V, 48V, or custom configurations in Club Car models
- Safety Precautions: Wear protective gear, disconnect power, and avoid short circuits during battery connection
- Testing Connections: Verify voltage and continuity after installation to ensure proper functionality and safety
Series vs. Parallel Connections: Understand when to use series or parallel wiring for increased voltage or capacity
Connecting batteries in a Club Car golf cart requires a clear understanding of series and parallel wiring, as each configuration serves distinct purposes. Series connections increase voltage by linking the positive terminal of one battery to the negative terminal of the next, effectively adding their voltages together. For instance, wiring four 6-volt batteries in series results in a 24-volt system, essential for powering higher-voltage golf cart motors. This setup is ideal when your cart’s electrical system demands a voltage higher than a single battery can provide.
Conversely, parallel connections increase capacity by maintaining the same voltage while combining the amp-hour (Ah) ratings of the batteries. Here, all positive terminals are connected together, and all negative terminals are connected together. For example, two 6-volt, 200Ah batteries wired in parallel still output 6 volts but double the capacity to 400Ah, extending runtime before recharging. This configuration is useful for carts with accessories like lights or radios that drain power quickly but don’t require higher voltage.
Choosing between series and parallel wiring depends on your cart’s electrical needs. If your Club Car requires a 36-volt or 48-volt system, series wiring is mandatory. For a 36-volt setup, connect six 6-volt batteries in series; for 48 volts, use eight. Always verify your cart’s voltage requirements before proceeding. If runtime is your priority, parallel wiring is the solution, but ensure your cart’s charger matches the battery bank’s voltage.
Practical tips include using batteries of the same voltage, capacity, and age to avoid imbalances that can shorten battery life. Always secure connections with insulated tools to prevent short circuits, and label wires to avoid confusion during maintenance. For Club Car models like the DS or Precedent, consult the manual for specific battery configurations, as some models may require unique wiring setups.
In summary, series wiring boosts voltage for motor performance, while parallel wiring maximizes capacity for longer operation. Understanding these differences ensures your Club Car’s battery system aligns with its power demands, optimizing both performance and longevity.
Master Your Downswing: Stop Casting the Golf Club Effectively
You may want to see also
Explore related products
Battery Types Compatibility: Ensure all batteries are the same type, voltage, and capacity for safe operation
Mixing battery types in a Club Car golf cart is a recipe for disaster. Imagine pairing a high-performance lithium-ion battery with a traditional lead-acid – the voltage discrepancies and discharge rates would create an electrical nightmare, potentially damaging your cart and voiding warranties. This incompatibility stems from fundamental differences in chemistry, voltage output, and charging requirements. Lead-acid batteries, for instance, operate at 6 or 8 volts per cell, while lithium-ion batteries typically deliver 3.2 to 3.7 volts per cell. Combining these would result in uneven charging, reduced overall capacity, and increased risk of overheating or even fire.
Example: A Club Car Precedent model requires six 8-volt batteries for a total system voltage of 48 volts. Substituting even one of these with a 12-volt battery would disrupt the balance, causing some batteries to overcharge while others remain undercharged, significantly shortening their lifespan.
The consequences of ignoring battery compatibility extend beyond performance issues. Mismatched batteries can lead to dangerous situations. A higher-voltage battery can force excessive current through weaker ones, causing them to overheat, leak, or even rupture. This not only damages the batteries but also poses a serious safety hazard to both the cart and its occupants. Analysis: The root cause lies in the internal resistance and chemical composition of different battery types. Lithium-ion batteries, for example, have lower internal resistance, allowing them to discharge and charge much faster than lead-acid batteries. This disparity in performance creates an imbalance within the system, leading to inefficiency and potential damage.
Takeaway: Always consult your Club Car manual or a qualified technician to determine the correct battery type, voltage, and capacity for your specific model.
Ensuring compatibility goes beyond simply matching voltage ratings. Steps: 1. Identify Battery Type: Determine whether your cart uses flooded lead-acid, AGM (Absorbent Glass Mat), gel, or lithium-ion batteries. 2. Check Voltage: Verify the voltage of each battery (6V, 8V, or 12V) and ensure they all match. 3. Match Capacity: Choose batteries with the same amp-hour (Ah) rating to ensure consistent performance and lifespan. Cautions: Never mix old and new batteries, even if they are the same type. Age differences can lead to variations in capacity and performance, causing imbalances.
While it might be tempting to experiment with different battery combinations, the risks far outweigh any potential benefits. Conclusion: Investing in a set of compatible batteries is a crucial step in maintaining the safety, performance, and longevity of your Club Car golf cart. Remember, consistency is key when it comes to powering your ride.
Bigger Golf Grips: Enhancing Control, Comfort, and Swing Consistency
You may want to see also
Explore related products
Wiring Diagrams: Follow correct diagrams for 36V, 48V, or custom configurations in Club Car models
Connecting batteries in a Club Car golf cart requires precision, especially when dealing with wiring diagrams for 36V, 48V, or custom configurations. Each model has specific requirements, and using the wrong diagram can lead to inefficiency, damage, or safety hazards. For instance, a 36V system typically uses six 6V batteries, while a 48V system requires eight 6V batteries or four 12V batteries. Understanding these differences is the first step to ensuring a successful connection.
Analyzing wiring diagrams reveals their critical role in maintaining voltage consistency and load distribution. A 36V diagram, for example, will show batteries connected in series, with each battery’s positive terminal linked to the next battery’s negative terminal. In contrast, a 48V diagram may involve additional parallel connections, depending on the battery configuration. Custom setups, such as adding lithium batteries or upgrading to higher voltage, demand tailored diagrams to accommodate unique amperage and wiring needs. Ignoring these specifics can result in overheating, reduced battery life, or even electrical failure.
When working with Club Car models, always refer to manufacturer-approved diagrams or consult a professional for custom configurations. For a 48V system using eight 6V batteries, the diagram will typically show a series connection, ensuring the total voltage adds up correctly. If upgrading to lithium batteries, verify the diagram accounts for their higher discharge rates and lower internal resistance. Practical tips include labeling each battery terminal before disconnection to avoid confusion and using torque specifications (e.g., 10-12 ft-lbs for battery terminals) to secure connections properly.
Comparing 36V and 48V systems highlights the importance of diagram accuracy. A 36V setup is simpler, with fewer batteries and straightforward series wiring. However, a 48V system offers increased power and range, making it ideal for hilly terrains or heavy usage. Custom configurations, such as adding a 72V system, require advanced diagrams and components like high-voltage controllers. Always cross-reference diagrams with your Club Car’s model year and specifications, as older models may have different wiring standards than newer ones.
In conclusion, wiring diagrams are not one-size-fits-all solutions. Whether you’re maintaining a standard 36V system, upgrading to 48V, or experimenting with custom setups, the right diagram ensures safety, efficiency, and longevity. Treat diagrams as blueprints for your golf cart’s electrical system, and approach modifications with caution. For complex configurations, consult a technician to avoid costly mistakes. With the correct diagram in hand, connecting batteries becomes a systematic process rather than a guessing game.
Phil Mickelson's Golf Clubs: A Detailed Look at His Setup
You may want to see also
Explore related products
Safety Precautions: Wear protective gear, disconnect power, and avoid short circuits during battery connection
Before attempting to connect batteries in your Club Car golf cart, prioritize safety to prevent accidents and ensure a smooth process. Battery maintenance involves handling corrosive materials and electrical currents, making protective gear essential. Always wear safety goggles to shield your eyes from potential acid splashes or debris. Additionally, don a pair of insulated gloves to protect your hands from electrical shocks and chemical burns. These precautions are not optional—they are critical to safeguarding your well-being during the procedure.
Disconnecting the power source is the next non-negotiable step in ensuring a safe battery connection. Start by turning off the golf cart’s ignition and removing the key. Locate the battery switch, typically found under the seat or in the battery compartment, and flip it to the "off" position. This isolates the electrical system, minimizing the risk of accidental shocks or short circuits. Double-check that all power is disconnected by testing the cart’s lights or accessories before proceeding. Skipping this step could lead to hazardous situations, such as arcing or electrical fires.
Short circuits are a significant risk when connecting batteries and can cause severe damage or injury. To avoid this, inspect all battery terminals and cables for signs of corrosion, fraying, or damage before beginning. Clean corroded terminals using a mixture of baking soda and water, followed by a thorough rinse and dry. Ensure cables are securely tightened but not over-torqued, as this can strip threads or damage connections. When attaching cables, follow the correct polarity order: positive to positive and negative to negative. Reversing this sequence or allowing tools to bridge terminals can instantly create a short circuit, releasing explosive hydrogen gas or causing immediate electrical failure.
Practical tips can further enhance safety during battery connection. Work in a well-ventilated area to disperse any hydrogen gas that may accumulate, reducing the risk of ignition. Keep a fire extinguisher nearby, specifically rated for electrical fires (Class C), as a precautionary measure. If you’re unsure about any step, consult the Club Car manual or seek professional assistance. Remember, taking a few extra minutes to implement these safety measures can prevent hours of troubleshooting or costly repairs down the line. Safety isn’t just a guideline—it’s the foundation of successful battery maintenance.
Mastering the Alien Golf Club: Tips for Unique Swing Success
You may want to see also
Explore related products
Testing Connections: Verify voltage and continuity after installation to ensure proper functionality and safety
After connecting batteries in a Club Car golf cart, the first step is to verify voltage levels to ensure the system is functioning correctly. Use a digital multimeter set to the DC voltage range, typically 20V or higher, and connect the probes to the battery terminals. A healthy 48-volt system should read between 51 and 54 volts when fully charged. If the voltage is significantly lower, it may indicate a poor connection, a faulty battery, or an issue with the charging system. Always compare readings to the manufacturer’s specifications for accuracy.
Continuity testing is equally critical to confirm that electrical pathways are intact and free of resistance. Disconnect the charger and turn off the golf cart before testing. Set the multimeter to the continuity or resistance mode and touch the probes to the positive and negative terminals of each battery connection. A steady beep or low resistance reading (typically under 0.1 ohms) confirms a solid connection. Intermittent beeps or high resistance suggests loose terminals, corroded contacts, or damaged cables, which must be addressed immediately to prevent overheating or failure.
Safety precautions during testing cannot be overstated. Always wear insulated gloves and goggles to protect against accidental shorts or sparks. Ensure the golf cart is on a level surface and the key is removed to prevent accidental activation. Avoid testing in wet or humid conditions, as moisture can compromise readings and increase the risk of electrical hazards. If you’re unsure about any step, consult a professional to avoid injury or damage to the cart.
A practical tip for troubleshooting is to test individual battery connections one at a time. Start with the main battery bank and work your way through each parallel or series connection. Label cables or take photos before disassembly to simplify reassembly and ensure correct polarity. For Club Car models with onboard diagnostics, compare multimeter readings to the display panel’s voltage indicator for consistency. Discrepancies may signal a sensor or wiring issue requiring further investigation.
Finally, integrate testing into your routine maintenance schedule. Monthly voltage checks and biannual continuity tests can catch issues before they escalate. Keep a log of readings to track battery health and identify trends, such as gradual voltage decline, which may indicate aging batteries. By prioritizing these tests, you not only ensure the golf cart’s reliability but also extend the lifespan of its electrical system, saving time and money in the long run.
Should You Get Fitted for Golf Clubs? Expert Advice Revealed
You may want to see also
Frequently asked questions
To connect batteries in series, connect the positive terminal of the first battery to the negative terminal of the second battery, and so on. This increases the voltage while keeping the same amperage. Ensure all connections are tight and secure.
To connect batteries in parallel, connect all positive terminals together and all negative terminals together. This increases the amperage (capacity) while maintaining the same voltage. Use proper-sized cables and ensure connections are clean and secure.
The positive terminal is typically marked with a "+" symbol and is often larger or red in color, while the negative terminal is marked with a "-" symbol and may be black. Always double-check the battery labels to confirm.
