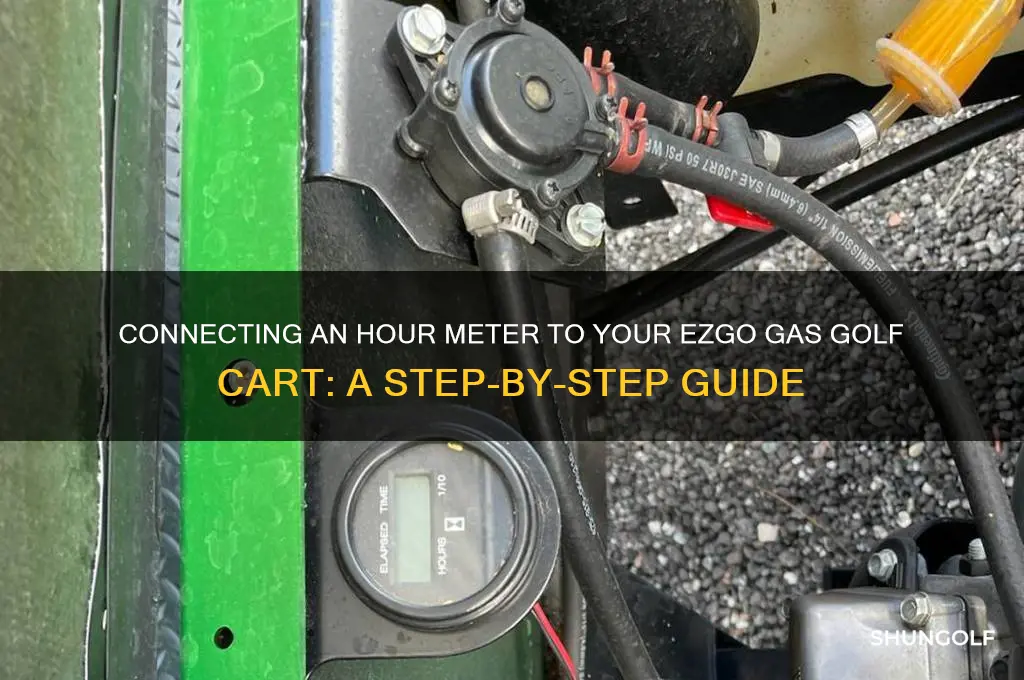

Connecting an hour meter to an EZGO gas golf cart is a straightforward process that helps track engine runtime for maintenance purposes. The hour meter typically connects to the cart’s ignition system, ensuring it counts hours only when the engine is running. To begin, locate the ignition wire, usually found near the key switch or under the seat, and identify the wire that carries power when the ignition is on. Strip a small section of this wire and connect it to the hour meter’s power input terminal. Next, ground the hour meter by attaching its ground wire to a clean metal surface on the cart’s frame. Ensure all connections are secure and insulated to prevent shorts. Once installed, the hour meter will activate whenever the engine is running, providing accurate runtime data for scheduling oil changes, spark plug replacements, and other routine maintenance tasks. Always refer to the hour meter’s manual for specific wiring instructions and safety guidelines.
Explore related products
What You'll Learn
Locate hour meter wiring harness
The first step in connecting an hour meter to your EZGO gas golf cart is identifying the wiring harness location, a task that requires both precision and familiarity with your cart’s electrical system. The wiring harness for the hour meter is typically integrated into the cart’s main electrical system, often near the battery or the ignition switch. Start by consulting your EZGO golf cart’s service manual, which provides a detailed diagram of the wiring layout. If you don’t have the manual, online resources or forums dedicated to EZGO carts can offer guidance. The harness is usually a bundle of wires with a connector designed to interface with the hour meter, making it a critical component for accurate installation.
Analyzing the wiring harness’s location involves understanding the cart’s electrical architecture. On most EZGO gas models, the harness is routed near the engine compartment or under the seat, where the primary electrical components are housed. Look for a connector with unused pins or a labeled port specifically for accessories like hour meters. If the harness isn’t immediately visible, trace the wires from the ignition switch or the battery, as these are common starting points for accessory connections. A multimeter can be used to test for power at the harness, ensuring it’s live and ready for the hour meter installation.
Persuasively, locating the correct wiring harness is not just about convenience—it’s about safety and functionality. Connecting the hour meter to the wrong harness or an incompatible wire can lead to electrical malfunctions or damage to the cart’s system. For instance, accidentally tapping into a high-current wire could overload the hour meter, rendering it useless or even hazardous. By taking the time to identify the correct harness, you ensure the meter operates accurately and reliably, providing precise tracking of engine hours for maintenance purposes.
Comparatively, the process of locating the wiring harness on an EZGO gas golf cart differs slightly from electric models. Gas carts often have more complex wiring due to the engine’s additional components, whereas electric carts focus on battery and controller connections. On gas models, the harness is frequently tied to the ignition system, whereas electric carts may link it directly to the battery or controller. This distinction highlights the importance of model-specific research to avoid errors during installation.
Descriptively, the wiring harness you’re seeking is often a small, rectangular connector with 2–4 pins, depending on the hour meter’s requirements. It may be tucked behind panels or secured with zip ties, so a flashlight and basic hand tools like a screwdriver are essential for access. Once located, the harness should be clean and free of corrosion to ensure a stable connection. If the connector appears damaged or worn, consider replacing it before proceeding with the hour meter installation. This attention to detail ensures longevity and accuracy in your cart’s hour tracking system.
