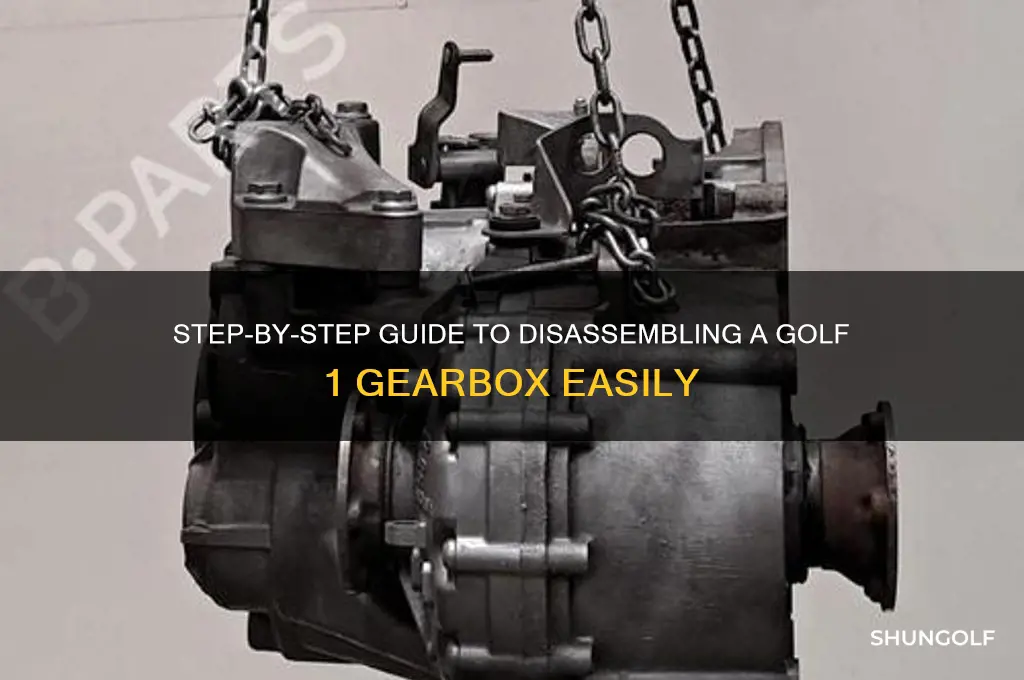

Disassembling a Golf 1 gearbox requires careful preparation, the right tools, and a methodical approach to ensure success. Begin by securing the vehicle on a flat surface, engaging the parking brake, and removing the wheels for better access. Drain the gearbox oil and disconnect the driveshafts, clutch linkage, and any electrical connections. Support the gearbox with a jack before removing the mounting bolts and carefully lowering it from the vehicle. Once removed, clean the exterior to prevent debris from entering during disassembly. Start by removing the selector rods, followed by the gearbox cover, and systematically disassemble internal components like gears, bearings, and synchros, documenting each step for reassembly. Always refer to a service manual for specific details and torque specifications to avoid damage.
| Characteristics | Values |
|---|---|
| Tools Required | Socket set, wrenches, screwdrivers, gearbox oil drain pan, gloves, safety goggles |
| Safety Precautions | Ensure vehicle is on a flat surface, engage parking brake, wear protective gear |
| Step 1: Preparation | Jack up the vehicle, secure on stands, remove wheels for access |
| Step 2: Drain Gearbox Oil | Locate drain plug, place drain pan, remove plug, allow oil to drain fully |
| Step 3: Remove Gearbox from Vehicle | Disconnect driveshafts, unbolt gearbox mounts, lower gearbox using jack |
| Step 4: Disassemble Gearbox Housing | Remove all external bolts, separate bell housing from main casing |
| Step 5: Extract Internal Components | Carefully remove gears, bearings, synchronizers, and shafts |
| Step 6: Clean and Inspect Parts | Use solvent to clean components, inspect for wear or damage |
| Common Issues | Worn bearings, damaged synchronizers, chipped gears |
| Reassembly Tips | Replace damaged parts, use new gaskets, refill with recommended gearbox oil |
| Difficulty Level | Intermediate to advanced mechanical skill required |
| Time Estimate | 4-8 hours depending on experience and condition of gearbox |
| Safety Note | Always follow manufacturer guidelines and use proper lifting equipment |
Explore related products
What You'll Learn
- Gather Tools and Safety Gear: Prepare socket set, wrenches, jack, jack stands, gloves, and safety goggles
- Remove Gearbox Mounts: Disconnect bolts securing the gearbox mounts to the vehicle chassis
- Detach Driveshaft and Shifter: Unbolt driveshaft from the gearbox and disconnect the gear shifter linkage
- Unbolt Gearbox from Engine: Remove all bolts connecting the gearbox to the engine block
- Lower and Extract Gearbox: Safely lower and pull the gearbox out from the vehicle
Gather Tools and Safety Gear: Prepare socket set, wrenches, jack, jack stands, gloves, and safety goggles
Before diving into the disassembly of a Golf 1 gearbox, it's crucial to gather all the necessary tools and safety gear to ensure a smooth and safe process. Start by preparing a comprehensive socket set that includes various sizes to accommodate the different bolts and nuts you'll encounter. The Golf 1 gearbox typically requires metric sockets, so ensure your set covers the range needed for this specific task. Alongside the socket set, gather a variety of wrenches, including open-end and box-end wrenches, to handle bolts and nuts in tight spaces where sockets might not fit. Having both types of wrenches will provide flexibility and efficiency during the disassembly process.
Next, focus on the equipment needed to safely lift and secure the vehicle. A hydraulic jack is essential for raising the car to a height that allows comfortable access to the gearbox. Ensure the jack is in good working condition and capable of supporting the weight of the vehicle. Pair the jack with a set of sturdy jack stands to securely hold the car in place once it's lifted. Jack stands are critical for safety, as they prevent the vehicle from accidentally falling while you work underneath it. Always follow the manufacturer’s guidelines for proper placement and weight limits when using these tools.
Safety gear is equally important when working on a vehicle, especially when dealing with heavy components like a gearbox. Begin by wearing a pair of durable work gloves to protect your hands from sharp edges, grease, and potential injuries. Gloves also improve your grip on tools and components, reducing the risk of slipping. Additionally, safety goggles are a must to shield your eyes from debris, oil, or any other particles that might become dislodged during the disassembly process. Even a small piece of debris can cause significant eye injury, so never skip this protective measure.
Organize all your tools and safety gear in a clean, accessible workspace before beginning the disassembly. Lay out the socket set, wrenches, jack, and jack stands in a logical order to streamline your workflow. Keep the gloves and safety goggles within easy reach so you can put them on as soon as you start working. A well-organized workspace not only saves time but also minimizes the risk of accidents by ensuring everything is readily available when needed.
Finally, take a moment to inspect all tools and safety gear for any signs of wear or damage. A cracked socket, a frayed glove, or malfunctioning jack can compromise your safety and the success of the task. Replace or repair any defective items before proceeding. By meticulously preparing your tools and safety gear, you set the foundation for a successful and safe gearbox disassembly, ensuring that you can focus on the task at hand without unnecessary interruptions or risks.
