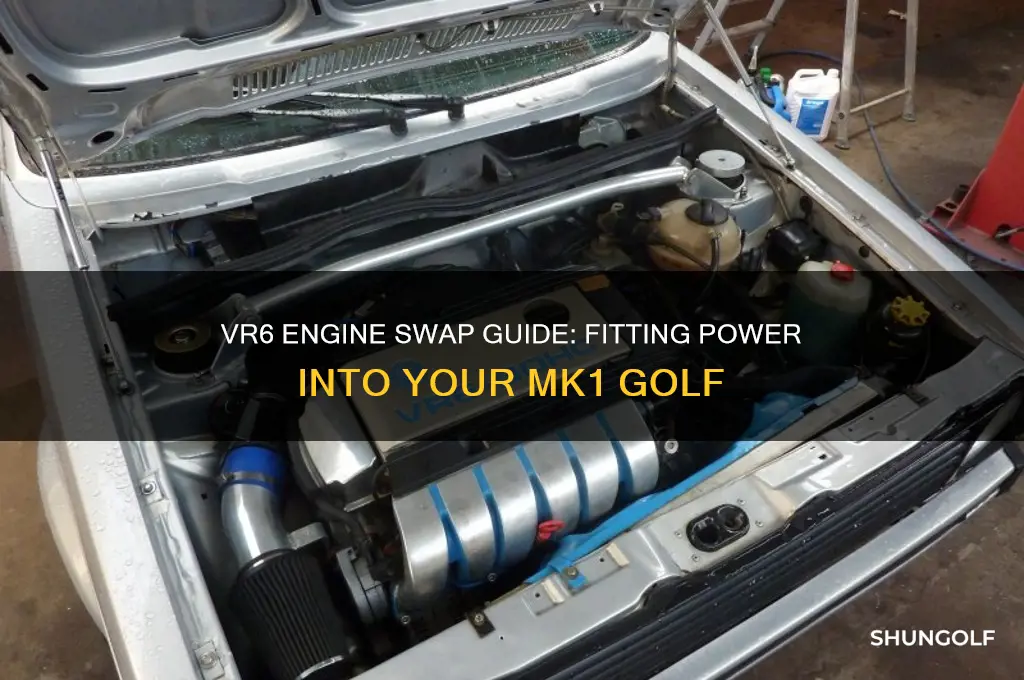

Fitting a VR6 engine into a Mk1 Golf is an ambitious but rewarding project for automotive enthusiasts seeking to combine classic styling with modern performance. The VR6, known for its compact V6 design and robust power output, offers a significant upgrade over the Mk1’s original engines. However, this swap requires careful planning and execution due to the Mk1’s limited engine bay space and the VR6’s unique mounting and cooling requirements. Key considerations include selecting the right VR6 donor engine, fabricating custom mounts, modifying the cooling system, and ensuring compatibility with the Mk1’s transmission and drivetrain. With proper research, precision, and access to specialized parts, this swap can transform the Mk1 Golf into a high-performance machine that retains its timeless appeal.
Explore related products
What You'll Learn
- Engine Mounts: Fabricate custom mounts to align VR6 with Mk1 Golf's chassis
- Transmission Swap: Use 02M or 020 transaxle for compatibility with VR6 engine
- Cooling System: Modify radiator and hoses to fit VR6's larger cooling demands
- Wiring Harness: Adapt VR6 harness to Mk1 Golf's ECU and electrical system
- Exhaust Routing: Design custom exhaust to clear Mk1 Golf's underbody and chassis
Engine Mounts: Fabricate custom mounts to align VR6 with Mk1 Golf's chassis
Fabricating custom engine mounts is a critical step in fitting a VR6 engine into a Mk1 Golf, as the original mounts are not compatible with the larger and heavier VR6. The goal is to create mounts that securely hold the engine in the correct position, aligning it with the Mk1 Golf’s chassis while ensuring proper weight distribution and minimizing vibrations. Start by measuring the dimensions of the VR6 engine block and the Mk1 Golf’s engine bay to determine the necessary placement. Use a combination of steel tubing, plate metal, and rubber bushings to design mounts that will absorb vibrations and provide a solid foundation for the engine.
The first step in fabrication is to create a mock-up of the engine’s position using wooden or cardboard templates. Place the VR6 engine in the bay and mark the points where the mounts will attach to both the engine and the chassis. Ensure the engine sits centrally and does not interfere with other components like the firewall, steering column, or suspension. Once the positions are confirmed, remove the engine and begin constructing the mounts using 3mm to 5mm thick steel plate for the base and 25mm to 30mm square tubing for the uprights. Weld these components together, ensuring they are sturdy enough to handle the VR6’s weight and torque.
Rubber bushings are essential to isolate vibrations and provide some flexibility in the mounts. Select bushings that match the diameter of the VR6’s factory mount points and press them into the custom mounts. Alternatively, you can use polyurethane bushings for a firmer feel and increased durability. Ensure the bushings are securely bonded or bolted in place to prevent movement. The mounts should be designed to bolt directly to the Mk1 Golf’s chassis using existing holes or by drilling new ones, ensuring a secure and permanent installation.
Alignment is key to ensuring the engine fits properly and functions without issues. Use a laser alignment tool or a straight edge to verify that the custom mounts position the VR6 engine parallel to the chassis and centered in the bay. Double-check that the mounts do not obstruct the exhaust, intake, or accessory belts. Once aligned, test-fit the engine again to confirm clearance and make any necessary adjustments before final welding and painting.
Finally, consider adding reinforcement to the chassis where the mounts attach, especially if the Mk1 Golf’s original structure is not designed for the VR6’s weight. Welding in additional bracing or using chassis stiffening plates can prevent cracking or deformation over time. After installation, torque all bolts to the manufacturer’s specifications and inspect the mounts for any signs of stress or movement during initial test drives. Properly fabricated custom mounts will ensure the VR6 engine integrates seamlessly into the Mk1 Golf, providing a reliable and high-performance upgrade.
Justin Timberlake's Golf Caddy: Unveiling the Story Behind the Role
You may want to see also
Explore related products
Transmission Swap: Use 02M or 020 transaxle for compatibility with VR6 engine
When swapping a VR6 engine into a Mk1 Golf, one of the most critical components to address is the transmission. The VR6 engine, being a longitudinally mounted, higher-torque powerplant, requires a transaxle that can handle its output while fitting within the Mk1’s chassis. The 02M and 020 transaxles are popular choices due to their compatibility with the VR6 engine and their availability from later Volkswagen models. The 02M transaxle, found in Mk3 and Mk4 Golfs with VR6 engines, is a 5-speed unit designed specifically for transverse applications, making it a near-perfect match for this swap. Its robust construction and compatibility with the VR6’s bolt pattern make it a straightforward choice, though modifications to the Mk1’s tunnel and mounting points will be necessary.
The 020 transaxle, on the other hand, is a 5-speed unit commonly found in Mk2 Golfs and Jettas with 4-cylinder engines. While not originally designed for the VR6, it can be adapted with a VR6-specific bellhousing and input shaft. The 020 is lighter and more compact than the 02M, which can be advantageous in a Mk1 Golf, but it requires careful consideration of clutch and flywheel compatibility. Both transaxles will require custom mounting solutions, as the Mk1’s original mounting points are not aligned for these later units. Fabricating or sourcing adapter plates and modifying the transmission tunnel are essential steps to ensure proper fitment.
When choosing between the 02M and 020, consider the intended use of the vehicle. The 02M is the more plug-and-play option for VR6 swaps, offering better durability and direct compatibility, but it adds more weight to the front end. The 020, while lighter and easier to handle, may require more customization and is generally better suited for lower-power builds or those prioritizing weight savings. Regardless of the choice, both transaxles will require a new driveshaft to match the Mk1’s wheelbase and a revised shifter mechanism to align with the Mk1’s center console.
Installation of either transaxle involves removing the Mk1’s original setup and carefully aligning the new unit with the VR6 engine. The 02M bolts directly to the VR6 block, while the 020 requires the VR6 bellhousing swap. Both setups will need a custom exhaust system to clear the transaxle and ensure proper ground clearance. Additionally, the clutch hydraulic system must be adapted to work with the new transaxle, often requiring a master cylinder from a donor vehicle or a universal kit.
Finally, ensure that the transaxle’s cooling system is adequately addressed, as the VR6 engine generates more heat than the Mk1’s original setup. Adding an external cooler for the transaxle fluid is highly recommended, especially for high-performance applications. With careful planning and execution, swapping in an 02M or 020 transaxle will provide a reliable and compatible drivetrain solution for your VR6-powered Mk1 Golf, balancing performance, fitment, and drivability.
Alison Lee's Golf Journey: Where Is She Now?
You may want to see also
Explore related products
Cooling System: Modify radiator and hoses to fit VR6's larger cooling demands
When fitting a VR6 engine into a Mk1 Golf, one of the most critical aspects to address is the cooling system, as the VR6’s higher power output and larger displacement generate significantly more heat compared to the original engine. The first step in modifying the cooling system is to upgrade the radiator. The stock Mk1 Golf radiator is insufficient for the VR6’s cooling demands, so a larger, high-performance radiator is essential. Look for an aluminum radiator designed for turbocharged or high-performance applications, as these offer better heat dissipation and durability. Ensure the radiator fits within the Mk1 Golf’s engine bay dimensions, which may require custom mounting brackets or slight modifications to the radiator support.
Next, focus on the radiator hoses. The VR6 engine’s coolant outlets may not align with the Mk1 Golf’s original hose routing, so custom hoses will likely be necessary. Measure the distances between the radiator, water pump, and heater core connections on the VR6 engine, and source or fabricate silicone hoses to accommodate these new dimensions. Silicone hoses are preferred for their durability and resistance to high temperatures, which are crucial for the VR6’s increased cooling requirements. Ensure the hoses have the correct inner diameter to maintain optimal coolant flow without restricting circulation.
The coolant flow path must also be optimized to handle the VR6’s demands. Consider adding an auxiliary electric fan or upgrading to dual fans to improve airflow through the radiator, especially in slow-moving or stationary conditions. The fan setup should be controlled by a thermostat or a fan controller to activate at the appropriate temperature, preventing overheating. Additionally, ensure the coolant reservoir is adequately sized to handle the expanded cooling system and that it is securely mounted in the engine bay.
Another important consideration is the water pump. The VR6 engine’s water pump is more robust than the Mk1 Golf’s original unit, but ensure it is in good condition and compatible with the upgraded radiator and hoses. If necessary, reinforce the water pump pulley system to handle the increased load from the larger engine. Proper alignment of the water pump and associated belts is crucial to avoid premature wear or failure.
Finally, test the cooling system thoroughly after installation. Flush the system and use a high-quality coolant with the correct mixture ratio to prevent corrosion and ensure efficient heat transfer. Monitor the engine temperature during both idle and driving conditions, making adjustments as needed to the fan setup or coolant flow. With these modifications, the cooling system will be capable of handling the VR6 engine’s demands, ensuring reliability and performance in your Mk1 Golf swap project.
Hip Flexibility for Golf: Stretching for Better Performance
You may want to see also
Explore related products
Wiring Harness: Adapt VR6 harness to Mk1 Golf's ECU and electrical system
Wiring Harness: Adapt VR6 Harness to Mk1 Golf’s ECU and Electrical System
Adapting the VR6 engine’s wiring harness to work seamlessly with a Mk1 Golf’s ECU and electrical system is a critical step in the engine swap process. The VR6 harness is significantly more complex than the Mk1’s original setup, so careful planning and execution are essential. Start by sourcing a VR6 engine harness from a donor vehicle, ensuring it includes all necessary connectors for the engine, sensors, and accessories. Since the Mk1 Golf uses a simpler electrical system, you’ll need to identify which VR6 wires are essential and which can be omitted or repurposed. Focus on retaining wires for the ECU, ignition system, fuel injectors, coolant temperature sensor, and oxygen sensor, as these are crucial for engine operation.
Next, you’ll need to integrate the VR6 harness with the Mk1 Golf’s ECU. If you’re retaining the Mk1’s original ECU, this will require significant modification. The VR6 engine uses a different pinout and signal protocol, so you’ll need to create a custom adapter harness. One approach is to splice the VR6 wires into a Mk1 Golf ECU harness, matching the signals for the crankshaft position sensor, camshaft position sensor, and other critical inputs. Alternatively, consider using a standalone ECU like a MegaSquirt or similar system, which can be programmed to work with both the VR6 engine and the Mk1 Golf’s electrical system, simplifying the wiring process.
When adapting the harness, pay close attention to the ground connections and power supply. The VR6 engine requires a robust ground to function properly, so ensure all ground wires are securely connected to the chassis. Additionally, verify that the power supply from the Mk1 Golf’s battery and alternator is sufficient to handle the VR6’s increased electrical demands. Upgrading the alternator and adding a relay for high-draw components like the fuel pump may be necessary to prevent electrical issues.
Another important aspect is handling the differences in sensor compatibility. The VR6 engine uses specific sensors for air flow, coolant temperature, and oxygen levels, which may not directly match the Mk1 Golf’s sensors. In some cases, you can retain the VR6 sensors and adapt their signals to the Mk1 ECU, but this often requires additional resistors or signal conditioners. If using a standalone ECU, you can configure it to work with the VR6 sensors directly, eliminating compatibility issues.
Finally, test the wiring harness thoroughly before starting the engine. Use a multimeter to check for continuity, proper voltage, and correct signal outputs. Simulate sensor inputs to ensure the ECU responds as expected. Once everything is verified, securely mount the harness in the engine bay, using zip ties and heat-resistant wrapping to protect wires from heat and vibration. Properly adapting the VR6 harness to the Mk1 Golf’s ECU and electrical system ensures a reliable and functional engine swap, allowing you to enjoy the performance of the VR6 in your classic Golf.
Weir's Golfing Career: Still Going Strong?
You may want to see also
Explore related products
Exhaust Routing: Design custom exhaust to clear Mk1 Golf's underbody and chassis
Designing a custom exhaust system to fit a VR6 engine in a Mk1 Golf requires careful planning to ensure it clears the underbody and chassis while maintaining optimal performance. The VR6 engine’s larger size and different mounting position compared to the original inline-four engines mean the stock exhaust routing is no longer viable. Start by measuring the clearance between the VR6 engine block, the Mk1 Golf’s underbody, and the chassis rails. Pay particular attention to the transmission tunnel, subframe, and rear suspension components, as these areas are prone to interference. Use a combination of chalk or masking tape to mark potential routes on the underbody to visualize the exhaust path before fabrication.
The primary challenge is routing the exhaust headers and downpipe. VR6 engines typically use a dual-outlet manifold, so consider merging the pipes into a single 3-inch downpipe to simplify routing and improve ground clearance. Position the downpipe to exit behind the engine, angling it downward and toward the passenger side to avoid the steering rack and subframe. Custom headers with equal-length primaries can be fabricated to ensure balanced exhaust flow, but ensure they are tucked tightly to the engine block to maximize space. Insulate the headers with a heat wrap or ceramic coating to protect nearby components like the firewall and brake lines.
From the downpipe, the exhaust should follow a path that avoids the transmission tunnel and rear suspension. A common approach is to route the exhaust along the passenger side of the vehicle, running parallel to the chassis rail. Use mandrel bends to create smooth transitions and maintain exhaust flow efficiency. Ensure the exhaust pipe is at least 2-3 inches above the ground to prevent scraping, especially during hard cornering or on uneven surfaces. If space is extremely limited, consider using a flattened oval or oval-to-round transition pipe to reduce vertical height while maintaining cross-sectional area.
The final section of the exhaust, including the resonator and muffler, must be positioned to clear the rear axle and fuel tank. A single side-exit exhaust or a dual-exit system tucked under the rear bumper are popular choices for Mk1 Golfs. If opting for a side-exit, ensure the tailpipe exits behind the rear wheel arch to comply with legal requirements and avoid heat damage to the body panels. For a rear-exit system, angle the tailpipes downward to clear the bumper and ensure they are securely mounted to the chassis to prevent vibration. Use rubber hangers or vibration isolators to attach the exhaust to the underbody, reducing noise and stress on the welds.
Throughout the design process, test-fit the exhaust components regularly to ensure proper clearance and alignment. Use a jack to simulate suspension travel and check for interference at full compression and droop. Once the routing is finalized, fabricate the exhaust using high-quality stainless steel or aluminized steel to prevent corrosion. TIG welding is recommended for a clean, durable finish. Finally, consider adding a flex pipe near the downpipe to absorb engine movement and reduce stress on the system. With careful planning and precision fabrication, a custom exhaust system can seamlessly integrate a VR6 engine into a Mk1 Golf while maintaining both performance and drivability.
Golf: Sport or Leisure?
You may want to see also
Frequently asked questions
No, fitting a VR6 engine into a Mk1 Golf requires significant modifications, including engine mounts, transmission tunnel, cooling system, and suspension adjustments.
The 02M 5-speed or 02A 5-speed transmission from a Mk3 or Mk4 VW is commonly used, as it pairs well with the VR6 engine and fits with some adaptation.
Yes, the transmission tunnel will need to be cut and reshaped to accommodate the VR6 engine and transmission, and custom engine mounts are typically required.
A larger radiator, electric fan, and possibly a custom coolant plumbing setup are needed to handle the increased heat output of the VR6 engine.
Yes, upgrading to stiffer coilovers, reinforced control arms, and sway bars is recommended to handle the increased weight and power of the VR6 engine.
