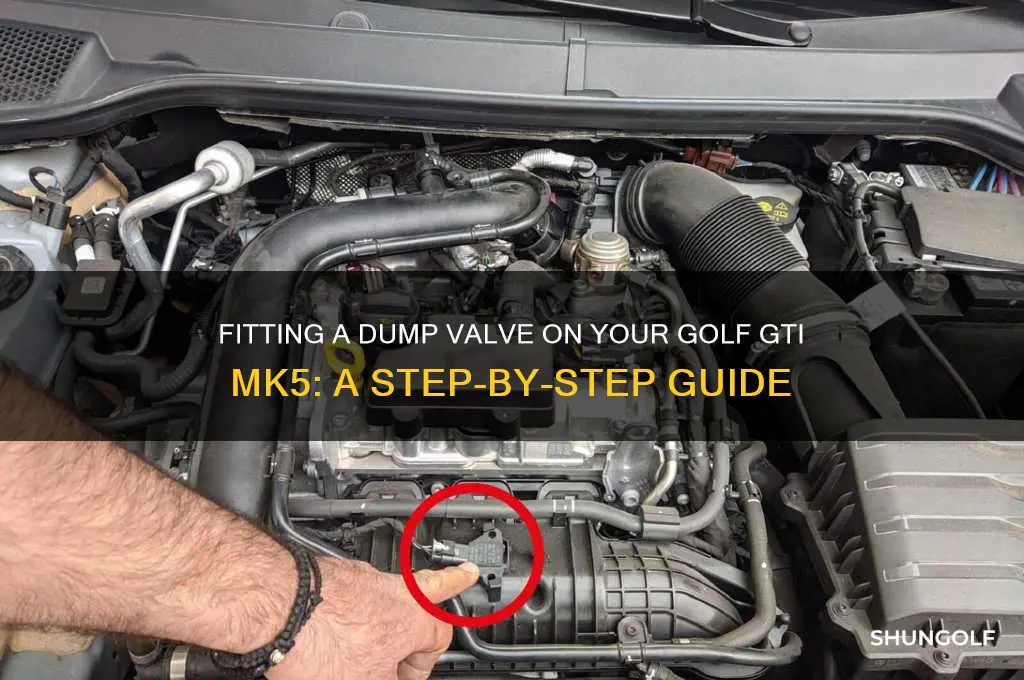

Installing a dump valve on a Golf GTI MK5 is a popular modification that enhances the car’s performance and driving experience by reducing turbo lag and improving throttle response. The process involves replacing the factory electronic bypass valve with an aftermarket dump valve, which provides better control over boost pressure and a distinctive whoosh sound during gear changes. To fit a dump valve, you’ll need basic tools, such as wrenches and pliers, and a compatible dump valve kit designed for the MK5 GTI. The installation typically requires disconnecting the factory valve, mounting the new dump valve in its place, and reconnecting the hoses and electrical connections. Properly securing the valve and ensuring all connections are airtight is crucial to prevent leaks and maintain optimal performance. This modification is ideal for GTI owners looking to enhance their turbocharger’s efficiency and add a sporty touch to their driving experience.
| Characteristics | Values |
|---|---|
| Vehicle Compatibility | Volkswagen Golf GTI Mk5 (2004-2009) |
| Dump Valve Type | Recirculating or vent-to-atmosphere (VTA), depending on preference |
| Tools Required | Socket set, wrenches, screwdrivers, pliers, vacuum hose, silicone sealant |
| Parts Needed | Dump valve, vacuum hose, hose clamps, T-piece (if required) |
| Installation Time | 1-2 hours (depending on experience) |
| Difficulty Level | Intermediate |
| Location of Installation | Near the turbocharger, replacing the factory diverter valve |
| Wiring Modifications | None required for most aftermarket dump valves |
| Tuning Required | Not necessary, but recommended for optimal performance |
| Sound Impact | VTA dump valves produce a distinctive "whoosh" sound |
| Performance Impact | Improved turbo response and reduced stress on the turbocharger |
| Common Brands | Forge Motorsport, GFB, TurboSmart |
| Cost Range | $100 - $300 (depending on brand and type) |
| Maintenance | Periodic inspection of hoses and connections |
| Legal Considerations | Check local laws for vent-to-atmosphere dump valves |
| Additional Tips | Ensure proper alignment and secure all connections to avoid leaks |
Explore related products
What You'll Learn
- Dump Valve Types: Compare piston, diaphragm, and hybrid valves for MK5 GTI compatibility
- Tools Required: Gather socket set, wrenches, pliers, and vacuum hose for installation
- Location & Access: Identify optimal dump valve mounting spot near turbocharger
- Hose Routing: Plan vacuum and boost hose connections for proper valve operation
- Tuning & Testing: Adjust valve settings and test for boost leaks post-installation
Dump Valve Types: Compare piston, diaphragm, and hybrid valves for MK5 GTI compatibility
When considering a dump valve for your MK5 GTI, understanding the differences between piston, diaphragm, and hybrid valves is crucial for optimal performance and compatibility. Piston valves are known for their robust construction and reliability. They operate using a piston mechanism that moves within a cylinder to release excess boost pressure. This design is highly durable and can handle significant boost levels, making it a popular choice for high-performance applications. However, piston valves can be bulkier and may require more space in the engine bay. For the MK5 GTI, ensuring proper fitment and clearance is essential, as the engine bay is relatively compact. Additionally, piston valves often produce a louder, more aggressive sound, which may appeal to enthusiasts seeking an audible turbo release.
Diaphragm valves, on the other hand, utilize a flexible diaphragm to control boost pressure. This design is generally more compact and lightweight compared to piston valves, making it easier to fit in tight spaces like the MK5 GTI’s engine bay. Diaphragm valves are also known for their quick response times, which can improve throttle response and reduce turbo lag. However, they may not be as durable under extreme conditions or high boost levels as piston valves. For MK5 GTI owners running modest tunes or seeking a more subtle sound, a diaphragm valve could be an excellent choice. It’s important to ensure the valve’s spring rates are compatible with your turbo setup to avoid issues like boost creep or premature wear.
Hybrid valves combine elements of both piston and diaphragm designs to offer a balance of performance and versatility. These valves typically feature a piston-like body with a diaphragm-style sealing mechanism, providing the durability of a piston valve with the compactness and responsiveness of a diaphragm valve. For the MK5 GTI, a hybrid valve can be an ideal compromise, especially for those running moderate to high boost levels. They often come with adjustable features, allowing for fine-tuning to match specific turbo setups. However, hybrid valves may be more expensive than their single-mechanism counterparts, so budget considerations are important.
When fitting any of these valves to your MK5 GTI, compatibility is key. The MK5 GTI’s 2.0T FSI engine requires a dump valve that can handle its specific boost characteristics and fit within the confines of the engine bay. Piston valves may require additional modifications for fitment, while diaphragm and hybrid valves often offer more plug-and-play solutions. Always check the manufacturer’s specifications and consider professional installation if you’re unsure about the process. Proper installation ensures the valve functions correctly, preventing issues like boost leaks or premature failure.
In summary, the choice between piston, diaphragm, and hybrid dump valves for your MK5 GTI depends on your performance goals, engine bay space, and budget. Piston valves offer durability and a loud sound, diaphragm valves provide compactness and quick response, and hybrid valves deliver a balanced mix of both. Whichever type you choose, ensure it’s compatible with your turbo setup and fits seamlessly into your MK5 GTI’s engine bay for optimal performance and reliability.
Golf Tees: What's the Standard Height?
You may want to see also
Explore related products
Tools Required: Gather socket set, wrenches, pliers, and vacuum hose for installation
When preparing to fit a dump valve on a Golf GTI Mk5, the first step is to gather all the necessary tools to ensure a smooth and efficient installation process. Tools Required: Gather socket set, wrenches, pliers, and vacuum hose for installation. A socket set is essential for removing and tightening bolts and nuts that secure various components under the hood. Ensure your socket set includes a range of metric sizes, as European vehicles like the Golf GTI Mk5 typically use metric fasteners. Having the correct socket sizes will prevent damage to bolts and make the job quicker.
In addition to the socket set, wrenches are another critical tool for this installation. Wrenches will be needed to loosen and tighten hose clamps and other fittings that connect the dump valve to the engine's intake system. Adjustable wrenches or combination wrenches in various sizes are ideal, as they provide flexibility and precision. It’s important to use the right size wrench to avoid rounding off bolts or damaging components, which could complicate the installation.
Pliers are also indispensable for this task. Needle-nose pliers or standard pliers will help manipulate small hoses, clamps, and connectors that may be difficult to handle with your hands alone. Pliers can also be used to gently bend or adjust vacuum hoses to ensure a proper fit. Additionally, pliers with a cutting edge can be useful for trimming excess hose material if needed, though this should be done carefully to avoid damaging the hoses.
Finally, a vacuum hose is a key component for the dump valve installation. The dump valve connects to the engine’s vacuum system, so having the correct vacuum hose is crucial. Ensure the hose is the right diameter and length to fit between the dump valve and the designated vacuum port on the engine. It’s a good idea to inspect the existing vacuum hoses for any signs of wear or damage and replace them if necessary to maintain optimal performance.
Before starting the installation, lay out all your tools in an organized manner to streamline the process. Tools Required: Gather socket set, wrenches, pliers, and vacuum hose for installation. Having everything within reach will save time and reduce the risk of misplacing tools during the installation. Once you’ve confirmed you have all the necessary tools, you can proceed with confidence, knowing you’re well-prepared to fit the dump valve on your Golf GTI Mk5.
Mastering Golf Skin Planning: Strategies for Fair and Exciting Game Play
You may want to see also
Explore related products
Location & Access: Identify optimal dump valve mounting spot near turbocharger
When identifying the optimal dump valve mounting spot near the turbocharger on a Golf GTI MK5, the first step is to locate the factory diverter valve or the area where the recirculated air is managed. This is typically found on the turbocharger’s compressor outlet side, where the charge pipe connects to the intake manifold. The MK5 GTI’s turbocharger is positioned in a relatively compact engine bay, so access is crucial. Start by removing the engine cover and inspecting the area around the turbocharger. The ideal spot for the dump valve is close to the turbo to minimize the length of the vacuum hose and ensure efficient operation. This reduces turbo lag and improves throttle response.
Access to the mounting area is relatively straightforward but requires some disassembly. Begin by loosening the clamps on the charge pipe that connects the turbo outlet to the intake manifold. This pipe often houses the factory diverter valve, which you may replace or bypass with an aftermarket dump valve. Ensure you have enough clearance to fit the new dump valve without obstructing other components. The MK5 GTI’s engine bay layout allows for a dump valve to be mounted directly adjacent to the turbocharger, often on the driver’s side near the strut tower. This location provides easy access to both the charge pipe and the vacuum source needed for the dump valve’s operation.
To confirm the optimal mounting spot, consider the orientation of the dump valve’s inlet and outlet ports. The inlet should align with the turbo’s compressor outlet, while the outlet can be directed toward the atmosphere or back into the intake system, depending on the type of dump valve (recirculating or vent-to-atmosphere). Ensure the chosen location allows for secure mounting, typically using a bracket or hose clamps. The MK5 GTI’s turbocharger area has enough space to accommodate a dump valve without interfering with nearby components like the intercooler or battery.
Another critical aspect is ensuring the dump valve’s vacuum hose can be easily connected to the turbo’s actuator or a dedicated vacuum source. The MK5 GTI’s turbocharger has a vacuum port that can be tapped into for this purpose. Measure the distance between the dump valve’s vacuum port and the turbo’s vacuum source to ensure the hose length is sufficient. Proper routing of the vacuum hose is essential to avoid kinks or sharp bends that could hinder performance. The optimal mounting spot should allow for a clean and direct vacuum hose run.
Finally, test fit the dump valve in the identified location before securing it permanently. This ensures all connections align correctly and that there is no interference with other engine components. Once the optimal spot is confirmed, secure the dump valve using the provided bracket or clamps, ensuring it is tightly fastened to withstand the engine’s vibrations. Proper placement near the turbocharger not only enhances performance but also simplifies maintenance and future adjustments. With the dump valve mounted in this optimal location, the Golf GTI MK5 will benefit from improved turbo response and a more engaging driving experience.
Golf: Anaerobic or Aerobic?
You may want to see also
Explore related products
Hose Routing: Plan vacuum and boost hose connections for proper valve operation
When planning the hose routing for your Golf GTI Mk5 dump valve installation, it’s crucial to ensure proper vacuum and boost connections for optimal valve operation. Start by identifying the factory turbo inlet pipe and the vacuum source, typically located near the brake booster or intake manifold. The dump valve requires two primary connections: one for the boost signal from the turbo inlet pipe and another for the vacuum signal that activates the valve during closed-throttle conditions. Measure the distances between these points and the dump valve’s ports to determine the appropriate hose lengths, ensuring minimal bends and obstructions for efficient airflow.
Next, select high-quality silicone hoses that can withstand the temperature and pressure demands of the turbo system. Silicone hoses are preferred for their durability and flexibility, making them easier to route without kinking. Use hose clamps to secure all connections tightly, ensuring no leaks that could compromise boost pressure or vacuum signals. For the boost connection, tap into the turbo inlet pipe using a T-piece or a dedicated port if available. Ensure the hose diameter matches the dump valve’s inlet port for unrestricted airflow, which is critical for proper valve function during gear shifts or throttle lift-off.
The vacuum connection is equally important, as it controls the dump valve’s operation when you release the throttle. Route the vacuum hose from the dump valve’s solenoid or diaphragm port to a reliable vacuum source. Avoid areas prone to heat or interference from moving components. If the factory vacuum source is inaccessible or insufficient, consider using a vacuum pump or an alternative source like the intake manifold. Double-check that the vacuum hose is free from restrictions and securely clamped to prevent leaks that could render the dump valve inoperative.
Proper hose routing also involves managing the physical layout to avoid interference with other engine components. Ensure the hoses are routed away from hot surfaces like the exhaust manifold or turbocharger, as excessive heat can degrade the hoses over time. Use zip ties or hose clips to secure the hoses neatly along the engine bay, maintaining a clean and professional appearance. Additionally, leave some slack in the hoses to accommodate engine movement without causing tension or stress on the connections.
Finally, test the system before finalizing the installation. With the engine off, check all hose connections for tightness and proper alignment. Start the engine and inspect for any leaks using a soapy water solution or a smoke machine. Verify that the dump valve activates correctly during throttle changes by listening for the distinctive "whoosh" sound. If the valve fails to operate, recheck the vacuum and boost connections for leaks or incorrect routing. Proper hose planning and execution ensure your Golf GTI Mk5’s dump valve functions reliably, enhancing both performance and the driving experience.
Booking Golf in Singapore: A Quick Guide
You may want to see also
Explore related products
Tuning & Testing: Adjust valve settings and test for boost leaks post-installation
After installing a dump valve on your Golf GTI Mk5, proper tuning and testing are crucial to ensure optimal performance and reliability. Begin by adjusting the valve settings to match your vehicle’s boost levels. Most aftermarket dump valves come with adjustable spring preloads or actuation settings. Refer to the manufacturer’s instructions to understand the adjustment mechanism. Typically, this involves turning a screw or swapping springs to control how much boost pressure is required to open the valve. Start with the factory-recommended setting or a conservative preload, as too much sensitivity can cause premature valve opening, while too little may result in excessive turbo flutter or lag.
Once the initial settings are adjusted, start the engine and let it idle for a few minutes to stabilize. Gradually increase the RPMs and listen for any unusual noises, such as excessive flutter or hissing, which could indicate improper valve operation. Use a boost gauge to monitor the pressure and ensure the valve opens and closes at the desired levels. If the valve opens too early, increase the preload; if it opens too late or not at all, reduce the preload. Fine-tune the settings in small increments, testing after each adjustment to achieve the desired balance between responsiveness and stability.
Next, conduct a thorough test for boost leaks, as even small leaks can compromise performance and cause the dump valve to malfunction. With the engine off, inspect all connections related to the dump valve, including hoses, clamps, and fittings, for signs of damage or loose connections. Tighten any loose components and replace damaged parts as needed. Start the engine and spray soapy water around the connections while monitoring for bubbles, which indicate leaks. Pay close attention to the dump valve’s hose connections, as these are common leak points. Address any leaks immediately by re-sealing or replacing the affected components.
After confirming there are no leaks, take the car for a test drive to evaluate the dump valve’s performance under real-world conditions. Pay attention to how the valve responds during acceleration, gear changes, and boost spikes. Ensure there is no excessive flutter or surging, which could indicate over-tuning or improper installation. If issues persist, revisit the valve settings and recheck for leaks. Proper tuning ensures the dump valve enhances turbo response and protects the engine without introducing new problems.
Finally, log the data from your test drive using a tuning software or OBD tool if available, to analyze boost behavior and valve operation. This data can provide insights into further adjustments needed for peak performance. Regularly recheck the valve settings and connections over the next few weeks, as vibrations and temperature changes can cause components to shift or loosen. With careful tuning and testing, your Golf GTI Mk5’s dump valve will deliver improved throttle response, reduced turbo stress, and a satisfying auditory experience.
Master Your Putting: Why Golf Putting Aids Are Essential
You may want to see also
Frequently asked questions
A dump valve, also known as a blow-off valve, is a component in turbocharged engines that releases excess pressure from the intake system when the throttle is closed. In a Golf GTI Mk5, it helps prevent turbocharger damage, reduces turbo lag, and enhances engine responsiveness during gear changes or sudden throttle lifts.
Common signs include a loud "whoosh" or "psst" sound when letting off the throttle, reduced turbo response, or a check engine light related to boost pressure issues. If your current dump valve is leaking or failing to function properly, it’s time to replace it.
You’ll need a new dump valve compatible with the Mk5 GTI, basic hand tools (e.g., wrenches, screwdrivers), a vacuum hose, and possibly a T-piece or adapter depending on the valve. Ensure the valve is designed for your specific engine (e.g., 2.0 TFSI).
Start by locating the factory dump valve, typically found near the turbocharger. Disconnect the vacuum hose and remove the old valve. Install the new dump valve, ensuring it’s securely mounted and connected to the vacuum hose. Test the system for leaks and proper operation before driving. Follow the manufacturer’s instructions for your specific dump valve model.
