Harper Lin

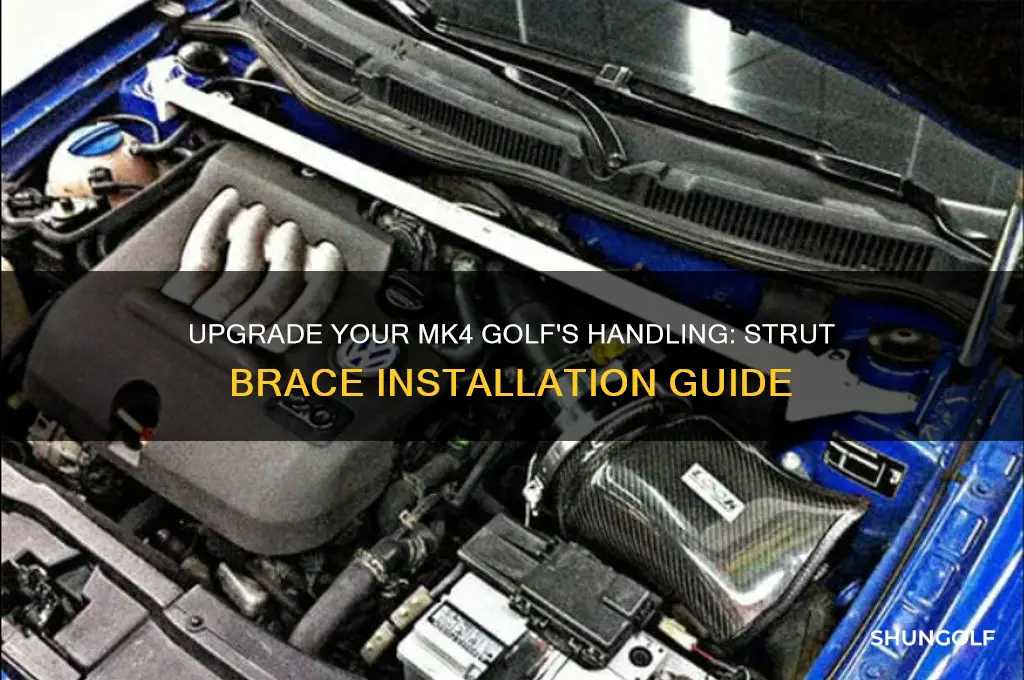

Installing a strut brace on a Mk4 Golf is a popular modification that enhances the vehicle’s handling and stability by reducing chassis flex during cornering and acceleration. The strut brace connects the top mounts of the front suspension struts, effectively stiffening the front end of the car, which improves steering response and overall driving dynamics. To fit a strut brace on a Mk4 Golf, you’ll need basic tools such as a socket set, wrenches, and possibly a torque wrench for precise tightening. Begin by locating the strut tower tops, which are typically accessible by removing the plastic engine bay covers. Clean the mounting surfaces to ensure a secure fit, then position the strut brace and secure it using the provided hardware. Double-check the alignment and torque specifications to avoid over-tightening, which could damage the strut towers. Once installed, the strut brace will provide immediate feedback in terms of improved handling, making it a worthwhile upgrade for enthusiasts seeking better performance from their Mk4 Golf.
| Characteristics | Values |
|---|---|
| Vehicle Compatibility | Volkswagen Golf Mk4 (1997-2006) |
| Tools Required | 13mm & 17mm sockets/wrenches, torque wrench, jack, jack stands |
| Parts Needed | Strut brace, replacement bolts (if needed) |
| Difficulty Level | Moderate |
| Time Required | 1-2 hours |
| Steps | 1. Lift front of car and secure on jack stands 2. Remove engine cover (if applicable) 3. Locate strut towers and remove factory bolts 4. Align strut brace with towers and secure with provided bolts 5. Torque bolts to manufacturer's specifications (typically 40-50 Nm) 6. Reinstall engine cover and lower vehicle |
| Benefits | Improved steering response, reduced body roll, better handling |
| Precautions | Ensure proper torque to avoid damage, double-check alignment |
| Popular Brands | Neuspeed, ECS Tuning, H&R |
| Price Range | $100 - $300 (depending on brand and material) |
| Material Options | Aluminum, steel, carbon fiber |
| Maintenance | Inspect bolts and brace periodically for tightness and damage |
| Additional Tips | Consider combining with other suspension upgrades for optimal performance |
Explore related products
What You'll Learn
Tools Required for Installation
When preparing to install a strut brace on a Mk4 Golf, having the right tools is essential to ensure a smooth and efficient process. The installation primarily involves working with bolts and brackets, so a socket set is indispensable. A standard metric socket set with sizes ranging from 10mm to 17mm will cover the bolts typically found in the strut tower area. Ensure the set includes both shallow and deep sockets to accommodate different bolt depths. Additionally, a ratchet wrench with a quick-release mechanism will make tightening and loosening bolts easier, especially in tight spaces.
Another critical tool is a torque wrench. Proper torque settings are crucial to avoid over-tightening or under-tightening the bolts, which could compromise the strut brace’s stability or damage the vehicle’s components. A torque wrench with a range of 20-100 Nm is ideal for this task. Refer to the vehicle’s manual or the strut brace manufacturer’s instructions for the correct torque specifications. If a torque wrench is unavailable, a breaker bar can be used for initial tightening, but it’s highly recommended to verify the torque afterward.
To access the strut towers and install the brace, you’ll need a flathead screwdriver and a Phillips screwdriver for removing any plastic caps or covers that may obstruct the mounting points. In some cases, a trim removal tool can be useful to safely pry off interior panels without causing damage. For stubborn bolts or rusted components, a penetrating oil like WD-40 should be applied beforehand to ease removal.
Alignment and positioning of the strut brace are crucial for optimal performance. A level or straight edge can help ensure the brace is mounted evenly. Additionally, zip ties or clamps may be needed to secure any loose wires or hoses away from the installation area, preventing interference. Finally, safety gloves and safety goggles are essential to protect your hands and eyes from debris or slipping tools during the installation process.
Lastly, while not a tool, having a jack and jack stands is highly recommended to safely raise the vehicle and provide adequate clearance for working on the strut towers. Ensure the vehicle is securely supported before proceeding with the installation. With these tools and safety measures in place, you’ll be well-prepared to fit a strut brace on your Mk4 Golf efficiently and correctly.
Denver's Golf Developments: Growth, Trends, and Future Prospects
You may want to see also
Explore related products
Removing Factory Components Safely
When removing factory components to fit a strut brace on a Mk4 Golf, safety and precision are paramount. Begin by ensuring the vehicle is securely parked on a flat surface, with the engine turned off and the handbrake engaged. Gather the necessary tools, such as a socket set, wrenches, and a torque wrench, to avoid improvising with unsuitable tools that could damage components. Always wear safety gear, including gloves and eye protection, to guard against sharp edges or debris. Start by disconnecting the battery to prevent any accidental electrical shorts during the process.
Next, locate the factory strut brace or any components that need to be removed to make way for the new brace. On a Mk4 Golf, this typically involves removing the plastic engine cover and any under-hood insulation that obstructs access to the strut towers. Carefully unclip or unscrew these panels, taking note of their positioning for reinstallation later. Avoid forcing any components, as plastic clips can break easily. If there is a factory strut brace already in place, use the appropriate socket or wrench to remove the bolts securing it to the strut towers. Ensure all fasteners are fully loosened before attempting to lift the brace out to prevent bending or damaging the mounting points.
When removing bolts or fasteners, keep track of their sizes and locations, as some may be specific to certain areas. Use a magnetic tray or labeled containers to organize hardware, making reassembly easier. If any components are corroded or difficult to remove, apply a penetrating oil and allow it to sit for a few minutes before attempting again. Avoid using excessive force, as this can strip threads or damage the strut towers, which are critical for suspension integrity.
Take extra care when handling suspension components, as they are under stress and can shift unexpectedly. If the strut brace is connected to other parts, such as the firewall or chassis, inspect these connections thoroughly before removal. Ensure that no other components are inadvertently disconnected or damaged during the process. If unsure about any step, consult a repair manual or seek guidance to avoid costly mistakes.
Finally, once all factory components are safely removed, clean the strut tower mounting surfaces to ensure a secure fit for the new brace. Use a degreaser and a clean cloth to remove any dirt, oil, or residue. Inspect the area for any signs of damage or wear that could affect the installation of the new strut brace. By taking these precautions, you ensure a safe and effective removal process, setting the stage for a successful installation of the aftermarket strut brace.
Colonial Golf Tournament Leaderboard: Who's Dominating the Greens?
You may want to see also
Explore related products
Strut Brace Alignment Tips
When fitting a strut brace on a Mk4 Golf, proper alignment is crucial to ensure optimal performance and safety. Start by placing the strut brace on the mounting points without fully tightening the bolts. This allows for adjustments before securing it firmly. Ensure the vehicle is on a level surface with the wheels straight ahead to maintain symmetry. Misalignment can lead to uneven stress distribution, reducing the brace’s effectiveness in stiffening the suspension.
Next, check the strut brace’s orientation relative to the chassis. It should sit parallel to the ground and perpendicular to the strut towers for maximum stability. Use a spirit level or visual inspection to verify alignment. If the brace is tilted or skewed, loosen the bolts slightly and reposition it until it aligns correctly. Proper orientation ensures the brace effectively reduces flex in the strut towers during cornering and braking.
Tighten the mounting bolts in a diagonal pattern, alternating sides to ensure even pressure distribution. Over-tightening can warp the strut towers or damage the brace, while under-tightening may allow movement, negating its purpose. Refer to the manufacturer’s torque specifications for the bolts to avoid issues. Once tightened, double-check the alignment to ensure it hasn’t shifted during the process.
After installation, perform a test drive to assess the strut brace’s impact on handling. Pay attention to any unusual noises or vibrations, which could indicate improper alignment or mounting. If issues arise, reinspect the brace and adjust as necessary. Proper alignment not only enhances performance but also prolongs the life of both the brace and the suspension components.
Finally, consider using a torque wrench for precision during installation. Hand-tightening may not provide the consistency needed for optimal alignment. Regularly inspect the strut brace and its mounting points for signs of wear or loosening, especially after aggressive driving or exposure to rough roads. Consistent maintenance ensures the brace remains aligned and functional, contributing to a more responsive and stable driving experience in your Mk4 Golf.
Olympic Golf Team Event: Format, Rules, and Participation Explained
You may want to see also
Explore related products
Tightening Torque Specifications
When fitting a strut brace to a Mk4 Golf, adhering to the correct tightening torque specifications is crucial to ensure the brace is securely mounted and functions effectively without causing damage to the vehicle’s components. The strut brace connects the top mounts of the front suspension struts, reducing chassis flex and improving handling. Over-tightening or under-tightening the bolts can lead to issues such as stripped threads, uneven clamping force, or compromised structural integrity. Always refer to the manufacturer’s instructions for the strut brace, as torque specifications may vary depending on the brand and model.
For the mounting bolts that secure the strut brace to the strut towers, a common torque specification ranges between 20 to 25 Nm (15 to 18 ft-lbs). This range is typically recommended for M10 or M12 bolts, which are commonly used in strut brace installations. It’s essential to use a torque wrench to achieve the precise tightening force, as hand-tightening or using impact tools can lead to inconsistent results. Tighten the bolts in a diagonal or crisscross pattern to ensure even clamping pressure across the mounting points.
If the strut brace includes additional brackets or hardware, such as those for adjustable braces or braces with integrated sway bar mounts, these components may require different torque settings. For example, smaller M8 bolts used in brackets might require a torque of 15 to 20 Nm (11 to 14 ft-lbs). Always verify the bolt size and consult the manufacturer’s guidelines to avoid over-tightening, which can deform the brackets or damage the threads.
After tightening all bolts to the specified torque, it’s advisable to perform a final check to ensure everything is secure. Gently attempt to move the strut brace to confirm it is firmly mounted and does not wobble. Additionally, recheck the torque after the first 100 miles of driving, as settling of the components may occur, requiring a slight readjustment. Proper torque application not only ensures the strut brace performs its intended function but also prevents long-term issues such as bolt failure or chassis damage.
Lastly, if the strut brace installation involves removing or replacing suspension components, such as the strut nuts or top hats, these should be torqued to the vehicle’s factory specifications. For a Mk4 Golf, the strut tower nuts typically require a torque of 40 to 50 Nm (30 to 37 ft-lbs), but always consult the vehicle’s service manual for accurate values. Mixing torque specifications between the strut brace and original suspension components is essential to maintain the overall integrity of the vehicle’s handling and safety.
Golf Wang Vans: Sizing and Comfort Guide
You may want to see also
Explore related products
$89.06 $107.78
Post-Installation Check Procedures
After installing a strut brace on your MK4 Golf, it’s crucial to perform post-installation checks to ensure everything is secure, aligned, and functioning correctly. Start by inspecting the strut brace itself. Verify that all mounting points are tightly secured with no visible gaps between the brace and the strut towers. Use a torque wrench to confirm that the bolts are tightened to the manufacturer’s recommended specifications, typically around 25-35 Nm, depending on the brace design. Loose bolts can lead to movement or failure under stress, so double-check each fastener.
Next, inspect the clearance between the strut brace and surrounding components, such as the hood, engine bay parts, and other accessories. Ensure there is no contact or rubbing that could cause damage during driving or when the suspension moves. Gently press on the brace to check for any play or movement; it should feel rigid and firmly attached to the strut towers. If there is any instability, recheck the mounting points and tighten as necessary.
Proceed with a visual inspection of the strut towers and surrounding areas for any signs of stress, cracks, or deformation caused during installation. Even minor damage can compromise the structural integrity of the vehicle, so address any issues immediately. If the strut towers appear compromised, consult a professional mechanic to assess the damage.
Once the physical checks are complete, start the engine and let it idle for a few minutes. Listen for any unusual noises, such as rattling or vibrations, which could indicate loose components or improper installation. Turn the steering wheel lock-to-lock while the car is stationary to ensure the strut brace does not interfere with steering components or cause binding. Any resistance or abnormal sounds should be investigated further.
Finally, take the vehicle for a short test drive on a quiet road. Pay attention to how the car handles, particularly during cornering and over bumps. The strut brace should improve stability and reduce body roll, so any lack of improvement or unusual behavior could signal an installation issue. After the drive, recheck the strut brace and mounting points for any signs of movement or loosening. Properly executed post-installation checks ensure the strut brace functions as intended and maintains the safety and performance of your MK4 Golf.
Tipping Etiquette: Golf Instructors and Your Wallet
You may want to see also
Frequently asked questions
A strut brace is a bar that connects the tops of the front struts or shock towers, reducing chassis flex and improving handling. Installing one on your MK4 Golf enhances stability, cornering, and overall driving dynamics, especially during spirited driving or on uneven roads.
You’ll typically need basic tools like a socket set, wrenches, and possibly a torque wrench. Some strut braces may require additional tools depending on the design, so check the manufacturer’s instructions for specific requirements.
Generally, installing a strut brace won’t void your warranty unless it’s improperly installed or causes damage to other components. However, it’s always a good idea to check your warranty terms or consult with your dealership to be sure.
Not all strut braces are universal. You’ll need a strut brace specifically designed for the MK4 Golf to ensure proper fitment and functionality. Check the product description or consult the manufacturer to confirm compatibility.
