Jumping a solenoid on a Club Car gas golf cart can be a straightforward solution to troubleshoot issues with the cart’s starting or electrical system. The solenoid, a key component in the cart’s ignition circuit, acts as an electrical switch that connects the battery to the starter. If the solenoid fails or malfunctions, the cart may not start or run properly. To jump the solenoid, you’ll need basic tools like a screwdriver and a jumper wire. Begin by locating the solenoid, typically found near the battery or under the seat. Identify the two large terminals on the solenoid—usually labeled “B” (battery) and “S” (starter). Connect a jumper wire between these terminals to bypass the solenoid temporarily, allowing the cart to start. This method is useful for diagnosing whether the solenoid is the root of the problem, but it’s important to replace a faulty solenoid promptly to ensure reliable operation of your Club Car gas golf cart. Always prioritize safety by disconnecting the battery before working on electrical components.
| Characteristics | Values |
|---|---|
| Purpose | To bypass a faulty solenoid and start the Club Car gas golf cart. |
| Tools Required | Screwdriver, jumper wires, pliers, safety gloves, safety goggles. |
| Safety Precautions | Ensure cart is in "Park" or "Neutral," disconnect battery, wear PPE. |
| Location of Solenoid | Near the battery pack, typically under the seat or rear compartment. |
| Solenoid Terminals | Usually labeled "B+" (battery), "S" (start), and "A" (accessory). |
| Jumping Process | Connect jumper wire between "B+" and "S" terminals to engage starter. |
| Temporary Fix | Only for emergency use; replace solenoid as soon as possible. |
| Common Symptoms of Faulty Solenoid | Cart won’t start, clicking noise, no response when key is turned. |
| Compatibility | Applies to Club Car gas models with solenoid-based starting systems. |
| Alternative Method | Use a screwdriver to manually bridge the "B+" and "S" terminals (risky). |
| Professional Advice | Consult a mechanic if unsure or for permanent solenoid replacement. |
Explore related products
$17.99 $19.99
What You'll Learn
Locate Solenoid & Wires

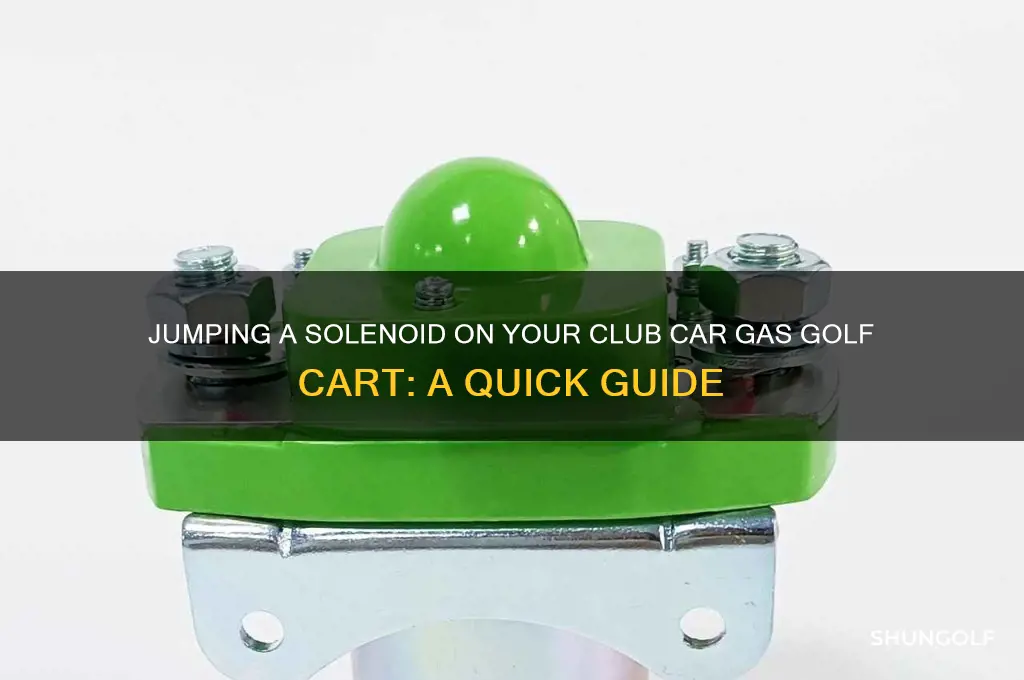

The solenoid on a Club Car gas golf cart is typically located near the battery pack, often mounted on the frame or firewall. It’s a cylindrical or rectangular component with thick wires connected to it, acting as a switch for the starter circuit. Before attempting to jump the solenoid, you must first identify its exact position. Start by opening the hood and inspecting the area around the batteries. Look for a component with two large terminals labeled “B” (battery) and “S” (starter), along with smaller wires connected to other terminals. Familiarizing yourself with its location is crucial, as misidentifying the solenoid can lead to incorrect troubleshooting or damage.
Once you’ve located the solenoid, the next step is to identify the correct wires for jumping. The primary wires of interest are the ones connected to the “B” and “S” terminals. The “B” terminal is directly linked to the battery, while the “S” terminal connects to the starter. Additionally, there may be smaller wires attached to other terminals, such as those for the ignition switch or safety interlock. Avoid tampering with these smaller wires unless you’re certain of their function, as they can complicate the process. Focus on the “B” and “S” terminals, as these are the key points for bypassing the solenoid to test the starter circuit.
A practical tip for confirming the solenoid’s location and wire connections is to consult the Club Car service manual or wiring diagram specific to your model. These resources provide detailed illustrations and labels, making it easier to pinpoint the solenoid and its associated wires. If you don’t have access to a manual, online forums and video tutorials often offer visual guides tailored to Club Car gas carts. Cross-referencing these sources ensures accuracy, especially if you’re unfamiliar with golf cart mechanics. Taking a photo of the solenoid and its wiring before proceeding can also serve as a reference point if you encounter issues later.
When locating the solenoid and wires, be mindful of safety precautions. Ensure the golf cart is turned off and the key is removed to prevent accidental engagement of the starter. Wear insulated gloves and use non-conductive tools to avoid short circuits or electrical shocks. Inspect the wires for signs of damage, such as fraying or corrosion, as these issues can interfere with the jumping process. If the solenoid or wires appear compromised, address these problems before attempting to jump the component. Safety and thorough inspection are paramount to avoid mishaps during troubleshooting.
In summary, locating the solenoid and identifying the correct wires is the foundation of successfully jumping a Club Car gas golf cart’s solenoid. Start by pinpointing the solenoid near the battery pack, focusing on the “B” and “S” terminals. Use resources like service manuals or online guides to confirm your findings, and always prioritize safety by inspecting the wiring and taking precautions. With this knowledge, you’ll be well-prepared to proceed with the jumping process, ensuring a systematic and effective approach to diagnosing starter circuit issues.
Essential Clubs in a Junior Golf Set for Young Players
You may want to see also
Explore related products
Identify Correct Jump Points
Jumping a solenoid on a Club Car gas golf cart requires precision to avoid damage or injury. The first step is to locate the solenoid, typically found near the battery or under the seat, depending on the model. It’s a cylindrical or rectangular component with thick wires connected to it, often labeled with terminals like “B+,” “F,” and “S.” Identifying these terminals is crucial, as they serve as the correct jump points for bypassing the solenoid. Misidentifying these points can lead to short circuits or permanent damage to the cart’s electrical system. Always consult your Club Car manual or a wiring diagram specific to your model to confirm terminal locations.
Analyzing the solenoid’s role in the golf cart’s operation helps clarify why correct jump points matter. The solenoid acts as a switch, directing power from the battery to the starter and other components. When it fails, the cart won’t start, even if the battery is fully charged. By jumping the solenoid, you manually connect the power source to the starter, bypassing the faulty switch. The “B+” terminal (battery positive) and the “S” terminal (starter) are the primary jump points. Connecting these two with a jumper wire or screwdriver momentarily should engage the starter. However, this method is temporary and should only be used for diagnostic purposes or in emergencies.
A persuasive argument for caution is essential when identifying jump points. While jumping a solenoid seems straightforward, it’s not without risks. Applying power incorrectly can melt wires, blow fuses, or even cause sparks near the fuel system, leading to a fire hazard. Always disconnect the battery before attempting any work on the solenoid. Use insulated tools and wear protective gear, such as gloves and safety goggles. If you’re unsure about the process, consult a professional mechanic to avoid costly mistakes. Remember, the goal is to diagnose the issue, not create new ones.
Comparing the solenoid jump process on a Club Car gas golf cart to other vehicles highlights its unique challenges. Unlike cars, golf carts have simpler electrical systems, but their compact design can make accessing components difficult. For instance, some Club Car models require removing the seat or a side panel to reach the solenoid. Additionally, golf cart solenoids often operate at lower voltages (typically 12V), but the high current draw from the starter means even small mistakes can have significant consequences. Understanding these differences ensures you approach the task with the right mindset and tools.
Instructive steps for identifying and jumping the correct solenoid points are as follows: First, turn off the cart and disconnect the battery to prevent accidental engagement. Locate the solenoid and identify the “B+” and “S” terminals using your manual or diagram. Use a multimeter to confirm voltage at the “B+” terminal, ensuring the battery is functioning. With the cart in neutral and the brake applied, connect a jumper wire or insulated screwdriver between the “B+” and “S” terminals. If the starter engages, the solenoid is likely faulty. Replace it promptly to restore proper functionality. Always reattach the battery and test the cart in a safe, open area after completing the repair.
Garmin Golf Watch Club Tracking: Is It Worth Using?
You may want to see also
Explore related products
$35.99
Use Jumper Wire Safely
Jumping a solenoid on a Club Car gas golf cart can be a quick fix to get your cart moving, but using a jumper wire requires precision and caution. The solenoid acts as a switch, directing power from the battery to the starter, and bypassing it with a jumper wire can temporarily override a faulty connection. However, improper use can lead to electrical damage or safety hazards. Always ensure the cart is in neutral and the key is off before attempting this procedure.
To safely use a jumper wire, start by identifying the correct solenoid terminals. On most Club Car models, the large posts labeled "B+" and "S" are the primary terminals. Connect one end of the jumper wire to the "B+" terminal, which is directly connected to the battery, and the other end to the "S" terminal, which routes power to the starter. Use a thick, insulated wire to handle the high current without overheating. Avoid touching the wire to any metal surfaces or allowing it to dangle near moving parts.
While this method can diagnose a faulty solenoid, it’s not a long-term solution. Operating the cart with a jumper wire in place bypasses the solenoid’s safety features, such as preventing the engine from starting in gear. Extended use can drain the battery or damage the starter. Treat this as a temporary fix to move the cart to a repair location, not as a permanent workaround. Always replace the solenoid as soon as possible to restore proper functionality.
A common mistake is using a wire that’s too thin or poorly insulated, which can melt or spark under the high current. For safety, use a wire gauge of at least 10 AWG, and ensure the insulation is intact. If you’re unsure about the process, consult a manual or seek professional assistance. Remember, the goal is to diagnose and address the issue, not to create additional problems.
In summary, using a jumper wire to bypass a solenoid on a Club Car gas golf cart is a practical troubleshooting step but demands careful execution. Identify the correct terminals, use appropriate wiring, and limit its use to diagnostic purposes. Prioritize safety and follow-up repairs to keep your cart running reliably.
Does Vaseline on Golf Clubs Improve Performance? A Deep Dive
You may want to see also
Explore related products
Test Cart Operation Post-Jump
After jumping the solenoid on your Club Car gas golf cart, the critical next step is to verify that the cart operates correctly. Start by turning the ignition key to the "on" position and listening for the fuel pump to prime, which typically lasts 2-3 seconds. If the pump doesn't engage, recheck your solenoid connections or consult a mechanic, as this could indicate an electrical issue beyond the solenoid. Assuming the pump primes, depress the accelerator pedal slightly and observe the solenoid. It should click audibly as it engages, allowing power to flow from the battery to the starter. No click? Double-check the solenoid’s wiring or test it with a multimeter for continuity.
Once the solenoid functions, attempt to start the engine. If it cranks but doesn’t start, check the fuel lines for clogs or the spark plugs for fouling. A successful start is only the beginning of your post-jump test. Drive the cart at varying speeds—slow, moderate, and full throttle—to ensure the solenoid remains engaged under load. Pay attention to any unusual noises, such as grinding or clicking mid-drive, which could signal a failing solenoid or loose connections. If the cart stalls or loses power, stop immediately and reinspect the solenoid and battery terminals.
A thorough post-jump test also includes assessing the cart’s braking and steering systems, as electrical issues can sometimes affect these components indirectly. Test the brakes at low speeds to ensure they respond smoothly and evenly. For steering, drive in a figure-eight pattern to check for stiffness or resistance, which might indicate a drained battery or compromised electrical system. If either system feels off, trace the issue back to the solenoid or battery, as these are the most likely culprits post-jump.
Finally, monitor the battery’s charge level during and after operation. A solenoid that was stuck open could have drained the battery significantly, so use a voltmeter to confirm it holds a steady 12.6 volts when off and doesn’t drop below 11.5 volts under load. If the battery struggles to maintain charge, consider replacing it or the solenoid, as repeated jumping can exacerbate underlying issues. A well-executed post-jump test not only confirms the solenoid’s functionality but also safeguards against future breakdowns.
Renting Golf Clubs at Sherman Hills Golf Club in Florida
You may want to see also
Explore related products
Troubleshoot Common Jump Issues
Jumping a solenoid on a Club Car gas golf cart can resolve issues like a cart that won’t start or moves sluggishly, but missteps during the process often lead to frustration. One common issue is incorrect polarity connection, where the positive and negative terminals are reversed. This not only prevents the jump from working but can also damage the solenoid or battery. Always double-check that the red clamp connects to the positive terminal and the black clamp to the negative, ensuring a proper circuit for the jump.
Another frequent problem arises from insufficient voltage from the donor battery. A weak or partially charged battery won’t provide enough power to activate the solenoid. Before attempting a jump, test the donor battery’s voltage; it should read at least 12.6 volts for a fully charged 12-volt battery. If the voltage is below 12 volts, the jump will likely fail, and you’ll need a stronger power source.
Corroded or loose connections are often overlooked but can sabotage the jump process. Inspect the solenoid terminals and battery cables for rust, dirt, or looseness. Clean the terminals with a wire brush and baking soda solution, then tighten the connections securely. Poor contact between the clamps and terminals will disrupt the flow of electricity, rendering the jump ineffective.
Finally, overloading the solenoid by repeatedly attempting to jump-start a faulty system can cause permanent damage. If the cart doesn’t respond after two or three attempts, stop and diagnose the underlying issue. Common culprits include a dead battery, a faulty ignition switch, or a malfunctioning solenoid. Persistent jumping without addressing the root cause risks burning out the solenoid, leading to costly repairs. Always troubleshoot systematically to avoid compounding the problem.
Relax Your Grip: Master a Softer Hold on Your Golf Club
You may want to see also
Frequently asked questions
The solenoid is typically located near the battery pack, often mounted on the frame or firewall. It’s a cylindrical or rectangular component with thick wires connected to it, including the main power cable from the battery and wires leading to the starter.
You’ll need a screwdriver or wrench to access the solenoid, a jumper wire (or a piece of thick insulated wire), and possibly a multimeter to test for power if needed. Ensure the cart is turned off and the key is removed before starting.
Locate the two large terminals on the solenoid (usually marked "B+" and "S"). Turn the ignition key to the "on" position, then use the jumper wire to connect the two terminals. If the cart starts, the solenoid is likely faulty and needs replacement.
Common signs include the cart not starting when you turn the key, a clicking sound from the solenoid, or no response at all. Jumping the solenoid can help diagnose whether the issue is with the solenoid or another part of the electrical system.
