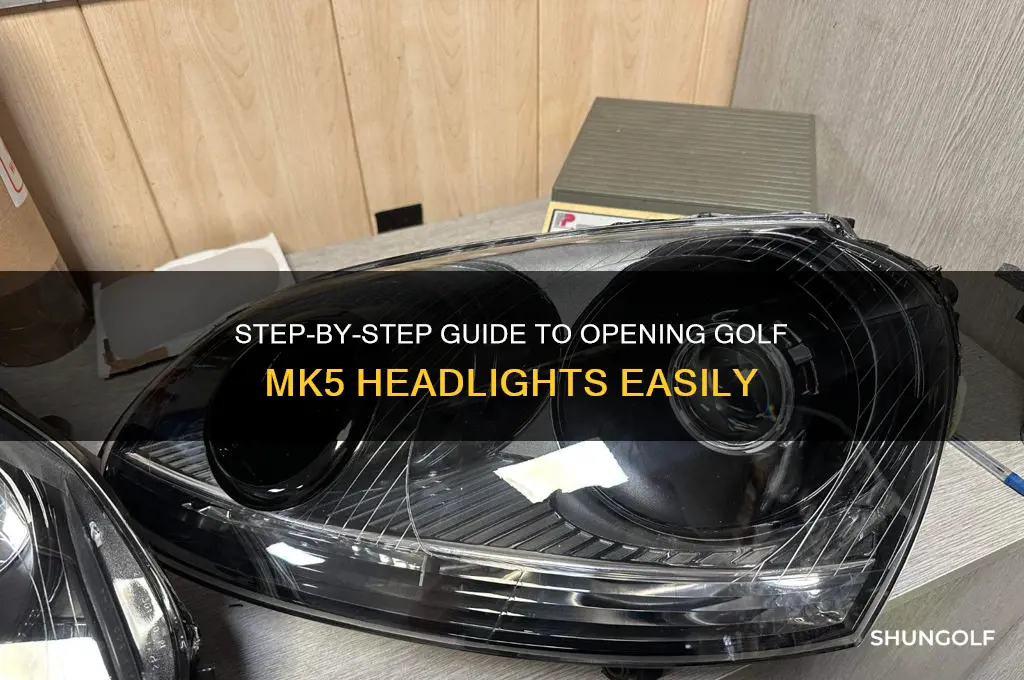

Opening the headlight assembly on a Volkswagen Golf Mk5 requires careful attention to detail to avoid damaging the components. Start by ensuring the car is parked on a flat surface and the ignition is turned off. Locate the headlight assembly, which is typically accessed from the front of the vehicle. Depending on the specific model, you may need to remove the front grille or bumper to gain full access. Once accessible, identify the retaining screws or clips that secure the headlight housing in place. Carefully remove these fasteners, taking note of their positions for reassembly. Gently pry or pull the headlight assembly outward, being cautious not to force it, as some models may have additional clips or tabs that need to be released. After the assembly is free, you can proceed with replacing bulbs, cleaning, or performing other maintenance tasks as needed. Always refer to the vehicle’s manual or a reliable guide for model-specific instructions.
| Characteristics | Values |
|---|---|
| Tools Required | Flathead screwdriver, Torx screwdriver (T20), Pliers |
| Difficulty Level | Moderate |
| Time Required | 30-45 minutes |
| Steps | 1. Remove the front grille by prying it off gently with a flathead screwdriver. 2. Locate and remove the Torx screws (T20) securing the headlight assembly. 3. Gently pull the headlight assembly forward to detach it from the vehicle. 4. Disconnect the electrical connector by pressing the release tab and pulling it out. 5. Access the headlight housing by removing any additional screws or clips holding it in place. |
| Precautions | Avoid touching the glass of the headlight bulb with bare hands to prevent oil residue, which can cause overheating. Be gentle when prying or pulling to avoid damaging clips or connectors. |
| Common Issues | Difficulty removing the grille due to tight clips. Stubborn Torx screws that may require penetrating oil or gentle persuasion. |
| Tips | Use a trim removal tool to safely pry off the grille. Label or take photos of screw locations for easier reassembly. |
| Reassembly | Follow the steps in reverse order, ensuring all connectors are securely attached and screws are tightened. |
| Safety | Ensure the vehicle is turned off and the battery is disconnected before starting work. |
| Additional Notes | Some MK5 Golf models may have slight variations in headlight assembly design, so refer to the vehicle manual if needed. |
Explore related products
What You'll Learn
- Tools Needed: Gather screwdriver, trim removal tool, and gloves for safe headlight access
- Removing Bumper: Detach front bumper carefully to expose headlight assembly
- Headlight Release: Locate and press release tabs to free the headlight
- Disconnecting Wires: Unplug electrical connectors securely to avoid damage
- Reassembly Tips: Ensure proper alignment and secure all parts during reinstallation
Tools Needed: Gather screwdriver, trim removal tool, and gloves for safe headlight access
Opening the headlight assembly of a Golf MK5 requires precision and the right tools to avoid damage. The first step is to gather your essentials: a screwdriver, a trim removal tool, and gloves. These items are not just optional; they are critical for a safe and efficient process. The screwdriver, preferably a Phillips head, will help you remove any screws securing the headlight unit. The trim removal tool, with its thin and sturdy design, allows you to pry off the surrounding trim without scratching the paint. Gloves, often overlooked, protect your hands from sharp edges and ensure a firm grip on tools, reducing the risk of slips that could harm the vehicle’s exterior.
Consider the screwdriver as your primary tool for disassembly. For the Golf MK5, a #2 Phillips screwdriver is typically sufficient, but always inspect the screw heads first to ensure compatibility. The trim removal tool, on the other hand, is your safeguard against cosmetic damage. Its prying action is gentle yet effective, ideal for navigating the delicate seams around the headlight. When selecting gloves, opt for nitrile or latex varieties that offer both dexterity and protection. Leather gloves, while durable, can be too bulky for the fine work required here.
A common mistake is underestimating the importance of these tools. Attempting to remove the headlight without a trim removal tool can lead to unsightly scratches or dents in the car’s finish. Similarly, using the wrong screwdriver size can strip screws, complicating the reassembly process. Gloves, though seemingly minor, prevent fingerprints and smudges on the headlight lens, which can affect visibility once the unit is reinstalled. Each tool plays a distinct role, and their collective use ensures a professional-grade result.
For those new to this task, start by laying out your tools in a clean, well-lit workspace. Position the car on a flat surface and ensure the engine is off to avoid accidental activation of the headlights. Begin by using the trim removal tool to carefully pry away the trim surrounding the headlight. Work slowly and evenly to avoid snapping any clips. Once the trim is removed, use the screwdriver to loosen and remove any securing screws. Throughout the process, keep your gloves on to maintain control and protect both yourself and the vehicle.
In conclusion, the tools needed for opening a Golf MK5 headlight are simple yet indispensable. A screwdriver, trim removal tool, and gloves form the foundation of a successful repair or upgrade. By understanding the specific role of each tool and using them correctly, you can access the headlight assembly safely and efficiently. This approach not only preserves the integrity of your vehicle but also builds confidence for future DIY automotive tasks.
Are Golf Galaxy Stores Open? Check Operating Hours and Locations
You may want to see also
Explore related products
Removing Bumper: Detach front bumper carefully to expose headlight assembly
Accessing the headlight assembly on a Golf MK5 often requires removing the front bumper, a task that demands precision and care. The bumper is not merely a cosmetic component but a structural element that houses various sensors and wiring. Therefore, detachment must be executed methodically to avoid damage. Begin by ensuring the vehicle is parked on a flat surface, with the engine off and the keys removed. Gather the necessary tools: a set of Torx bits (T25 and T30), a flathead screwdriver, and possibly a trim removal tool. These tools will facilitate the removal of screws and clips without causing scratches or dents.
The process starts with locating the screws and clips that secure the bumper. Typically, there are screws beneath the headlights, within the wheel arches, and behind the grille. Use the Torx bits to remove these screws, keeping track of their positions for reassembly. Next, address the plastic clips along the underside of the bumper. A flathead screwdriver or trim removal tool can be gently pried to release these clips. Apply steady, even pressure to avoid breaking them, as replacements can be costly and time-consuming to source. Once all fasteners are removed, carefully pull the bumper away from the vehicle, starting from one side and working across. Be mindful of any wiring connected to sensors or lights, ensuring they are disconnected or carefully guided through the opening.
A critical aspect of this step is understanding the bumper’s design. The MK5’s front bumper is designed to flex slightly, allowing it to be pulled away from the vehicle without complete disassembly. However, excessive force can lead to cracks or misalignment. If resistance is encountered, recheck for any missed screws or clips. Additionally, having an assistant hold the bumper while you work can prevent accidental drops or damage. This collaborative approach also ensures that the bumper is supported evenly during removal, reducing the risk of stress on specific areas.
Finally, with the bumper detached, the headlight assembly is fully exposed, allowing for maintenance, replacement, or upgrades. Take this opportunity to inspect adjacent components, such as the radiator or intercooler, for signs of wear or damage. Reattaching the bumper follows the reverse process, with careful alignment and reinsertion of screws and clips. Ensure all fasteners are tightened securely but not over-torqued, as this can strip threads or warp the bumper. By approaching this step with patience and attention to detail, you not only gain access to the headlight assembly but also preserve the integrity of the vehicle’s front end.
2025 US Open Golf Dates: Mark Your Calendar for the Major
You may want to see also
Explore related products
Headlight Release: Locate and press release tabs to free the headlight
The Golf MK5 headlight assembly is designed with a clever yet often overlooked mechanism: release tabs. These small, discreet components are the key to accessing the headlight unit without causing damage. Located strategically around the headlight’s perimeter, they are typically found near the top and bottom edges, blending seamlessly into the housing. Identifying these tabs is the first critical step in the process, as they are not always immediately visible due to their low-profile design. A careful inspection with a flashlight or in good lighting conditions can reveal their exact positions, usually marked by slight indentations or textured surfaces.
Once the release tabs are located, the next step is to apply precise pressure to disengage them. This requires a firm but controlled touch, as excessive force can risk cracking the plastic housing or misaligning the headlight. Using a flat-head screwdriver or a plastic pry tool is recommended to avoid scratching the surface. Position the tool at a shallow angle against the tab and apply steady pressure until a distinct click or release sound is heard. Repeat this process for all tabs, typically two to four, depending on the headlight model. Patience is key here, as rushing can lead to unnecessary complications.
A comparative analysis of this method versus other approaches highlights its efficiency and safety. Unlike prying directly on the headlight lens, which can cause permanent damage, engaging the release tabs ensures a clean separation of the housing. This method is also more reliable than attempting to remove screws or clips, which are often hidden or inaccessible without prior disassembly. By focusing on the release tabs, even a novice can confidently open the headlight assembly without specialized tools or prior experience.
Practical tips can further streamline this process. For instance, working in a warm environment or using a hairdryer to gently heat the plastic can make it more pliable, reducing the risk of breakage. Additionally, marking the tab locations with a piece of tape before starting can serve as a visual guide, especially if the area is poorly lit. After releasing all tabs, gently pull the headlight unit outward, being mindful of any wiring connections that may need to be detached separately. This method not only preserves the integrity of the headlight but also simplifies reinstallation, as the tabs align perfectly for reassembly.
Understanding the Cut Line in the British Open Golf Championship
You may want to see also
Explore related products
Disconnecting Wires: Unplug electrical connectors securely to avoid damage
Electrical connectors within the Golf MK5 headlight assembly are designed to withstand regular use but are vulnerable to damage if mishandled during disconnection. Forcing or pulling wires directly can tear the delicate pins or damage the locking mechanisms, leading to costly repairs or compromised functionality. Understanding the correct technique ensures longevity and safety.
Begin by identifying the type of connector securing the wires. Most MK5 headlight assemblies use clip-based or latch-style connectors. Clip connectors require gentle prying with a flat-head screwdriver or trim removal tool, while latch connectors feature a release tab that must be depressed before separation. Apply even pressure and avoid excessive force, as the plastic components are prone to cracking under stress.
A common mistake is attempting to disconnect wires by tugging on the cable itself. This approach risks stripping the insulation or damaging the internal wiring harness. Instead, grip the connector body firmly and pull it straight away from the mating component. If resistance is encountered, recheck for hidden latches or clips that may still be engaged.
For added protection, inspect the connector for corrosion or debris before and after disconnection. Clean contacts with isopropyl alcohol and a lint-free cloth to ensure optimal conductivity. If the connector shows signs of wear, such as cracked housings or bent pins, consider replacing it to prevent intermittent electrical issues.
In summary, disconnecting wires from a Golf MK5 headlight requires precision and care. By identifying connector types, using appropriate tools, and avoiding common pitfalls, you can safeguard the electrical system while accessing the headlight assembly for maintenance or upgrades. This methodical approach not only preserves functionality but also minimizes the risk of future malfunctions.
Your Ultimate Guide to Securing US Open Golf Tickets
You may want to see also
Explore related products
Reassembly Tips: Ensure proper alignment and secure all parts during reinstallation
Reassembly of a Golf MK5 headlight demands precision, as misalignment can compromise both aesthetics and functionality. Begin by verifying the headlight’s orientation before securing any screws or clips. The MK5’s headlight assembly often includes adjustable tabs or slots designed to fine-tune alignment. Use a flathead screwdriver or a trim tool to gently nudge these tabs until the headlight sits flush with the surrounding bodywork. A gap of more than 1–2 mm between the headlight and the fender indicates misalignment, which can lead to water ingress or an uneven beam pattern.
Securing all parts during reinstallation is equally critical, as loose components can rattle or detach while driving. Start by tightening the primary mounting screws in a diagonal pattern, applying even torque (typically 8–10 Nm for plastic fasteners) to avoid warping the housing. Next, reattach the wiring harness and ensure the rubber grommet is intact to prevent moisture from entering the electrical connections. Double-check that all clips and retainers are fully engaged—a common oversight is leaving the lower retaining clip unsecured, which can cause the headlight to sag over time.
A practical tip for ensuring alignment is to use a reference point, such as the grille or adjacent panel, as a visual guide. Stand back from the vehicle and compare the headlight’s position to the opposite side, adjusting as needed. If the MK5 has projector-style headlights, verify the beam pattern by testing the lights in a dark area. Misaligned projectors can result in glare for oncoming drivers or reduced visibility, both of which are safety hazards.
Finally, test all headlight functions—low beam, high beam, and indicators—before considering the job complete. If the headlight flickers or fails to illuminate, recheck the wiring connections and ensure no pins are bent or damaged. A properly reassembled headlight should operate seamlessly and maintain its position even after exposure to vibration or weather. Taking the time to align and secure each component not only preserves the vehicle’s appearance but also ensures compliance with road safety standards.
Can You Practice Golf in the Rain? Driving Range Policies Explained
You may want to see also
Frequently asked questions
You will need a flathead screwdriver, a Phillips screwdriver, and possibly a trim removal tool to safely pry open the headlight assembly without damaging it.
Yes, you can access the headlight assembly without removing the bumper. However, it may require some maneuvering and patience to reach the necessary screws and clips.
Gently pry the headlight cover using a trim removal tool or flathead screwdriver, starting from the edges. Be careful not to apply too much force to avoid cracking the cover.
If the assembly is stuck, check for hidden screws or clips that may still be holding it in place. Applying gentle heat (e.g., with a hairdryer) can help loosen stubborn parts, but be cautious to avoid melting any plastic components.
