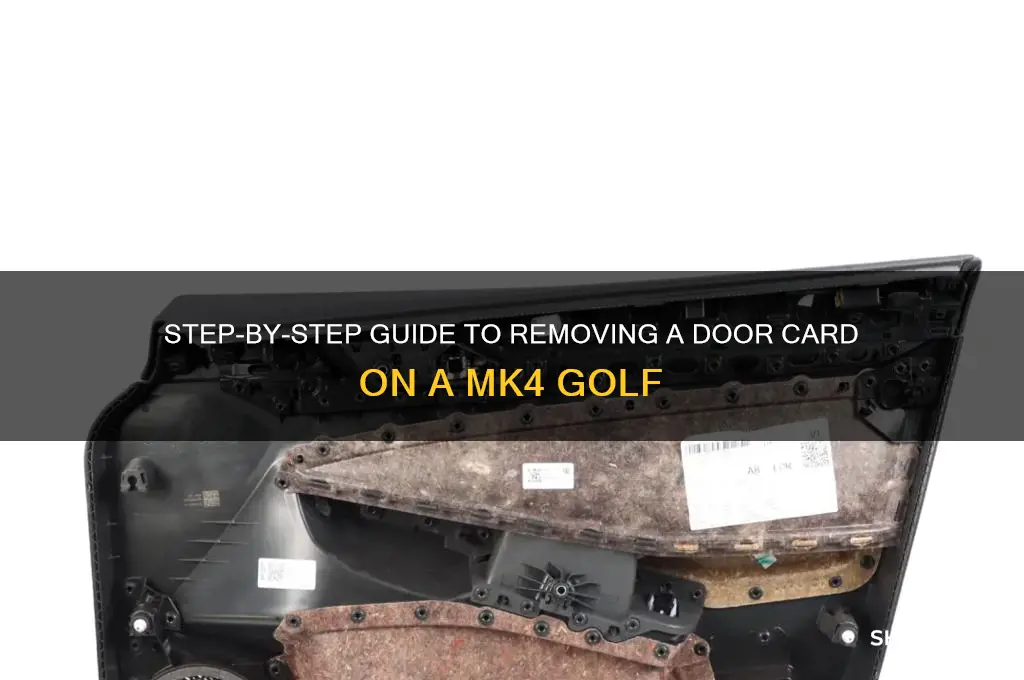

Removing a door card on a Mk4 Volkswagen Golf is a straightforward process that requires basic tools and a bit of patience. The door card, also known as the door panel, is the interior trim piece that covers the inner workings of the door, including the window mechanism, locks, and speakers. To begin, you’ll need a flathead screwdriver or a pry tool to carefully detach the plastic clips holding the panel in place. Start by prying off the armrest cover, unscrewing any visible screws, and gently lifting the panel away from the door frame. Be cautious not to damage the clips or the panel itself, as they can be fragile. Once removed, you’ll have access to the door’s internal components for repairs, upgrades, or maintenance. Always refer to a repair manual or guide specific to your Mk4 Golf model for detailed instructions and safety precautions.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver (flathead and Phillips), Trim Removal Tool, Panel Pry Tool |
| Difficulty Level | Moderate |
| Time Required | 15-30 minutes per door |
| Steps | 1. Remove door handle cover and screws. 2. Pry off the door card using a trim tool. 3. Disconnect electrical connectors (if applicable). 4. Lift the door card upwards to release it from the clips. |
| Common Issues | Broken clips, damaged trim, disconnected wires |
| Precautions | Avoid forcing the door card to prevent damage to clips or trim |
| Applicable Models | Volkswagen Golf Mk4 (1997-2006) |
| Additional Tips | Use a trim removal tool to avoid scratching the door panel |
| Reinstallation Process | Align the door card, press it into place, and reattach screws/handles |
| Safety Notes | Disconnect the car battery if working with electrical components |
Explore related products
What You'll Learn
Tools needed for door card removal
When removing the door card of a Mk4 Golf, having the right tools is essential to ensure the process is smooth and damage-free. The primary tool you’ll need is a trim removal tool set, which typically includes plastic prying tools of various sizes and shapes. These tools are designed to safely pry off the door card without scratching or damaging the plastic clips or the door panel itself. Avoid using metal tools like screwdrivers, as they can leave marks or break the clips. A trim removal tool set is affordable and widely available at auto parts stores or online.
In addition to the trim removal tools, you’ll need a Phillips head screwdriver to remove any visible screws holding the door card in place. On a Mk4 Golf, there are usually screws located at the bottom of the door card, near the door handle, and sometimes behind the interior door handle or armrest. Ensure the screwdriver fits snugly into the screw heads to prevent stripping. A magnetic screwdriver can also be helpful for retrieving screws from tight spaces.
A flathead screwdriver or a small pry bar may be necessary for gently lifting the door card once the clips are released. However, use these tools sparingly and only when needed, as they are not as safe as dedicated trim removal tools. If you’re concerned about damaging the door card, wrap the screwdriver or pry bar with a cloth or tape to add a protective layer.
For accessing certain areas, such as screws hidden behind the interior door handle, a small panel removal tool or a slim pry tool can be useful. These tools allow you to reach into tight spaces without causing damage. Additionally, having a torx screwdriver (specifically a T20 or T25) is recommended, as some Mk4 Golf models may have torx screws securing the door card or components like the window switch panel.
Finally, a flashlight or work light is highly recommended, as the interior of the door can be dark, making it difficult to locate screws or clips. Good lighting ensures you don’t miss any fasteners and helps you work more efficiently. With these tools in hand, you’ll be well-prepared to remove the door card of your Mk4 Golf safely and effectively.
Johnny Carson: A Skilled Golfer?
You may want to see also
Explore related products
Steps to remove door handle cover
To remove the door handle cover on a Mk4 Golf, you’ll need to follow a systematic approach to avoid damaging any components. Start by ensuring you have the necessary tools: a small flathead screwdriver or a plastic prying tool, and optionally a trim removal tool. These tools will help you safely pry and remove the cover without scratching the door panel. Begin by locating the door handle cover, which is the plastic trim piece surrounding the exterior door handle. It is held in place by clips, so your goal is to carefully disengage these clips to release the cover.
The first step is to gently insert the flathead screwdriver or prying tool into the small gap between the door handle cover and the door itself. Focus on the bottom edge of the cover, as this is where most clips are located. Apply gentle but firm pressure to pry the cover outward, working your way along the bottom edge. You should hear a series of clicks as the clips release. Be patient and avoid forcing the cover off, as this can break the clips or damage the paint. Once the bottom edge is free, move to the sides and top, gently prying until the entire cover is loose.
After the clips are disengaged, carefully pull the door handle cover away from the door. It should come off easily once all clips are released. Be mindful of any wiring connected to the door handle, such as for the lock mechanism or handle illumination. If there are wires attached, do not pull the cover too far; instead, locate and disconnect the wiring harness before fully removing the cover. This step ensures you don’t damage any electrical components during the process.
If you encounter resistance while removing the cover, double-check that all clips have been properly disengaged. Sometimes, a clip may still be holding the cover in place, especially near the top or sides. Use your prying tool to gently probe these areas and ensure all clips are released. Once the cover is completely free, set it aside in a safe place to avoid misplacement or damage.
Finally, inspect the door handle and surrounding area for any debris or wear. This is a good opportunity to clean the area or address any issues before reinstalling the cover or proceeding with further door card removal. By following these steps carefully, you can successfully remove the door handle cover on a Mk4 Golf without causing damage, preparing the way for additional door panel work if needed.
Understanding Golf Clubs: Cog Explained
You may want to see also
Explore related products
Detaching the window control panel
To detach the window control panel on a Mk4 Golf door card, you'll need to start by locating the control panel itself. It is typically positioned at the top front of the door card, near the window switch. Before proceeding, ensure the window is fully closed to prevent any damage during the removal process. The control panel is held in place by a combination of clips and screws, so you'll need to carefully inspect the area to identify these fasteners. Using a suitable screwdriver, remove any visible screws around the control panel. These screws are usually located at the bottom or sides of the panel, and there might be one or two, depending on the model.
Once the screws are removed, gently pry the control panel away from the door card using a flat-head screwdriver or a plastic pry tool. Start from the bottom edge of the panel and work your way around, being cautious not to apply excessive force to avoid breaking the clips. The clips are designed to release with a firm but gentle pull. As you pry, you may hear a popping sound, which is normal and indicates the clips are releasing. Take your time to ensure all clips are disengaged before attempting to lift the panel away.
With the clips released, carefully lift the control panel upwards and away from the door card. Be mindful of any wiring connected to the back of the panel, particularly the window switch and possibly the mirror control wiring. These wires are typically connected via plugs, which can be disconnected by gently pressing the release tabs on the sides of the connectors and pulling them apart. It’s a good practice to take note of how the wires are routed to facilitate easier reassembly later.
After detaching the wiring, inspect the back of the control panel for any additional clips or fasteners that might have been missed. Sometimes, there are hidden clips or screws that require further prying or removal. Ensure all attachments are properly disconnected before setting the control panel aside. If you encounter resistance, double-check for any remaining screws or clips that might still be holding the panel in place.
Finally, with the window control panel fully detached, take a moment to clean both the panel and the area on the door card where it was attached. This is a good opportunity to inspect the panel for any damage or wear and to ensure all electrical connections are in good condition. Keeping track of the screws and clips during this process will make reinstallation much smoother. Now that the window control panel is removed, you can proceed with the next steps of door card removal or any necessary repairs.
Why Golfers Wear Gloves on One Hand: Unlocking the Grip Secret
You may want to see also
Explore related products
Releasing door card retaining clips
To successfully release the door card retaining clips on a Mk4 Golf, you’ll need to approach the task methodically. Start by gathering the necessary tools: a flathead screwdriver or a plastic trim removal tool. These tools are essential to avoid damaging the door card or the clips themselves. Position yourself comfortably in front of the door, ensuring you have enough space to work. The retaining clips are located around the perimeter of the door card, typically hidden behind the trim. Gently inspect the edges of the door card to identify where the clips are positioned, as this will guide your next steps.
Begin by locating the primary retaining clips along the bottom edge of the door card. Insert the flathead screwdriver or trim tool between the door card and the door frame, focusing on the lower corners. Apply gentle pressure to pry the door card outward slightly, which will disengage the clips. Work slowly and evenly, moving along the bottom edge to release each clip one by one. Avoid forcing the tool too deeply, as this could damage the clips or the door card’s mounting points. Once the bottom clips are released, you should notice the door card loosening slightly.
Next, move to the sides of the door card, where additional retaining clips are located. Use the same technique, inserting the tool carefully and prying outward to disengage the clips. Pay close attention to the area near the door handle and armrest, as these sections often have more clips to ensure a secure fit. Work your way around the perimeter, ensuring all side clips are released before proceeding. Be patient, as some clips may require more effort to disengage due to years of use or tight tolerances.
The top edge of the door card is the final area to address. Here, you’ll find clips that hold the card firmly against the door frame. Insert the tool gently along the top edge, starting from one corner and moving toward the other. Apply steady pressure to release the clips, being mindful of any wiring or controls (such as window switches) that may be connected. Once all the clips around the perimeter are disengaged, the door card should be free to lift upward and away from the door frame.
Finally, after releasing all the retaining clips, carefully lift the door card upward to detach it from the door. Be cautious of any wiring harnesses or connectors that may still be attached, such as those for the power windows or door speakers. If necessary, unplug these connectors gently to fully remove the door card. With all clips released and connections detached, you’ve successfully removed the door card, allowing access to the inner mechanisms of the door for repairs or upgrades.
Unveiling the Ownership: Who Controls Golf North's Operations?
You may want to see also
Explore related products
Safely lifting and removing the door card
When safely lifting and removing the door card on a Mk4 Golf, it's essential to approach the task methodically to avoid damaging the card or its components. Begin by ensuring the vehicle is parked on a flat surface and the window is fully rolled up to prevent any interference during the removal process. Gather the necessary tools, typically a trim removal tool or a flathead screwdriver (wrapped in tape to prevent scratching), and a small pry bar or another trim tool for leverage. These tools will help you carefully disengage the clips holding the door card in place without causing damage.
Start by locating the screws that secure the door card. These are usually found around the door handle, armrest, and underneath any covers or caps on the door card itself. Remove these screws carefully and set them aside in a safe place to avoid losing them. Once the screws are removed, inspect the perimeter of the door card for any additional clips or fasteners. Gently insert the trim removal tool between the door card and the door frame, starting from the bottom corner. Apply gentle pressure to disengage the clips, working your way around the door card in a systematic manner. Avoid forcing the tool, as this can break the clips or damage the door card.
As you work around the door card, you may encounter resistance near the lock mechanism or the window controls. In these areas, take extra care to avoid damaging any electrical connectors or mechanisms. If the door card feels stuck, double-check for any hidden screws or clips that may still be holding it in place. Once all clips are disengaged, carefully lift the door card upward and outward, starting from the bottom. Be mindful of any wiring connected to the door card, such as for the window switches or speakers. If there are connectors, gently disconnect them by pressing the release tabs before fully removing the door card.
To ensure safety and prevent damage, always support the door card with one hand while lifting it with the other. Once the door card is free, place it on a clean, soft surface to avoid scratches or dents. If you need to access components behind the door card, such as the window regulator or door handle mechanism, now is the time to do so. Reinstallation is the reverse of removal, but ensure all clips and screws are securely reattached before testing the door’s functionality.
Finally, take a moment to inspect the door card and its components for any signs of wear or damage. This is a good opportunity to clean the door card and lubricate any moving parts if necessary. By following these steps carefully, you can safely lift and remove the door card on your Mk4 Golf without causing harm to the vehicle or its interior components.
Meet the Manager: Renmark Golf Resort's Leadership Unveiled
You may want to see also
Frequently asked questions
You will need a flathead screwdriver, a trim removal tool, and a Torx screwdriver (T20 or T25 depending on the model).
Start by gently prying around the edges of the door card using a trim removal tool or flathead screwdriver. Work your way around the panel, releasing the clips one by one.
Yes, there are typically screws located at the bottom of the door card, near the door handle, and sometimes behind the interior door handle or armrest. Remove these before attempting to pry off the panel.
Once the door card is off, carefully unplug the connectors for the window and mirror controls by pressing the release tabs on the connectors and pulling them apart. Be gentle to avoid damaging the wires.
