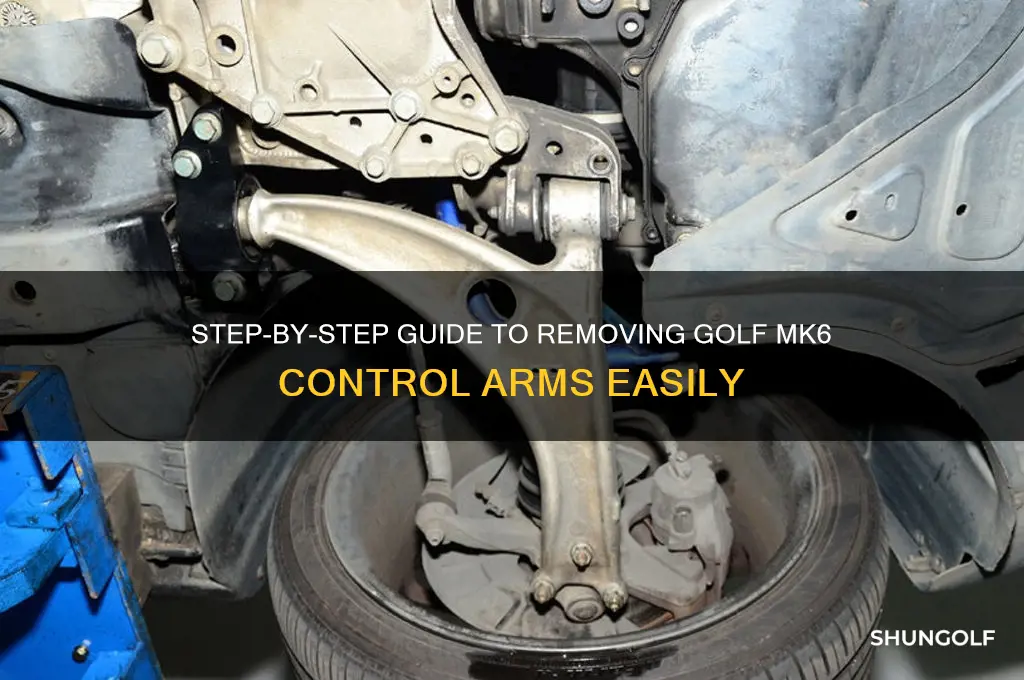

Removing the control arms on a Volkswagen Golf MK6 requires careful preparation and attention to detail to ensure safety and proper reassembly. Begin by securing the vehicle on a flat surface, engaging the parking brake, and using jack stands for stability. Gather the necessary tools, including a jack, wrenches, sockets, and a pry bar. Start by removing the wheels to access the control arms, then disconnect the sway bar links and ball joints using appropriate tools. Loosen and remove the bolts securing the control arms to the subframe, taking care not to damage surrounding components. Once detached, inspect the control arms for wear and replace them if necessary before reassembling the components in reverse order, ensuring all fasteners are tightened to the manufacturer’s specifications. Always consult the vehicle’s service manual for specific torque values and additional guidance.
| Characteristics | Values |
|---|---|
| Tools Required | Jack, Jack Stands, Wrenches (13mm, 16mm, 18mm), Ratchet, Sockets, Breaker Bar, Hammer |
| Difficulty Level | Intermediate |
| Time Required | 1-2 hours per control arm |
| Steps | 1. Lift the car and secure on jack stands. |
| 2. Remove the wheel for access. | |
| 3. Disconnect the sway bar link using a 16mm wrench or socket. | |
| 4. Remove the lower ball joint bolt (18mm) and separate the ball joint from the steering knuckle. | |
| 5. Remove the two control arm mounting bolts (18mm) from the subframe. | |
| 6. Lower the control arm and remove it from the vehicle. | |
| Common Issues | Rusted bolts, seized components requiring penetrating oil or heat. |
| Safety Precautions | Ensure the car is securely lifted and supported before working underneath. |
| Replacement Parts | New control arms, ball joints, bushings, and hardware if necessary. |
| Alignment Required | Yes, after control arm replacement. |
| Additional Tips | Use a breaker bar for stubborn bolts and a hammer to tap out the ball joint if stuck. |
Explore related products
What You'll Learn
- Gather necessary tools: jack, stands, wrenches, sockets, new control arms, and suspension components
- Safely lift the vehicle and secure it on stands for access
- Remove wheel and loosen suspension components for control arm access
- Detach ball joint and bushings, then unbolt the control arm
- Install new control arm, torque bolts, and reassemble suspension components properly
Gather necessary tools: jack, stands, wrenches, sockets, new control arms, and suspension components
Before diving into the process of removing the control arms on your Golf MK6, it's essential to gather all the necessary tools to ensure a smooth and efficient job. Start by acquiring a high-quality hydraulic jack and a set of sturdy jack stands. These will be crucial for safely lifting and supporting the vehicle, providing you with the necessary clearance to access the control arms. Make sure the jack stands are rated to handle the weight of your car and that they are placed on a level surface to prevent any accidents.
Next, you'll need a comprehensive set of wrenches and sockets to tackle the various bolts and nuts securing the control arms. This includes both metric and standard sizes, as Volkswagen vehicles often use a mix of both. A 1/2-inch drive ratchet and socket set with extensions will be particularly useful for reaching tight spaces. Don't forget to include a torque wrench in your toolkit, as it will be essential for reinstalling the new control arms and suspension components to the manufacturer's specified torque settings.
In addition to the wrenches and sockets, you'll require a few specialized tools to facilitate the removal process. A ball joint splitter or pickle fork will be necessary to separate the ball joints from the steering knuckles, while a pry bar can help with maneuvering components into place. If your MK6 has anti-roll bar links attached to the control arms, you'll also need a suitable tool to remove these, such as a dedicated anti-roll bar link removal tool or a pair of pliers.
The most critical components you'll need are, of course, the new control arms and associated suspension parts. Ensure you have the correct replacement control arms for your Golf MK6, whether they are OEM (Original Equipment Manufacturer) parts or aftermarket upgrades. Inspect the new control arms for any defects or damage before installation. Along with the control arms, gather any additional suspension components you plan to replace, such as bushings, ball joints, or tie rod ends, to take advantage of the disassembly process and save time in the long run.
Lastly, consider having a few miscellaneous items on hand to make the job more manageable. This includes gloves to protect your hands, a clean workspace or tarp to lay out parts, and a parts cleaning solution to degrease and prepare the new components for installation. With all these tools and parts assembled, you'll be well-prepared to tackle the control arm removal process on your Golf MK6, ensuring a safe and successful outcome.
Golfing Fun: One Round Explained
You may want to see also
Explore related products
Safely lift the vehicle and secure it on stands for access
To safely lift your Volkswagen Golf Mk6 and secure it on stands for access to the control arms, start by parking the vehicle on a flat, stable surface. Engage the parking brake and ensure the transmission is in gear (for manual transmissions) or in "Park" (for automatics). Gather the necessary equipment, including a hydraulic floor jack, jack stands, wheel chocks, and possibly a rubber mallet or pry bar. Position the wheel chocks behind the rear wheels to prevent the vehicle from rolling.
Next, locate the proper lifting points on the vehicle. For the Golf Mk6, these are typically found along the rocker panels, just behind the front wheels and ahead of the rear wheels. Align the hydraulic jack with one of these lifting points, ensuring it makes firm contact with the designated spot. Slowly raise the vehicle until the wheels are off the ground, but do not place your full trust in the jack alone at this stage.
Once the vehicle is lifted, position the jack stands under the lifting points. Adjust the height of the stands so they are just below the lifting points but not yet supporting the vehicle. Carefully lower the jack slightly to allow the stands to take the weight of the car. Double-check that the stands are securely in place and bearing the load. Remove the jack from beneath the vehicle to ensure it is no longer a factor in the support system.
Repeat the process for the other side of the vehicle, ensuring both sides are securely supported on jack stands. Wiggle the vehicle gently to confirm stability and make any necessary adjustments. With the vehicle safely lifted and secured, you can now remove the wheels for better access to the control arms. Always prioritize safety and avoid working under the vehicle unless it is securely supported on stands.
Finally, before proceeding with the control arm removal, inspect the area around the suspension components to familiarize yourself with the layout. Ensure all tools and equipment are within reach to minimize movement under the vehicle. By following these steps, you create a safe and stable environment to work on the Golf Mk6's control arms, reducing the risk of accidents or injuries during the process.
The Perfect Golf Tee Height: A Step-by-Step Guide
You may want to see also
Explore related products
Remove wheel and loosen suspension components for control arm access
To begin the process of removing the control arms on a Golf MK6, the first step is to remove the wheel for better access to the suspension components. Start by securely lifting the vehicle using a jack and supporting it on a jack stand. Ensure the car is stable and safely positioned before proceeding. Once the vehicle is lifted, remove the wheel by loosening the lug nuts with a torque wrench, then carefully pull the wheel away from the hub and set it aside. This will expose the brake caliper, rotor, and the surrounding suspension components, allowing you to work more efficiently on the control arm removal.
With the wheel removed, the next step is to loosen the suspension components that are connected to or near the control arm. Begin by locating the brake caliper and carefully remove it from the brake rotor. This is typically done by unbolting the caliper mounting bolts using a socket wrench. After removing the caliper, secure it out of the way using a bungee cord or wire to prevent strain on the brake line. Next, remove the brake rotor by pulling it off the hub, which may require gentle tapping with a mallet if it is stuck due to rust or debris.
After addressing the brake components, focus on the suspension elements directly attached to the control arm. Locate the sway bar link that connects the sway bar to the control arm and remove it by unbolting the sway bar link bolt. Use a socket wrench or appropriate tool to loosen and remove the bolt, then detach the link from the control arm. This step is crucial as it frees up the control arm and allows for easier movement during the removal process.
Proceed to loosen the ball joint that connects the control arm to the steering knuckle. This is done by removing the bolt that secures the ball joint to the knuckle. Use a ball joint splitter or pickle fork to separate the ball joint if it is tightly seated. Be cautious during this step to avoid damaging the ball joint boot or surrounding components. Once the ball joint is separated, the control arm will have more freedom to move, providing better access for removal.
Finally, address the control arm’s connection to the subframe. Locate the bolts that secure the control arm to the subframe bushings and loosen them using a socket wrench. These bolts are typically located on the front and rear of the control arm where it mounts to the subframe. Loosen these bolts but do not remove them completely yet, as the control arm still needs to be fully detached from other components before it can be fully removed. At this stage, the suspension components have been sufficiently loosened to allow for control arm access and eventual removal.
Golfing Like a Pro: Understanding the Professional Golfing World
You may want to see also
Explore related products
Detach ball joint and bushings, then unbolt the control arm
To begin the process of detaching the ball joint and bushings, and subsequently unbolting the control arm on a Golf MK6, you'll need to start by securely raising the vehicle and removing the wheels for better access. With the car safely supported on jack stands, locate the control arm assembly, which connects the wheel hub to the chassis. The ball joint and bushings are integral components of this assembly, providing pivotal movement and stability. Using a suitable socket or wrench, loosen and remove the nut that secures the ball joint to the steering knuckle. It's crucial to apply steady pressure and ensure the nut is completely removed before proceeding.
Next, focus on separating the ball joint from the steering knuckle. This can often be achieved by using a ball joint splitter or pickle fork, which should be carefully inserted between the ball joint and the knuckle. Apply force gradually to avoid damaging surrounding components. Once the ball joint is detached, shift your attention to the control arm bushings. These are typically pressed into the control arm and chassis, requiring a bushing removal tool or press to extract them safely. Ensure you have the correct tools to avoid harming the bushings or their mounting points.
With the ball joint and bushings successfully detached, you can now focus on unbolting the control arm itself. Identify the bolts that secure the control arm to the subframe or chassis, usually located at the front and rear of the arm. Use the appropriate-sized socket or wrench to loosen and remove these bolts, keeping in mind that they may be tightly secured due to corrosion or thread-locking compounds. It’s advisable to spray penetrating oil on the bolts beforehand to ease removal.
As you remove the control arm bolts, be prepared to support the weight of the assembly, as it will no longer be securely fastened to the vehicle. Once all bolts are removed, carefully lower the control arm, ensuring no components are caught or damaged during the process. Take this opportunity to inspect the removed parts for wear or damage, as this is an ideal time to replace any worn components before reassembly.
Finally, with the control arm unbolted and removed, you’ve successfully completed the detachment of the ball joint, bushings, and control arm. This step-by-step approach ensures a systematic and safe removal process, setting the stage for either further inspection, repair, or replacement of the control arm assembly on your Golf MK6. Always prioritize safety and precision when working on suspension components to maintain the vehicle’s handling and stability.
Who Foots the Bill? Uncovering Golf Prize Funding Sources
You may want to see also
Explore related products
Install new control arm, torque bolts, and reassemble suspension components properly
Before installing the new control arm, ensure the replacement part is compatible with your Volkswagen Golf Mk6. Begin by positioning the new control arm into the vehicle, aligning it with the mounting points on the subframe. Carefully insert the control arm bushings into their respective locations, ensuring they are seated correctly to avoid any misalignment issues. Once the control arm is in place, secure it temporarily with the mounting bolts, but do not tighten them fully at this stage. This allows for adjustments during the reassembly process.
With the control arm loosely fitted, proceed to reattach the suspension components. Start by reconnecting the sway bar link, ensuring it is securely fastened to the control arm. Next, reinstall the strut assembly, making sure it is properly aligned and attached to both the control arm and the steering knuckle. Double-check that all components are correctly positioned to ensure optimal suspension performance and safety.
Now, focus on torquing the bolts to the manufacturer’s specifications. Using a torque wrench, tighten the control arm mounting bolts in a diagonal pattern to ensure even pressure distribution. Refer to the Golf Mk6 service manual for the exact torque values, typically around 70-80 Nm for the control arm bolts. After torquing the control arm bolts, move on to the sway bar link and strut assembly bolts, tightening them to their respective torque specifications as well.
Reassemble any remaining suspension components, such as the brake caliper and rotor, ensuring they are securely attached and aligned. Reconnect the wheel speed sensor and any other electrical connectors that were removed during the disassembly process. Once all components are reassembled, lower the vehicle from the jack stands and tighten the lug nuts on the wheel to the recommended torque.
Finally, perform a thorough inspection of the suspension system. Check for any signs of leakage, loose bolts, or misalignment. Test the suspension by bouncing the car to ensure it settles correctly. Take the vehicle for a short test drive to verify that there are no unusual noises or vibrations. Proper installation and torquing of the control arm and suspension components are crucial for maintaining the handling, safety, and longevity of your Golf Mk6.
Golfing Kims: Are They Related?
You may want to see also
Frequently asked questions
You will need a jack and jack stands, a torque wrench, a socket set, a ball joint splitter or pickle fork, a hammer, and penetrating oil to loosen stubborn bolts.
No, you can remove the control arms individually by disconnecting the ball joints, sway bar links, and bolts holding the control arm to the subframe.
Ensure the vehicle is securely supported on jack stands, use penetrating oil to loosen rusted bolts, and avoid damaging the ball joints or bushings during removal. Always torque the bolts to the manufacturer’s specifications during reinstallation.
