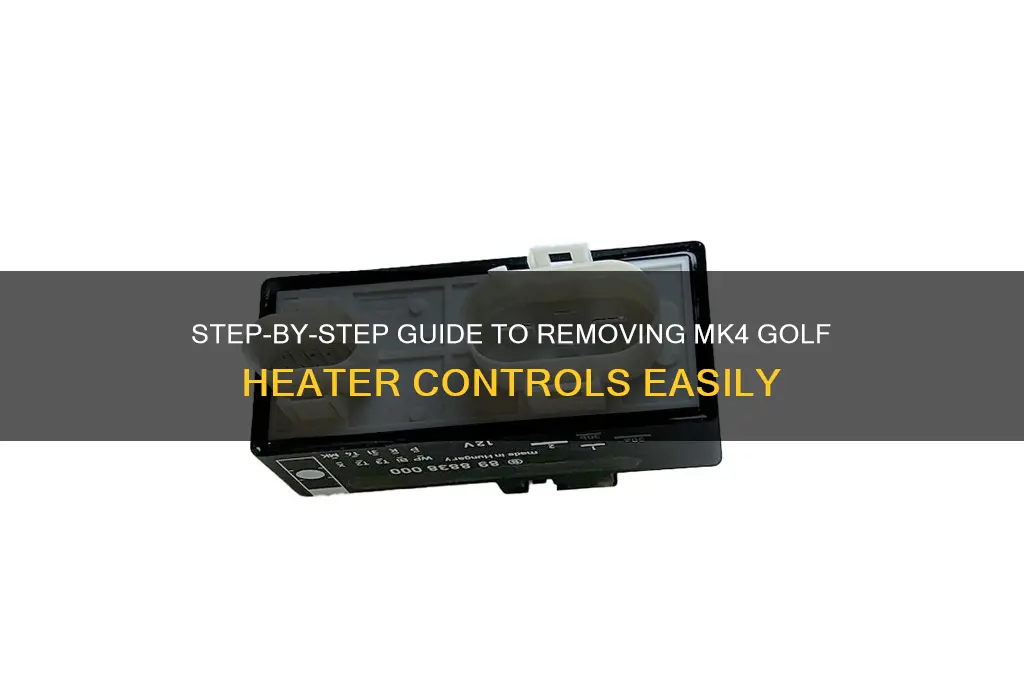

Removing the heater controls from a Mk4 Golf requires careful attention to detail and the right tools. Start by disconnecting the car’s battery to ensure safety and prevent electrical mishaps. Next, gently pry off the trim panel surrounding the heater controls using a trim removal tool to avoid damaging the interior. Once the panel is removed, locate and detach the electrical connectors attached to the heater control unit. Depending on the model, you may need to unscrew a few retaining screws holding the unit in place. After freeing the unit, carefully pull it out, ensuring no wires are caught or damaged. Always refer to a repair manual or seek guidance if you’re unsure about any step.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver (flathead and Phillips), Trim removal tool, Pliers (optional) |
| Difficulty Level | Moderate |
| Time Required | 30-45 minutes |
| Steps to Remove | 1. Pry off the trim panel surrounding the heater controls using a trim removal tool. 2. Remove screws holding the control panel in place. 3. Disconnect electrical connectors carefully. 4. Lift the control panel out gently. |
| Common Issues | Broken clips, stuck screws, damaged trim panels |
| Precautions | Avoid forcing components, use appropriate tools to prevent damage |
| Reinstallation Tips | Ensure all connectors are securely attached before reinstalling |
| Compatibility | Applies to Volkswagen MK4 Golf models (1998-2006) |
| Additional Notes | Some models may have slight variations in panel design or screw placement |
| Recommended Resources | Online forums, YouTube tutorials, VW service manuals |
Explore related products
What You'll Learn
- Tools Required: Gather screwdrivers, trim removal tools, and a new control unit if replacing
- Dashboard Disassembly: Remove vents, screws, and trim panels carefully to access controls
- Control Unit Removal: Disconnect wiring harness and unscrew the heater control module
- Cleaning or Repair: Inspect for damage, clean contacts, or replace faulty components as needed
- Reassembly Tips: Reinstall panels, secure screws, and test functionality before finalizing assembly
Tools Required: Gather screwdrivers, trim removal tools, and a new control unit if replacing
When preparing to remove the heater controls from a Mk4 Golf, the first step is to gather the necessary tools. You will need a set of screwdrivers, specifically a Phillips head and a flathead, to remove the screws securing the control panel. Ensure the screwdrivers are the correct size to avoid stripping the screws, which can complicate the process. Additionally, having a magnetic screwdriver can be helpful for retrieving screws from tight spaces. These tools are essential for accessing the heater controls without causing damage to the surrounding components.
Next, trim removal tools are crucial for safely prying off the trim panels around the heater controls. These tools are designed to minimize the risk of scratching or breaking the plastic trim pieces. A standard trim removal kit typically includes various prying tools with different shapes and sizes, allowing you to apply the right amount of force in the correct areas. Using these tools instead of improvised items like butter knives or screwdrivers will protect the interior of your Golf and make the process smoother.
If you are replacing the heater control unit, it is imperative to have the new control unit ready before beginning the removal process. Ensure the replacement unit is compatible with your Mk4 Golf model to avoid installation issues. Having the new unit on hand allows you to immediately install it once the old one is removed, minimizing the time your vehicle is without functional heater controls. Double-check that the replacement unit includes all necessary components, such as knobs and buttons, to ensure full functionality.
Organizing your workspace with all the required tools and the replacement unit (if applicable) will streamline the removal process. Lay out the screwdrivers and trim removal tools within easy reach to avoid interruptions. If replacing the unit, place the new control unit nearby for quick access once the old one is removed. Proper preparation ensures that you can focus on the task at hand without delays, making the removal and replacement of the Mk4 Golf heater controls a more efficient and frustration-free experience.
Lastly, consider using a container or tray to keep track of screws and small components as you disassemble the heater control area. This simple addition to your toolkit helps prevent losing parts and makes reassembly easier. By having all tools and the replacement unit organized and ready, you’ll be well-prepared to tackle the removal of the Mk4 Golf heater controls with confidence and precision.
