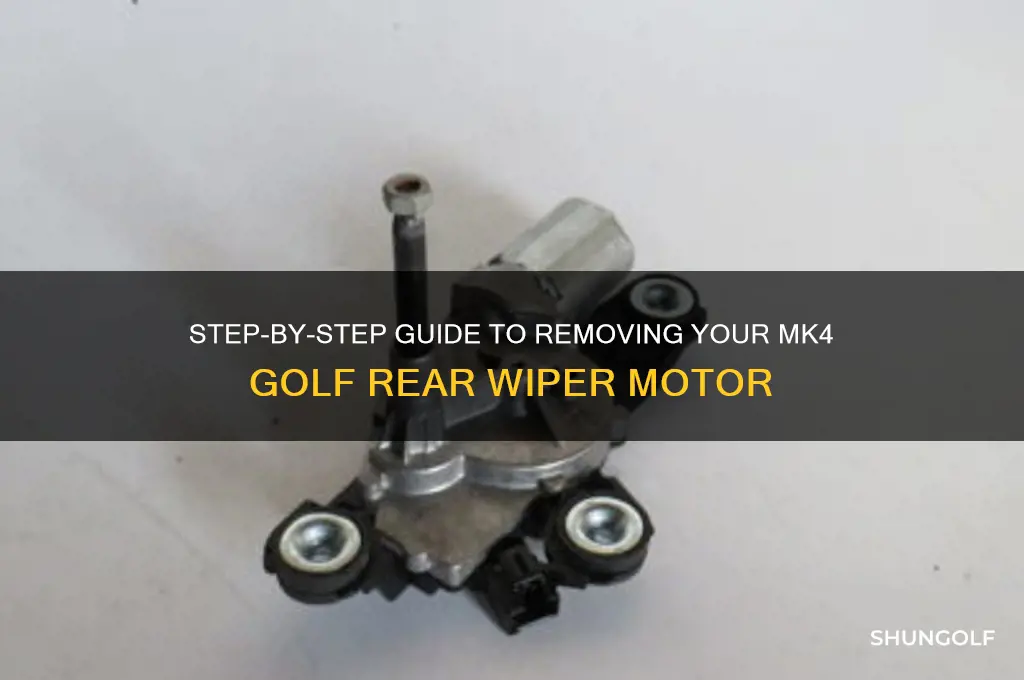

Removing the rear wiper motor on a Mk4 Golf is a straightforward task that requires basic tools and some patience. The process begins with accessing the motor, which is located beneath the rear spoiler. Start by removing the rear wiper arm and the plastic cover that conceals the motor assembly. Once exposed, disconnect the electrical connector and remove the mounting bolts securing the motor to the tailgate. Carefully pull the motor out, ensuring not to damage any surrounding components. This procedure is essential for troubleshooting wiper issues, replacing a faulty motor, or performing maintenance on the rear wiper system.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver (flathead or Phillips), trim removal tool, socket wrench set |
| Difficulty Level | Moderate |
| Time Required | 30-60 minutes |
| Steps | 1. Remove rear wiper arm 2. Access the tailgate panel 3. Disconnect the wiper motor connector 4. Remove mounting bolts 5. Extract the motor |
| Wiper Arm Removal | Use a flathead screwdriver to lift the wiper arm cap and pull the arm off |
| Tailgate Panel Access | Pry off the interior tailgate panel using a trim removal tool |
| Connector Disconnection | Unplug the electrical connector from the wiper motor |
| Mounting Bolts | Typically 2-3 bolts securing the motor to the tailgate |
| Motor Extraction | Pull the motor out gently after all bolts are removed |
| Common Issues | Stuck bolts, damaged panel clips, or a seized motor |
| Safety Precautions | Disconnect the car battery before working on electrical components |
| Replacement Tips | Ensure the new motor aligns properly with the mounting holes |
| Compatibility | Specific to VW MK4 Golf models (1998-2006) |
Explore related products
What You'll Learn
Disconnecting the Wiper Motor Electrical Connector
To begin the process of disconnecting the wiper motor electrical connector on a MK4 Golf, you'll need to locate the connector itself. The rear wiper motor is typically situated near the top of the rear window, and the electrical connector is attached to the motor via a small plug. This connector is responsible for supplying power to the wiper motor, allowing it to function. Before attempting to disconnect the connector, ensure that the vehicle's ignition is turned off to prevent any accidental activation of the wiper system. It's also a good idea to wear protective gloves to avoid any sharp edges or debris in the work area.
Once you've located the electrical connector, carefully inspect it to identify any locking mechanisms or tabs that may be securing it in place. Some connectors may have a small lever or clip that needs to be depressed or released to allow for disconnection. Gently manipulate these mechanisms, being careful not to damage any surrounding components. If the connector appears to be stuck or difficult to remove, try gently wiggling it back and forth while applying slight outward pressure. Avoid using excessive force, as this may damage the connector or its wiring harness.
With the locking mechanisms released, you should now be able to gently pull the electrical connector away from the wiper motor. Be mindful of the wiring harness, ensuring that it's not being strained or pulled excessively during this process. In some cases, the connector may be secured with a small screw or bolt, which will need to be removed before disconnection. If this is the case, use the appropriate tool to carefully remove the fastener, taking care not to strip or damage the threads. Once the connector is free, set it aside in a safe place, ensuring that the wiring harness is not being pinched or damaged.
As you disconnect the electrical connector, take a moment to inspect the wiring harness for any signs of damage, corrosion, or wear. Look for frayed wires, cracked insulation, or other issues that may affect the performance of the wiper system. If any problems are detected, it's essential to address them before reinstalling the connector or proceeding with the wiper motor removal. Additionally, consider taking a photo or making a note of the connector's orientation and positioning to facilitate easier reinstallation later on.
After successfully disconnecting the wiper motor electrical connector, you may need to secure the wiring harness to prevent it from interfering with other components or becoming damaged during the remainder of the removal process. Use a piece of tape or a small tie to gently secure the harness to a nearby surface, ensuring that it's not being pinched or strained. With the connector disconnected and the wiring harness secured, you're now one step closer to removing the rear wiper motor from your MK4 Golf. Remember to exercise caution and patience throughout this process, as working with electrical components requires a delicate touch to avoid causing any unintended damage.
