Miles Bennett

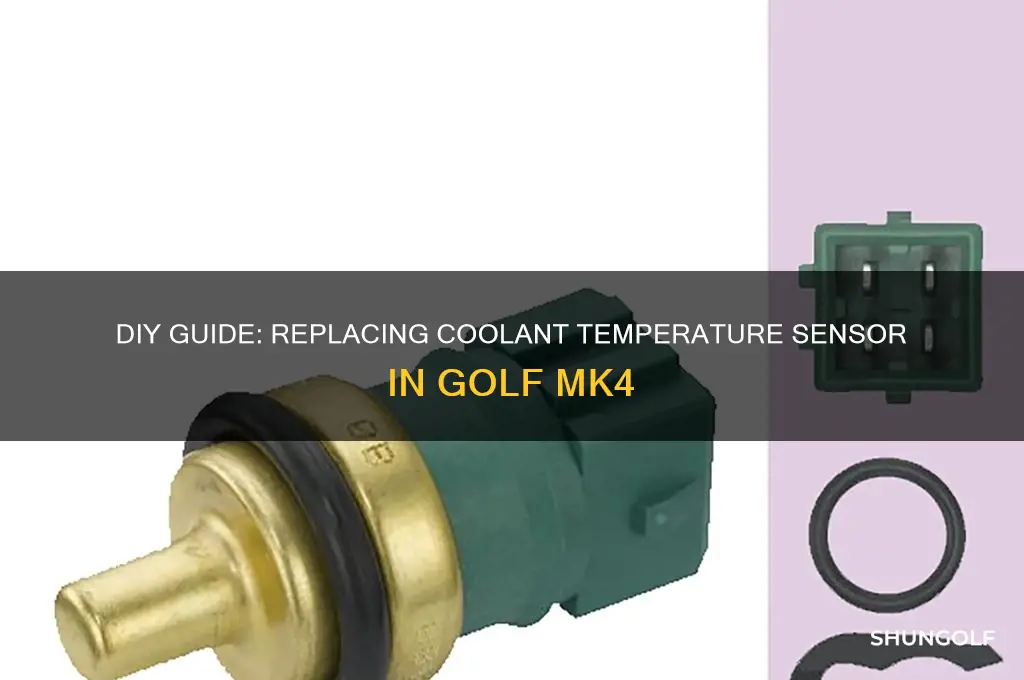

Replacing the coolant temperature sensor in a Volkswagen Golf Mk4 is a straightforward task that can help resolve issues such as inaccurate temperature readings, poor engine performance, or check engine lights. The sensor, typically located near the thermostat housing or on the engine block, monitors the coolant temperature to ensure optimal engine operation. To replace it, you’ll need basic tools like a socket wrench, pliers, and a new sensor compatible with your vehicle. Start by locating the sensor, disconnecting the wiring harness, and carefully removing the old sensor. Clean the mounting area, install the new sensor, and reattach the wiring harness. Finally, refill the coolant and start the engine to verify the repair. This DIY task can save you time and money while ensuring your Golf Mk4 runs efficiently.
| Characteristics | Values |
|---|---|
| Vehicle Model | Volkswagen Golf Mk4 |
| Sensor Location | Near the thermostat housing or on the coolant hose |
| Tools Required | Socket wrench, pliers, screwdriver, new coolant temperature sensor |
| Coolant Drainage | Optional, but recommended to avoid spillage |
| Sensor Removal | Disconnect wiring harness, unscrew sensor using socket wrench |
| Sensor Installation | Insert new sensor, tighten securely, reconnect wiring harness |
| Coolant Refill | Refill coolant if drained, check for leaks |
| Difficulty Level | Moderate (basic mechanical skills required) |
| Estimated Time | 30-60 minutes |
| Common Symptoms of Faulty Sensor | Engine overheating, poor fuel efficiency, check engine light |
| Replacement Part | Coolant temperature sensor compatible with Golf Mk4 |
| Safety Precautions | Allow engine to cool, wear safety gloves |
| Post-Replacement Check | Start engine, check for leaks, monitor temperature gauge |
Explore related products
What You'll Learn
- Locate the Sensor: Identify the coolant temperature sensor's position in the Golf MK4 engine bay
- Disconnect the Wiring: Safely unplug the electrical connector from the sensor
- Remove Old Sensor: Use the appropriate tool to unscrew and remove the faulty sensor
- Install New Sensor: Screw in the replacement sensor, ensuring it’s tight and properly seated
- Reconnect and Test: Reattach the wiring, start the car, and verify sensor functionality
Locate the Sensor: Identify the coolant temperature sensor's position in the Golf MK4 engine bay
Locating the coolant temperature sensor in a Volkswagen Golf MK4 is a crucial first step in the replacement process. The sensor is typically situated near the thermostat housing, which is a common placement in many vehicles. To begin, open the hood of your Golf MK4 and familiarize yourself with the engine layout. The coolant temperature sensor is usually found on the driver's side of the engine bay, close to the firewall. This sensor is responsible for monitoring the engine's coolant temperature and sending this data to the engine control unit (ECU), making its position both accessible and vital.
The exact location can vary slightly depending on the engine type, but for most Golf MK4 models, the sensor is positioned on the coolant pipe that runs from the thermostat housing to the radiator. It is often secured with a single bolt or clip, making it relatively easy to spot once you know where to look. A helpful tip is to follow the coolant hoses from the radiator to the engine; the sensor will be on one of these hoses, typically near where the hose connects to the engine block. This visual tracing of the coolant system can guide you directly to the sensor.
For a more precise identification, refer to the vehicle's service manual or online resources specific to your Golf MK4's engine model. These resources often provide diagrams or images highlighting the sensor's exact location. In some cases, the sensor might be slightly obscured by other components, so a mirror or a bright light can be useful tools to get a clear view of the area. Once you've located the sensor, take note of its orientation and how it is mounted, as this will be important when installing the new one.
It's worth mentioning that the coolant temperature sensor in the Golf MK4 is designed to be serviceable, meaning it can be replaced without removing major engine components. This accessibility is a benefit for DIY enthusiasts and mechanics alike. However, due to its proximity to hot engine parts, it's advisable to let the engine cool down before attempting to locate or replace the sensor to avoid any risk of burns or discomfort.
Before proceeding with the replacement, ensure you have the correct replacement sensor for your specific Golf MK4 model. Different engines may use slightly different sensors, so compatibility is key to a successful repair. With the sensor located and the necessary tools and parts at hand, you're now ready to move on to the removal and installation process, ensuring your Golf MK4's cooling system functions optimally.
Prevent Shoulder Drop in Golf: Essential Practice Tips for Better Posture
You may want to see also
Explore related products
Disconnect the Wiring: Safely unplug the electrical connector from the sensor
Before attempting to disconnect the wiring of the coolant temperature sensor on your Golf Mk4, ensure the engine is cool to avoid any risk of burns. Locate the sensor, typically found near the thermostat housing or on the engine block, depending on your specific model. The electrical connector attached to the sensor is usually a small plug with a wire harness leading away from it. Take a moment to inspect the connector for any signs of damage or corrosion, as this might affect the reconnection process later.
To safely unplug the electrical connector, start by identifying the locking mechanism that secures it to the sensor. Most connectors have a small tab or clip that needs to be released before the connector can be removed. Gently press or lift this tab using a small screwdriver or your fingers, being careful not to apply excessive force that could break the clip or damage the connector. If the tab is difficult to access, consider using a pair of long-nose pliers with insulated handles to avoid accidental shorts.
Once the locking mechanism is disengaged, carefully pull the connector straight away from the sensor. Avoid pulling on the wires themselves, as this can cause damage to the wiring harness. If the connector feels stuck, double-check that the locking tab is fully released and try again. Some connectors may require a slight wiggle or twist as you pull to free them, but be gentle to prevent any internal damage.
After the connector is unplugged, inspect both the connector and the sensor terminal for any debris or corrosion. If present, clean the terminal with a small wire brush or electrical contact cleaner to ensure a good connection when the new sensor is installed. Additionally, consider wrapping the disconnected wiring harness with a piece of tape or a plastic bag to keep it clean and prevent it from accidentally getting in the way during the replacement process.
Finally, take note of the connector’s orientation or take a quick photo before fully removing it, as this can serve as a reference when reconnecting the new sensor. Properly disconnecting the wiring is a critical step in replacing the coolant temperature sensor, ensuring a smooth and successful installation without causing any electrical issues or damage to your Golf Mk4’s engine management system.
Golf Shop USA: Legit or a Scam?
You may want to see also
Explore related products
Remove Old Sensor: Use the appropriate tool to unscrew and remove the faulty sensor
Before attempting to remove the old coolant temperature sensor from your Golf Mk4, ensure the engine is cool to avoid any risk of burns. Locate the sensor, which is typically found near the thermostat housing or on the cylinder head, depending on your engine model. It’s a small cylindrical component with an electrical connector attached. Once identified, disconnect the electrical connector by pressing the tab on the connector and pulling it gently away from the sensor. Be careful not to damage the wiring harness during this step.
With the connector removed, you’ll need the appropriate tool to unscrew the sensor. The coolant temperature sensor is usually secured with a threaded fitting, and a deep well socket or a wrench of the correct size (often 19mm or 22mm, but verify for your specific vehicle) will be required. Place the tool over the sensor and turn it counterclockwise to loosen it. Apply steady pressure, as the sensor may be tight due to corrosion or years of exposure to engine heat. If it’s difficult to turn by hand, use a breaker bar or a longer wrench for additional leverage.
As you unscrew the sensor, be prepared for a small amount of coolant to leak out, so have a drain pan or rag ready to catch any spillage. Once the sensor is loose, carefully remove it by hand, ensuring not to drop it into the engine bay. Inspect the sensor’s seating area for any signs of damage, debris, or old gasket material. If present, clean the area thoroughly using a suitable cleaning agent and a lint-free cloth to ensure a proper seal for the new sensor.
If the sensor is stubborn and won’t budge, avoid forcing it, as this could damage the threads in the engine block. Instead, apply a penetrating oil or lubricant around the sensor’s base and let it sit for 15-20 minutes before attempting to remove it again. If it still refuses to come out, consult a professional mechanic to prevent further complications. Proper removal is crucial to avoid stripping the threads or causing internal damage.
Once the old sensor is successfully removed, take a moment to compare it with the new one to ensure they are identical in size and design. This step confirms you have the correct replacement part and prepares you for the installation process. With the old sensor out and the area cleaned, you’re now ready to proceed with installing the new coolant temperature sensor.
Unveiling Sentry: The Prominent Sponsor Behind Professional Golf Tournaments
You may want to see also
Explore related products
Install New Sensor: Screw in the replacement sensor, ensuring it’s tight and properly seated
Before installing the new coolant temperature sensor, ensure the engine is cool to avoid any risk of burns. Locate the sensor’s position on your Golf Mk4, typically found near the thermostat housing or on the cylinder head. Once you’ve identified the correct spot, take the replacement sensor and align it carefully with the threaded hole. The sensor should match the orientation of the original one, ensuring the electrical connector faces the correct direction for easy access to the wiring harness.
With the sensor aligned, begin screwing it into the threaded hole by hand. This initial threading by hand ensures that the sensor starts straight and avoids cross-threading, which could damage the threads or the sensor itself. Turn the sensor clockwise, gently applying pressure until you feel it catch and begin to thread properly. If the sensor doesn’t start easily, double-check its alignment and orientation before proceeding.
Once the sensor is hand-tight, use a wrench or socket of the appropriate size to tighten it securely. Apply firm, steady pressure but avoid over-tightening, as this can strip the threads or damage the sensor. A good rule of thumb is to tighten it until it feels snug, then give it an additional quarter to half turn to ensure it’s properly seated. Be mindful of the sensor’s material, as some are made of plastic or softer metals that can be easily damaged if excessive force is applied.
After tightening the sensor, ensure it is seated flush against the engine block or housing. There should be no gaps or visible misalignment. If the sensor has an O-ring or gasket, verify that it is properly compressed and sealing the connection to prevent coolant leaks. A properly seated sensor will not only function correctly but also maintain the integrity of the cooling system.
Finally, reconnect the electrical connector to the new sensor, ensuring it clicks securely into place. Double-check that the wiring harness is not strained or bent in a way that could cause damage over time. With the sensor installed and connected, you’re ready to proceed with refilling the coolant and testing the system. Always refer to your Golf Mk4’s service manual for specific torque specifications or additional steps if needed.
Golf Gear Guide: Are Nike Pullovers Waterproof?
You may want to see also
Explore related products
Reconnect and Test: Reattach the wiring, start the car, and verify sensor functionality
Once you’ve successfully replaced the coolant temperature sensor on your Golf Mk4, the next critical step is to reconnect and test the system to ensure everything is functioning correctly. Begin by carefully reattaching the wiring harness to the new sensor. Ensure the connector clicks securely into place, as a loose connection can lead to inaccurate readings or sensor failure. Double-check that the wiring is aligned properly and that no pins are bent or damaged. If the sensor has a locking mechanism, make sure it is engaged to prevent accidental disconnection.
With the wiring securely reattached, proceed to start the car. Allow the engine to idle for a few minutes to let the coolant circulate and the sensor to begin registering the temperature. During this time, observe the engine for any signs of leaks around the sensor, as even a small coolant leak can lead to overheating or other issues. If everything appears secure, move on to verifying the sensor’s functionality.
To test the sensor, you’ll need to monitor the coolant temperature reading. If your Golf Mk4 has a temperature gauge on the dashboard, observe it as the engine warms up. The gauge should gradually rise to the normal operating temperature, typically between 85°C and 95°C (185°F to 203°F). If the gauge remains low or doesn’t move at all, the sensor may not be functioning correctly. Alternatively, if you have access to an OBD-II scanner or diagnostic tool, connect it to the vehicle and check the live data for the coolant temperature sensor reading. Compare this reading to the actual engine temperature to ensure accuracy.
Another way to verify functionality is to check for error codes. Turn off the engine, connect the OBD-II scanner, and scan for any trouble codes related to the coolant temperature sensor (e.g., P0118 or P0117). If no codes are present and the temperature readings are consistent, the sensor is likely working as intended. However, if codes appear or the readings are erratic, you may need to recheck the wiring connections or consider that the new sensor could be faulty.
Finally, take the car for a short test drive to ensure the sensor performs under varying conditions. Pay attention to the temperature gauge and how the engine responds during acceleration and idling. If the gauge remains stable and the engine runs smoothly, you’ve successfully replaced and tested the coolant temperature sensor. Always monitor the vehicle’s performance over the next few days to confirm there are no lingering issues.
Leaving the Pin In: Pro Golf's Controversial Practice Explored
You may want to see also
Frequently asked questions
You will need a flathead screwdriver or a small pry tool to remove the sensor, a new coolant temperature sensor, and possibly a torque wrench or socket wrench to ensure proper tightening.
The coolant temperature sensor is typically located near the thermostat housing or on the engine block, often close to the radiator hoses. Refer to your vehicle’s manual for the exact location.
It’s recommended to drain some coolant to avoid spillage, as removing the sensor may release a small amount of coolant. Place a drain pan underneath to catch any fluid.
