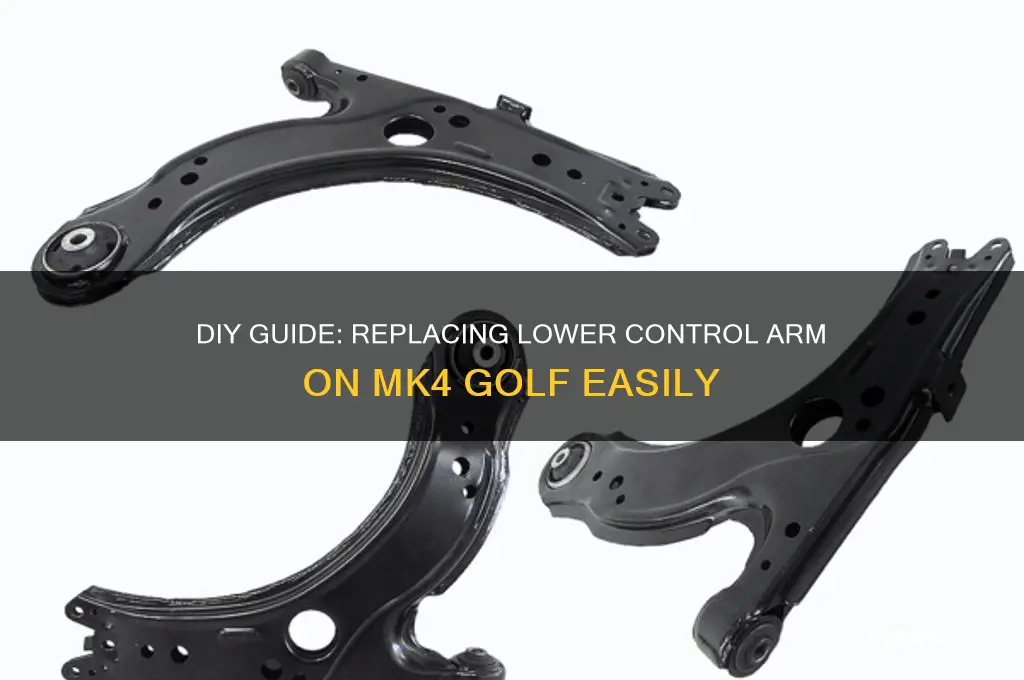

Replacing the lower control arm on a Mk4 Volkswagen Golf is a critical maintenance task that ensures optimal handling, safety, and suspension performance. Over time, the control arm can wear out due to factors like corrosion, bushings deterioration, or damage from potholes, leading to symptoms such as uneven tire wear, clunking noises, or compromised steering. This process involves safely lifting the vehicle, removing the wheel, disconnecting the ball joint and sway bar link, and carefully unbolting the control arm from the subframe. Proper tools, such as a ball joint splitter and torque wrench, are essential to ensure accurate installation and alignment. Following a step-by-step guide and considering professional assistance for complex steps can help restore the Golf’s suspension system to factory standards.
| Characteristics | Values |
|---|---|
| Vehicle Model | Volkswagen Golf Mk4 |
| Part to Replace | Lower Control Arm |
| Tools Required | Jack, Jack Stands, Wrench Set, Socket Set, Ball Joint Splitter, Hammer |
| Difficulty Level | Intermediate to Advanced |
| Estimated Time | 2-4 hours per side |
| Safety Precautions | Wear safety gloves, ensure vehicle is securely lifted on jack stands |
| Steps Involved | 1. Lift the vehicle and secure on stands 2. Remove the wheel 3. Disconnect the sway bar link 4. Remove the ball joint and control arm bolts 5. Install the new control arm 6. Reassemble and torque to specs 7. Lower the vehicle and test drive |
| Common Issues | Worn bushings, ball joint failure, rusted components |
| Replacement Part Compatibility | Ensure compatibility with Mk4 Golf (check year and engine variant) |
| Torque Specifications | Ball joint bolt: 50-60 Nm, Control arm bolts: 70-80 Nm (verify in manual) |
| Additional Tips | Use a ball joint splitter for easier removal, grease new components |
| Cost of Replacement Part | $50-$150 (varies by brand and quality) |
| DIY vs Professional | DIY possible with experience; professional recommended for novices |
Explore related products
What You'll Learn
- Gather Tools and Parts: Collect jack, stands, wrenches, new control arm, and necessary hardware before starting
- Remove Wheel and Brake Components: Take off the wheel, caliper, and rotor for access
- Detach Old Control Arm: Unbolt ball joint, sway bar link, and bushings to remove the arm
- Install New Control Arm: Secure new arm, reattach components, and torque bolts to specifications
- Reassemble and Test: Reinstall brake parts, wheel, lower car, and test for proper alignment
Gather Tools and Parts: Collect jack, stands, wrenches, new control arm, and necessary hardware before starting
Before diving into the replacement process, it’s crucial to gather all the necessary tools and parts to ensure a smooth and efficient job. Start by collecting a reliable floor jack and jack stands to safely lift and support your MK4 Golf. These tools are essential for accessing the undercarriage and working on the lower control arm without risking injury or damage to the vehicle. Ensure the jack stands are sturdy and rated for the weight of your car, as they will bear the load while you work.
Next, assemble the appropriate wrenches and sockets for removing bolts and fasteners. Common sizes for this job include 13mm, 15mm, and 17mm, but it’s a good idea to have a full metric socket set on hand to cover all possibilities. A torque wrench is also necessary to tighten bolts to the manufacturer’s specifications, ensuring the new control arm is securely installed. Additionally, consider having a breaker bar to loosen stubborn bolts, as corrosion or age can make them difficult to remove.
The centerpiece of your parts collection is the new lower control arm. Ensure it is the correct part for your MK4 Golf, as variations exist based on model year, engine type, and suspension setup. Verify compatibility by checking the part number or consulting a trusted supplier. Along with the control arm, gather any necessary hardware, such as bolts, nuts, or bushings, that may not be included with the replacement part. If the new control arm comes with pre-installed bushings, inspect them for quality and alignment before proceeding.
Don’t forget additional supplies like penetrating oil (e.g., WD-40) to loosen rusted or seized bolts, and a wire brush or sandpaper to clean mating surfaces. Grease may also be required if the control arm bushings need lubrication. Having a clean workspace and organizing your tools and parts beforehand will streamline the process and prevent delays once you begin the replacement.
Lastly, consider safety gear such as gloves and safety goggles to protect yourself during the job. With all tools, parts, and supplies gathered and organized, you’ll be fully prepared to tackle the lower control arm replacement on your MK4 Golf, ensuring a professional and hassle-free experience.
Golf Debuff: How to Overcome This Challenge
You may want to see also
Explore related products
Remove Wheel and Brake Components: Take off the wheel, caliper, and rotor for access
To begin the process of replacing the lower control arm on a Mk4 Golf, you'll first need to remove the wheel and brake components to gain access to the control arm. Start by securely lifting the vehicle and supporting it on jack stands. Ensure the car is stable and safe to work on. Once the vehicle is raised, locate the wheel you need to remove, typically the front wheel on the side where the control arm replacement is required. Using the appropriate-sized socket or lug wrench, loosen the lug nuts by turning them counterclockwise, but do not remove them completely yet. This initial loosening is crucial as it prevents the wheel from spinning when you fully remove the nuts later.
With the lug nuts loosened, proceed to fully remove them and set them aside in a safe place. Carefully pull the wheel away from the hub and place it aside, ensuring it’s stable and won’t roll or cause injury. Now, with the wheel removed, you’ll have clear access to the brake caliper. The caliper is held in place by two bolts, usually located on the back side of the caliper. Use the correct size Allen key or socket to remove these bolts. Be cautious not to damage the brake line connected to the caliper. Once the bolts are removed, carefully lift the caliper off the rotor and secure it out of the way using a wire or bungee cord to avoid putting stress on the brake line.
Next, focus on removing the brake rotor. In some cases, the rotor may come off easily once the caliper is removed, but it’s common for rotors to stick due to rust or corrosion. If the rotor doesn’t come off freely, you may need to tap it gently with a rubber mallet or use a rotor removal tool. Be patient and avoid excessive force to prevent damage to the wheel hub. Once the rotor is removed, inspect the area for any debris or old grease, as cleaning this area will make the subsequent steps easier.
After removing the wheel, caliper, and rotor, take a moment to inspect the exposed components for any signs of wear or damage. This is a good opportunity to clean the area around the wheel hub and control arm mounting points. Ensuring the workspace is clean and free of debris will make the control arm replacement process smoother. With these components removed, you’ll have the necessary access to proceed with the lower control arm replacement on your Mk4 Golf. Always prioritize safety and double-check that the vehicle is securely supported before continuing with the next steps.
Golf Quota Calculation: A Simple Guide to Handicap Scoring
You may want to see also
Explore related products
Detach Old Control Arm: Unbolt ball joint, sway bar link, and bushings to remove the arm
To begin detaching the old control arm on your MK4 Golf, start by locating the ball joint that connects the control arm to the steering knuckle. Using a suitable socket or wrench, carefully remove the bolt that secures the ball joint to the knuckle. It’s crucial to support the wheel hub or use a jack stand to prevent the wheel assembly from dropping once the bolt is removed. After unbolting, gently separate the ball joint from the knuckle by prying it apart with a ball joint splitter or a flat-head tool, taking care not to damage surrounding components.
Next, move to the sway bar link attached to the control arm. This link is typically secured by a single bolt or nut, which can be removed using a socket or wrench. Once the fastener is off, detach the sway bar link from the control arm by pulling it downward or using a pry tool if it’s stuck. Ensure the sway bar itself is supported to avoid unnecessary stress on the suspension system during this process.
With the ball joint and sway bar link disconnected, focus on the bushings that secure the control arm to the subframe. These bushings are often held in place by bolts or nuts accessible from the top or bottom of the vehicle. Use the appropriate tools to unbolt the bushings, starting with the front bushing near the wheel well and then the rear bushing closer to the firewall. If the bolts are seized or difficult to remove, apply penetrating oil and allow it to sit for a few minutes before attempting again.
After all bolts and fasteners are removed, carefully lower the control arm from its mounting points. It may be necessary to gently pry or wiggle the arm free from the bushings, as they can become stuck over time. Once the control arm is detached, inspect the bushings and ball joints for wear or damage, as these components may need replacement along with the control arm. Properly disposing of the old parts and preparing the area for the new control arm installation is the final step in this phase of the process.
Golf Green Heights: How Short is Too Short?
You may want to see also
Explore related products
Install New Control Arm: Secure new arm, reattach components, and torque bolts to specifications
With the old lower control arm removed, it's time to install the new one. Carefully position the new control arm into place, ensuring the bushings align perfectly with the mounting points on the subframe. Start by inserting the bolts through the front mounting point, but don't tighten them fully yet. Move to the rear mounting point and insert the bolts, again leaving them slightly loose. This will allow for any necessary adjustments during the installation process.
Next, reattach the components that were disconnected earlier. Begin with the sway bar link, ensuring it's securely connected to the new control arm. Then, reattach the brake caliper and rotor assembly, making sure the caliper is properly aligned and the rotor is seated correctly. Double-check that all components are reconnected and in their proper positions before proceeding.
Now, it's crucial to torque the bolts to the manufacturer's specifications. Refer to a reliable repair manual or online resource for the exact torque values for your MK4 Golf. Using a torque wrench, tighten the front and rear mounting bolts in a diagonal pattern, alternating between them to ensure even pressure. Typically, the front bolts require around 70-80 ft-lbs of torque, while the rear bolts need approximately 100-120 ft-lbs. Be meticulous in following the specified torque values to prevent damage or premature wear.
After torquing the bolts, reattach the wheel and lower the vehicle to the ground. Take a moment to inspect your work, ensuring all components are secure and properly aligned. It's a good practice to check the wheel alignment and consider getting a professional alignment if necessary, as control arm replacement can affect the vehicle's alignment.
Finally, take the car for a test drive to ensure everything is functioning correctly. Pay attention to any unusual noises, vibrations, or handling characteristics. If everything feels normal, you've successfully replaced the lower control arm on your MK4 Golf. Remember, proper installation and torquing of the control arm are essential for safe and reliable vehicle operation, so take your time and follow the specified procedures carefully.
Golf's Perfect Score: Achieving an 80
You may want to see also
Explore related products
Reassemble and Test: Reinstall brake parts, wheel, lower car, and test for proper alignment
With the new lower control arm installed, it's time to reassemble the remaining components and ensure everything functions correctly. Begin by reinstalling the brake caliper and rotor, ensuring they are securely fastened. Carefully position the brake pads and reattach the caliper pins, making sure they are properly lubricated to allow for smooth movement. Double-check that all brake components are tightened to the manufacturer's specifications to prevent any potential issues during driving.
Next, place the wheel back onto the hub, aligning the lug bolts with the holes in the wheel. Secure the wheel using the lug nuts, tightening them in a diagonal pattern to ensure even pressure. It is crucial not to fully tighten the lug nuts at this stage, as the vehicle is still raised. Once the wheel is in place, you can proceed to lower the car. Carefully raise the vehicle slightly to take the weight off the jack stands, then remove the stands and slowly lower the car to the ground.
After lowering the vehicle, it's essential to torque the lug nuts to the recommended specifications using a torque wrench. This step ensures the wheel is securely fastened and prevents any potential hazards while driving. With the car now at the correct height, you can proceed to test the alignment. Start the engine and take the car for a short drive, paying close attention to the steering and handling. Check for any unusual noises or vibrations, especially when turning or braking.
If the car pulls to one side or the steering feels off, an alignment check is necessary. You can perform a basic alignment check by measuring the distance from the center of each wheel to the bottom of the fender on both sides of the vehicle. Adjustments might be required to the tie rods to ensure proper alignment. It is recommended to consult a professional or refer to a detailed alignment guide for precise adjustments, as improper alignment can lead to uneven tire wear and handling issues.
Finally, after confirming the alignment is correct, take the car for a test drive on various road conditions. Pay attention to how the vehicle handles bumps, turns, and braking. Ensure that there are no unusual sounds or vibrations, and that the steering feels responsive and accurate. This comprehensive test drive will give you confidence in the repair and ensure the safety and performance of your MK4 Golf. Remember, if any issues arise during the test drive, it's best to re-inspect the installation and alignment before regular use.
Selecting the Perfect Golf Membership: A Comprehensive Guide for Enthusiasts
You may want to see also
Frequently asked questions
You will need a jack and jack stands, a lug wrench, a torque wrench, a breaker bar, a socket set, a ball joint splitter or pickle fork, a hammer, and possibly a drill with a burr bit for rusted bolts.
First, secure the vehicle on jack stands and remove the wheel. Disconnect the sway bar link and ball joint from the knuckle. Remove the bolts securing the control arm to the subframe, then separate the control arm from the bushings using a ball joint splitter if necessary.
If the new control arm does not come with pre-installed bushings, yes, you should replace them. However, many aftermarket control arms come with bushings already installed, so check the product specifications before purchasing.
