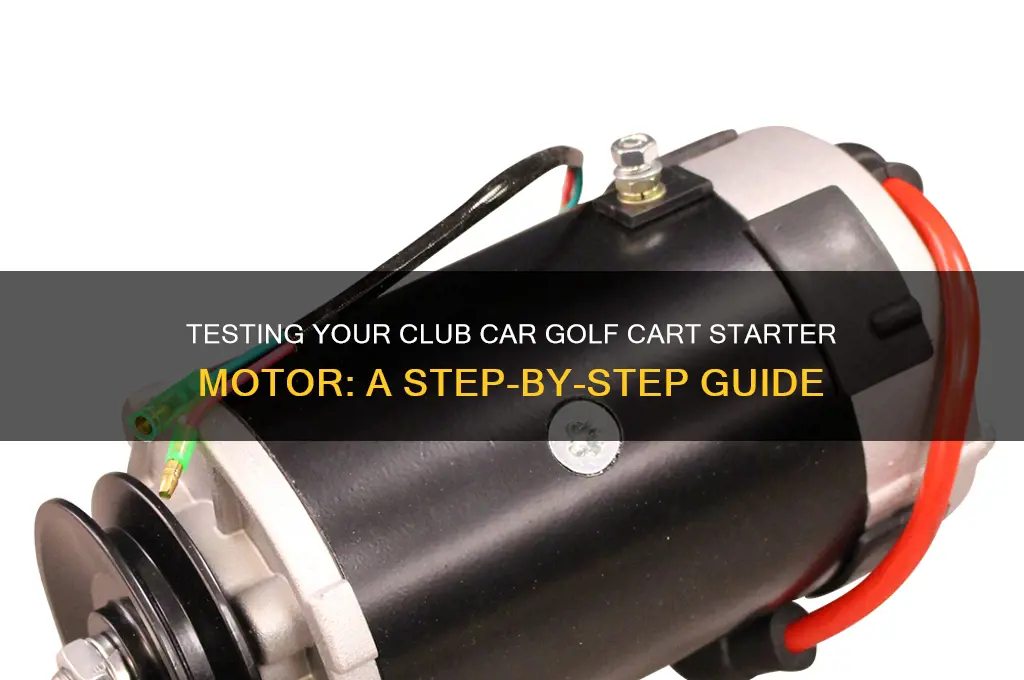

Testing the starter motor of a Club Car golf cart is a crucial step in diagnosing electrical issues or ensuring the cart’s reliability. The starter motor is responsible for engaging the engine or drive system, and a faulty motor can lead to the cart failing to start or operate smoothly. To test it, begin by ensuring the cart is on a flat surface, engaged in park or neutral, and the key is removed for safety. Use a multimeter to check the voltage at the starter motor’s terminals when the key is turned to the start position; if voltage is present but the motor doesn’t engage, it may be faulty. Additionally, inspect the wiring for loose connections or corrosion, and manually rotate the motor’s shaft to check for binding or resistance. If the motor fails these tests, it likely needs replacement or professional repair.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, Wrench, Screwdriver, Jumper Wires |
| Safety Precautions | Disconnect battery, wear safety gloves, work in a well-ventilated area |
| Starter Motor Location | Typically located near the engine or transaxle |
| Voltage Check | Set multimeter to DC voltage, check battery voltage (should be ~36V-48V) |
| Starter Solenoid Test | Apply power directly to solenoid terminals to activate starter motor |
| Starter Motor Resistance Test | Measure resistance across motor terminals (typical range: 0.5-2.0 ohms) |
| Starter Motor Continuity Test | Check continuity between motor terminals (should be continuous) |
| Starter Motor Ground Test | Ensure motor is properly grounded to the frame |
| Starter Motor Operation Test | Turn ignition key to start position and listen for motor engagement |
| Common Issues | Burnt solenoid, faulty motor windings, loose connections, dead battery |
| Replacement Consideration | Replace starter motor if resistance is out of range or continuity is lost |
| Post-Test Procedure | Reconnect battery, test golf cart operation |
Explore related products
What You'll Learn
- Check Battery Voltage: Ensure the battery is fully charged before testing the starter motor
- Inspect Wiring Connections: Verify all wires are securely connected to the starter motor
- Test Solenoid Function: Confirm the solenoid engages properly when the key is turned
- Measure Starter Draw: Use a multimeter to check the starter motor's current draw
- Listen for Unusual Noises: Identify grinding or clicking sounds during start-up attempts
Check Battery Voltage: Ensure the battery is fully charged before testing the starter motor
A weak battery can mimic starter motor failure, leading to unnecessary troubleshooting and potential replacement costs. Before assuming the starter motor is faulty, verify the battery voltage to ensure it’s fully charged and capable of delivering sufficient power. A golf cart battery typically operates at 36 or 48 volts, depending on the model. Use a digital multimeter to measure the voltage across the battery terminals. A reading below 50% of the nominal voltage (e.g., 18 volts for a 36V system) indicates a severely discharged battery, which can cause the starter motor to underperform or fail to engage.
To test the battery voltage, start by turning off the golf cart and ensuring all accessories are disconnected. Set the multimeter to the DC voltage setting and connect the probes to the battery terminals—red to positive (+) and black to negative (-). A fully charged 36V battery should read between 37.8 and 38.4 volts, while a 48V battery should read between 50.4 and 51.2 volts. If the voltage is significantly lower, charge the battery using a compatible charger and retest. Avoid testing the starter motor until the battery reaches full charge, as low voltage can skew results and damage the motor.
Comparing battery voltage to starter motor performance highlights the importance of this step. A starter motor requires a minimum voltage threshold to operate efficiently, typically around 75% of the battery’s nominal voltage. If the battery is only partially charged, the motor may crank slowly or not at all, leading to false diagnostics. For instance, a 36V system with a battery reading 28 volts may cause the starter to struggle, even if the motor itself is functional. This comparison underscores why battery voltage is the first variable to control in any diagnostic process.
Practical tips for maintaining accurate battery voltage include regular charging after each use, avoiding deep discharges, and cleaning corrosion from terminals. Corroded terminals can create high resistance, reducing the effective voltage delivered to the starter motor. Use a mixture of baking soda and water to clean terminals, followed by a protective coating of petroleum jelly. Additionally, invest in a battery maintainer or smart charger to keep the battery at optimal levels during periods of inactivity. These steps ensure the battery is always ready for testing and reliable starter motor operation.
In conclusion, checking battery voltage is a critical yet often overlooked step in diagnosing starter motor issues on a Club Car golf cart. By confirming the battery is fully charged, you eliminate a common variable that can lead to misdiagnosis and unnecessary repairs. This simple test, using a multimeter and basic maintenance practices, saves time and ensures the starter motor is tested under optimal conditions. Always prioritize battery health before proceeding with further diagnostics to achieve accurate and reliable results.
Borrowing Golf Clubs at the Driving Range: What You Need to Know
You may want to see also
Explore related products
Inspect Wiring Connections: Verify all wires are securely connected to the starter motor
Loose wiring connections are a silent saboteur of golf cart performance. A seemingly minor disconnect can lead to voltage drops, arcing, and ultimately, starter motor failure. Before condemning the motor itself, a meticulous inspection of its wiring harness is paramount.
Think of it as a doctor checking a patient's vital signs before diagnosing a complex illness.
Begin by locating the starter motor, typically situated near the golf cart's batteries. Disconnect the power source entirely before proceeding – safety is non-negotiable. Visually inspect each wire leading to the motor. Look for frayed insulation, exposed copper strands, or signs of corrosion around the terminals. Even a hairline crack in the insulation can lead to intermittent connections and erratic starting.
Utilize a multimeter to test for continuity in each wire. This ensures the electrical pathway is unbroken, allowing current to flow freely to the motor.
The devil is in the details when it comes to terminal connections. Gently tug on each wire at the motor terminals. A secure connection should offer firm resistance. If a wire pulls free with minimal effort, the terminal likely needs tightening or replacement. Use the appropriately sized wrench or socket to snug the terminal nut, being careful not to overtighten and damage the wire.
Don't overlook the battery side of the equation. Trace the starter motor wires back to their battery connections. Ensure the battery terminals are clean, free of corrosion, and tightly secured. Corroded terminals act as resistors, robbing the motor of the power it needs to function effectively.
A mixture of baking soda and water can effectively neutralize battery acid corrosion, followed by a thorough rinse and application of dielectric grease to prevent future buildup.
Remember, a thorough wiring inspection is a diagnostic cornerstone. By systematically checking for loose connections, damaged wires, and corroded terminals, you can often pinpoint the root cause of starter motor issues without resorting to costly replacements. This proactive approach not only saves money but also ensures your golf cart remains reliable and ready for the next round.
Essential Tools and Tips for Regripping Your Golf Clubs
You may want to see also
Explore related products
Test Solenoid Function: Confirm the solenoid engages properly when the key is turned
The solenoid is the unsung hero of your Club Car golf cart's starter system, acting as the bridge between the ignition key and the starter motor. When you turn the key, the solenoid should engage with a satisfying click, signaling the flow of electricity to the starter. If this critical component fails to function, your cart remains stubbornly silent. Testing the solenoid’s engagement is a straightforward yet essential step in diagnosing starter motor issues.
Begin by locating the solenoid, typically found near the battery pack. With the cart in "park" and the brake engaged, turn the key to the "on" position. Listen carefully for the distinct click of the solenoid engaging. If you hear it, the solenoid is likely functioning. However, hearing isn’t always enough—visual confirmation is key. Use a voltmeter to test the voltage at the solenoid’s terminals. When the key is turned, the voltage should jump from 0 to the battery’s full voltage (typically 36V or 48V for Club Car models). A discrepancy here indicates a solenoid issue.
A common mistake is assuming the solenoid is faulty without checking for corroded or loose connections. Before condemning the solenoid, inspect the wiring for signs of wear, corrosion, or poor contact. Clean the terminals with a wire brush and ensure all connections are tight. If the solenoid still fails to engage, manually activate it by jumping the terminals with a screwdriver (exercise caution to avoid short circuits). If it clicks and the starter turns, the solenoid itself is likely fine, and the issue may lie in the ignition switch or wiring.
For a more definitive test, bypass the ignition system entirely. Disconnect the solenoid’s small wire (usually connected to the ignition switch) and touch it to the battery’s positive terminal. If the solenoid engages and the starter motor turns, the solenoid is operational, and the problem lies upstream in the ignition circuit. This method isolates the solenoid’s functionality, providing clarity in troubleshooting.
In conclusion, testing the solenoid’s engagement is a blend of auditory, visual, and hands-on techniques. By systematically checking for the click, verifying voltage, inspecting connections, and bypassing the ignition, you can pinpoint whether the solenoid is the culprit or merely a bystander in your starter motor woes. This focused approach saves time and ensures you address the root cause, not just the symptoms.
Should You Buy Golf Clubs Off the Rack? Pros and Cons
You may want to see also
Explore related products
Measure Starter Draw: Use a multimeter to check the starter motor's current draw
A multimeter is an indispensable tool for diagnosing starter motor issues in a Club Car golf cart. By measuring the current draw, you can determine if the motor is operating within its optimal range or if it’s pulling excessive amperage, which could indicate a short circuit, worn brushes, or other internal damage. This test is straightforward but requires precision to avoid misdiagnosis or electrical hazards.
Steps to Measure Starter Draw:
- Prepare the Cart: Ensure the golf cart is on a level surface, engaged in neutral or park, and the ignition is off. Disconnect the battery’s negative terminal to prevent accidental starts.
- Set Up the Multimeter: Configure the multimeter to measure DC amperage (typically denoted by "A" or "DC A"). Use a high amperage setting (e.g., 10A or 20A) to avoid damaging the device.
- Connect in Series: Break the circuit between the battery and the starter motor. Insert the multimeter in series by connecting one lead to the battery’s positive terminal and the other to the starter’s power input wire.
- Activate the Starter: Turn the ignition key to the "start" position while observing the multimeter reading. A healthy starter motor typically draws 60–100 amps for gas carts and 200–300 amps for electric models during cranking.
Cautions:
Always wear insulated gloves and goggles to protect against electrical shocks or sparks. Avoid touching metal surfaces while handling the multimeter leads. If the current draw exceeds the multimeter’s maximum rating, use a shunt or consult a professional to prevent equipment damage.
Measuring the starter draw provides a clear snapshot of the motor’s health. If the reading is within spec, the motor is likely functioning correctly. If it’s abnormally high or low, inspect the brushes, solenoid, or wiring for faults. This test, combined with visual and auditory inspections, offers a comprehensive diagnosis of your Club Car’s starter motor.
Choosing the Right Golf Club Length for Your Swing
You may want to see also
Explore related products
Listen for Unusual Noises: Identify grinding or clicking sounds during start-up attempts
Unusual noises during start-up can be a golf cart owner’s first clue that the starter motor is in distress. Grinding or clicking sounds often signal mechanical issues, such as worn gears, misaligned components, or insufficient lubrication. These noises are not normal and should prompt immediate investigation to prevent further damage. Ignoring them can lead to a complete starter motor failure, leaving you stranded on the course.
To identify these sounds effectively, start by ensuring the golf cart is on a flat surface and the battery is fully charged. Turn the ignition key or press the start button while paying close attention to the auditory feedback. A grinding noise typically indicates metal-on-metal contact, often due to worn-out starter gears or a damaged pinion gear. Clicking sounds, on the other hand, may suggest the solenoid is engaging but failing to turn the motor, possibly due to low battery voltage or a faulty connection.
A practical tip is to use a mechanic’s stethoscope or a long screwdriver (with caution) to amplify and pinpoint the source of the noise. Place the tool against the starter motor housing while attempting to start the cart. This method helps differentiate between internal and external issues. For instance, if the grinding is localized to the starter motor, it’s likely a gear problem. If the clicking is near the solenoid, the issue may lie in the electrical system.
Comparatively, a healthy starter motor should operate quietly, with a smooth whirring sound as the engine turns over. Any deviation from this norm warrants attention. While some golfers may be tempted to diagnose the issue themselves, it’s advisable to consult a professional if the noise persists, especially if you’re unfamiliar with golf cart mechanics. DIY repairs without proper knowledge can exacerbate the problem and void warranties.
In conclusion, listening for unusual noises is a simple yet effective diagnostic tool for assessing starter motor health. Grinding and clicking sounds are red flags that demand prompt action. By understanding their causes and employing basic troubleshooting techniques, you can address issues early and extend the lifespan of your Club Car’s starter motor.
Gowanie Golf Club Membership Cost: What to Expect and How to Join
You may want to see also
Frequently asked questions
Signs of a bad starter motor include the cart not starting when the ignition is turned, a clicking noise without engagement, or no response at all. Test the motor by checking for power at the starter solenoid and verifying if the motor spins when directly powered.
You’ll need a multimeter to check voltage, a 12V test light or power source, and basic hand tools like wrenches or screwdrivers to access the starter motor and wiring.
Yes, you can test the starter motor in place by applying direct power to its terminals using a 12V source. If it spins freely, the motor is likely functional; if not, it may be faulty.
Use a multimeter or test light to check for voltage at the starter motor’s power terminal when the ignition is turned on. If there’s no power, the issue may be with the solenoid, wiring, or ignition switch.
If the motor spins but the cart doesn’t start, the issue may be with the clutch, drive belt, or battery. Check these components for damage or wear and ensure the batteries are fully charged.
