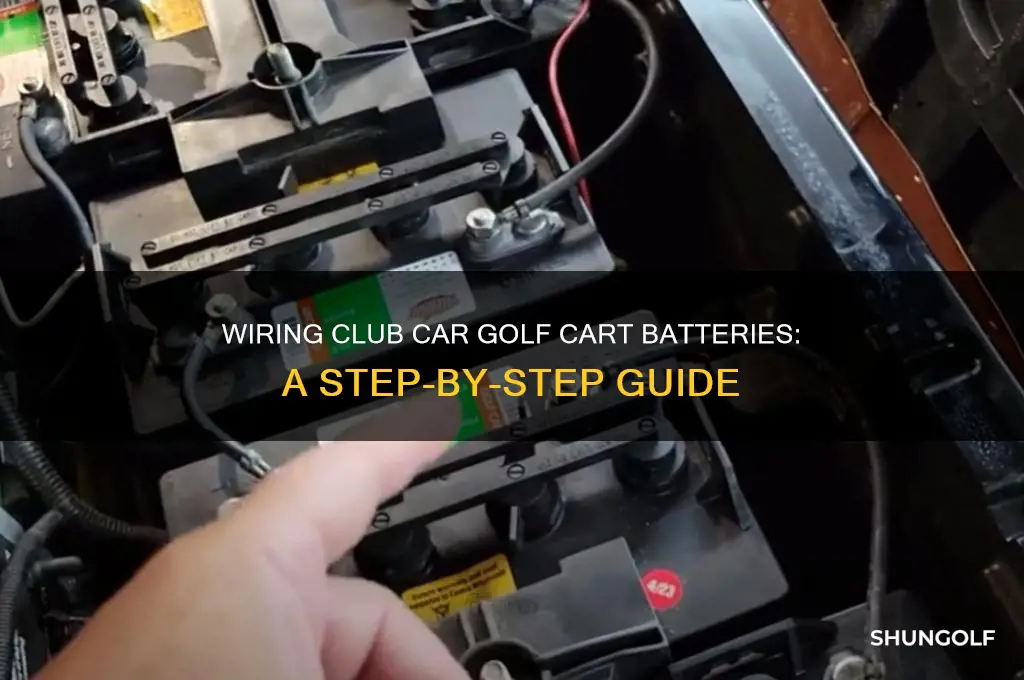

Wiring club car golf cart batteries is a crucial task for maintaining optimal performance and longevity of your vehicle. Properly connecting the batteries ensures a reliable power supply, allowing your golf cart to operate efficiently. This process involves understanding the battery configuration, typically a series connection for 36-volt or 48-volt systems, and using the correct tools and safety precautions. By following a step-by-step guide, you can safely wire your club car golf cart batteries, ensuring secure connections and minimizing the risk of electrical issues or damage. Whether you're a seasoned DIY enthusiast or a beginner, mastering this skill will help keep your golf cart running smoothly for years to come.
Explore related products
What You'll Learn
- Battery Types & Compatibility: Identify correct 6V, 8V, or 12V batteries for your Club Car model
- Series vs. Parallel Wiring: Understand wiring configurations for desired voltage and capacity
- Tools & Safety Gear: Gather wire cutters, wrenches, gloves, and safety glasses for the job
- Step-by-Step Wiring Guide: Follow detailed instructions for connecting batteries in sequence
- Testing & Maintenance Tips: Check connections, voltage, and perform regular battery upkeep
Battery Types & Compatibility: Identify correct 6V, 8V, or 12V batteries for your Club Car model
Club Car golf carts typically use 6V, 8V, or 12V batteries, but not all models are compatible with every voltage. Identifying the correct battery type is crucial for optimal performance and longevity. Start by locating your Club Car’s model and year, often found on the serial number plate under the seat or glove compartment. Models like the DS or Precedent may require specific battery configurations, such as a series of six 6V batteries for a 36V system or four 8V batteries for a 32V system. Always refer to the owner’s manual or consult a Club Car dealer to confirm compatibility before purchasing.
Analyzing voltage requirements reveals why matching the correct battery is essential. For instance, a 48V system, common in newer Club Car models, uses six 8V batteries or four 12V batteries. Using 6V batteries in a 48V system would result in underperformance and potential damage to the electrical components. Conversely, installing higher-voltage batteries than recommended can overload the system, leading to premature failure or safety hazards. Understanding your cart’s voltage needs ensures you select batteries that align with its design specifications.
When choosing between 6V, 8V, or 12V batteries, consider factors like runtime, weight, and maintenance. Six 6V batteries provide longer runtime but are heavier and require more space, making them ideal for heavy-duty use. Four 8V batteries offer a balance of performance and weight, suitable for most residential or light commercial applications. Four 12V batteries are the lightest and easiest to maintain but may sacrifice runtime. For example, a Club Car Precedent with a 48V system might use six 8V Trojan T-875 batteries, known for their durability and efficiency.
Practical tips for battery selection include verifying the battery’s amp-hour (Ah) rating, which indicates capacity. A higher Ah rating means longer runtime but also a larger physical size. Ensure the batteries fit your Club Car’s battery compartment and meet the manufacturer’s recommended specifications. Additionally, opt for deep-cycle batteries designed for golf carts, as they withstand frequent charging and discharging better than standard car batteries. Brands like Trojan, Crown, and US Battery are reputable choices for Club Car compatibility.
Finally, proper wiring is as critical as selecting the right battery type. For a 36V system with six 6V batteries, connect them in series by linking the positive terminal of one battery to the negative terminal of the next. For a 48V system with six 8V batteries, follow the same series wiring. Always use high-quality battery cables and torque the connections to the manufacturer’s specifications to prevent loose connections. Regularly inspect and clean terminals to avoid corrosion, which can reduce efficiency and cause voltage drops. Correct battery identification and wiring ensure your Club Car operates safely and reliably for years to come.
Are iDrive Golf Clubs Worth It? A Comprehensive Review and Guide
You may want to see also
Explore related products
Series vs. Parallel Wiring: Understand wiring configurations for desired voltage and capacity
Wiring golf cart batteries in series increases the voltage output while keeping the capacity constant, a critical configuration for Club Car models requiring higher voltage systems. For instance, connecting four 6-volt batteries in series results in a 24-volt system, essential for DS or Precedent models. To achieve this, connect the positive terminal of the first battery to the negative terminal of the second, and repeat this pattern until all batteries are linked. The final positive and negative terminals then connect to the golf cart’s electrical system. This setup ensures the voltage multiplies by the number of batteries, while the amp-hour (Ah) capacity remains that of a single battery.
Parallel wiring, on the other hand, boosts the capacity (Ah) while maintaining the voltage, ideal for applications needing extended runtime. For example, wiring two 12-volt batteries in parallel still outputs 12 volts but doubles the Ah rating. Connect all positive terminals together and all negative terminals together, then link these to the cart’s system. This configuration is less common in standard Club Car setups but useful for custom builds requiring higher capacity. Ensure batteries in parallel have identical voltage and Ah ratings to prevent imbalance and potential damage.
Choosing between series and parallel wiring depends on your Club Car’s voltage requirements and desired runtime. Series wiring is standard for 36-volt or 48-volt systems, using six 6-volt or four 12-volt batteries, respectively. Parallel wiring is rarely used in stock configurations but can be applied in specialized cases, such as powering additional accessories. Always verify your cart’s specifications before wiring to avoid overloading the system or reducing efficiency.
A practical tip for series wiring is to use a battery gauge or multimeter to confirm the total voltage before connecting to the cart. For parallel setups, inspect connections thoroughly to ensure no shorts or loose wires. Both configurations require high-quality cables and corrosion-resistant connectors to maintain performance. Understanding these wiring principles ensures your Club Car operates safely and efficiently, tailored to your specific needs.
Understanding the Loft and Use of a 4 Wood Golf Club
You may want to see also
Explore related products
Tools & Safety Gear: Gather wire cutters, wrenches, gloves, and safety glasses for the job
Before diving into the wiring process of your Club Car golf cart batteries, it's essential to prioritize safety and efficiency by gathering the right tools and protective gear. This preparation not only ensures a smoother workflow but also minimizes the risk of injury or damage to your equipment. The core items you'll need include wire cutters, wrenches, gloves, and safety glasses, each serving a specific purpose in the task at hand.
Wire cutters are indispensable for trimming and stripping battery cables to the appropriate length and exposing the necessary conductive material. Opt for a pair with insulated handles to protect against electrical shocks, especially when working with live circuits. Ensure the cutters are sharp and capable of handling the gauge of wire used in golf cart batteries, typically 4 to 6 AWG. Precision here prevents frayed ends that could lead to poor connections or short circuits.
Wrenches play a critical role in tightening battery terminals and securing connections. Both open-end and adjustable wrenches are useful, depending on the size and type of nuts and bolts involved. For Club Car models, a 9/16-inch wrench is commonly required for terminal bolts. Always use the correct size to avoid stripping threads or damaging components. Torque specifications aren’t typically critical here, but ensure connections are snug without over-tightening, which can warp terminals.
Gloves and safety glasses are non-negotiable safety gear. Insulated gloves protect against acid burns from battery leaks and electrical shocks, while also providing a better grip on tools and components. Safety glasses shield your eyes from debris, acid splashes, or accidental sparks during wiring. Choose gloves that allow dexterity but are rated for electrical work, and ensure glasses meet ANSI Z87.1 standards for impact resistance.
In practice, organize your workspace with these tools within easy reach to maintain efficiency. Lay out cables and batteries in a logical sequence before starting, and double-check connections against your golf cart’s manual. For instance, Club Car Precedent models often require a series connection between batteries, so plan your wiring route accordingly. By equipping yourself with the right tools and safety gear, you’ll not only complete the job effectively but also safeguard yourself and your investment.
Finding Affordable Golf Clubs at Goodwill: Prices and Tips
You may want to see also
Explore related products
Step-by-Step Wiring Guide: Follow detailed instructions for connecting batteries in sequence
Wiring Club Car golf cart batteries in sequence is a precise task that requires attention to detail to ensure safety and optimal performance. The process begins with understanding the battery configuration: typically, a 48-volt system uses six 8-volt batteries connected in series. Each battery’s positive terminal must link to the next battery’s negative terminal, creating a continuous chain. Start by identifying the first battery in the sequence, usually the one closest to the charger port, and label each battery for clarity. This organization prevents errors and streamlines the wiring process.
Before connecting the batteries, inspect all terminals for corrosion or damage. Clean any residue with a mixture of baking soda and water, then dry thoroughly to ensure a secure connection. Use a wrench to tighten the battery cables, but avoid over-tightening, as this can strip the threads. Begin wiring by attaching a battery cable from the positive terminal of the first battery to the negative terminal of the second. Repeat this pattern until all batteries are connected in sequence. Ensure each connection is snug and free of loose wires, as poor connections can lead to voltage drops or overheating.
One critical step often overlooked is the use of proper gauge wiring. For a 48-volt Club Car system, 4-gauge or 6-gauge cables are recommended to handle the current efficiently. Label each cable to match its corresponding battery pair, reducing confusion during installation. After wiring, test the circuit with a multimeter to verify the voltage reads 48 volts across the entire system. If the reading is inconsistent, recheck the connections for tightness and polarity accuracy. This step is essential to prevent damage to the cart’s electrical components.
Safety precautions are paramount throughout the process. Always wear gloves and safety goggles to protect against acid spills or short circuits. Disconnect the charger and turn off the cart’s power before beginning work. Avoid placing metal tools across battery terminals, as this can cause sparks or damage. Once the wiring is complete, secure the batteries with hold-down brackets to prevent movement during operation. Regularly inspect the wiring and terminals for wear or corrosion, especially after prolonged use or exposure to harsh weather conditions.
In conclusion, wiring Club Car golf cart batteries in sequence is a methodical process that demands precision and care. By following these detailed steps—cleaning terminals, using proper gauge wiring, testing connections, and prioritizing safety—you can ensure a reliable and efficient battery system. This approach not only extends the life of your batteries but also enhances the overall performance of your golf cart. With patience and attention to detail, even a novice can master this essential maintenance task.
Are Golf Clubs Ambidextrous? Exploring Design for Left and Right-Handed Players
You may want to see also
Explore related products
Testing & Maintenance Tips: Check connections, voltage, and perform regular battery upkeep
Loose connections are a silent killer of golf cart battery life. Vibration from normal use can cause terminals to loosen over time, increasing resistance and reducing efficiency. Make a habit of inspecting all battery connections monthly. Tighten any loose nuts or bolts with a wrench, ensuring they're snug but not over-tightened. Look for signs of corrosion – a white, powdery buildup around the terminals. This corrosive film acts as an insulator, hindering the flow of electricity.
Use a mixture of baking soda and water (1 tablespoon baking soda to 1 cup water) to neutralize and remove corrosion. Apply the solution with a brush, then rinse thoroughly with clean water and dry completely before reconnecting.
Voltage is the lifeblood of your golf cart's electrical system. A voltmeter is your essential tool for monitoring battery health. Fully charged batteries should read around 50-52 volts. After a full charge, let the batteries rest for an hour before taking a reading for accuracy. If individual batteries consistently show significantly lower voltage than the rest, it could indicate a weak cell within that battery, necessitating replacement. Regular voltage checks allow you to identify potential problems early, preventing unexpected breakdowns and extending the overall lifespan of your battery pack.
Regular upkeep is key to maximizing battery performance and longevity. Water levels in lead-acid batteries should be checked monthly and kept just above the lead plates. Distilled water is crucial – tap water contains minerals that can damage the battery. Aim to charge your batteries after each use, even if it's just for a short round. Deep discharging (below 50% capacity) accelerates wear and tear. If you store your cart for extended periods, maintain a full charge and check the voltage periodically.
Think of your golf cart batteries as an investment. Proper testing and maintenance are the dividends that pay off in extended lifespan, reliable performance, and ultimately, cost savings. By incorporating these simple checks into your routine, you'll ensure your cart is always ready to hit the course, hassle-free.
Flying with Golf Clubs: Tips, Costs, and Airline Policies Explained
You may want to see also
Frequently asked questions
Club Car golf carts typically use 6-volt, 8-volt, or 12-volt deep-cycle batteries, depending on the model. Ensure you match the voltage and type specified by the manufacturer for optimal performance.
For a 36-volt system, connect six 6-volt batteries in series (positive to negative). For a 48-volt system, connect four 12-volt batteries or eight 6-volt batteries in series. Always follow the manufacturer’s wiring diagram.
You’ll need a wrench or socket set, battery cables, battery terminal grease, a wire brush, and safety gear (gloves and goggles). Ensure all connections are clean and tight to prevent corrosion and poor performance.
Use a multimeter to check the voltage across the entire battery pack. Ensure it matches the expected voltage (36V or 48V). Also, inspect all connections for tightness and signs of corrosion before operating the cart.
