Installing heated seats in a Mk4 Golf can significantly enhance comfort during colder months, but it requires careful planning and execution. The process involves sourcing compatible heated seat elements, ensuring proper wiring connections to the vehicle’s electrical system, and integrating a switch for control. Key steps include disconnecting the battery to prevent electrical mishaps, removing the seat covers to access the seat base, and securely attaching the heating elements. Wiring typically connects to the car’s fuse box or a dedicated relay, with the switch mounted in a convenient location. It’s crucial to follow a detailed guide or consult a professional to avoid damaging the vehicle’s electronics or compromising safety. Properly installed, heated seats can provide reliable warmth and add value to your Mk4 Golf.
Explore related products
What You'll Learn
Tools and Materials Needed
When wiring heated seats in a Mk4 Golf, having the right tools and materials is crucial for a successful installation. A set of basic hand tools is essential, including a Phillips and flathead screwdriver for removing interior panels, a trim removal tool to safely pry off plastic components without damage, and a socket set for accessing bolts and fasteners. Additionally, a wire stripper and crimper will be necessary for preparing and connecting wires, ensuring clean and secure joints. A multimeter is highly recommended to test for continuity and voltage, helping to verify connections and troubleshoot any electrical issues during the installation.
Electrical supplies form the backbone of this project. You’ll need a wiring harness specifically designed for heated seats, which often includes connectors compatible with the Mk4 Golf’s system. If your seats didn’t come with a pre-installed harness, you’ll need to source one that matches your seat model. High-quality electrical tape and heat shrink tubing are essential for insulating connections and protecting them from moisture and wear. A soldering iron and solder can be used for more permanent and reliable connections, though crimp connectors are a viable alternative for those less experienced with soldering.
Switches and relays are critical components for controlling the heated seats. You’ll need a switch panel that integrates with your Golf’s interior, preferably one designed for heated seats to ensure proper functionality and aesthetics. A relay is required to handle the high current drawn by the heating elements, protecting the switch and wiring from overload. Ensure the relay is rated appropriately for the power requirements of your heated seats.
Additional materials include zip ties and wire loom for organizing and securing the wiring harness, preventing it from interfering with moving parts or getting damaged. Double-sided adhesive tape or mounting screws may be needed to secure the switch panel in place. If you’re installing seats that didn’t originally come with heating elements, you’ll need the heated seat elements themselves, ensuring they are compatible with the Mk4 Golf’s dimensions and power system.
Finally, safety gear should not be overlooked. Wear safety goggles to protect your eyes from debris when removing panels or working with wires. Insulated gloves are advisable when handling electrical components to prevent shocks. Keeping a fire extinguisher nearby is a prudent precaution when working with any automotive electrical system. With these tools and materials gathered, you’ll be well-prepared to tackle the wiring of heated seats in your Mk4 Golf efficiently and safely.
Mastering Golf's Drop Zones: Strategic Spots to Enhance Your Game
You may want to see also
Explore related products
Removing Seat Covers Safely
When removing seat covers to install heated seats in a Mk4 Golf, safety and precision are paramount to avoid damaging the seats or any internal components. Begin by gathering the necessary tools: a flathead screwdriver, trim removal tools, and a torque wrench. Ensure the vehicle’s ignition is off and the battery is disconnected to prevent accidental airbag deployment or electrical mishaps. Start by inspecting the seat for any visible screws or clips holding the cover in place. Typically, the lower portion of the seat has hidden screws beneath plastic caps, which can be carefully pried off using a flathead screwdriver. Work methodically to avoid scratching the seat material or breaking the plastic components.
Next, focus on the sides and back of the seat. Most Mk4 Golf seats have retaining clips or hooks that secure the cover to the frame. Use a trim removal tool to gently pry these clips away from the frame, starting from one corner and working your way around. Be patient, as forcing the clips can damage them or the fabric. Once the sides are loose, carefully lift the cover from the seat base, taking note of any wiring or mechanisms connected to the existing seat components, such as airbags or lumbar supports. If the seat has side airbags, handle the cover with extreme care to avoid damaging the airbag wiring harness.
For the seatback, the process is similar. Locate and remove any screws or clips along the top and sides of the seatback. Some models may have a plastic trim piece at the top that needs to be removed first. Once all fasteners are released, gently peel the cover away from the seatback, starting from the top and working downward. Pay attention to any additional wiring, such as for seatbelt pretensioners, and ensure nothing is disconnected accidentally. If the seat has integrated headrests, the cover may be tightly fitted around them, so take your time to avoid tearing the material.
Throughout the removal process, keep track of the order in which screws, clips, and panels are removed to simplify reassembly. Lay the components out in a logical sequence or take photos for reference. If the seat covers are particularly tight or difficult to remove, avoid using excessive force. Instead, inspect for any hidden fasteners or areas where the cover might be tucked into the frame. Taking your time ensures the seat structure remains intact and ready for the installation of the heated seat elements.
Finally, once the covers are fully removed, inspect the seat foam and frame for any signs of wear or damage that could affect the installation of the heating elements. Clean the exposed areas if necessary to ensure proper adhesion of any new components. With the covers safely removed, you can proceed with the wiring and installation of the heated seat kit, confident that the seat’s integrity has been preserved. Always handle seat components with care, especially in vehicles with advanced safety features like airbags, to maintain functionality and safety.
Golf Battle: Understanding the Guidelines for Success
You may want to see also
Explore related products

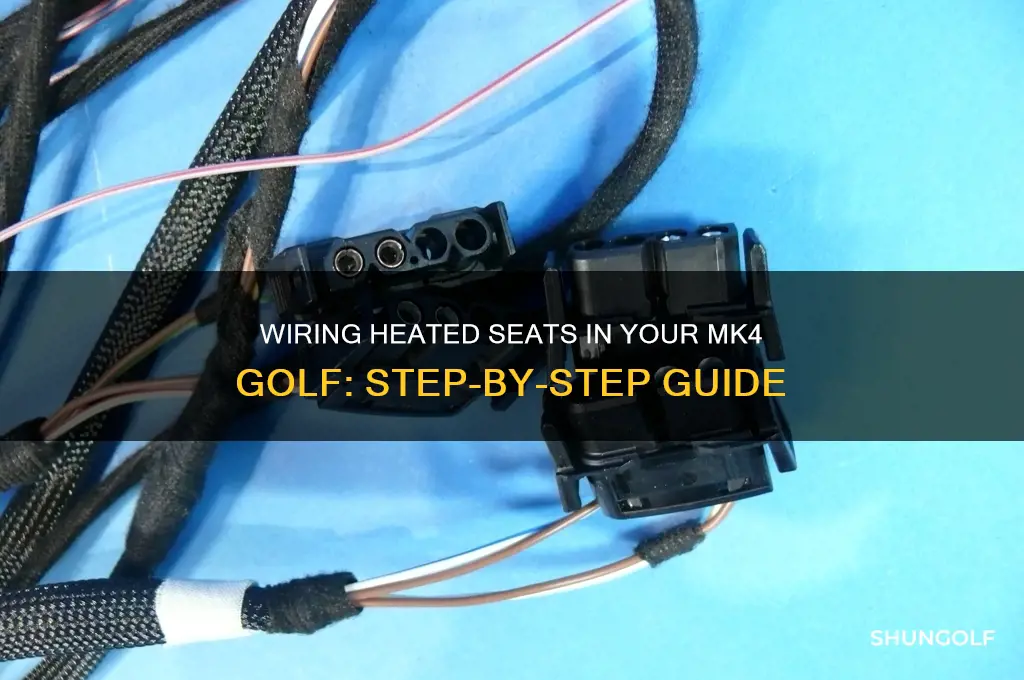

Connecting Wiring Harness
When connecting the wiring harness for heated seats in a Mk4 Golf, it's essential to start by gathering the necessary tools and components. You'll need the heated seat kit, which typically includes the wiring harness, control module, and seat elements. Ensure the vehicle's battery is disconnected to prevent any electrical mishaps during the installation. Begin by locating the factory wiring harness connector under the seat. This connector is usually found near the seat base and is specific to the Mk4 Golf’s heated seat system. Carefully inspect the connector to ensure it matches the one provided in your kit.
Next, prepare the wiring harness from the heated seat kit. Strip and tin the wires according to the kit’s instructions, ensuring clean connections. Match the wires from the kit to the corresponding wires in the factory harness. Typically, the wires are color-coded, but it’s crucial to refer to the kit’s wiring diagram for accurate pairing. Use heat shrink tubing or electrical tape to insulate any exposed connections, preventing short circuits. Secure the wires neatly to avoid interference with seat movement or other components.
Connect the wiring harness to the factory connector, ensuring a firm and secure fit. Double-check that all wires are correctly aligned and inserted into the appropriate pins. Once connected, route the wiring harness from the seat to the control module location, which is often under the dashboard or near the center console. Use zip ties or cable clips to secure the harness along the way, following the vehicle’s existing wiring paths to maintain a clean and professional installation.
After routing the harness, connect it to the control module. The control module will have specific inputs for the heated seat elements and power supply. Follow the kit’s instructions to connect the power and ground wires to the vehicle’s electrical system, typically tapping into a switched 12V source and a good ground point. Ensure all connections are tight and secure to avoid intermittent operation or electrical issues.
Finally, test the heated seats before reassembling the interior. Reconnect the battery and turn on the ignition. Activate the heated seat controls to verify that both seats heat up as expected. If the seats function correctly, reattach the seat trim and any other components removed during the installation. This step-by-step approach ensures a safe and reliable connection of the wiring harness for your Mk4 Golf’s heated seats.
Golf Tees: Choosing the Right Ones for Your Game
You may want to see also
Explore related products
Testing Heated Seat Function
Before proceeding with the installation of heated seats in your MK4 Golf, it's essential to test the heated seat function to ensure everything is working correctly. This process involves verifying the electrical connections, switches, and heating elements. Start by ensuring the vehicle's battery is disconnected to prevent any accidental short circuits during testing. Once the wiring is completed according to the MK4 Golf heated seat installation guide, reconnect the battery and turn the ignition to the accessory position. Locate the heated seat switches, typically found on the side of the seat or integrated into the climate control panel, and confirm they are in the off position.
To begin testing, press the heated seat switch to the first or low setting. You should hear a faint click from the relay, indicating it has engaged. Use a multimeter to check for power at the heating element connectors. Set the multimeter to the DC voltage setting and place the probes on the appropriate terminals. If the wiring is correct, you should see a voltage reading corresponding to the battery voltage (typically around 12 volts). If no voltage is detected, double-check the wiring connections, fuses, and relays for any issues. Ensure all connections are secure and free from corrosion.
Next, allow the seat to warm up for a few minutes on the low setting. Carefully feel the seat surface to detect any warmth. If the seat remains cold, use the multimeter to test the resistance of the heating element. Disconnect the heating element connectors and measure the resistance across the terminals. Compare this reading to the manufacturer's specifications; a significant deviation may indicate a faulty heating element. If the element tests within range but still doesn’t heat, inspect the ground connections for continuity, as a poor ground can prevent proper operation.
Proceed to test the high setting by switching the heated seat control to the maximum level. Again, listen for the relay click and verify the voltage at the heating element connectors. The seat should become noticeably warmer within a few minutes. If the high setting fails to produce heat, recheck the wiring and relay operation. Ensure the relay is switching correctly by testing the input and output circuits with the multimeter. A malfunctioning relay or switch could be the culprit if the low setting works but the high setting does not.
Finally, test the dual-seat functionality if both seats are equipped with heating elements. Repeat the above steps for the passenger seat, ensuring each switch operates independently. Verify that activating one seat does not affect the other unless they are linked by design. Once all tests confirm proper operation, secure any loose wires with zip ties or electrical tape, and ensure all components are mounted securely. This thorough testing process ensures the heated seats in your MK4 Golf will function reliably and safely.
Golf Gaming Greats: 2K Swings Past EA
You may want to see also
Explore related products
Reassembling Seats Properly
After installing the heated seat elements and wiring them up, it’s crucial to reassemble the seats properly to ensure functionality, comfort, and safety. Begin by carefully aligning the seat cover with the seat frame, ensuring all clips, hooks, and fasteners are in their correct positions. Start from the front of the seat and work your way backward, smoothing out any wrinkles or creases in the fabric or leather. Pay close attention to areas where the wiring passes through, such as the seat base and backrest, to avoid pinching or damaging the wires during reassembly.
Next, reattach the seat cover using the original fasteners, such as hog rings, plastic clips, or screws. Use a hog ring pliers if necessary to secure the fabric tightly around the seat frame. Ensure all edges are tucked in neatly and that no sharp objects are exposed, as this could cause discomfort or damage the upholstery over time. Double-check that the heated seat elements are seated correctly beneath the cover and that no wires are visible or protruding.
Once the cover is securely in place, reinstall the seat cushion and backrest components, such as the foam padding and plastic trim pieces. Make sure all parts are aligned and snapped into place firmly. Test the seat’s movement, including the recline and slide functions, to ensure nothing is obstructing its operation. If the seat is power-adjustable, reconnect the motors and test their functionality before proceeding.
Reattach the seat to the vehicle by aligning the mounting holes with the floor brackets and securing them with the original bolts. Torque the bolts to the manufacturer’s specifications to avoid damaging the threads or compromising the seat’s stability. Once the seat is mounted, reconnect the heated seat wiring harness to the vehicle’s electrical system, ensuring all connections are secure and properly insulated.
Finally, test the heated seats by turning on the ignition and activating the heating elements. Verify that all functions work correctly and that the heat is distributed evenly across the seat. Inspect the seat for any signs of uneven tension, gaps, or exposed wiring, and make adjustments as needed. Proper reassembly not only ensures the heated seats function as intended but also maintains the overall aesthetics and safety of the vehicle’s interior.
Golf Discount: Where Are They Located?
You may want to see also
Frequently asked questions
You'll need a wiring diagram, wire strippers, crimping tool, electrical tape, soldering iron (optional), and a multimeter for testing connections.
Wiring diagrams can be found in the vehicle’s service manual, online forums like VWvortex or GolfMK4, or through automotive software like Ross-Tech.
Typically, no. The factory fuse box can handle the additional load, but always check the wiring diagram and ensure the correct fuse is installed for the heated seat circuit.
The switches usually plug directly into the existing harness. If not, splice the wires according to the diagram, ensuring proper polarity and secure connections with heat-shrink tubing.
