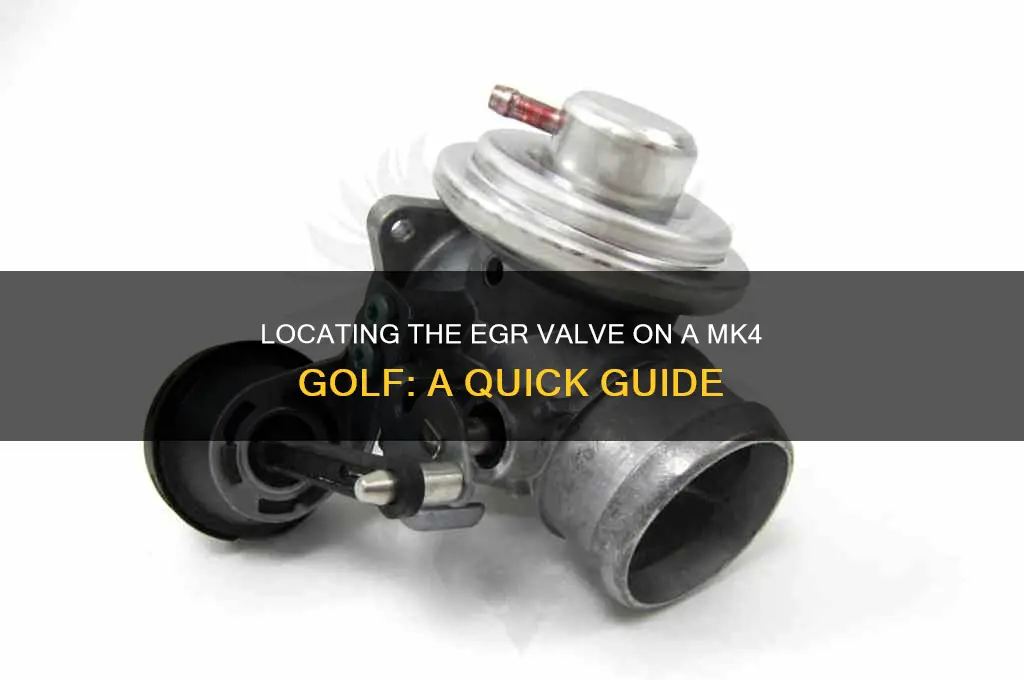

The EGR (Exhaust Gas Recirculation) valve on a Mk4 Volkswagen Golf is a crucial component of the vehicle's emissions control system, responsible for reducing nitrogen oxide emissions by recirculating a portion of exhaust gases back into the engine. Located on the intake manifold, its exact position can vary slightly depending on the engine type, such as the 1.9 TDI or 2.0 FSI. For most Mk4 Golf models, the EGR valve is typically found near the firewall, often requiring the removal of a plastic engine cover or air intake components for access. Identifying and locating the EGR valve is essential for maintenance, cleaning, or replacement, as it can become clogged or malfunction over time, leading to performance issues or increased emissions.
| Characteristics | Values |
|---|---|
| Location | On the intake manifold, near the firewall side of the engine bay. |
| Engine Compatibility | Typically found on 1.9 TDI and 1.6/1.9/2.0 SDI engines in the Mk4 Golf. |
| Access Difficulty | Moderate; requires removing the air intake hose and other components. |
| Mounting | Bolted directly to the intake manifold with 2-3 bolts. |
| Pipe Connections | Connected to the exhaust manifold via a metal pipe and to the intake. |
| Electrical Connector | Has a single electrical connector for control by the ECU. |
| Gasket Requirement | Uses a gasket between the EGR valve and intake manifold for sealing. |
| Common Issues | Clogging, carbon buildup, or failure due to high mileage or poor maintenance. |
| Replacement Time | Approximately 1-2 hours for DIY, depending on experience. |
| Tools Required | Socket set, screwdriver, pliers, and possibly a torque wrench. |
| Part Number (Example) | Varies by engine; e.g., 038 131 501 AD (common for 1.9 TDI). |
Explore related products
What You'll Learn
EGR Valve Location on 1.9 TDI Engine
The EGR valve on a 1.9 TDI engine in a Mk4 Golf is a critical component for emissions control, but its location can be elusive for those unfamiliar with the engine layout. Situated on the driver’s side of the engine bay, it is mounted directly on the cylinder head, near the intake manifold. This positioning allows it to recirculate exhaust gases efficiently, reducing nitrogen oxide emissions. Identifying it requires a keen eye, as it is often obscured by other components, such as the coolant hoses and the turbocharger. A flashlight and a basic understanding of the engine’s orientation are essential tools for locating it successfully.
To access the EGR valve, start by removing the engine cover for a clearer view of the components. Follow the exhaust manifold toward the intake side, where the valve is connected via a metal pipe. Its rectangular shape and the presence of a vacuum hose are distinguishing features. For those performing maintenance or replacement, note that the valve is held in place by four bolts, typically requiring a 10mm socket for removal. Be cautious not to damage the mating surface on the cylinder head, as this can lead to leaks. Cleaning or replacing the EGR valve can improve engine performance and fuel efficiency, particularly if it has become clogged with carbon deposits.
Comparing the 1.9 TDI’s EGR valve location to other engines highlights its unique placement. Unlike some inline-four engines where the valve is positioned lower in the engine bay, the TDI’s design integrates it directly into the cylinder head for optimal functionality. This placement, while space-efficient, can make it more challenging to access compared to systems where the valve is mounted on the firewall or near the exhaust manifold. However, this design aligns with Volkswagen’s engineering focus on compactness and performance, even if it complicates certain maintenance tasks.
For DIY enthusiasts, understanding the EGR valve’s role and location is crucial for troubleshooting common issues like rough idling or increased emissions. Symptoms of a failing EGR valve include poor acceleration, engine hesitation, or the illumination of the check engine light. Regular inspection and cleaning can prevent these problems, especially in high-mileage vehicles. When replacing the valve, ensure compatibility with the specific TDI model, as variations exist across Mk4 Golf years and sub-models. Always consult a repair manual or a trusted mechanic if uncertainty arises during the process.
In conclusion, the EGR valve on a 1.9 TDI engine in a Mk4 Golf is strategically located on the cylinder head, near the intake manifold, for efficient exhaust gas recirculation. Its placement, while functional, requires careful navigation of the engine bay for access. Armed with the right tools and knowledge, identifying, maintaining, or replacing this component becomes a manageable task, contributing to the longevity and performance of the vehicle.
