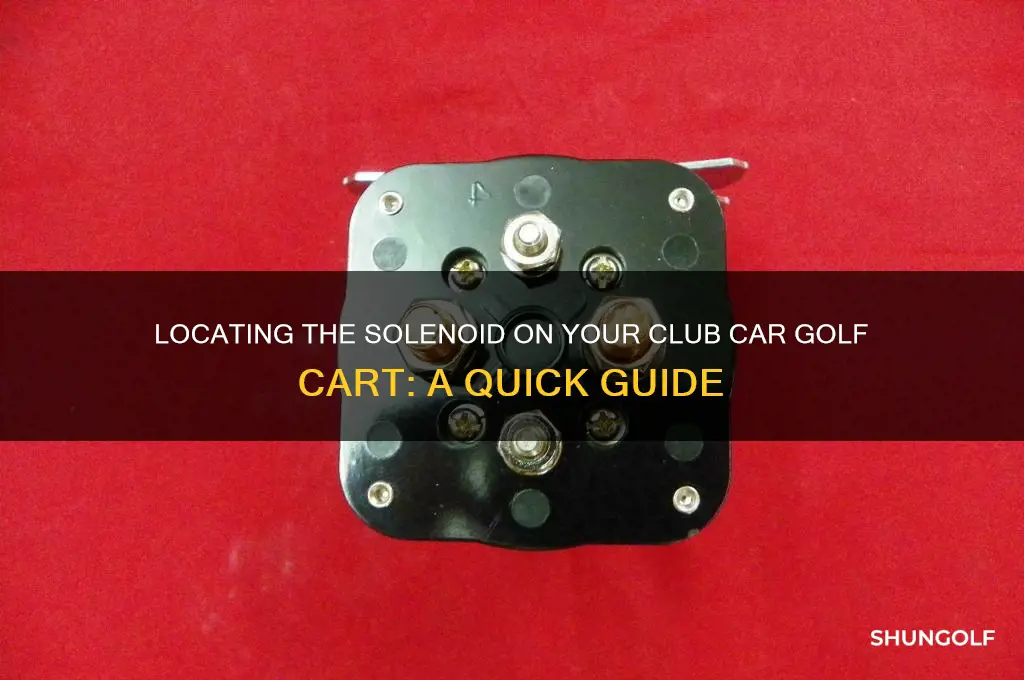

The solenoid is a crucial component in a Club Car golf cart's electrical system, acting as a high-current switch that controls the flow of power to the motor. Located typically near the battery compartment, it is often found under the seat or in the rear of the cart, depending on the model. Identifying its exact position is essential for troubleshooting issues such as the cart not starting or experiencing intermittent power loss. Understanding where the solenoid is situated and how it functions can save time and effort when performing maintenance or repairs on a Club Car golf cart.
Explore related products
$17.09 $17.99
$35.09 $38.99
$17.99 $19.99
What You'll Learn
Solenoid Location Basics
The solenoid on a Club Car golf cart is a critical component, acting as the bridge between the cart's electrical system and its mechanical functions. Understanding its location is essential for troubleshooting, maintenance, or upgrades. Typically, the solenoid is situated near the battery pack, often mounted on the frame or a bracket adjacent to the batteries. This placement ensures efficient power distribution and minimizes wiring complexity. For Club Car models like the DS or Precedent, the solenoid is usually found under the rear seat or in the battery compartment, depending on the year and configuration.
Analyzing the design rationale behind the solenoid’s location reveals a balance between accessibility and protection. Its proximity to the batteries reduces voltage drop, ensuring reliable operation. However, this placement also exposes it to dirt, moisture, and vibrations, which can accelerate wear. To mitigate this, Club Car often encases the solenoid in a protective housing or mounts it with rubber grommets to dampen shocks. When inspecting or replacing the solenoid, start by locating the battery compartment and follow the thick positive cable—it typically leads directly to the solenoid.
For DIY enthusiasts, identifying the solenoid is straightforward if you know what to look for. It’s a cylindrical or rectangular unit with multiple terminals, usually labeled with numbers or letters corresponding to its connections. On older Club Car models, the solenoid may be less concealed, while newer models often integrate it into a more compact, streamlined design. A practical tip: if you’re unsure, consult the cart’s wiring diagram or user manual, which often includes a detailed schematic of the solenoid’s location and connections.
Comparing the solenoid’s location across different Club Car models highlights consistency in design philosophy. Gas-powered carts often place the solenoid near the engine compartment for easier integration with the starter system, while electric models prioritize battery proximity. This uniformity simplifies maintenance across various Club Car lines. However, always verify the exact location for your specific model, as minor variations exist, especially in limited editions or custom builds.
In conclusion, mastering the basics of solenoid location on a Club Car golf cart empowers owners to tackle common issues with confidence. By understanding its typical placement, design considerations, and identification features, you can save time and avoid unnecessary complications. Whether you’re diagnosing a starting issue or upgrading your cart, knowing where to find the solenoid is the first step toward a successful repair or modification.
Who Crafts Integra Golf Clubs? Unveiling the Manufacturer Behind the Brand
You may want to see also
Explore related products
Identifying the Solenoid
The solenoid on a Club Car golf cart is a critical component, acting as the primary switch for the vehicle's electrical system. Located typically under the seat or in the battery compartment, it connects the battery to the motor, enabling the cart to move. Identifying it correctly is essential for troubleshooting or maintenance, as a faulty solenoid can cause the cart to fail to start or run inconsistently.
To locate the solenoid, start by removing the seat or accessing the battery compartment, depending on your Club Car model. Look for a cylindrical or rectangular component with thick wires connected to it. The solenoid usually has four terminals: two large ones connected to the battery and motor, and two smaller ones linked to the ignition switch and ground. If you’re unsure, consult your cart’s manual or trace the wires from the battery to confirm its position.
A practical tip for identification is to observe the solenoid’s behavior when you turn the key. If you hear a clicking sound but the cart doesn’t move, the solenoid may be engaged but failing to complete the circuit. In such cases, test it with a multimeter to check for continuity between the terminals. This simple diagnostic can save time and pinpoint whether the solenoid is the issue before proceeding with repairs or replacements.
Comparing the solenoid’s location across Club Car models reveals slight variations. Older gas models often place it near the engine, while newer electric versions typically house it in the battery compartment. Understanding these differences ensures you don’t waste time searching in the wrong area. Always cross-reference your specific model year and type to streamline the identification process.
In conclusion, identifying the solenoid on a Club Car golf cart requires a combination of visual inspection, understanding its function, and model-specific knowledge. By focusing on its location, connections, and diagnostic cues, you can efficiently troubleshoot issues and maintain your cart’s performance. This targeted approach transforms a potentially frustrating task into a manageable, even enlightening, part of golf cart ownership.
Master Your Golf Swing: Proven Tips to Prevent Club Casting
You may want to see also
Explore related products
$16.03 $16.88
Accessing the Solenoid
The solenoid on a Club Car golf cart is a critical component, acting as the primary switch for the cart's electrical system. Located under the seat, it connects the battery to the motor, enabling the cart to move. Accessing it requires a methodical approach to ensure safety and efficiency. Begin by parking the cart on a flat surface, engaging the parking brake, and turning off the power. Remove the seat by lifting the front edge and pulling it toward you—no tools needed for most models. This exposes the solenoid, typically a cylindrical or rectangular unit with thick cables attached.
Once the seat is removed, inspect the solenoid for signs of corrosion, loose connections, or damage. Clean any dirt or debris using a soft brush or compressed air to ensure accurate diagnosis. If testing the solenoid, use a multimeter to check continuity between the terminals when activated. However, avoid touching exposed wires or terminals while the cart is powered, as this can cause electrical shock or short circuits. Always disconnect the battery before proceeding with repairs or replacements to eliminate risks.
Replacing the solenoid involves disconnecting the battery cables and unbolting the unit from its mounting bracket. Take note of the cable positions to avoid misconnection during reinstallation. New solenoids should match the cart’s voltage (typically 36V or 48V) and amperage rating. Use a torque wrench to secure bolts to manufacturer specifications, usually 10-15 ft-lbs, to prevent damage from overtightening. Reattach the battery cables, ensuring polarity alignment, and test the cart’s operation before reassembling the seat.
For troubleshooting, a common issue is a clicking sound when starting the cart, indicating a faulty solenoid or low battery voltage. If the solenoid is the culprit, replacement is often more cost-effective than repair. Regular maintenance, such as checking connections every 6 months, can prevent unexpected failures. Keep a maintenance log to track inspections and replacements, especially for fleet carts. By understanding the solenoid’s role and location, owners can address issues promptly, ensuring reliable performance and extending the cart’s lifespan.
Best Forgiving Golf Clubs for Seniors: Enhance Your Game with Ease
You may want to see also
Explore related products
Common Solenoid Issues
Solenoid issues can bring your Club Car golf cart to a frustrating halt, often manifesting as a sudden inability to move or erratic performance. One common problem is a faulty solenoid coil, which can burn out due to excessive current or age. When this happens, the solenoid fails to engage the clutch or transmit power from the battery to the motor, leaving you stranded. To diagnose, listen for a clicking sound when you press the accelerator—a weak or absent click suggests a coil issue. Replacement is straightforward: disconnect the battery, remove the solenoid’s wiring harness, and swap in a new unit, ensuring the voltage rating matches your cart’s system.
Another frequent issue is corroded or loose connections at the solenoid terminals. Dirt, moisture, or vibration can cause poor contact, leading to intermittent power delivery or complete failure. Inspect the terminals for green corrosion or loose wires; clean them with a wire brush and dielectric grease to restore conductivity. Tighten connections with a torque wrench, but avoid over-tightening, as this can strip the threads. Regularly checking these connections during routine maintenance can prevent unexpected breakdowns, especially in humid or dusty environments.
Overheating is a less obvious but equally problematic solenoid issue, often caused by prolonged high-current draw or inadequate ventilation. Over time, this can melt internal components or warp the solenoid housing. If you notice a burning smell or see discoloration on the solenoid, it’s likely overheating. To mitigate, ensure the solenoid is mounted in a well-ventilated area and avoid excessive use on steep inclines or heavy loads. Installing a heat sink or upgrading to a higher-rated solenoid can also provide long-term protection.
Lastly, misdiagnosis is a common pitfall when troubleshooting solenoid problems. Symptoms like slow acceleration or erratic movement can mimic issues with the battery, motor, or controller. Before replacing the solenoid, test its continuity with a multimeter—a reading outside the specified range confirms a faulty unit. Additionally, check the cart’s F/R (forward/reverse) switch and key switch, as malfunctions here can falsely implicate the solenoid. Accurate diagnosis saves time and money, ensuring you address the root cause rather than replacing parts unnecessarily.
Mastering the Golf Swing: Unlocking the Secrets of Fluid Motion
You may want to see also
Explore related products
Replacement Steps
The solenoid on a Club Car golf cart is typically located beneath the seat, near the battery compartment, and is a critical component for controlling the flow of electrical current to the motor. Before attempting replacement, ensure the cart is powered off and the batteries are disconnected to prevent electrical hazards. This initial step is non-negotiable for safety and sets the foundation for a smooth replacement process.
Replacement begins with accessing the solenoid, which requires removing the seat. Lift the seat by pulling the latch or unscrewing the retaining bolts, depending on your model. Once exposed, locate the solenoid—a cylindrical or rectangular unit with multiple wires connected to it. Take a moment to study its orientation and wiring configuration, as this will be crucial for installing the new unit correctly. A smartphone photo can serve as a reference during reassembly.
With the solenoid identified, disconnect the wires one at a time, labeling each with tape or a marker to avoid confusion. Some wires may be secured with nuts or bolts, requiring a wrench or socket set for removal. Once all connections are detached, remove the solenoid by unscrewing its mounting bolts. Install the new solenoid in the reverse order, ensuring it is securely fastened and all wires are reattached to their correct terminals. Double-check the wiring against your reference photo to prevent misalignment.
After installation, reconnect the batteries and test the cart’s functionality. Engage the accelerator to ensure the solenoid activates the motor as expected. If the cart fails to respond, recheck the wiring and connections for errors. Proper testing not only confirms successful replacement but also prevents potential damage from overlooked issues. This methodical approach ensures longevity and reliability in your golf cart’s performance.
Do Golf Clubs Retain Value? A Guide to Resale Worth
You may want to see also
Frequently asked questions
The solenoid on a Club Car golf cart is typically located under the seat, near the battery compartment, or on the side of the battery pack.
The solenoid is a cylindrical or rectangular component with multiple wires connected to it. It often has a metal body and is labeled with the word "solenoid" or a part number.
The solenoid acts as a switch, controlling the flow of electrical current between the batteries and the motor. It engages when the accelerator pedal is pressed, allowing the cart to move.
Yes, replacing the solenoid is a DIY-friendly task. Ensure the cart is powered off, disconnect the battery, remove the old solenoid, and install the new one by reconnecting the wires in the same configuration.
Common signs include the cart not moving when the pedal is pressed, clicking noises from the solenoid, or intermittent power issues. Testing with a multimeter can confirm if the solenoid is faulty.
