The trans code, or transmission control unit (TCU) code, on a TDI Golf Mk5 is a crucial piece of information for diagnosing and troubleshooting transmission-related issues. Located within the vehicle's engine control unit (ECU), this code provides valuable insights into the transmission's performance and potential problems. For Golf Mk5 owners, finding the trans code typically involves accessing the ECU, which is often situated near the fuse box or under the dashboard. Using a diagnostic tool or software, such as VAG-COM or OBDeleven, allows users to retrieve the code and interpret any error messages, enabling them to address transmission concerns effectively and maintain their vehicle's optimal performance.
| Characteristics | Values |
|---|---|
| Location of Trans Code | The transmission code on a VW Golf Mk5 TDI is typically found on a sticker or plate located on the driver's side door jamb or B-pillar. |
| Alternative Location | In some cases, it may also be found in the engine bay on a sticker near the firewall or on the transmission itself. |
| Code Format | The code usually consists of a combination of letters and numbers (e.g., GRX, JLU) that identifies the specific transmission type and model. |
| Purpose | The trans code is essential for identifying the correct transmission type when ordering parts, performing repairs, or diagnosing issues. |
| Common Transmissions in Mk5 TDI | Examples include the 6-speed manual (GRX, JLU) and the 6-speed DSG (EAF, GQR). |
| Verification | Always cross-reference the code with the vehicle's VIN (Vehicle Identification Number) or consult the owner's manual for accuracy. |
| Additional Resource | For precise location, refer to the vehicle's service manual or a trusted automotive forum specific to VW Golf Mk5 TDI. |
Explore related products
![[Upgrade] YZKONG Car Stereo Compatible for VW Passat Golf MK5 Jetta Caddy EOS Tiguan with Wireless Carplay Android Auto IPS Touch Screen Car Radio, AM/FM Radio, BT, Dual USB Port](https://m.media-amazon.com/images/I/61B5DsRj4jL._AC_UL320_.jpg)
What You'll Learn

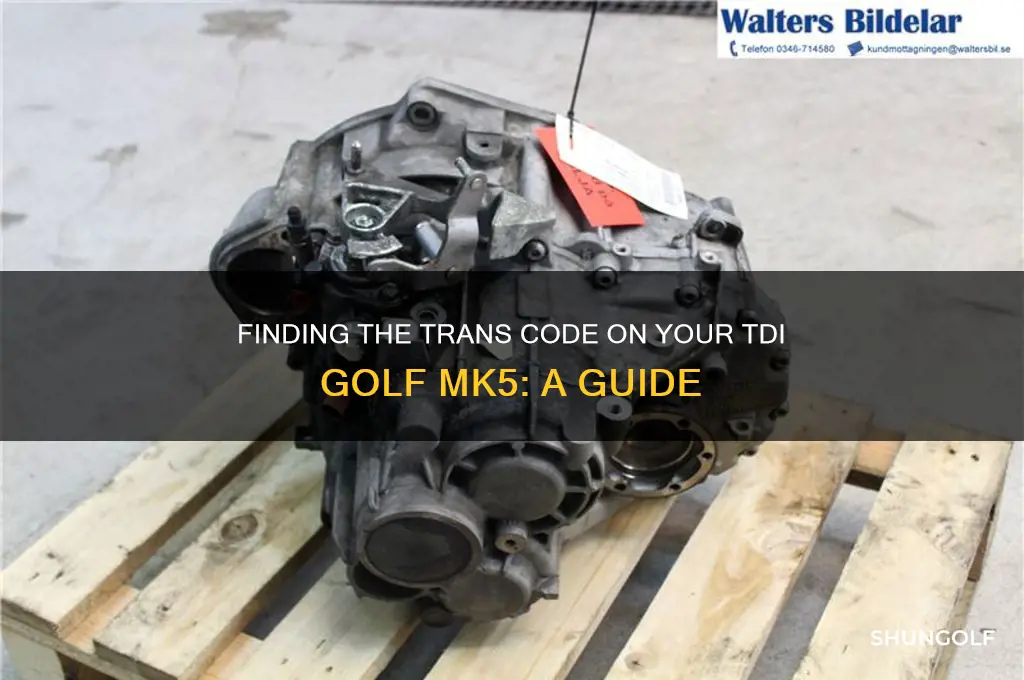

Location of Trans Code on MK5 Golf TDI
The transmission code, or trans code, on a MK5 Golf TDI is a crucial piece of information for vehicle identification, maintenance, and parts compatibility. This alphanumeric sequence is typically found in several locations, each serving a specific purpose. Understanding where to locate this code can save time and prevent errors when dealing with repairs or upgrades.
Primary Location: The Transmission Control Module (TCM)
The most direct method to find the trans code is by accessing the Transmission Control Module (TCM). On the MK5 Golf TDI, the TCM is usually located in the engine bay, near the battery or fuse box. To retrieve the code, you’ll need a diagnostic tool like VAG-COM or OBDeleven. Connect the tool to the OBD-II port, navigate to the transmission module, and read the coding information. This method provides the most accurate and up-to-date data, as it directly interfaces with the vehicle’s system.
Alternative Location: The Data Plate
For a physical reference, the trans code is often stamped on the vehicle’s data plate. On the MK5 Golf TDI, this plate is typically found in the driver’s side door jamb or under the hood. The code is usually a combination of letters and numbers, such as "GRX" or "JBF," indicating the specific transmission type. While this method is straightforward, it may not always reflect modifications or updates made after production.
Practical Tips for Identification
If you’re unsure about the code’s meaning, cross-reference it with the vehicle’s service manual or an online database. For instance, a "0A4" code corresponds to a 6-speed manual transmission, while "02E" indicates an automatic DSG. Additionally, always double-check the code when ordering parts, as even slight variations can lead to incompatibility. For DIY enthusiasts, investing in a diagnostic tool is a worthwhile step, as it provides access to a wealth of vehicle information beyond just the trans code.
Common Mistakes to Avoid
One frequent error is confusing the trans code with the engine code, which is also located on the data plate. The engine code (e.g., "BKD" or "BLY") is unrelated to the transmission. Another mistake is relying solely on visual inspection without verifying the code through diagnostics, especially on older vehicles where wear or tampering may obscure markings. Always use multiple sources to confirm the trans code for accuracy.
By knowing where and how to locate the trans code on a MK5 Golf TDI, owners can ensure proper maintenance, avoid costly mistakes, and maintain the longevity of their vehicle’s transmission system. Whether through diagnostics or physical inspection, this knowledge is an essential tool for any Golf TDI owner.
