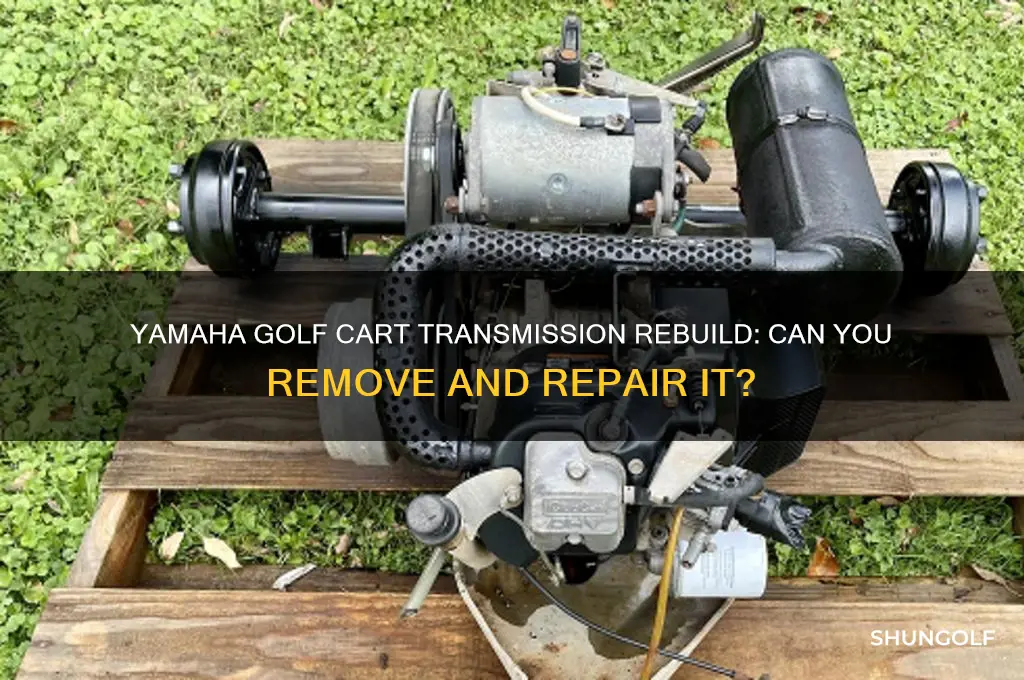

Rebuilding the transmission of a Yamaha golf cart can be a complex but manageable task for those with mechanical expertise or access to detailed guides. The process typically involves disassembling the transmission, inspecting components for wear or damage, replacing worn parts, and reassembling the unit with precision. While some enthusiasts may opt for a DIY approach, others prefer professional services to ensure accuracy and reliability. Understanding the specific model and transmission type is crucial, as Yamaha golf carts vary in design. Whether you choose to rebuild the transmission yourself or seek expert assistance, addressing issues promptly can extend the cart’s lifespan and maintain optimal performance on the course.
| Characteristics | Values |
|---|---|
| Process Complexity | Moderate to high; requires mechanical expertise and specialized tools. |
| Tools Required | Socket set, wrenches, pry bar, transmission jack, and torque wrench. |
| Time Required | 4-8 hours depending on experience and model. |
| Common Reasons for Rebuild | Slipping gears, unusual noises, fluid leaks, or difficulty shifting. |
| Parts Needed | Gaskets, seals, bearings, and possibly new gears or clutch components. |
| Cost of Rebuild Kit | $150-$300 (varies by model and parts included). |
| Labor Cost (Professional) | $300-$600 depending on location and shop rates. |
| DIY Feasibility | Possible with intermediate mechanical skills and proper resources. |
| Model Compatibility | Specific to Yamaha golf cart models (e.g., G2, G9, G16, G22). |
| Maintenance Tips | Regularly check transmission fluid and inspect for leaks or wear. |
| Alternative Solution | Replace the entire transmission if rebuild is not cost-effective. |
| Safety Precautions | Ensure cart is on a flat surface, use jack stands, and wear gloves. |
| Manual Availability | Yamaha service manuals are available online or through dealers. |
| Environmental Impact | Rebuilding is eco-friendly compared to replacing the entire unit. |
Explore related products
What You'll Learn
Transmission Removal Tools
Removing a Yamaha golf cart transmission requires precision and the right tools. A transmission puller, specifically designed for this task, is essential. This tool typically features a central screw mechanism and arms that grip the transmission, allowing you to apply even force to dislodge it from the engine. Ensure the puller’s arms align with the transmission’s mounting points to avoid damage. While generic pullers may work, a Yamaha-specific model guarantees compatibility and reduces the risk of errors.
Beyond the puller, a socket set with metric sizes (commonly 10mm to 17mm) is indispensable for removing bolts and fasteners securing the transmission. A torque wrench is also critical for reassembly, ensuring bolts are tightened to factory specifications, typically ranging from 20 to 40 Nm depending on the component. For stubborn bolts, a penetrating oil like PB Blaster or WD-40 applied 15 minutes prior can make removal easier. Always use a breaker bar for initial loosening to prevent stripping.
A transmission jack, while not mandatory, simplifies the process by supporting the transmission’s weight during removal. This tool is particularly useful for larger Yamaha models like the G29 or Drive2, where transmissions can weigh upwards of 50 pounds. Pair it with a creeper for better access to underside components. If a jack isn’t available, a sturdy wooden block or floor jack can serve as a makeshift alternative, though stability is compromised.
Finally, a pry bar and rubber mallet are invaluable for gently separating the transmission from the engine block. Use the pry bar sparingly and with caution to avoid bending components. The mallet, wrapped in a cloth to prevent scratches, can tap stubborn parts into alignment. Always work methodically, referencing a Yamaha service manual for specific steps and torque values to ensure a successful removal without damage.
Golf Cart Rear Flip Seat Covers: Comfort, Style, and Protection Options
You may want to see also
Explore related products
Disassembly Steps Guide
Removing the transmission from a Yamaha golf cart is a task that demands precision and patience. Begin by ensuring the cart is on a level surface, with the parking brake engaged and the power completely shut off. Gather your tools: a socket set, wrenches, screwdrivers, and a drain pan for any residual fluid. Start by disconnecting the battery to prevent any accidental electrical issues during the process. This initial step is crucial for safety and sets the stage for a systematic disassembly.
Next, focus on the drivetrain components. Locate the drive belt and carefully remove it by loosening the tensioner pulley. This step requires attention to detail, as improper handling can damage the belt or surrounding parts. Once the belt is off, proceed to disconnect the axle shafts. Use a wrench to remove the retaining bolts, ensuring you support the weight of the differential to prevent strain on the bearings. With the axles free, carefully slide them out of the transmission housing, taking note of their orientation for reassembly.
The transmission itself is now accessible, but dislodging it requires methodical work. Drain the transmission fluid into the pan to avoid spills. Disconnect the shift linkage and any electrical connectors attached to the transmission. Remove the mounting bolts securing the transmission to the frame, using a torque wrench to avoid over-tightening during reassembly. Gently pry the transmission free, using a pry bar if necessary, but take care not to damage the seals or gaskets.
Finally, inspect the transmission for wear or damage before proceeding with a rebuild. Look for signs of leakage, worn gears, or damaged bearings. Documenting the condition of internal components can guide your repair decisions. If a rebuild is necessary, consult a Yamaha service manual for specific torque specifications and assembly procedures. This disassembly process, while intricate, ensures a thorough understanding of the transmission’s condition and prepares it for effective restoration.
Understanding Golf Cart Motor Controller Functionality and Operation
You may want to see also
Explore related products
Parts Inspection Tips
Before diving into a Yamaha golf cart transmission rebuild, a meticulous parts inspection is crucial. Overlooking worn components can lead to premature failure post-rebuild. Start by disassembling the transmission systematically, documenting each step with photos or notes to ensure correct reassembly. Clean all parts thoroughly using a degreaser and a soft-bristle brush to remove grime and debris that might obscure defects.
Inspect gears for chipped teeth, uneven wear, or pitting, which can indicate misalignment or material fatigue. Use a magnifying glass to detect hairline cracks, especially on high-stress areas like the drive gear. Measure gear backlash with a dial indicator to ensure it falls within Yamaha’s specified tolerances (typically 0.002–0.004 inches). Replace any gears that deviate from these standards, as improper backlash can lead to noise, vibration, and reduced efficiency.
Examine bearings for smoothness and play by manually rotating them while applying slight axial pressure. Any grinding, roughness, or excessive movement signals the need for replacement. Check seals and gaskets for brittleness, tears, or distortion, as compromised seals can allow fluid leaks and contamination. Replace all seals as a preventive measure, even if they appear intact, to maintain optimal performance.
Evaluate the transmission case for cracks, warping, or damage, particularly around mounting points and fluid passages. Use a straightedge and feeler gauge to verify flatness, ensuring proper mating surfaces for seals and gaskets. If the case is compromised, consider sourcing a replacement or consulting a professional for repair options, as structural integrity is non-negotiable.
Finally, inspect the clutch components, including the drive belt and pulleys, for wear, glazing, or misalignment. Measure belt tension using a tension gauge (Yamaha recommends 50–70 pounds for G29 models) and replace belts showing signs of cracking or fraying. Pulleys should be free of grooves or flat spots, as these can cause slippage and reduced power transmission. A thorough inspection at this stage not only ensures a successful rebuild but also extends the transmission’s lifespan, saving time and money in the long run.
Do Golf Carts in Hawaii Require Pink Slips? Find Out Here
You may want to see also
Explore related products
Reassembly Techniques
Reassembly of a Yamaha golf cart transmission demands precision and patience, as each component must align perfectly to ensure smooth operation. Begin by thoroughly cleaning all parts with a degreaser and a soft brush, removing any residual dirt or old lubricant. Inspect the gears, bearings, and shafts for wear or damage; replace any compromised components before proceeding. Lay out the parts in the order they will be reassembled, referencing the disassembly process or a service manual to avoid confusion.
The sequence of reassembly is critical, starting with the main drive gear and progressing to the secondary gears and shafts. Apply a high-quality gear lubricant to all moving parts, ensuring even distribution to reduce friction and wear. Use a torque wrench to tighten bolts and fasteners to the manufacturer’s specifications, typically ranging from 15 to 25 foot-pounds depending on the component. Over-tightening can warp surfaces, while under-tightening risks loose connections that may lead to failure.
Alignment is another key factor during reassembly. Ensure the transmission case is properly seated and secured before installing the gears. Use a dial indicator to verify the alignment of the drive and driven shafts, aiming for a runout of less than 0.002 inches. Misalignment can cause excessive noise, vibration, and premature wear, negating the benefits of the rebuild. Double-check all seals and gaskets for proper placement to prevent leaks.
Finally, test the transmission before reinstalling it in the golf cart. Manually rotate the drive shaft to confirm smooth operation and listen for any unusual noises. If resistance or grinding occurs, disassemble the unit again to identify and correct the issue. Once satisfied, reinstall the transmission, ensuring all mounting bolts are tightened to the correct torque. A systematic, detail-oriented approach to reassembly not only restores functionality but also extends the lifespan of the transmission.
Exploring Alexander Springs: Golf Cart Rules and Recreation Options
You may want to see also
Explore related products
Troubleshooting Common Issues
Yamaha golf cart transmissions are robust but not immune to wear and tear. Common issues like slipping gears, unusual noises, or difficulty shifting often stem from low transmission fluid, worn clutch components, or misaligned belts. Before diving into a full rebuild, start with a fluid check. Yamaha recommends using their proprietary G-29 or G-9 transmission fluid, and levels should be checked with the cart on a level surface and the engine off. If the fluid is dark, smells burnt, or is below the “LOW” mark, a simple fluid change might resolve the problem.
Analyzing noise patterns can pinpoint specific transmission problems. A whining sound during acceleration often indicates a failing differential or low fluid, while grinding noises suggest worn gears or a misaligned drive shaft. For instance, if the cart makes a loud clunk when shifting into gear, inspect the universal joint (U-joint) for play or damage. Replacing a U-joint is less invasive than a full rebuild and typically costs between $50 and $100 in parts, depending on the model. Always use a torque wrench to secure bolts to factory specifications, usually 35-45 ft-lbs for U-joint fasteners.
Clutch slippage is another frequent issue, especially in carts used on hilly terrain or under heavy loads. Inspect the drive belt for glazing, cracks, or improper tension. Yamaha belts should deflect approximately 1/2 inch under moderate thumb pressure. If the belt is compromised, replace it with an OEM part to ensure compatibility. Adjusting the clutch gap—typically between 0.04 and 0.06 inches—can also restore performance. Use a feeler gauge and loosen the clutch bolt to make adjustments, ensuring the cart is on stands and the engine is off to prevent accidents.
For persistent issues, disassembling the transmission for inspection is necessary but should be approached cautiously. Start by removing the rear wheels and drive shaft, then detach the transmission cover using a socket set. Document the placement of each component, such as gaskets and seals, to ease reassembly. Look for worn bearings, chipped gears, or damaged seals. While a rebuild kit (ranging from $200 to $400) can address these issues, consider whether replacing the entire transmission ($600-$1,000) is more cost-effective for older carts. Always consult a Yamaha service manual for model-specific procedures and torque values.
Preventive maintenance is key to avoiding transmission rebuilds. Regularly inspect fluid levels, clean debris from the transmission vent, and replace belts every 3-5 years or 3,000 miles, whichever comes first. For carts used in harsh conditions, such as sandy or muddy environments, double the frequency of these checks. By addressing minor issues promptly and adhering to Yamaha’s maintenance schedule, you can extend the life of your transmission and avoid the complexity and expense of a full rebuild.
Do Golf Carts Have Power Steering? Exploring Features and Options
You may want to see also
Frequently asked questions
While it is possible to remove a Yamaha golf cart transmission with basic tools, specialized tools like a transmission puller or bearing splitter may be required for certain components, especially if the transmission is seized or damaged.
Common signs include grinding noises, difficulty shifting gears, slipping gears, or complete loss of power. Leaking fluid or excessive wear on internal components during inspection also indicates a rebuild is necessary.
The time to rebuild a Yamaha golf cart transmission varies depending on experience and the extent of damage, but it typically takes 4 to 8 hours for a skilled technician. DIYers may take longer due to troubleshooting and tool limitations.
If you have mechanical experience and the right tools, you can rebuild it yourself. However, due to the complexity and precision required, hiring a professional is recommended for those without experience to avoid further damage.
The cost to rebuild a Yamaha golf cart transmission ranges from $300 to $800, depending on parts needed, labor rates, and whether you do it yourself or hire a professional. Parts like bearings, seals, and gaskets are typically included in this estimate.
