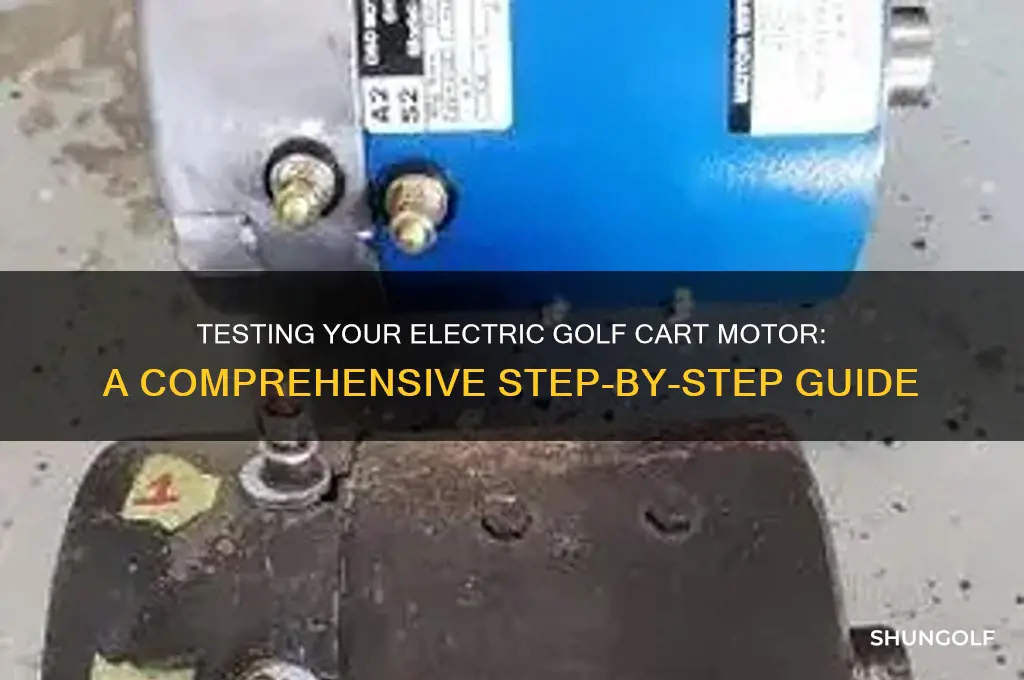

Testing an electric golf cart motor is essential for ensuring optimal performance, diagnosing issues, and maintaining longevity. The process typically begins with a visual inspection to check for loose connections, damaged wires, or worn components. Next, a multimeter is used to test the motor’s voltage and continuity, ensuring the circuit is intact and power is flowing correctly. A load test, such as spinning the motor manually or using a dynamometer, helps assess its ability to operate under resistance. Additionally, checking the motor’s brushes, commutator, and armature for wear or damage is crucial. Finally, a test drive or controlled run verifies the motor’s functionality in real-world conditions, ensuring it operates smoothly and efficiently. Regular testing not only prevents unexpected breakdowns but also extends the life of the golf cart motor.
| Characteristics | Values |
|---|---|
| Voltage Check | Use a multimeter to measure voltage at the motor terminals (typically 36V or 48V). Ensure it matches the battery voltage. |
| Continuity Test | Test for continuity between motor terminals using a multimeter. A closed circuit indicates proper wiring. |
| Resistance Measurement | Measure resistance across motor windings (typically 0.1 to 1.0 ohms). High resistance suggests a fault. |
| Visual Inspection | Check for physical damage, loose connections, or burnt components. Ensure the motor is clean and free of debris. |
| Manual Rotation | Manually rotate the motor shaft to ensure it spins freely without binding or unusual noise. |
| Battery Connection Test | Verify secure and clean battery connections to the motor controller. Corrosion or loose connections can cause issues. |
| Controller Functionality | Test the motor controller by engaging the cart's throttle. Ensure the motor responds appropriately. |
| Amperage Draw Test | Measure current draw while running the motor under load. Excessive amperage indicates inefficiency or damage. |
| Speed and Torque Test | Drive the cart and observe motor performance. Ensure it accelerates smoothly and maintains consistent speed. |
| Solenoid and Relay Check | Test solenoids and relays for proper operation, as they control power flow to the motor. |
| Temperature Monitoring | Monitor motor temperature during operation. Overheating indicates potential issues with ventilation or load. |
| Load Testing | Test the motor under load (e.g., driving uphill) to ensure it performs without overheating or losing power. |
| Noise and Vibration | Listen for unusual noises or vibrations during operation, which may indicate mechanical issues. |
| Diagnostic Tools | Use golf cart-specific diagnostic tools or software to check error codes and motor performance metrics. |
| Replacement Parts | If testing reveals faults, replace damaged components (e.g., brushes, bearings, or windings) as needed. |
Explore related products
What You'll Learn
- Check Voltage Supply: Ensure battery is charged and connections are secure for proper power delivery
- Test Motor Continuity: Use a multimeter to verify motor windings are not open or shorted
- Inspect Brushes and Commutator: Look for wear, damage, or debris affecting motor performance
- Run Load Test: Operate the cart under load to assess motor efficiency and overheating
- Evaluate Speed Controller: Test controller functionality by checking throttle response and output consistency
Check Voltage Supply: Ensure battery is charged and connections are secure for proper power delivery
A weak or unstable voltage supply is often the culprit behind underperforming electric golf cart motors. Before diving into complex diagnostics, verify the foundation: your battery's charge and connection integrity. A fully charged battery should read between 48-52 volts for a 48V system (common in many golf carts) when measured with a multimeter across the battery terminals. Anything below 48V indicates a charge deficiency, while readings above 52V suggest overcharging, both detrimental to motor performance and battery lifespan.
Steps to Check Voltage Supply:
- Safety First: Turn off the golf cart and allow the motor to cool. Wear insulated gloves and eye protection when handling batteries.
- Inspect Connections: Examine battery terminals for corrosion (a white, powdery residue), loose cables, or damaged wires. Clean terminals with a baking soda and water solution, then rinse and dry thoroughly. Tighten connections with a wrench, ensuring a snug fit without overtightening.
- Measure Voltage: Set a multimeter to DC voltage (200V range). Touch the red probe to the positive terminal and the black probe to the negative terminal. Compare the reading to your cart’s specified voltage range.
Cautions: Corroded terminals can lead to voltage drops, even with a fully charged battery. Overlooking this step may result in misdiagnosing the motor as faulty. Additionally, avoid using a voltmeter while the cart is running, as this can yield inaccurate readings due to load fluctuations.
