Miles Bennett

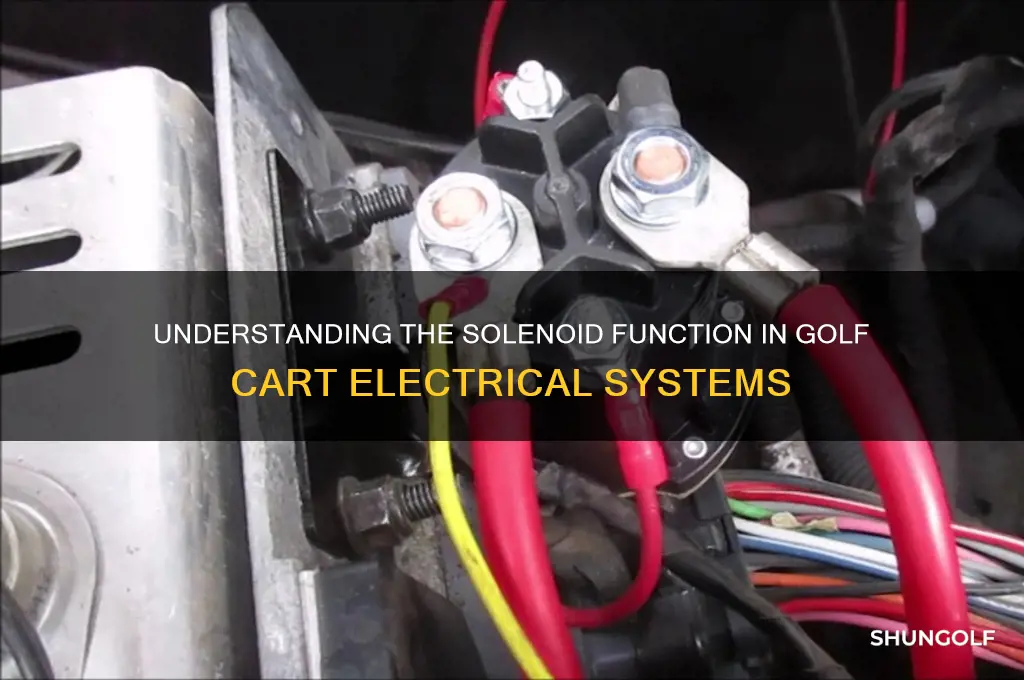

The solenoid in a golf cart is a critical component that acts as an electromagnetic switch, controlling the flow of electrical current to the motor. When the accelerator pedal is pressed, the solenoid receives a signal from the controller, energizing its coil and pulling a plunger to close the circuit between the battery and the motor. This action allows power to reach the motor, propelling the golf cart forward or in reverse. Essentially, the solenoid ensures smooth and responsive operation by efficiently managing the electrical connection, making it a key element in the cart’s drivetrain system.
| Characteristics | Values |
|---|---|
| Function | Acts as an electromagnetic switch to control the flow of high-current electricity from the battery to the motor. |
| Location | Typically mounted near the battery pack or motor controller. |
| Activation | Engaged when the accelerator pedal is pressed, allowing current to flow through the solenoid coil. |
| Operation | Creates a magnetic field when energized, pulling a plunger or armature to close the main contacts, completing the circuit to the motor. |
| Current Handling | Designed to handle the high current required to power the golf cart's electric motor (typically hundreds of amps). |
| Voltage | Operates on the golf cart's standard voltage, usually 36V or 48V. |
| Durability | Built to withstand frequent cycling and exposure to vibrations and environmental conditions. |
| Failure Symptoms | Cart won't move, clicking noise when pressing the accelerator, intermittent power loss. |
| Maintenance | Regular cleaning of contacts and inspection for wear or damage. |
Explore related products
What You'll Learn
- Solenoid Function: Acts as an electromagnetic switch, controlling power flow to the golf cart's motor
- Activation Process: Engaged by the key or pedal, allowing current to energize the solenoid
- Internal Components: Coil, plunger, and contacts work together to complete the electrical circuit
- Power Routing: Directs battery power to the motor, enabling forward or reverse movement
- Troubleshooting Tips: Check for clicks, voltage, or burnt contacts to diagnose solenoid issues
Solenoid Function: Acts as an electromagnetic switch, controlling power flow to the golf cart's motor
The solenoid in a golf cart is a critical component that operates as an electromagnetic switch, dictating the flow of power to the motor. When the ignition key is turned or the accelerator pedal is pressed, an electrical current passes through the solenoid’s coil, generating a magnetic field. This field activates a plunger inside the solenoid, which closes the circuit between the battery and the motor. Without this mechanism, the motor would remain inactive, rendering the golf cart immobile. Think of the solenoid as the gatekeeper of power, ensuring electricity reaches the motor only when commanded by the driver.
To understand its function better, consider the solenoid’s role in a step-by-step process. First, the driver engages the ignition or accelerator, sending a signal to the solenoid. Second, the solenoid’s coil energizes, creating a magnetic force that pulls the plunger into position. Third, this action completes the circuit, allowing battery power to flow to the motor. Finally, the motor activates, propelling the golf cart forward. This sequence highlights the solenoid’s precision in controlling power delivery, ensuring the cart operates smoothly and efficiently.
A practical tip for maintaining solenoid functionality is to regularly inspect the wiring connections for corrosion or looseness, as these issues can disrupt the electrical signal. Additionally, ensure the solenoid is free from dirt and debris, as contamination can hinder the plunger’s movement. For older golf carts, consider testing the solenoid’s continuity with a multimeter; a reading outside the expected range (typically 0.5 to 2 ohms) indicates a faulty unit that requires replacement. Proper care extends the solenoid’s lifespan, minimizing downtime and repair costs.
Comparatively, the solenoid’s function in a golf cart mirrors that of a relay in automotive systems, both acting as switches to manage high-power circuits with low-power signals. However, the solenoid’s design is more robust, capable of handling the specific demands of electric vehicles like golf carts. Unlike relays, solenoids often integrate additional features, such as manual override options, which can be crucial for troubleshooting or emergency stops. This distinction underscores the solenoid’s tailored role in ensuring reliable motor control in golf carts.
In conclusion, the solenoid’s role as an electromagnetic switch is indispensable for golf cart operation. By controlling the power flow to the motor, it translates driver input into mechanical action, enabling movement. Understanding its function, maintaining its integrity, and recognizing its unique design features are key to appreciating its importance. Whether you’re a golf cart owner or enthusiast, grasping the solenoid’s mechanics empowers you to diagnose issues and ensure optimal performance.
Mastering Golf Cart Battery Testing: A Comprehensive Step-by-Step Guide
You may want to see also
Explore related products
$35.99
Activation Process: Engaged by the key or pedal, allowing current to energize the solenoid
The activation process of a golf cart's solenoid is a critical sequence that begins with a simple yet deliberate action: turning the key or pressing the pedal. This action serves as the catalyst, initiating a chain of events that ultimately powers the vehicle. When the key is turned or the pedal engaged, it completes an electrical circuit, allowing current to flow to the solenoid. This current is the lifeblood of the system, energizing the solenoid and preparing it to perform its primary function: engaging the motor. Understanding this initial step is essential, as it highlights the direct link between user input and the cart’s operational readiness.
From an analytical perspective, the activation process is a prime example of how mechanical and electrical systems converge in modern vehicles. The solenoid, a coil of wire wrapped around a metal core, acts as an electromagnetic switch. When current passes through the coil, it generates a magnetic field that pulls the core inward, closing the circuit between the battery and the motor. This mechanism is both efficient and reliable, ensuring that the golf cart responds instantly to the driver’s command. The precision of this process underscores the importance of maintaining clean electrical connections and a functional ignition system to avoid delays or failures.
For those looking to troubleshoot or maintain their golf cart, the activation process offers practical insights. If the cart fails to start when the key is turned or the pedal pressed, the issue may lie in the solenoid’s ability to receive or transmit current. Common culprits include a dead battery, corroded terminals, or a faulty ignition switch. A simple diagnostic step is to test the voltage at the solenoid’s terminals when the key is engaged. If voltage is present but the solenoid doesn’t click or engage, the solenoid itself may be defective and require replacement. Regularly cleaning battery terminals and checking for loose connections can prevent such issues.
Comparatively, the activation process in a golf cart solenoid shares similarities with other vehicular systems, such as car starters. However, golf carts operate at lower voltages (typically 36V or 48V) and rely on simpler circuitry, making them more accessible for DIY repairs. Unlike cars, which often require specialized tools and knowledge, golf cart solenoids can be tested and replaced with basic hand tools and a multimeter. This accessibility makes golf carts an excellent platform for learning about electrical systems, offering a hands-on way to understand how current flow translates into mechanical action.
In conclusion, the activation process of a golf cart’s solenoid is a straightforward yet fascinating interplay of user input, electrical current, and mechanical response. Whether you’re a casual user or an enthusiast, grasping this process empowers you to diagnose issues, perform maintenance, and appreciate the ingenuity behind this essential component. By focusing on the role of the key or pedal in energizing the solenoid, you gain a deeper understanding of how small actions lead to significant outcomes in the operation of a golf cart.
Golf Cart Roof Height: Dimensions and Practical Considerations Explained
You may want to see also
Explore related products
$15.99
Internal Components: Coil, plunger, and contacts work together to complete the electrical circuit
The solenoid in a golf cart is a marvel of simplicity and efficiency, relying on the seamless interaction of its internal components to function. At its core, the coil acts as the initiator, a tightly wound copper wire that generates a magnetic field when electrified. This magnetic force is the silent conductor, orchestrating the movement of the plunger, a cylindrical metal rod housed within the coil. When current flows, the plunger is pulled toward the coil’s center, bridging the gap between the contacts—two conductive terminals that complete the electrical circuit. This mechanism is the linchpin of the golf cart’s operation, enabling the flow of power to the motor and, ultimately, propelling the vehicle forward.
Consider the coil as the solenoid’s engine, but one that runs on electromagnetism rather than combustion. When the ignition key is turned, a 36-volt or 48-volt current (depending on the golf cart model) surges through the coil, creating a magnetic field strong enough to overcome the spring resistance holding the plunger in place. This action is instantaneous, ensuring the golf cart responds promptly to the driver’s command. For optimal performance, inspect the coil periodically for signs of wear, such as frayed wires or corrosion, as these can weaken the magnetic field and delay engagement.
The plunger’s role is both mechanical and strategic, acting as the intermediary between the coil’s magnetic force and the electrical contacts. Its design is critical: a lightweight yet durable material like steel ensures swift movement without sacrificing longevity. Over time, dirt or debris can accumulate on the plunger’s surface, hindering its ability to slide smoothly. A practical tip is to clean the plunger with a soft cloth and lubricate it with a non-conductive grease annually, especially in dusty environments. This maintenance step can prevent erratic operation and extend the solenoid’s lifespan.
The contacts are where the rubber meets the road—or, in this case, where the circuit is completed. Typically made of silver or copper alloys for their high conductivity, these terminals must maintain a precise gap to ensure reliable connection when the plunger engages. Over years of use, the contacts can wear down or oxidize, leading to voltage drops or intermittent power. A diagnostic trick is to measure the resistance across the contacts with a multimeter; readings above 0.5 ohms indicate a need for cleaning or replacement. For DIY enthusiasts, sanding the contacts lightly with fine-grit paper can restore functionality, but always disconnect the battery first to avoid short circuits.
Together, these components form a symphony of motion and electricity, each playing a distinct yet interdependent role. The coil’s magnetic field drives the plunger, which in turn closes the contacts, allowing current to flow uninterrupted to the motor. This process underscores the solenoid’s dual nature: part electromagnet, part switch. Understanding this interplay not only demystifies the golf cart’s operation but also empowers owners to troubleshoot issues with confidence. Whether you’re a casual golfer or a fleet manager, recognizing how these internal components collaborate can save time, money, and frustration.
Steep Hill Climbing: 48-Volt Yamaha Golf Cart Performance Guide
You may want to see also
Explore related products
Power Routing: Directs battery power to the motor, enabling forward or reverse movement
The solenoid in a golf cart acts as a high-current switch, controlling the flow of battery power to the motor. When the driver engages the accelerator pedal, the solenoid receives a low-voltage signal from the controller. This signal energizes the solenoid's coil, creating a magnetic field that pulls a plunger or armature. The movement of this plunger connects the high-current battery circuit, allowing power to flow to the motor. This direct power routing is essential for initiating forward or reverse movement, depending on the motor's configuration.
Consider the solenoid as the gatekeeper of power in the golf cart's electrical system. Without it, the battery's energy would remain isolated from the motor, rendering the vehicle immobile. The solenoid's role is not just to connect the circuit but to do so in a controlled manner. It ensures that power is delivered only when the driver intends to move the cart, preventing accidental activation. This safety feature is critical, especially in vehicles designed for public use or uneven terrains.
To understand the solenoid's function in power routing, imagine a simple analogy: a water valve controlling flow to a turbine. The battery is the water reservoir, the motor is the turbine, and the solenoid is the valve. When the valve (solenoid) opens, water (power) flows to the turbine (motor), generating movement. In reverse, the solenoid redirects power to the motor in a way that changes the rotational direction, allowing the golf cart to move backward. This directional control is achieved through the solenoid's ability to switch between two distinct power pathways.
Practical troubleshooting of solenoid-related issues often begins with checking the power routing. If the golf cart fails to move, inspect the solenoid for signs of wear, corrosion, or damage. A common issue is a stuck plunger, which can prevent the circuit from closing. Cleaning the solenoid contacts and ensuring proper lubrication can resolve this. For advanced users, testing the solenoid's continuity with a multimeter (expecting a reading of 0–1 ohms when activated) can confirm its functionality. Always disconnect the battery before performing any maintenance to avoid electrical hazards.
In summary, power routing via the solenoid is a precise and safety-critical process in golf cart operation. It transforms a low-voltage signal into a high-current action, enabling seamless control over the vehicle's movement. By understanding this mechanism, users can diagnose issues effectively and appreciate the solenoid's role as the linchpin of the golf cart's electrical system. Whether moving forward or reversing, the solenoid ensures that battery power is directed accurately, making it an indispensable component in the cart's functionality.
Testing Micro Switches in Golf Carts: A Step-by-Step Guide
You may want to see also
Explore related products
Troubleshooting Tips: Check for clicks, voltage, or burnt contacts to diagnose solenoid issues
A solenoid that fails to engage can leave your golf cart stranded, but diagnosing the issue often starts with something as simple as listening for a click. When you turn the key or press the pedal, a healthy solenoid should emit a distinct, audible click as it activates. If there’s silence, the problem could lie in the solenoid’s internal coil, a broken connection, or insufficient power reaching the unit. Use a multimeter to test for voltage at the solenoid’s terminals; if voltage is present but no click occurs, the solenoid itself is likely faulty. Conversely, no voltage indicates a wiring or battery issue upstream. This initial check narrows down whether the problem is mechanical, electrical, or both.
Voltage testing is a critical next step in troubleshooting solenoid issues. With the golf cart in the "on" position, measure the voltage across the solenoid’s main terminals. A fully charged system should read around 36 to 48 volts, depending on the cart’s battery configuration. If the voltage drops significantly below this range, the batteries may be drained or the wiring could have high resistance. Check the battery connections and clean any corrosion, as poor contact can mimic solenoid failure. If voltage is adequate but the solenoid still doesn’t engage, inspect the smaller activation wire (usually connected to the "S" terminal) for continuity. A break in this wire is a common culprit for solenoid inactivity.
Burnt contacts are another telltale sign of solenoid trouble, often caused by excessive current or arcing. Disassemble the solenoid (after disconnecting power) and inspect the internal contacts for discoloration, pitting, or melting. These symptoms indicate the solenoid has been drawing too much current, possibly due to a shorted coil or prolonged operation under load. If the contacts are damaged, the solenoid must be replaced. Preventative maintenance, such as regular cleaning and ensuring proper voltage regulation, can extend the solenoid’s lifespan. However, if the contacts are burnt, replacement is usually more cost-effective than repair.
In summary, diagnosing solenoid issues in a golf cart involves a systematic approach: listen for clicks, test for voltage, and inspect for burnt contacts. Each step isolates potential causes, from simple wiring faults to internal solenoid failures. Armed with a multimeter and basic mechanical knowledge, most issues can be resolved without professional help. Remember, safety first—always disconnect power before handling electrical components. By following these troubleshooting tips, you can quickly identify and address solenoid problems, keeping your golf cart running smoothly.
Decoding Your EZ-Go Golf Cart: Understanding the Identification Tag
You may want to see also
Frequently asked questions
The solenoid in a golf cart acts as an electromagnetic switch that controls the flow of electrical current from the battery to the motor, enabling the cart to move forward, reverse, or stop.
When activated by the key switch or pedal, the solenoid uses an electromagnetic coil to pull a plunger, which closes the circuit and allows high-voltage current to reach the motor, powering the golf cart.
Common signs include the cart not moving when the pedal is pressed, clicking noises from the solenoid, or the cart intermittently stopping or failing to start.
Replacing a golf cart solenoid can be a DIY task if you have basic mechanical and electrical knowledge, but it’s recommended to consult a professional if you’re unsure to avoid damage or safety risks.
