Trevor Ng

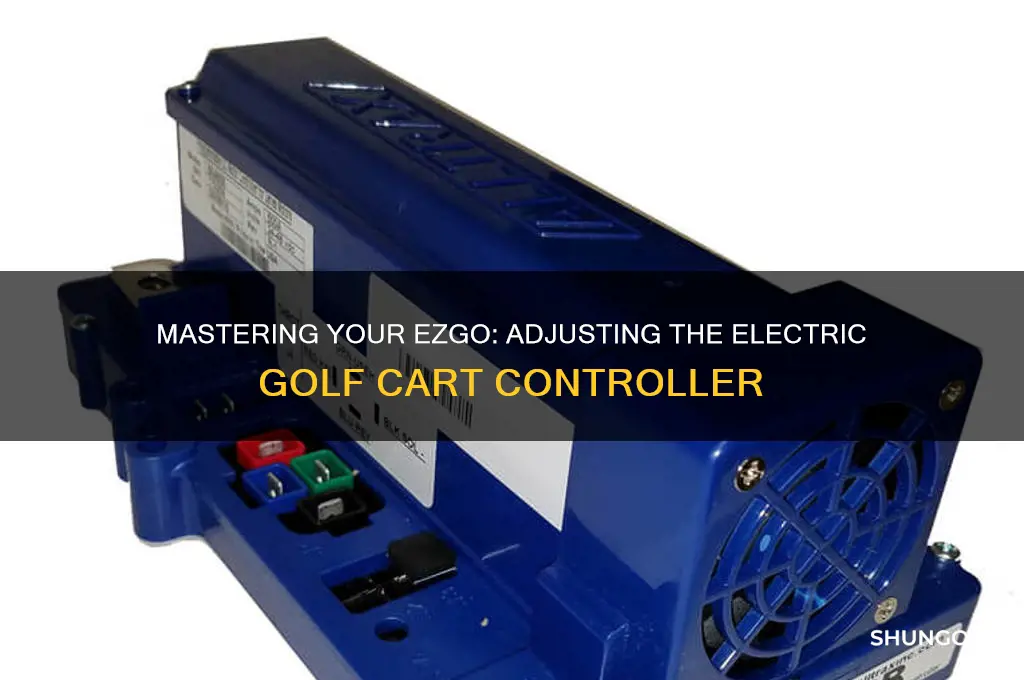

Adjusting the controller on an EZGO electric golf cart is a crucial step in optimizing its performance and ensuring a smooth, efficient ride. The controller acts as the brain of the cart, regulating the flow of power from the batteries to the motor, and fine-tuning it can address issues like sluggish acceleration, inconsistent speed, or reduced range. Whether you're looking to enhance performance or troubleshoot problems, understanding how to adjust the controller involves familiarizing yourself with its settings, such as potentiometer adjustments, programming parameters, and safety features. Proper adjustment not only improves the cart’s responsiveness but also extends the lifespan of its components, making it an essential skill for any EZGO electric golf cart owner.
| Characteristics | Values |
|---|---|
| Controller Type | EZGO Electric Golf Cart Controller (typically a Curtis or GE model) |
| Adjustment Purpose | Optimize speed, torque, and performance |
| Tools Required | Screwdriver, multimeter, wrench, and a small hammer (for pot adjustments) |
| Potentiometer (Pot) Adjustment | Located on the controller; adjust with a small screwdriver for speed/torque |
| Pot Range | Typically 0-5 kOhms (check specific model for exact range) |
| Default Pot Setting | Usually around 2.5 kOhms (midpoint) |
| Adjustment Direction | Clockwise = increase speed/torque; Counterclockwise = decrease |
| Testing After Adjustment | Drive the cart to test speed and performance |
| Safety Precautions | Disconnect battery before adjusting; wear safety gear |
| Common Issues | Slow speed, lack of power, or erratic performance |
| Controller Compatibility | Ensure controller matches the cart's voltage (36V or 48V) |
| Professional Assistance | Recommended if unsure about adjustments or troubleshooting |
| Maintenance Frequency | Adjust as needed based on performance changes |
| Additional Components | Check solenoid, batteries, and wiring for related issues |
| Documentation | Refer to EZGO manual or controller-specific guide for exact details |
Explore related products
What You'll Learn
- Identify Controller Type: Determine your EZGO model’s specific controller type for accurate adjustments
- Voltage Calibration: Adjust voltage settings to ensure optimal performance and battery efficiency
- Speed Settings: Modify speed limits to match usage needs and safety requirements
- Potentiometer Tuning: Fine-tune the potentiometer for smoother acceleration and control
- Troubleshooting Errors: Diagnose and fix common controller issues like overheating or erratic behavior
Identify Controller Type: Determine your EZGO model’s specific controller type for accurate adjustments
Before diving into adjustments, pinpointing your EZGO golf cart’s controller type is non-negotiable. EZGO has used various controllers over the years, including the venerable Curtis 1204, the GE series, and the more modern Alltrax models. Each operates differently, with unique voltage thresholds, programming interfaces, and adjustment protocols. For instance, a Curtis controller relies on potentiometer tweaks, while an Alltrax may require software adjustments via a handheld programmer. Misidentifying the controller can lead to inefficiency, damage, or even safety hazards. Start by locating the controller—typically under the seat or rear panel—and inspect the label for model numbers or branding. If the label is faded or missing, consult your cart’s manual or cross-reference the year and model online.
Analyzing the controller’s role reveals why specificity matters. The controller acts as the brain of your electric golf cart, regulating power flow from the batteries to the motor. Different controllers interpret throttle inputs and battery voltage uniquely, meaning adjustments like speed limits or acceleration curves vary widely. For example, a GE controller might require adjusting a trimpot for speed, while a Curtis controller uses a specific resistance range for torque settings. Without knowing the exact type, you risk over-amping the motor, draining batteries prematurely, or voiding warranties. Think of it as tuning a piano—each key (controller) demands a precise approach to achieve harmony.
To identify your controller, follow these steps: First, locate the controller box, usually a metal or plastic enclosure near the batteries. Second, examine the label for the manufacturer’s name (Curtis, Alltrax, GE, etc.) and model number. If the label is illegible, note the cart’s year and model—EZGO TXT, RXV, or Marathon—and cross-reference it with online databases or forums. Third, verify compatibility with adjustment tools; for instance, a Curtis controller may need a voltmeter for potentiometer calibration, while an Alltrax controller might require a programming cable. Pro tip: Take photos of the controller and labels before disassembly to avoid confusion later.
A cautionary tale underscores the importance of this step. A common mistake is assuming all EZGO controllers are alike, leading to generic adjustments that worsen performance. For instance, setting a Curtis controller’s speed pot to the wrong resistance can cause overheating, while misconfiguring an Alltrax’s regen braking can lead to erratic stopping. Even professionals sometimes overlook this step, resulting in costly repairs or replacements. Always double-check the controller type before proceeding—it’s the difference between a smooth ride and a troubleshooting nightmare.
In conclusion, identifying your EZGO’s controller type is the cornerstone of successful adjustments. It ensures compatibility with tools, prevents damage, and maximizes performance. Treat this step as your diagnostic foundation, saving time and frustration down the line. Whether you’re a DIY enthusiast or a seasoned mechanic, precision here pays dividends in efficiency and safety.
Adjusting 1992 EZ Go Marathon Golf Cart Brakes: A Step-by-Step Guide
You may want to see also
Explore related products
Voltage Calibration: Adjust voltage settings to ensure optimal performance and battery efficiency
Voltage calibration is a critical step in optimizing the performance and longevity of your EZGO electric golf cart. The controller, acting as the brain of the cart, relies on accurate voltage readings to manage power delivery efficiently. Over time, voltage settings can drift due to battery wear, environmental factors, or electronic component aging. This misalignment can lead to subpar performance, reduced range, and even premature battery failure. Calibrating the voltage ensures the controller interprets battery levels correctly, maximizing both power output and energy efficiency.
To begin calibration, ensure your golf cart is fully charged and turned off. Locate the controller, typically housed under the seat or in the battery compartment, and identify the voltage adjustment potentiometer. This small dial controls the voltage threshold at which the controller operates. Using a multimeter, measure the battery’s resting voltage and compare it to the controller’s programmed value. If there’s a discrepancy, adjust the potentiometer incrementally, testing after each adjustment until the controller’s reading matches the multimeter’s. This process requires patience, as over-adjusting can lead to overcharging or underutilization of the battery.
A common mistake during calibration is neglecting to account for temperature effects on battery voltage. Cold temperatures can cause voltage readings to drop, while heat may artificially inflate them. For accurate calibration, perform the process in a stable, moderate temperature environment. Additionally, consult your EZGO manual for specific voltage ranges, as these can vary by model. For instance, a 36V cart typically operates between 28V (fully discharged) and 38V (fully charged), while a 48V model ranges from 40V to 54V. Staying within these limits prevents damage to the battery and controller.
The benefits of proper voltage calibration extend beyond immediate performance gains. By ensuring the controller accurately interprets battery levels, you reduce the risk of over-discharge, a leading cause of battery degradation. This not only prolongs battery life but also minimizes the need for frequent replacements, saving both time and money. Moreover, a well-calibrated system delivers consistent power, enhancing the overall driving experience. Whether navigating steep hills or cruising on flat terrain, your cart will respond predictably, reflecting the precision of its calibrated controller.
In practice, voltage calibration should be part of your regular maintenance routine, especially after battery replacements or significant usage changes. Pair this adjustment with other controller maintenance tasks, such as cleaning terminals and updating firmware, for comprehensive care. While the process may seem technical, it’s accessible to most DIY enthusiasts with basic tools and a methodical approach. By mastering voltage calibration, you empower yourself to maintain peak performance from your EZGO electric golf cart, ensuring it remains a reliable companion on the course or around your property.
Golf Cart Climbing Power: Maximum Hill Gradient Explained
You may want to see also
Explore related products
Speed Settings: Modify speed limits to match usage needs and safety requirements
Adjusting the speed settings on an EZGO electric golf cart controller is a critical step in tailoring the vehicle’s performance to its intended use. Whether it’s for leisurely rounds on the golf course, heavy-duty hauling, or navigating residential areas, the speed limit must align with both functionality and safety. Most EZGO controllers come with preset speed limits, but these can often be modified using potentiometers or programming tools. For instance, the Curtis 1268 controller, commonly used in EZGO models, features a "Speed Trim Pot" that allows users to increase or decrease the top speed by adjusting a small dial. Understanding these mechanisms is the first step in customization.
From a safety perspective, modifying speed settings isn’t just about performance—it’s about risk management. Golf carts operating in crowded areas, such as resorts or retirement communities, should have lower speed limits to prevent accidents. For example, reducing the top speed from 19 mph to 12 mph can significantly decrease stopping distance and reaction time. Conversely, carts used on private property for utility tasks may benefit from higher speeds, but only if the terrain and operator skill level permit. A practical tip is to test adjustments in a controlled environment before full implementation, ensuring the cart behaves predictably under various conditions.
The process of adjusting speed settings varies depending on the controller model. For older EZGO carts with resistor-based controllers, speed is often limited by the size of the motor or the resistance in the circuit. Upgrading to a modern programmable controller, like the Alltrax series, offers more flexibility. These controllers allow users to set precise speed limits via software interfaces, often accessible through a handheld programmer or laptop. For instance, the Alltrax 48450 controller can be programmed to limit speed to 15 mph for novice drivers or increased to 25 mph for experienced users. Always consult the controller’s manual for specific instructions, as incorrect adjustments can void warranties or damage components.
One common misconception is that higher speed settings automatically equate to better performance. In reality, excessive speed can strain the motor, batteries, and brakes, leading to premature wear or failure. For example, running a cart at 20 mph consistently can reduce battery life by up to 20% compared to operating at 15 mph. Additionally, faster speeds increase the risk of tipping on uneven terrain. A balanced approach is key: assess the cart’s primary use, factor in environmental conditions, and prioritize longevity over raw speed. For utility carts, consider pairing speed adjustments with upgrades like heavier-duty suspension or larger tires for stability.
Finally, legal considerations must guide speed adjustments. Many jurisdictions classify golf carts as Low-Speed Vehicles (LSVs) and impose strict speed limits, typically 20–25 mph. Exceeding these limits can result in fines or the cart being deemed non-compliant. For example, in California, LSVs must not exceed 25 mph and must be equipped with safety features like seatbelts and headlights. Before modifying speed settings, research local regulations and ensure the cart remains street-legal if used on public roads. Combining technical adjustments with legal awareness ensures the cart is both safe and compliant, maximizing utility without compromising responsibility.
How to Test a Golf Cart Motor: A Comprehensive Guide
You may want to see also
Explore related products
Potentiometer Tuning: Fine-tune the potentiometer for smoother acceleration and control
The potentiometer in your EZGO electric golf cart controller is a critical component for managing acceleration and overall performance. Often referred to as a "pot," this variable resistor adjusts the signal sent to the motor, directly influencing how your cart responds to pedal input. Over time, wear or improper settings can lead to jerky starts, sluggish acceleration, or inconsistent speed control. Fine-tuning the potentiometer restores precision, ensuring a smoother, more responsive driving experience.
To begin tuning, locate the potentiometer, typically found near the controller or throttle linkage. It’s a small, adjustable component with a screw or dial. Before making adjustments, ensure the cart is powered off and on a flat surface. Start by testing the cart’s current performance: note how it accelerates from a stop and responds to gradual pedal pressure. Does it lurch forward or hesitate? These observations will guide your adjustments.
Using a small screwdriver, turn the potentiometer screw clockwise to increase sensitivity or counterclockwise to decrease it. Small increments—about 1/8 to 1/4 of a turn at a time—are recommended. After each adjustment, test the cart again. Aim for a linear response: the cart should move smoothly and proportionally to pedal input, without sudden surges or delays. Over-adjusting can lead to excessive sensitivity, causing the cart to accelerate too quickly or stall, so patience is key.
One practical tip is to mark the potentiometer’s initial position with a piece of tape or a small dot of paint. This allows you to revert to the original setting if needed. Additionally, consider environmental factors like battery charge and terrain, as these can affect performance. For example, a fully charged battery may make the cart more responsive, while hilly terrain requires a more conservative tuning approach.
In conclusion, potentiometer tuning is a straightforward yet impactful way to enhance your EZGO golf cart’s drivability. By making gradual adjustments and testing after each change, you can achieve smoother acceleration and better control. Remember, the goal is not to maximize speed but to optimize responsiveness, ensuring a safe and enjoyable ride. With a properly tuned potentiometer, your cart will handle more predictably, making every trip around the course or property a seamless experience.
Enhance Your Golf Experience: Stereo Golf Cart Installation Guide
You may want to see also
Explore related products
Troubleshooting Errors: Diagnose and fix common controller issues like overheating or erratic behavior
Overheating controllers in EZGO electric golf carts often stem from excessive current draw or inadequate ventilation. Start by checking the controller’s cooling fins for dust, debris, or corrosion, which can block airflow. Use compressed air or a soft brush to clean these areas, ensuring proper heat dissipation. Next, verify the amperage draw during operation; a multimeter can help here. If the draw exceeds the controller’s rated capacity (typically 400-500 amps for EZGO models), inspect the motor and battery connections for shorts or overloading. Reducing unnecessary accessories or ensuring the cart isn’t overloaded can also alleviate strain on the controller.
Erratic behavior, such as sudden acceleration or inconsistent speed, often points to wiring issues or faulty potentiometer (speed control) calibration. Begin by inspecting all wiring connections for looseness, corrosion, or damage. Pay special attention to the potentiometer wiring, as this component directly regulates speed. If connections are secure, recalibrate the potentiometer using a voltmeter. Adjust the potentiometer screw until the voltage reads 0.8-1.0 volts at rest and increases linearly to 4.0-4.5 volts at full throttle. If erratic behavior persists, the potentiometer itself may need replacement, as worn internal contacts can cause signal fluctuations.
A comparative analysis of controller issues reveals that overheating and erratic behavior often share root causes, such as poor maintenance or component wear. However, overheating is more likely to escalate into permanent damage if ignored, while erratic behavior typically remains a nuisance until addressed. To prevent both, adopt a proactive maintenance routine: inspect the controller and wiring every 3-6 months, clean contacts with electrical contact cleaner, and ensure all connections are tight. For carts used in harsh conditions (e.g., sandy or humid environments), consider installing a controller heat sink or fan to enhance cooling.
Instructive troubleshooting for persistent issues requires methodical testing. If overheating continues after cleaning and load adjustments, test the controller’s internal FETs (field-effect transistors) using a multimeter in diode mode. Readings outside the manufacturer’s specifications indicate a failed component, necessitating controller replacement. For erratic behavior, isolate the issue by testing the potentiometer independently; disconnect it and apply a known voltage to verify its output. If the potentiometer functions correctly, the issue may lie in the controller’s internal circuitry, requiring professional diagnosis or replacement. Always disconnect the battery before performing electrical tests to avoid short circuits or injury.
Golf Cart Roof Height: Dimensions and Practical Considerations Explained
You may want to see also
Frequently asked questions
Signs include reduced speed, jerky acceleration, or the cart not reaching full power. Use a multimeter to check voltage and current output to diagnose issues.
You’ll need a screwdriver, wrench, multimeter, and possibly a controller adjustment tool (if applicable to your model).
Basic adjustments can be done DIY if you’re familiar with electrical systems. However, complex issues or reprogramming may require professional assistance.
Locate the reset button or disconnect the battery for 10-15 minutes. Refer to your controller’s manual for model-specific reset instructions.
