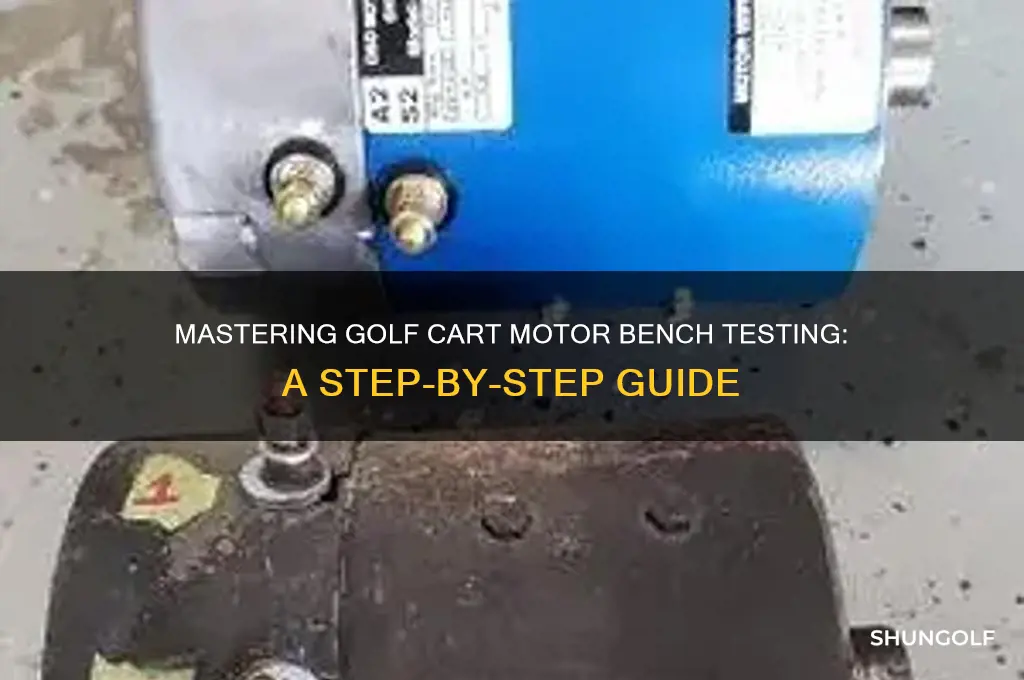

Bench testing a golf cart motor is a critical process to ensure its functionality, efficiency, and safety before installation or after repairs. This procedure involves disconnecting the motor from the vehicle and testing it in a controlled environment to evaluate its performance, such as voltage output, amperage draw, and overall mechanical condition. By using specialized tools like multimeters, power supplies, and load testers, technicians can diagnose issues like worn brushes, faulty windings, or improper connections. Bench testing not only helps identify potential problems early but also ensures the motor operates within manufacturer specifications, prolonging its lifespan and optimizing the golf cart’s performance. Whether troubleshooting or performing routine maintenance, this method is essential for anyone working with electric golf cart motors.
Explore related products
What You'll Learn
- Gather Tools and Materials: Multimeter, wrenches, screwdriver, battery, safety gear, and motor manual
- Disconnect Power Source: Ensure cart is off, remove battery connections, and verify no live wires
- Test Motor Continuity: Use multimeter to check for open or short circuits in motor windings
- Inspect Brushes and Commutator: Clean brushes, check wear, and ensure commutator is smooth and undamaged
- Run Motor Manually: Spin motor by hand to check for binding, noise, or resistance
Gather Tools and Materials: Multimeter, wrenches, screwdriver, battery, safety gear, and motor manual
Before attempting to bench test a golf cart motor, it's essential to gather the necessary tools and materials to ensure a safe and efficient process. A multimeter, for instance, is a critical tool that will allow you to measure voltage, current, and resistance, providing valuable insights into the motor's performance. When selecting a multimeter, opt for a digital model with a minimum resolution of 0.1 volts and the ability to measure up to 20 amps, as these specifications will enable you to accurately diagnose potential issues.
In addition to the multimeter, you'll need a set of wrenches and a screwdriver to disassemble and reassemble the motor components. Choose wrenches with a range of sizes, from 8mm to 19mm, to accommodate various bolt and nut sizes. A standard screwdriver set with flathead and Phillips head options will suffice for most golf cart motors. It's also crucial to have a fully charged battery on hand, as it will serve as the power source during the bench test. Ensure the battery is rated for the motor's voltage, typically 36V or 48V, and has a capacity of at least 200 amp-hours to provide sufficient power.
Safety gear is another vital component of your toolkit. Wear protective gloves, safety goggles, and a face shield to guard against potential hazards, such as electrical shocks, flying debris, or battery acid exposure. When working with electrical systems, it's better to be over-prepared than under-protected. Furthermore, having the motor manual readily available can save you time and frustration. The manual will provide specific instructions, torque specifications, and wiring diagrams tailored to your golf cart motor, ensuring you follow the manufacturer's recommended procedures.
As you gather your tools and materials, consider organizing them in a systematic manner to streamline the bench testing process. Lay out the multimeter, wrenches, and screwdriver within easy reach, and position the battery and motor in a well-ventilated area. Keep the safety gear nearby, and have the motor manual open to the relevant section for quick reference. By taking the time to prepare your workspace and equipment, you'll minimize the risk of errors, reduce the likelihood of accidents, and increase the efficiency of your golf cart motor bench test. Remember, a well-prepared technician is a confident and effective one.
