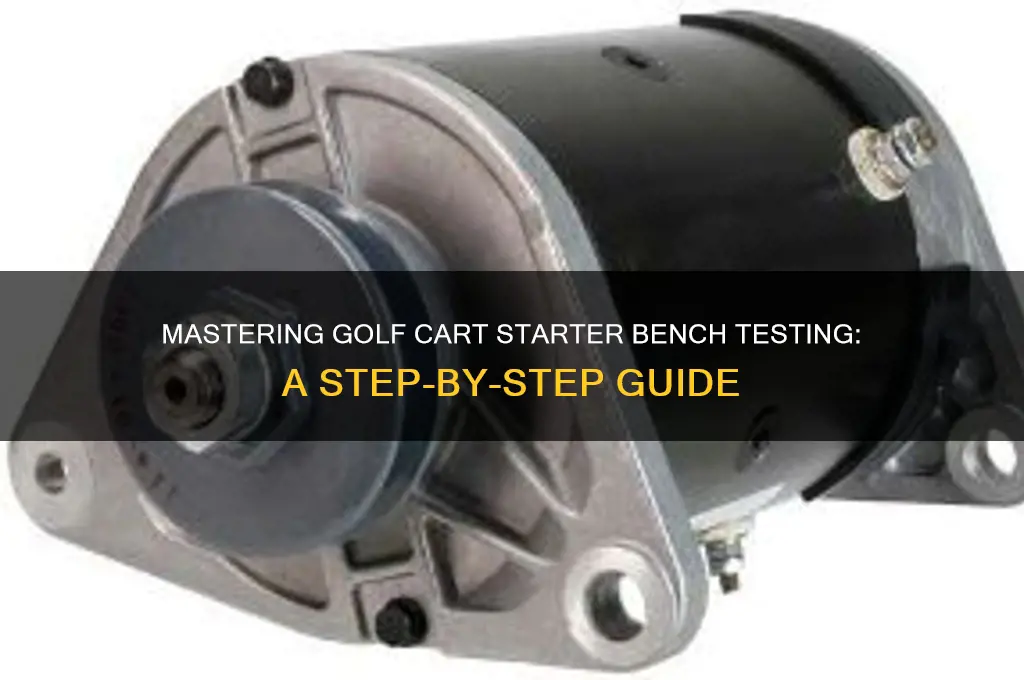

Bench testing a golf cart starter is a crucial diagnostic procedure to ensure the starter motor is functioning properly before reinstallation. This process involves removing the starter from the golf cart and testing it in a controlled environment to verify its electrical and mechanical performance. By connecting the starter to a power source and monitoring its operation, you can identify issues such as faulty solenoids, worn brushes, or insufficient torque. Proper bench testing not only confirms the starter’s reliability but also helps prevent potential failures during operation, saving time and money on future repairs. This methodical approach is essential for maintaining the longevity and efficiency of your golf cart’s electrical system.
Explore related products
What You'll Learn
- Prepare Tools and Safety Gear: Gather multimeter, wrenches, gloves, safety glasses, and ensure cart is powered off
- Inspect Starter Connections: Check wiring for damage, clean terminals, and ensure tight connections to the battery
- Test Battery Voltage: Use multimeter to verify battery voltage meets manufacturer specifications before testing starter
- Activate Starter Manually: Bypass ignition, apply power directly to starter solenoid to check functionality
- Diagnose Common Issues: Identify symptoms like clicking noises, slow cranking, or no response for troubleshooting
Prepare Tools and Safety Gear: Gather multimeter, wrenches, gloves, safety glasses, and ensure cart is powered off
Before diving into bench testing a golf cart starter, it's crucial to assemble the right tools and safety gear. A multimeter, for instance, is indispensable for diagnosing electrical issues, as it measures voltage, current, and resistance. Pair this with a set of wrenches to handle any mechanical adjustments, ensuring you have sizes that fit the starter’s bolts. Gloves and safety glasses are non-negotiable—they protect against sharp edges, electrical shocks, and debris that could cause injury. Always verify the cart is powered off before beginning; a live electrical system can turn a routine test into a hazardous situation.
Consider the multimeter as your diagnostic lifeline. Opt for a digital model with auto-ranging capabilities to simplify readings, especially if you’re not an experienced technician. When selecting wrenches, prioritize those with rubberized grips for better control, and ensure they’re clean and free of grease to prevent slipping. Gloves should be insulated and snug-fitting to maintain dexterity while providing protection. Safety glasses must meet ANSI Z87.1 standards to ensure they can withstand impact. These tools and gear aren’t just accessories—they’re your first line of defense against accidents.
The sequence of preparation matters. Start by powering off the cart and disconnecting the battery to eliminate electrical hazards. Lay out your tools in a logical order—multimeter first, then wrenches, followed by safety gear—to streamline the testing process. Position yourself in a well-lit, clutter-free area to minimize distractions and maximize efficiency. If working outdoors, avoid damp conditions that could compromise electrical safety. A systematic approach not only saves time but also reduces the risk of overlooking critical steps.
Contrast this with improvising or skipping safety measures, which can lead to costly mistakes or injuries. For example, using a standard screwdriver instead of a wrench might strip bolts, while forgoing gloves exposes you to sharp metal edges. Similarly, neglecting safety glasses leaves your eyes vulnerable to flying debris. Bench testing isn’t just about diagnosing the starter—it’s about doing so safely and effectively. By investing a few minutes in preparation, you ensure a smoother, safer process that yields accurate results.
Finally, treat this preparation as a ritual, not a chore. Each tool and piece of gear serves a specific purpose, and familiarity with them builds confidence in your ability to troubleshoot. Keep your multimeter calibrated and your wrenches organized in a toolbox for easy access. Store gloves and safety glasses in a clean, dry place to prolong their lifespan. By making preparation a habit, you not only safeguard yourself but also set a professional standard for any maintenance task. Remember, the goal isn’t just to test the starter—it’s to do so with precision and care.
Easy Steps to Access and Replace Batteries in Your Electric Golf Cart
You may want to see also
Explore related products
Inspect Starter Connections: Check wiring for damage, clean terminals, and ensure tight connections to the battery
Corroded or loose connections are the silent saboteurs of golf cart starters, often masquerading as more complex mechanical failures. Before condemning the starter itself, a meticulous inspection of its electrical lifeline is paramount. Begin by disconnecting the battery to eliminate any risk of short circuits. Visually scan the wiring harness for telltale signs of wear: frayed insulation, exposed copper, or brittle plastic that crumbles under gentle pressure. Even minor damage can lead to voltage drops or intermittent operation, so replace compromised wires immediately.
Next, turn your attention to the battery terminals. Corrosion, a greenish or whitish buildup, acts as an insulator, starving the starter of current. Use a mixture of baking soda and water (3 tablespoons per cup) applied with a stiff-bristled brush to neutralize and remove this residue. Rinse thoroughly with clean water and dry completely before reassembly. For stubborn deposits, a terminal cleaner tool with wire brushes designed for battery posts can be invaluable.
Tightening connections seems straightforward, but over-torquing can warp terminals, while under-tightening invites resistance. Use a torque wrench set to 10-15 ft-lbs for standard lead-acid batteries, ensuring a firm but not excessive grip. Coat terminals with a thin layer of dielectric grease to inhibit future corrosion—a small investment that pays dividends in longevity.
Compare this process to a doctor diagnosing a patient: the wiring is the circulatory system, terminals the vital junctions, and proper tension the steady heartbeat. Neglect any one, and the starter’s performance falters. By methodically addressing these elements, you transform a potentially frustrating diagnostic odyssey into a systematic, rewarding exercise in precision.
Adjusting Carburetor on Yamaha Golf Cart: Step-by-Step Guide for Optimal Performance
You may want to see also
Explore related products
Test Battery Voltage: Use multimeter to verify battery voltage meets manufacturer specifications before testing starter
Before attempting to bench test a golf cart starter, it's crucial to ensure the battery is functioning within optimal parameters. A weak or faulty battery can lead to inaccurate test results, potentially causing unnecessary replacements or repairs. The first step in this process is to verify the battery voltage using a multimeter, a versatile tool that measures voltage, current, and resistance. By confirming the battery voltage meets manufacturer specifications, you establish a reliable baseline for subsequent starter testing.
To begin, locate the battery terminals on your golf cart, typically marked as positive (+) and negative (-). Set your multimeter to the DC voltage setting, often denoted by a V with a straight line above it. Connect the multimeter's red probe to the positive terminal and the black probe to the negative terminal. A healthy golf cart battery should read between 50 and 52 volts when fully charged, depending on the manufacturer's specifications. If your battery is 36-volt, expect a reading between 37 and 38 volts. Always refer to your golf cart's manual for precise voltage requirements.
Consider this scenario: you’re troubleshooting a golf cart that won’t start, and you suspect the starter might be at fault. Before jumping to conclusions, testing the battery voltage can save time and money. For instance, a 48-volt battery system should show a reading close to 51.2 volts when fully charged. If your multimeter displays a significantly lower value, such as 42 volts, the battery is likely the issue, not the starter. This comparative analysis highlights the importance of accurate voltage testing as a diagnostic tool.
When testing battery voltage, be mindful of safety precautions. Always wear protective gear, such as gloves and safety goggles, to prevent injury from acid leaks or short circuits. Ensure the golf cart is turned off and the key is removed before connecting the multimeter. If you’re working with a lithium battery, exercise extra caution, as these batteries can discharge rapidly and pose a fire risk if mishandled. Additionally, avoid touching the probes to each other while connected to the battery, as this can cause a short circuit.
In conclusion, testing battery voltage is a critical yet often overlooked step in bench testing a golf cart starter. By using a multimeter to verify that the voltage meets manufacturer specifications, you eliminate a common variable that could skew your results. This simple yet effective procedure ensures that any issues identified during starter testing are genuinely related to the starter itself, not an underperforming battery. Always prioritize accuracy and safety in your diagnostics to achieve reliable and efficient repairs.
Safely Attach a Slow Moving Vehicle Sign to Your Golf Cart
You may want to see also
Explore related products
Activate Starter Manually: Bypass ignition, apply power directly to starter solenoid to check functionality
To determine if a golf cart starter is functioning properly, one effective method is to bypass the ignition system and apply power directly to the starter solenoid. This technique isolates the starter from the rest of the electrical system, allowing you to pinpoint whether the issue lies with the starter itself or another component. By doing so, you eliminate variables like faulty ignition switches, weak batteries, or poor wiring connections, focusing solely on the starter’s mechanical and electrical integrity.
Begin by disconnecting the golf cart’s battery to ensure safety and prevent accidental engagement of the starter. Locate the starter solenoid, typically a cylindrical or rectangular component with two large terminals connected to the battery and starter motor. Identify the "S" (start) terminal on the solenoid, which is usually smaller than the main power terminals. Using a jumper wire or a screwdriver with an insulated handle, momentarily connect the "S" terminal to the positive battery terminal. This simulates the signal the ignition switch would send, activating the solenoid and engaging the starter. If the starter spins freely and sounds healthy, the issue likely lies elsewhere in the system.
Caution is essential during this process. Always wear safety goggles and gloves to protect against sparks or short circuits. Avoid prolonged contact between the jumper wire and terminals, as this can drain the battery or damage the solenoid. If the starter fails to engage, check for corroded terminals or loose connections, as these can impede power flow. Additionally, ensure the starter motor is properly grounded; a poor ground connection can mimic a faulty starter.
This method is particularly useful when diagnosing intermittent starting issues or when the ignition system is suspected to be the culprit. By directly powering the solenoid, you gain clarity on whether the starter is capable of functioning under ideal conditions. If the starter operates correctly during this test but fails during normal use, the problem likely resides in the ignition switch, wiring, or battery. Conversely, if the starter does not engage, further inspection of the solenoid, starter motor, or internal components may be necessary.
In summary, manually activating the starter by bypassing the ignition provides a straightforward way to assess its functionality. This diagnostic step saves time and narrows down potential causes of starting problems, making it an invaluable technique for golf cart troubleshooting. Always prioritize safety and methodical testing to ensure accurate results and avoid unnecessary repairs.
