Connecting the battery cable to the motor of an EZGO golf cart is a straightforward process that ensures your cart operates efficiently. To begin, ensure the golf cart is turned off and the key is removed to prevent any accidental starts. Locate the battery compartment, typically under the seat, and identify the positive and negative terminals on the battery. The motor’s corresponding cables should be clearly labeled or color-coded for easy identification. Start by attaching the positive cable (usually red) to the positive terminal, tightening the connection securely with a wrench. Next, connect the negative cable (usually black) to the negative terminal, ensuring it is firmly in place. Double-check all connections for tightness and proper alignment before turning the cart back on. This simple procedure will restore power to the motor, allowing your EZGO golf cart to function smoothly.
| Characteristics | Values |
|---|---|
| Golf Cart Model | EZGO (Electric) |
| Battery Type | 36V or 48V Deep Cycle Lead-Acid or Lithium (6 x 6V or 4 x 12V) |
| Motor Type | DC Series Wound Motor (Specific to EZGO models like TXT, RXV, etc.) |
| Cable Gauge | 4 AWG (American Wire Gauge) or as recommended by manufacturer |
| Cable Length | Sufficient to reach from battery bank to motor (typically 2-3 feet per cable) |
| Connector Type | Anderson Powerpole, SB50, or EZGO-specific connectors |
| Polarity | Red for Positive (+), Black for Negative (-) |
| Tools Required | Wrench, Socket Set, Wire Strippers, Crimping Tool, Multimeter |
| Safety Gear | Insulated Gloves, Safety Goggles |
| Connection Order | 1. Disconnect batteries (remove negative first). 2. Identify motor terminals (usually marked + and -). 3. Connect positive cable to motor + terminal. 4. Connect negative cable to motor - terminal. 5. Secure connections with torque specs. 6. Reconnect battery bank (negative last). |
| Torque Specs | 15-20 ft-lbs (check EZGO manual for exact specs) |
| Testing | Use multimeter to verify voltage at motor terminals post-connection. |
| Common Issues | Loose connections, corroded terminals, incorrect polarity, undersized cables |
| Maintenance Tips | Regularly inspect cables for wear, clean terminals, and tighten connections. |
| Reference Manual | EZGO Service Manual (specific to model year and series) |
Explore related products
What You'll Learn
- Battery Cable Types: Identify correct gauge, length, and polarity for EZGO golf cart battery cables
- Connecting Batteries: Properly link batteries in series or parallel for optimal power output
- Motor Wiring: Attach battery cables to the motor terminals securely, ensuring tight connections
- Safety Precautions: Use insulated tools, avoid sparks, and disconnect power before starting work
- Troubleshooting Tips: Check for loose connections, corrosion, or damaged cables if motor fails to run

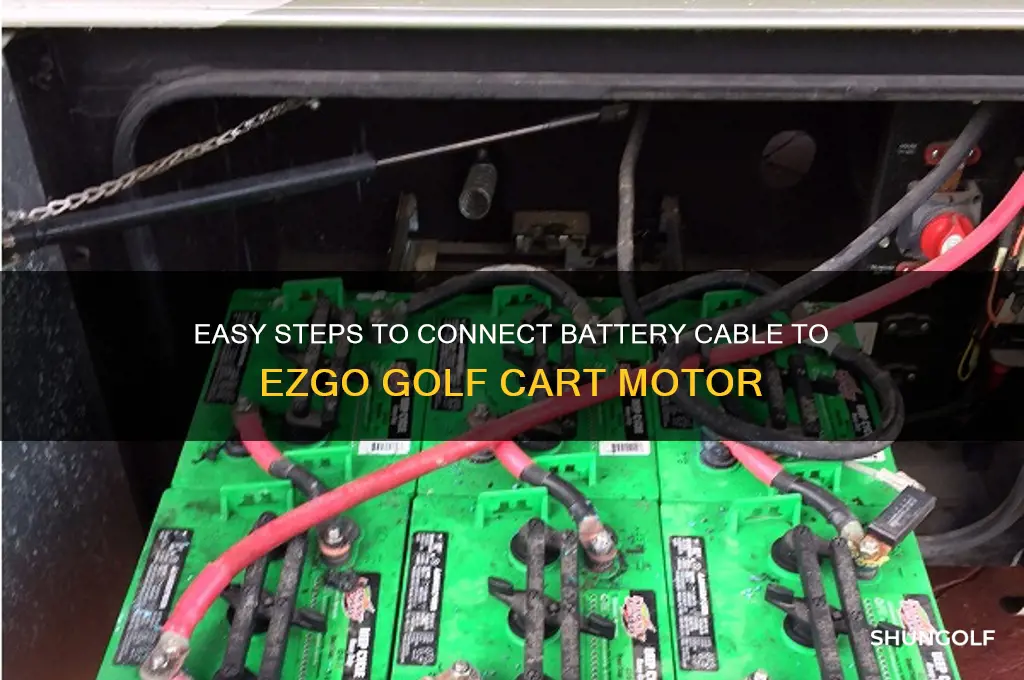

Battery Cable Types: Identify correct gauge, length, and polarity for EZGO golf cart battery cables
Selecting the right battery cables for your EZGO golf cart is critical for performance and safety. The gauge, or thickness, of the cable directly impacts its ability to handle current flow. EZGO carts typically require 6-gauge cables, which are sufficient for the 36V or 48V systems commonly found in these models. Thicker cables (lower gauge numbers) reduce voltage drop and heat buildup, ensuring efficient power delivery to the motor. Always verify your cart’s specific voltage and amperage requirements before purchasing cables to avoid underperformance or damage.
Length matters just as much as gauge. EZGO golf carts often have compact battery compartments, so cables that are too long can create unnecessary clutter or become damaged during operation. Measure the distance between your battery terminals and the motor connection points, adding a few inches for flexibility. Standard lengths for EZGO carts range from 12 to 24 inches, depending on the model and battery configuration. Custom lengths are available, but pre-cut cables designed specifically for EZGO carts are often the most cost-effective and reliable option.
Polarity is non-negotiable—reversing the positive and negative connections can cause irreversible damage to your cart’s electrical system. EZGO carts use color-coded cables (red for positive, black for negative) to simplify installation. Double-check the markings on your batteries and motor terminals to ensure alignment. If your cables lack color coding, use a multimeter to confirm polarity before connecting. Proper polarity ensures the electrical current flows correctly, preventing short circuits and extending the life of your components.
When replacing or upgrading battery cables, consider the material and construction. Copper cables are superior to aluminum due to their higher conductivity and corrosion resistance. Look for cables with durable insulation rated for high temperatures and chemical resistance, as golf cart batteries operate in harsh environments. Additionally, opt for cables with pre-attached terminals or lugs that match your EZGO’s connectors for a secure, hassle-free installation. Investing in quality cables now saves time and money on replacements later.
Finally, inspect your cables regularly for signs of wear, corrosion, or fraying. Clean battery terminals with a wire brush and apply dielectric grease to prevent oxidation. If you notice swelling, melting, or exposed wires, replace the cables immediately. Proper maintenance ensures your EZGO golf cart remains reliable, whether you’re on the course or using it for utility purposes. By prioritizing gauge, length, polarity, and quality, you’ll keep your cart running smoothly for years to come.
